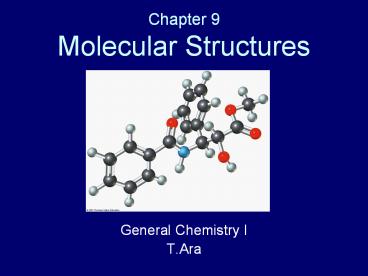

Chapter 9 Molecular Structures

1
Chapter 9Molecular Structures

• General Chemistry I
• T.Ara

2
Drawing Lewis Structures

• Before we get started, work together to draw a
  valid Lewis structure for each of the formulas on
  p. 89 of your lab manual include lone pairs.
• The first three structures will have central
  atoms with less than an octet. Do not use
  multiple bonds.
• For each structure, fill in the table with the
  number of bonding electron pairs and the number
  of lone pairs around the central atom.

3
A. Molecular Shapes

• The 3-dimensional shape of a molecule is part of
  what determines a molecules physical properties
• Boiling Point
• Melting Point
• Molecular shape also affects the biological
  activity of a molecule.
• Molecular formulas Lewis structures do not give
  information about molecular shape.

4
1. Representing 3-D Molecules

• Use dashes wedges to draw 3-D molecules on flat
  surfaces.
• eg. Methane

5
B. Valence Shell Electron Pair Repulsion (VSEPR)

• The VSEPR model predicts the shapes of molecules
  based on the fact that electrons repel each
  other.
• Lone pair bonding electrons are arranged such
  that they are as far apart as possible.
• The number of electron pairs around an atom
  dictates the most stable geometric arrangement of
  those electrons.

6
1. Molecular Electron-Pair Geometry

• We will focus on two types of geometries
• Molecular Geometry the 3-dimensional arrangement
  of the atoms around a central atom
• Electron-Pair Geometry the geometry around a
  central atom, including the spatial positions of
  atoms and lone pair electrons
• For atoms with no lone pairs, the molecular
  electron-pair geometries are the same.

7
2. Atoms with no Lone Pairs

• When an atom has no lone pairs, the molecular
  geometry can be predicted based on the number of
  atoms bonded to the central atom.
• Linear (2)
• Trigonal Planar (3)
• Tetrahedral (4)
• Trigonal Bipyramidal (5)
• Octahedral (6)

8
a) Linear

• Atoms that are bonded to two other atoms have a
  linear geometry with a 180 bond angle.
• Bond Angle the angle
• between the bonds of two
• atoms that are bonded to
• the same third atom

Note The two oxygen atoms in CO2 are pointed in
opposite directions (as far apart as possible).
9
b) Trigonal (Triangular) Planar

• Atoms that are bonded to three other atoms have a
  trigonal planar geometry with 120 bond angles.
• All four atoms are in the same plane.
• eg. AlCl3 is
• trigonal
• planar.

10
c) Tetrahedral

• Atoms that are bonded to four other atoms have a
  tetrahedral geometry with 109.5 bond angles.
• eg. Silane has a
• tetrahedral geometry.

11
Drawing 3-D Structures

• Draw the 3-D tetrahedral structure of methane
  using dashes and wedges.

12
d) Trigonal (Triangular) Bipyramidal

• Atoms that are bonded to five other atoms have a
  trigonal bipyramidal geometry.
• Only atoms in the third row or lower can have
  this geometry because it requires an expanded
  valence.
• There are two distinct types of positions around
  the central atom
• Axial 90 from the equatorial atoms
• Equatorial 120 from each other
• eg. PF5 is trigonal bipyramidal.

13
Drawing 3-D Structures

• Draw the 3-D trigonal bipyramidal structure of
  PCl5 using dashes and wedges.

14
e) Octahedral

• Atoms that are bonded to six other atoms have an
  octahedral geometry.
• Only atoms in the third row or lower can have
  this geometry because it requires an expanded
  valence.
• All bond angles are 90.
• eg. SBr6 is octahedral.

15
Drawing 3-D Structures

• Draw the 3-D octahedral structure of SF6 using
  dashes and wedges.

16
Geometries Atoms with no Lone Pairs

• You should be able to predict and draw the
  geometry (with bond angles) of a central atom
  with no lone pairs.

17
Predicting Geometries (no lone pairs)
Dichloromethane, a common organic solvent, has
the molecular formula CH2Cl2. Draw a Lewis
structure for dichloromethane, and use it to
predict and draw the 3-D molecular shape.
18
Predicting Geometries (No Lone Pairs)
Borane has the molecular formula BH3. Draw a
Lewis structure for borane, and use it to predict
and draw the 3-D molecular shape. (Hint B has
less than an octet.)
19
Predicting Geometries (No Lone Pairs)
Phosphorus pentafluoride has the molecular
formula PF5. Draw a Lewis structure for
phosphorus pentafluoride, and use it to predict
and draw the 3-D molecular shape.
20
Central Atoms With Lone Pairs

• When the central atom has at least one lone pair
  of electrons, the molecular and the electron-pair
  geometries are different.
• How can we predict the geometries in these cases?

21
3. Atoms Surrounded by 3 Electron Pairs

• REMEMBER If all three electron pairs are bonding
  electrons, the molecular and electron-pair
  geometries are the same trigonal planar.
• If one electron pair is nonbonding (1 lone pair)
• The electron-pair geometry is
• trigonal planar.
• The molecular geometry is
• angular (bent) - only pay
• attention to the relative
• orientation of the atoms, not
• the lone pairs.

22
4. Atoms Surrounded by 4 Electron Pairs

• REMEMBER If all four electron pairs are bonding
  electrons, the molecular and electron-pair
  geometries are the same tetrahedral.
• If one electron pair is nonbonding (1 lone pair)
• The electron-pair geometry is tetrahedral.
• The molecular geometry is trigonal pyramidal.

23
4. Atoms Surrounded by 4 Electron Pairs

• If two electron pairs are nonbonding (two lone
  pairs)
• The electron-pair geometry
• is tetrahedral.
• The molecular geometry is
• angular (bent).

24
4. Atoms Surrounded by 4 Electron Pairs

• Lone pair electrons are bulkier than bonding
  electrons, so they take up more space.
• Notice the bond angle compression as lone pairs
  are added to the central atom

25
Atoms Surrounded by 3 or 4 Electron Pairs

• Remember When the central atom has bonding and
  nonbonding electrons, it is important to
  distinguish between the molecular and
  electron-pair geometries.

26
Drawing 3-D Structures

• Draw the 3-D structures of H2O and NH3 using
  dashes and wedges.

27
Determining Geometry
Draw a Lewis structure for OCl2, and use it to
predict the molecular electron-pair geometries.
28
5. Atoms Surrounded by 5 Electron Pairs

• REMEMBER If all five electron pairs are bonding
  electrons, the molecular and electron-pair
  geometries are the same trigonal bipyramidal.
• If one electron pair is nonbonding (one lone
  pair)
• The electron-pair
• geometry is trigonal
• bipyramidal.
• The molecular geometry
• is seesaw.

29
5. Atoms Surrounded by 5 Electron Pairs

• Why does the lone pair prefer to be equatorial?
• Each axial position has a 90 bond angle with
  three other atoms/lone pairs.
• Each equatorial position has a 90 bond angle
  with only two other atoms/lone pairs.
• Bulky lone pairs prefer
• the less hindered equatorial
• positions.

30
5. Atoms Surrounded by 5 Electron Pairs

• If two electron pairs are nonbonding (two lone
  pairs)
• The electron-pair
• geometry is trigonal
• bipyramidal.
• The molecular
• geometry is T-shaped.

31
5. Atoms Surrounded by 5 Electron Pairs

• If three electron pairs are nonbonding (three
  lone pairs)
• The electron-pair geometry is trigonal
  bipyramidal.
• The molecular
• geometry is linear.
• Notice All of the equatorial
• positions are occupied by
• lone pairs.

32
Drawing 3-D Structures

• Draw the 3-D structures of SF4, BrF3, and XeF2
  using dashes and wedges.

33
Determining Geometry
Draw a Lewis structure for ClF2-, and use it to
predict the molecular electron-pair geometries.
34
6. Atoms Surrounded by 6 Electron Pairs

• REMEMBER If all six electron pairs are bonding
  electrons, the molecular and electron-pair
  geometries are the same octahedral.
• If one electron pair is nonbonding (one lone
  pair)
• The electron-pair geometry is octahedral.
• The molecular geometry is square pyramidal.
• All positions are equivalent,
• so it doesnt matter where
• the lone pair goes.

35
6. Atoms Surrounded by 6 Electron Pairs

• If two electron pairs are nonbonding (two lone
  pairs)
• The electron-pair geometry is octahedral.
• The molecular geometry is square planar.
• The two bulky lone
• pairs are pointed away
• from each other.

36
Determining Geometry
Draw a Lewis structure for ICl5, and use it to
predict the molecular electron-pair geometries.
37
6. Atoms Surrounded by 6 Electron Pairs
All of these geometries require an expanded
valence.
38
7. Multiple Bonds Geometry

• For the purpose of determining molecular
  geometry, single and triple bonds are treated the
  same as single bonds.
• For example,
• formaldehyde
• borane are both
• trigonal planar with
• bond angles close to
• 120.

39
Determining Geometry
Draw a Lewis structure for SO2, and use it to
predict the molecular electron-pair geometries.
40
VSEPR Orbitals Do They Fit?

• As predicted by VSEPR, the most commonly observed
  bond angles are 180, 120, 109.5 90.
• How can we reconcile these observations with the
  shapes of the atomic orbitals?

41
C. Hybridization

• In 1928, Linus Pauling proposed a bonding theory
  that uses atomic orbitals to explain the
  geometries predicted by VSEPR.
• In this theory, atomic orbitals (s, p, d) are
  combined to form hybrid atomic orbitals (sp, sp2,
  sp3, sp3d, sp3d2).
• The hybrid atomic orbitals on individual atoms
  then overlap with those on other atoms to form
  molecular bonding orbitals covalent bonds.

42
1. Hybrid Orbitals

• Hybrid Orbitals orbitals resulting from the
  combination of atomic orbitals on the same atom
• Because of their shape, hybrid orbitals overlap
  more efficiently than unhybridized atomic
  orbitals to form stable covalent bonds with other
  atoms.
• A) Conservation of Orbitals The total number of
  hybrid orbitals formed is always equal to the
  number of atomic orbitals hybridized (combined).

43
b) sp Hybrid Orbitals

• 1 s orbital 1 p orbital 2 sp orbitals
• The two sp orbitals are directed 180 from each
  other - can overlap with other atoms to form two
  bonds with a bond angle of 180.

44
b) sp Hybrid Orbitals

• Before hybridization, Be has no unpaired
  electrons.
• After hybridization, Be can use both of its
  valence electrons to form covalent bonds.
• The energy it takes to hybridize the orbitals is
  made up for in the strong chemical bonds that are
  formed by the hybrid orbitals.

45
b) sp Hybrid Orbitals

• Using its two sp hybrid orbitals, beryllium can
  form two single bonds.
• The bonding electrons reside in sigma bonding
  orbitals resulting from the overlap of the Be sp
  orbitals with the H 1s orbitals.

• Because of the orientation of the two sp
  orbitals, the geometry is linear (bond angle
  180?) SAME AS PREDICTED BY VSEPR!

46
c) sp2 Hybrid Orbitals

• 1 s orbital 2 p orbitals 3 sp2 orbitals
• The three sp2 orbitals are directed 120 from
  each other - can overlap with other atoms to form
  three bonds with a bond angle of 120.

47
c) sp2 Hybrid Orbitals

• Before hybridization, B has one unpaired
  electron.
• After hybridization, B can use all three of its
  valence electrons to form covalent bonds.

48
c) sp2 Hybrid Orbitals

• Boron uses its three sp2 hybrid orbitals to form
  three single bonds (sigma bonding orbitals).
• The geometry is trigonal planar (bond angle
  120?).

49
d) sp3 Hybrid Orbitals

• 1 s orbital 3 p orbitals 4 sp3 orbitals
• The four sp3 orbitals are directed 109.5 from
  each other - can overlap with other atoms to form
  four bonds with a bond angle of 109.5.

50
d) sp3 Hybrid Orbitals

• Before hybridization, C has two unpaired
  electrons.
• After hybridization, C can use all four of its
  valence electrons to form covalent bonds.

51
d) sp3 Hybrid Orbitals
- Carbon uses its four sp3 hybrid orbitals to
form four single bonds (sigma bonding
orbitals). - The geometry is tetrahedral (bond
angle 109.5?).
52
e) sp3d Hybrid Orbitals

• Elements in the third period or lower can also
  hybridize their d orbitals.
• 1 s orbital 3 p orbitals 1 d orbital 5 sp3d
  orbitals
• The five sp3d orbitals are oriented in a trigonal
  bipyramidal geometry.

53
f) sp3d2 Hybrid Orbitals

• 1 s orbital 3 p orbitals 2 d orbitals 6
  sp3d2 orbitals
• The six sp3d2 orbitals are oriented in an
  octahedral geometry.

54
Hybrid Orbitals Expanded Valences

55
2. Lone Pairs

• Nonbonding electrons (lone pairs) also occupy
  hybrid orbitals.

NH3 trigonal pyramidal
H2O angular (bent)
56
3. Multiple Bonds

• Are multiple bonds (double, triple) also formed
  by the overlap of hybrid orbitals?
• NO - Multiple bonds are formed by the
  side-by-side overlap of unhybridized p orbitals.
• There are two types of covalent bonds
• Sigma formed from head-on overlap of hybrid
  orbitals
• Pi formed from side-by-side overlap of
  unhybridized p orbitals

57
3. Multiple Bonds

• a) Sigma Bonds Sigma bonds are bonds formed by
  the head-on overlap of hybrid orbitals (all of
  the single bonds in a molecule)

58
3. Multiple Bonds

• b) Pi Bonds Pi bonds are formed by the
  side-to-side overlap of unhybridized p orbitals
• Pi Bonding is used to form multiple bonds.

59
3. Multiple Bonds

• The hybridization of the central atom determines
  how many p orbitals are left unhybridized (how
  many pi bonds can be formed by that atom).

60
3. Multiple Bonds
-To form a multiple bond, an atom must have at
least one unhybridized p orbital available (sp,
sp2). -Atoms with sp3, sp3d sp3d2 hybridization
cannot form multiple bonds - no unhybridized p
orbitals.
61
3. Multiple Bonds

• In a double bond, one electron pair forms a sigma
  bond one electron pair forms a pi bond.
• In a triple bond, one electron pair forms a sigma
  bond two electron pairs form two pi bonds.

62
3. Multiple Bonds
A pi bond between two sp2-hybridized atoms in
formaldehyde.
63
3. Multiple Bonds
Pi bonds between two sp-hybridized atoms in
acetylene.
64
Sigma Pi Bonds

• To recap
• Single Bond one sigma bond
• Double Bond one sigma one pi bond
• Triple Bond one sigma two pi bonds

65
Determining Hybridization from Lewis Structure

• Once you have drawn a valid Lewis structure for a
  molecule, there is a quick way to determine the
  hybridization (s, sp, sp2, etc.) of each atom in
  the molecule.
• Count the number of hybrid orbitals used by each
  atom.
• Remember Hybrid orbitals are used to form sigma
  bonds hold lone pairs.
• Hybrid Orbitals Sigma Bonds Lone Pairs

66
Determining Hybridization from Lewis Structure
67
Determining Hybridization from Lewis Structure
Determine the hybridization of the carbon atom
the bond angles in methane (CH4).
68
Determining Hybridization from Lewis Structure
Determine the hybridization of the carbon atom
the bond angles in CO32-.
69
Determining Hybridization from Lewis Structure
Determine the hybridization of the sulfur atom
the bond angles in SF6.
70
Determining Hybridization from Lewis Structure
Determine the hybridization of each non-hydrogen
atom in the following molecule. Indicate the
bond angles.
71
Determining Hybridization from Lewis Structure
Determine the hybridization of each non-hydrogen
atom in the following molecule. Indicate the
bond angles.
B
A
C
72
Determining Hybridization from Lewis Structure
Determine the hybridization of each non-hydrogen
atom in the following molecule. Indicate the
bond angles.
E
D
C
B
A
73
D. Molecular Polarity

• A molecule is polar when its polar bonds are
  arranged in such a way that the electron density
  is concentrated at one end of the molecule.
• The molecular dipole moment is the measure of the
  polarity of a molecule.
• The dipole moment
• measures the extent to
• which a molecule will line
• up with an external electric
• field (? attracted to and ?-
• attracted to ).

74
D. Molecular Polarity

• Polar molecules have a permanent dipole moment
  greater than zero.
• Nonpolar molecules have a zero dipole moment.
• To determine whether a molecule is polar or
  nonpolar, you must consider
• Whether the molecule has any polar bonds.
• How the bonds are arranged (molecular geometry).

75
D. Molecular Polarity

• When a molecule has only nonpolar bonds, it must
  be a nonpolar molecule.
• eg. Cl2 is a nonpolar
• molecule because it has
• one nonpolar bond - the
• bonding electrons are
• shared evenly by the two
• chlorine atoms.

76
D. Molecular Polarity

• A molecule with polar bonds may or may not be
  polar.
• eg. HCl is polar because the HCl bond is polar
  the bonding electrons are shared unequally
  between the two atoms.

77
1. Molecular Dipole Moment

• The molecular dipole moment is the sum of all of
  the individual bond dipoles geometry is
  important.
• In H2O CH3F, the bond dipoles reinforce each
  other, resulting in non-zero net dipole moments
  (polar).
• In CF4, the bond dipoles cancel each other out,
  resulting in no net dipole moment (nonpolar).

78
1. Molecular Dipole Moment

• The shape of a molecule determines whether or not
  it has a molecular dipole moment.
• If the central atom of a molecule has only one
  type of substituent and the molecular geometry is
  one of the five ideal electron-pair geometries,
  then the molecule is nonpolar.

79
1. Molecular Dipole Moment

• BF3 is trigonal planar, and all three bonds are
  to the same atom (F).
• This means that the dipoles cancel each other
  out.
• BF3 has no net dipole it is nonpolar.

80
1. Molecular Dipole Moment

• NH3 is trigonal pyramidal not one of the ideal
  electron-pair geometries.
• The bond dipoles reinforce each other.
• NH3 has a net dipole it is polar.

81
Determining Molecular Polarity
Is carbon dioxide (CO2) polar or nonpolar? Draw
the bond dipoles the molecular dipole (if any).
82
Determining Molecular Polarity
Is PCl3 polar or nonpolar? Draw the bond dipoles
the molecular dipole (if any).
83
Determining Molecular Polarity
Is SF4 polar or nonpolar? Draw the bond dipoles
the molecular dipole (if any).
