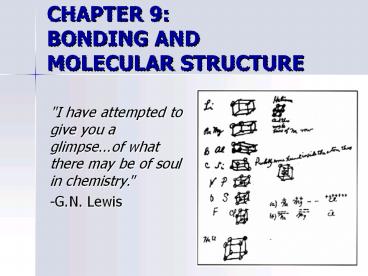

CHAPTER 9 BONDING AND MOLECULAR STRUCTURE
  • "I have attempted to give you a glimpse...of what
    there may be of soul in chemistry.
  • -G.N. Lewis

2
9.0 Objectives
  • Understand the basic process of ionic bonding
    identify ionic compounds and describe their
    internal structure and properties, understand how
    size of ions affects ionic properties, calculate
    lattice energy, and draw Lewis diagrams of ionic
    structures.
  • Identify covalent compounds and characterize
    their properties.
  • Draw Lewis structures of covalent substances
    including exceptions such as reduced and expanded
    octets, radicals, and resonance structures.
  • Define and predict trends in bond order, bond
    length, and bond dissociation energy. Use bond
    energy to predict enthalpy of a reaction.
  • Understand the concept of electronegativity and
    how it is used to predict polarity of individual
    bonds and entire molecules.
  • Use VSEPR Theory to predict the shapes of simple
    covalent molecules.

3
Homework
  • HW1 29, 33, 38, 39, 40, 41, 43, 45
  • Valence e-, LEWIS STRUCTURES!
  • HW2 47, 49, 51, 53, 95
  • Formal Charge, Polarity, Electonegativity
  • HW3 69, 93, 109
  • Bond Energy
  • HW4 73, 75, 77, 79, 81, 89, 99, 103
  • Molecular Geometry
  • HW5 83, 85, 97
  • Polarity

4
9.1 VALENCE ELECTRONS
  • 1. Bonding definition
  • forces that hold atoms together
  • What role do the e- play?
  • 2. Valence electrons vs. Core electrons
  • MAIN GROUP Elements
  • Outermost s and p e-
  • Transition Metals
  • Outermost s and p e- as well as (n-1) d e-
  • When in doubt, write the noble gas e-
    configuration

5
9.1 VALENCE ELECTRONS
  • 3. Lewis dot diagrams of elements
  • Diagrams that showcase valence e-
  • Lewis says, Place the first four dots
    separately!
  • Ex. Li, Be, B, C, N, O, F, Ne

6
9.2 CHEMICAL BOND FORMATION
  • 1. Ionic bonding definition and Lewis
    representation
  • Bond between metal and nonmetal due to
    electrostatic interactions
  • Metal donates e-
  • Nonmetal accepts e-
  • Ex. NaCl and Na2S

7
9.2 CHEMICAL BOND FORMATION
  • 2. Covalent bonding and Lewis representation of
    Cl2
  • Bond in which e- are shared
  • Overlap of e- density between 2 orbitals
  • Ex. Cl2

8
9.2 CHEMICAL BOND FORMATION
  • 3. Continuum
  • Complete ionic or complete sharing of e- is a bit
    extreme most bonding has uneven sharing of e-
    (sometimes ionic, sometimes covalent)
  • 4. Other bond types
  • Metallic bonding
  • Ex. Alloys

9
9.3 BONDING IN IONIC COMPOUNDS
  • 1. Steps in formation of NaCl
  • 1. Na(g) ? Na(g) e- ?E 496
    kJ/mol
  • 2. Cl(g) e- ? Cl-(g) ?E -349
    kJ/mol
  • 3. Na(g) Cl-(g) ? Na, Cl- ?E -498 kJ/mol
  • ?Eoverall -351 kJ/mol

10
9.3 BONDING IN IONIC COMPOUNDS
  • 2. Lattice energy
  • energy for the formation of 1 mol of solid
    crystalline ionic compound when ions in the gas
    phase combine

11
9.3 BONDING IN IONIC COMPOUNDS
  • 3. Formula units
  • RECALL Smallest repeating unit of an ionic
    compound

12
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 1. Diagram of H2
  • Single Hydrogens
  • H? ?H Both want 1s2
  • 1 shared pair
  • HH
  • Bonds are represented as single lines
  • HH

13
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 2. Orbital overlap diagrams of H2, HCl, Cl2

14
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 3. Terminology single, double, and triple
    bonds, bonding pairs and nonbonding or lone pairs
    of electrons
  • Single Bond 2 e- shared between 2 atoms
  • Ex. H2
  • Double Bond 4 e- shared between 2 atoms
  • Ex. O2
  • Triple Bond 6 e- shared between 2 atoms
  • Ex. N2

15
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • Bonding Pairs e- involved in bonding
  • (See preceding examples)
  • Nonbonding (lone) pairs e- that are not involved
    with bonding but help provide the octet for an
    atom
  • Ex. Cl2

16
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 4. Octet Rule
  • The INFAMOUS noble-gas configuration
  • tendency for molecules/polyatomic ions to have
    structures in which 8 e- surround each atom
  • H, He have a duet

17
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 5. Rules for drawing Lewis structures
  • a. Choose a central atom
  • Usually the atom with the lowest e- affinity
  • Usually makes a lot of bonds
  • Halogens are generally terminal atoms
  • b. Count the total number of valence electrons
  • Neutral Molecule sum of valence e- for each atom
  • Anions sum of valence e- and negative charge
  • Cations valence e- minus the total positive
    charge

18
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • c. Draw a skeleton structure
  • Use one pair of electrons to form a bond between
    each pair of bound atoms
  • d. Place the remaining electrons to fulfill the
    octet rule
  • Do this for each atom
  • Hydrogen gets a duet

19
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • e. Lack of electrons
  • Requires multiple bonds (double, triple)
  • Could be more than one multiple bond
  • f. Too many electrons
  • Verify that your structure is correct (octets for
    all?)
  • Watch anions!

20
9.6 Lewis Structures of Some Simple Molecules
  • O-VS
  • S Shared e- in bonds
  • O total e- required for an Octet
  • V Valence e- for all elements

21
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 6. Diagrams of H2 F2 CH4 NH3 H2O HF OH-
    NH4

22
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • H2 F2 CH4 NH3 H2O HF OH- NH4

23
9.4 COVALENT BONDING AND LEWIS STRUCTURES
  • 7. Isoelectronic species NO N2 CO CN-

24
9.5 RESONANCE
  • 1. Definition
  • Alternative and equivalent Lewis structure
    created by shifting the e- in a structure
  • Spinning Rim Analogy

25
9.5 RESONANCE
  • 2. Examples NO3- and NO2-

26
9.5 RESONANCE
  • 3. Experimental evidence says
  • Its a combination of both
  • There are however, MORE PREVALENT resonance
    structures for some molecules
  • Benzene is the most classic of all resonance
    structures

27
9.5 RESONANCE
28
9.6 EXCEPTIONS TO THE OCTET RULE
  • 1. Reduced octets for H, B and Be
  • Ex. BeCl2, BCl3 (Be 4 e-, B 6e-)

29
9.6 EXCEPTIONS TO THE OCTET RULE
  • 2. Expanded octets PF5 SF6 ClF4- XeF2
  • Watch these elements (and some others) for
    expanded octets P, S, Cl, As, Se, Br, Kr, Xe

30
9.6 EXCEPTIONS TO THE OCTET RULE
  • 3. Radicals (paramagnetic) NO and NO2
  • Structure that has unpaired e-
  • Extremely Reactive

31
9.6 EXCEPTIONS TO THE OCTET RULE
  • 3. Problems with Lewis structures
  • Only show 2-D view? life (chemistry) is 3-D
  • Works for most molecules, but not all
  • Doesnt show how evenly/unevenly e- are being
    shared

32
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 1. Definitions polar and nonpolar bonds
  • Nonpolar bonds 2 e- in a bond are evenly
    shared between the 2 atoms
  • Polar bonds 2 e- in a bond are unevenly shared
    one atom is taking more of the e- density atoms
    have a partial charge

33
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 2. Electronegativity
  • a. definition
  • (EN) ability of an atom to attract bonding e- to
    itself when the atom is in a molecule
  • b. Table and Periodic trends
  • See Pg.10 in Reference Booklet
  • Increases going left to right and bottom to top
  • (Fluorine greatest at 4.0)

34
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
35
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 3. ?EN parameters
  • Prediction of Ionic Character
  • Pure Covalent Pure Ionic
  • 0 .5 1 1.5 2 2.5 3
  • In General 0.0 lt 0.45 Nonpolar
  • 0.45 1.8 Polar Covalent
  • gt 1.8 Ionic

36
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 4. Ex9.1 Arrange the following bonds in order of
    increasing polarity F-Cl, F-F, F-Na

37
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 5. Central atom in Lewis structure
  • Many times has a formal charge
  • Making more/less bonds than it normally does

38
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 6. Formal Charge
  • a. Definition and Use
  • Charge for an atom in a molecule based on premise
    that bonding e- are evenly shared
  • b. Calculating equation
  • Formal Charge Group - Lone Pair e- ½
    Bonding e-

39
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • c. Examples OH- and NO3-

40
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • Ex9.2 Calculate the formal charge on each atom
    in CO32- and NH4

41
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • 7. Electroneutrality Definition
  • The e- in a molecule are distributed so that the
    formal charge is minimal
  • Most Probable Lewis Structure one with minimal
    FC minimal FC is more important than symmetry
  • Negative charge should reside on the most
    electronegative element
  • Formal charge gt /- 2 is not likely

42
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • a. Example CO2

43
9.7 CHARGE DISTRIBUTION IN COVALENT BONDS AND
MOLECULES
  • b. Ex9.3 Use formal charge and the
    electroneutrality concept to determine the most
    likely structures for N2O and OCN1-

44
9.8 BOND PROPERTIES
  • 1. Bond order
  • a. definition and examples
  • number of bonding e- pairs shared between 2 atoms
  • Usually an integer (1, 2, or 3)
  • BOND ORDER ( shared pairs linking
    X-Y)_____ (number of X-Y links
    in the molecule)
  • Ex. CH4, CO2
  • b. resonance structures
  • Bond order are fractions
  • e- residing over both locations evenly
  • Ex. O3

45
9.8 BOND PROPERTIES
  • 2. Bond Length definition and examples
  • Bond length distance between nuclei in a
    covalent bond
  • More Polar bonds shorter length
  • More bonds shorter length
  • Ex. C-C CC CC
  • 1.54Å 1.34Å 1.20Å

46
9.8 BOND PROPERTIES
  • 1. Bond dissociation energy definition and
    examples
  • Bond Dissociation Energy (D)
  • energy needed to break a covalent bond in the gas
    phase
  • Higher Bond Order? Higher D

47
9.8 BOND PROPERTIES
  • a. Estimating Enthalpy of reaction from bond
    energies equation
  • ?Hrxn ? D (bonds broken) - ? D (bonds formed)
  • Energy is required to break bonds
  • Energy is released when bonds are formed

48
9.8 BOND PROPERTIES
49
9.8 BOND PROPERTIES
  • b. Example Estimate the ?HRxn for the
    synthesis reaction between gaseous hydrogen and
    chlorine.

50
9.8 BOND PROPERTIES
  • c. Ex9.4 Estimate the enthalpy of reaction for
    the combustion of methane, CH4, to produce
    gaseous carbon dioxide and water vapor.

51
9.9 MOLECULAR SHAPES
  • 1. Gumdrops and toothpicks
  • A tasty way to practice
  • chemistry!

52
9.9 MOLECULAR SHAPES
  • 2. VSEPR Theory and importance of shapes
  • VSEPR Valence Shell Electron Pair Repulsion
  • VSEPR gives our 2-D Lewis structures LIFE (3-D)
  • Geometry has HUGE impact on properties
  • Based on idea pairs of e- in bonded atoms repel
    one another
  • Want to be as far apart as possible? Gives shape
  • Electron Group
  • Any collection of valence e- around an atom that
    repel other e-
  • Single unpaired e-
  • Lone pair e-
  • Bonding pairs of e- (1, 2, 3)

53
9.9 MOLECULAR SHAPES
  • NOTATION
  • AXnEm
  • A central atom
  • X terminal atoms
  • E lone pair e- on central atom

54
9.9 MOLECULAR SHAPES
  • 3. Single bonds, no unshared pairs of electrons
  • Lewis structure, geometry and bond angles of
  • a. BeH2

55
9.9 MOLECULAR SHAPES
  • BH3
  • CH4

56
9.9 MOLECULAR SHAPES
57
9.9 MOLECULAR SHAPES
  • 4. Unshared pairs of electrons on the central
    atom
  • a. NH3
  • b. H2O

58
9.9 MOLECULAR SHAPES
  • c. analogs (H2S, PCl3, etc.)

59
(No Transcript)
60
9.9 MOLECULAR SHAPES
  • Ex9.5 Predict the molecular geometry and bond
    angles of HOCl and SiO44-

61
9.9 MOLECULAR SHAPES
  • 6. Multiple Bonds
  • a. CO2
  • b. H2CO

62
9.9 MOLECULAR SHAPES
  • c. HCN

63
(No Transcript)
64
9.9 MOLECULAR SHAPES
  • 7. Ex9.6 Predict the molecular geometry and bond
    angles in the following species C2H2 C2H4
    ClO31- NO31- N2O ONCl

65
9.9 MOLECULAR SHAPES
  • 7. Expanded octets
  • a. definition and recognizing
  • More than 4 e- groups around a central atom
  • Use formal charge to help guide Lewis
    Structure/Geometry

66
9.9 MOLECULAR SHAPES
  • b. Examples
  • PCl5
  • SF6

67
9.9 MOLECULAR SHAPES
  • ClF5
  • XeF4

68
(No Transcript)
69
9.9 MOLECULAR SHAPES
  • 8. Ex9.7 Determine the molecular geometry and
    bond angles of ICl2-1 IF3 XeOF4 How does the
    electronic geometry differ from the molecular
    geometry for these species?

70
9.10 MOLECULAR POLARITY
  • 1. Nonpolar molecules definition and examples,
    CH4 CO2
  • Molecule consisting entirely of nonpolar bonds
    OR
  • Molecule with polar bonds that cancel one another
    out

71
9.10 MOLECULAR POLARITY
  • 2. Dipoles definition and examples, NH3
    H2O
  • Molecule with separate centers of () and (-)
    charge
  • Polar bonds present with no canceling out

72
9.10 MOLECULAR POLARITY
  • 4. Dipole moments and vectors (?)
  • ? ? d
  • ? magnitude of charge
  • d distance
  • Measured in debye (D)
  • Nonpolar ? 0
  • Polar ? ? 0

73
9.10 MOLECULAR POLARITY
  • 5. Rules for determining polarity of a molecule.
    A molecule is a dipole if
  • (uneven balance of e- density)
  • RULES
  • 0. Draw Lewis Structure
  • 1. Use VSEPR to predict molecular shape
  • 2. Electronegativity to predict bond dipoles
  • 3. Determine whether bond dipoles cancel to
    produce nonpolar or combine to give polar
    molecule
  • KEY CLUES
  • 1. Polar Bonds
  • 2. Lone Pair e-
  • 3. 2 different atoms bonded to central atom

74
9.10 MOLECULAR POLARITY
  • 6. Ex9.8 Determine which of the following are
    dipoles SO2 BF3 CO2 N2O ClO3- ONCl
    NCl3 BFCl2 SCl2

75
9.10 MOLECULAR POLARITY
  • 6. Exceptions XeF4

76
9.10 MOLECULAR POLARITY
  • 7. Properties of dipoles
  • Special properties observed due to interactions
    between molecules (intermolecular forces)
  • Attraction to other dipoles

77
END OF CHAPTER 9!
Write a Comment
User Comments (0)
About PowerShow.com
