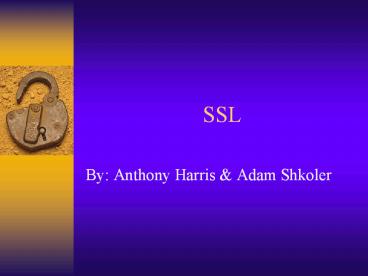

SSL

1
SSL

• By Anthony Harris Adam Shkoler

2
What is SSL?

• SSL stands for Secure Sockets Layer
• SSL is a cryptographic protocol which provides
  secure communications on the Internet for such
  things as web browsing, e-mail, Internet faxing,
  and other data transfers.
• SSL is a part of the application layer.

3
Who invented the SSL?

• SSL v.3.0 was created by Netscape in 1996.
• Major corporations such as Visa and Mastercard
  have endorsed SSL for commerce over the internet.
• SSL led to the development of TLS v.1.0
• or Transport Layer Security.

4

• SSL technology relies on the concept of public
  key cryptography to accomplish its tasks. In
  normal encryption, two communicating parties each
  share a password or key, and this is used to both
  encrypt and decrypt messages.
• In public key cryptography, each party has two
  keys, a public key and a private key. Information
  encrypted with a persons public key can only be
  decrypted with the private key and vice versa.
• Each user publicly tells the world what his
  public key is but keeps his private key for
  himself.

5
Weak points in SSL history

• Early implementations used 40-bit symmetric keys
  because of government cryptographic restrictions.
• This made SSL vulnerable to brute force attacks.
• However, the government enforced this policy on
  purpose, so law enforcement could monitor traffic
  while keeping less equipped civilians out.
• Modern implementations now use 128-bit
  cryptographic keys.

6
Incorrect Uses

• Some websites only secure the form submission
  page rather than the login page.
• Securing the login page but having non-secure
  media present. This leaves you open to man in
  the middle attacks.

7

• Commercial websites that have dropped the Ball
• Bank of America
• Washington Mutual
• JPMorgan Chase Co.
• Paypal

8
How it works

• A customer contacts your site and accesses a
  secured URL a page secured by a Server ID
  (indicated by a URL that begins with "https"
  instead of just "http" or by a message from the
  browser).

9

• Obtaining an SSL Certificate
• XYZ Inc., intends to secure their customer
  checkout process, account management, and
  internal employee correspondence on their
  website, xyz.com.
• Step 1   XYZ creates a Certificate Signing
  Request (CSR) and during this process, a private
  key is generated.
• Step 2   XYZ goes to a trusted, third party
  Certificate Authority, such as XRamp. XRamp takes
  the certificate signing request and validates XYZ
  in a two step process. XRamp validates that XYZ
  has control of the domain xyz.com and that XYZ
  Inc. is an official organization listed in public
  government records.

10
Obtaining a certificate contd

• Step 3   When the validation process is
  complete, XRamp gives XYZ a new public key
  (certificate) encrypted with XRamps private key.

• Step 4   XYZ installs the certificate on their
  webserver/s.

11
Crypto-licious!!!

• How Customers Communicate with the Server using
  SSL
• Step 1   A customer makes a connection to
  xyz.com on an SSL port, typically 443. This
  connection is denoted with https instead of http.

• Step 2   xyz.com sends back its public key to
  the customer. Once customer receives it, his/her
  browser decides if it is alright to proceed.
• the xyz.com public key must NOT be expired
• the xyz.com public key must be for xyz.com only
• client must have XRamp public key for XRamp
  installed in their browser certificate store.
  99.9 of all modern browsers (1998) include the
  XRamp root certificate. The customer has XRamp
  trusted public key, then they can trust that they
  are really communicating with XYZ, Inc.

12

• Step 3   If the customer decides to trust the
  certificate, then the customer will be sent to
  xyz.com his/her public key.
• Step 4   xyz.com will next create a unique hash
  and encrypt it using both the customers public
  key and xyz.coms private key, and send this back
  to the client.
• Step 5   Customers browser will decrypt the
  hash. This process shows that the xyz.com sent
  the hash and only the customer is able to read
  it.
• Step 6   Customer and website can now securely
  exchange information.

13
Handshake phases
14
SSL Messages
SERVER SIDE
CLIENT SIDE
OFFER CIPHER SUITE MENU TO SERVER
SELECT A CIPHER SUITE
SEND CERTIFICATE AND CHAIN TO CA ROOT
SEND PUBLIC KEY TO ENCRYPT SYMM KEY
SERVER NEGOTIATION FINISHED
SEND ENCRYPTED SYMMETRIC KEY
ACTIVATE ENCRYPTION
( SERVER CHECKS OPTIONS )
CLIENT PORTION DONE
ACTIVATESERVER ENCRYPTION
( CLIENT CHECKS OPTIONS )
SERVER PORTION DONE
NOW THE PARTIES CAN USE SYMMETRIC ENCRYPTION
15
A scenario for SSL

• SSL can be thought of as a conversation on the
  phone.
• 1.) Who are you speaking with? How do you know
  you are talking to an authorized person if youve
  never talked to them before?
• 2.) Is Someone Listening to Your Conversation?
  Wire tapping is common practice. Are you sure
  someone isnt listening in and gathering
  information about you? (e.g., bank account, phone
  number, how you secretly enjoy celine dion)

16

• Two very real security issues for Internet
  correspondence arise.
• 1.) Being sure you are connected to the right
  computers are you really on your banks website
  or is it a phishers scam website?
• 2.) Keeping your data safe and out of malicious
  hands during transit on the Internet.

17
A world without SSL is illustrated below
18
References!!

• http//www.xramp.com/resources/how-ssl-works
• www.wikepidia.org
• www.ibm.com
