Interfacing External Memory

1

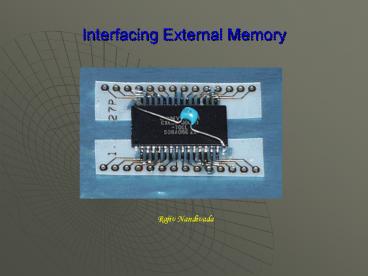

Interfacing External Memory
Rajiv Nandivada
2
High Level Schematic

• Clock cycle of 10-20 ns (Depending on its use).
• 3.3 V CMOS SRAM (128 x 8 bit).
• Uses multiplexed address and data bus to reduce
  the number of port pins. The lower
  address bits are held in latch while the data is
  transferred.

3
Functional Block Diagram of SRAM

• Single 3.3 V supply.
• Lower power consumption via chip deselect.
• Available in 32 pin Plastic SOJ, and 32 pin Type
  II TSOP packages.

4
Truth Table
5
Pin Configuration
SOJ and TSOP Top View SOJ Small Outline J
Leads TSOP Thin Small Outline Package
6
Characteristics
7
Timing Diagrams
Read cycle
Write cycle
8
Major Manufacturers of SRAM

• Alliance,
• Brilliance
• Crosslink
• Cypress Semiconductor
• Dense-PAC Micro
• Etron Technology
• Eureka
• Hitachi
• IBM
• IDT
• Mitsubishi
• NEC
• Samsung
• Seiko Epson
• Sharp
• Sony
• Toshiba

9
Electrically Erasable Programmable Read-only
Memory (EEPROM)
10
Erasable Programmable Read-only Memory (EPROM)
11
Flash Memory
12
I2C(Inter IC) Bus
SDA Serial Data Line SCL Serial Clock Line
13
Packaging

• SOJ or Small Outline J-lead
• TSOP or Thin Standard Outline Package
• DIP or Dual Inline Package
• ZIP or Zigzag Inline Package
• PLCC or Plastic Leaded Chip Carrier

14
Packaging Contd..

• SOJ or Small Outline J-lead
• TSOP or Thin Standard Outline Package
• DIP or Dual Inline Package
• ZIP or Zigzag Inline Package
• PLCC or Plastic Leaded Chip Carrier

15
Pricing

• Depends on
• The type of package it comes in (DIP, SOJ, TSOP)
• The speed of the memory.
• The market value.
• The vendor (Digikey, Jameco)
• Storage capacity( 128K X 8, 256K X 8)
• The type of memory (Flash, EEPROM)

16
References

• www.cygnal.com
• www.digikey.com
• www.srams.co.uk
• www.jameco.com
• www.atmel.com
• www.xicor.com
