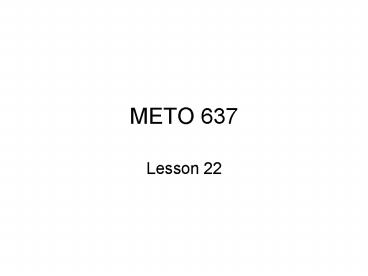

METO 637

• Lesson 22

2
Jupiter
3
Jupiter

• Jupiter and Saturn are known as the gas planets
• They do not have solid surfaces, their gaseous
  materials get denser with depth.
• What we see is the top of the clouds at about I
  atmosphere pressure.
• Jupiter probably has a core of rocky material
  amounting to about 15 Earth masses.
• The main bulk of the planet is in the form of
  liquid metallic hydrogen. This implies a pressure
  of greater than 4 million bars.
• Metallic hydrogen is an electrical conductor and
  the source of Jupiters magnetic field

4
Jupiter

• The outermost layer is composed of molecular
  hydrogen and helium.
• The helium is liquid in the interior and gaseous
  in the outer layer.
• Has high velocity winds which are confined to
  wide bands of latitude. Winds blow in opposite
  directions in adjacent bands.
• Evidence is that the winds are driven by
  Jupiters internal heat sources, and not by the
  sun.
• Vivid colors seen in the clouds are the result of
  chemical reactions within the clouds probably
  involving sulfur compounds.

5
Saturn
6
Saturn

• Is the least dense of the planets density of
  0.7 is less than that for water.
• Like Jupiter, Saturn is about 74 hydrogen, 25
  helium, and trace amounts of water, methane,
  ammonia and rocks.
• This composition is similar to the promordial
  Solar Nebula from which the solar system was
  formed.
• As for Jupiter, Saturns interior consists of
  rocky core, a liquid metallic hydrogen layer and
  a molecular hydrogen layer. Traces of various
  ices are also present.

7
Saturn

• The core of Saturn (and Jupiter) are hot (12,000
  K). This high temperature is due to the slow
  gravitational compression of the planet
  (Kelvin-Helmholtz mechanism)
• Jupier and Saturn have a rapid rotation - 10
  hours. This causes oblateness, although Saturn is
  affected the most (10)
• Saturn has prominent rings. These are quite thin
  about one kilometer.
• Ring particles seem to be mainly composed of
  water ice.

8
(No Transcript)
9
Jupiter and Saturn

• Atmospheric composition of Jupiter was
  investigated by several instruments on the
  Voyager spacecraft. The following instruments
  were flown
• (1) IRIS Infrared radiation
• (2) UVS Ultraviolet Spectrometer
• (3) PPS Photo-Polarimetry aerosols
• (4) RSS Radio Science ions
• As expected they found that the bulk of the
  atmosphere was composed of hydrogen and helium.
• The fractional abundance of He is markedly
  smaller than that for the solar ratio (0.16)
  indicating gravitational separation from hydrogen
  within the interior of the planets.

10
Thermal emission spectra from Jupiter IRIS
(Voyager 1)
11
(No Transcript)
12
Jupiter and Saturn

• Deep in the atmosphere thermal chemistry yields
  compounds which are mainly in thermo-chemical
  equilibrium.
• Photochemistry can convert CH4 to heavier
  hydrocarbons and NH3 to N2H4
• Some of the chemical compounds formed are
  condensable. The temperature profile shows a
  distinct minimum at about 100 mb, which can act
  as a cold trap.
• This limits the mixing ratios of condensable
  gases above the minimum.
• On Jupiter NH3 is limited to a mixing ratio of
  about 10-7.

13
(No Transcript)
14
Jupiter and Saturn

• The condensates remain as aerosols.
• On Jupiter dense water clouds form at 270K,
  while near the 200K level H2S is thought to react
  with NH3 to form a cloud of solid NH4SH
  particles.
• White crystals of ammonia precipitate out at
  154K, to produce the visible upper layer cloud.
• Above the clouds photochemistry can take place.

15
Jupiter and Saturn

• The chemistry of the atmospheres of Jupiter and
  Saturn is greatly influenced by the reaction of
  other species with H and H2
• The atomic hydrogen is formed photochemically
  from the abundant molecular hydrogen.
• Hydrides such as CH4, NH3 and PH3 also undergo
  photolysis to produce intermediate compounds such
  as CH2, CH, NH2 and PH2. These then participate
  in further reactions.

16
(No Transcript)
17
(No Transcript)
18
Hydrogen

• As noted before, molecular hydrogen is the
  dominant constituent. It dissociates at
  wavelengths less than 100nm in a dissociation
  continuum that begins at 84.5nm.
• It also has an ionization continuum at 80.4 nm.
  Absorption in his continuum leads to the
  production of hydrogen atoms
• H2 H2 ? H3 H
• H3 e ? H2 H (or 3H)
• There is a net downward flow of atomic hydrogen
  from the ionosphere to lower altitudes.
• Methane photolysis requires photons below 145nm,
  and ammonia requires photons below 160 nm.

19
Synthesis of organic compounds

• We noted before that Lyman alpha radiation from
  the sun is very intense. This can dissociate
  methane
• CH4 h? ? CH3 H
• ? 1CH2 H2
• ? 1,3CH2 2H
• ? CH H H2
• The methylene radical (CH2) can then react to
  form observed products
• CH2 H2 ? CH3 H
• CH3 CH3 M ? C2H6 M

?
20
Synthesis of organic compounds

• Ethylene is formed by the reaction
• CH CH4 ? C2H4 H2
• The ethylene is then photolyzed to acetylene
• C2H4 h? ? C2H2 H2
• Acetylene is photochemically stable because its
  products C2H and C2 react with H2 to regenerate
  C2H2.
• Higher hydrocarbons, even polymers, can be formed
  by reactions of C2H2 with other species, for
  example
• 1CH2 C2H2 M ? CH3C2H (methylacetylene)
• This product has also been observed in both
  atmospheres,

21
Ammonia and Phosphine

• The primary process is
• NH3 h? ? NH2 H
• Followed by
• NH2 NH2 M ? N2H4 M (hydrazine)
• NH2 H M ? NH3 M
• Analogous reactions are found for phosphine
• PH3 h? ? PH2 H
• PH2 PH2 M ? P2H4 M
• PH2 H M ? PH3 M
• P2H4 (a solid) is probably formed as a
  condensation product.
• The concentrations of both ammonia and phosphine
  decrease rapidly above the tropopause.
