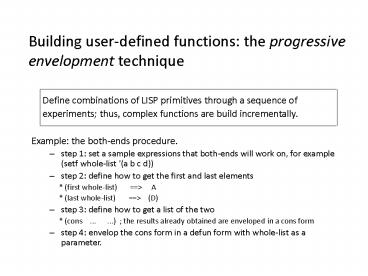

Title: Building user-defined functions: the progressive envelopment technique

1
Building user-defined functions the progressive
envelopment technique

Define combinations of LISP primitives
through a sequence of
experiments thus, complex functions are
build incrementally.
Example the both-ends procedure.
step 1 set a sample expressions that both-ends
will work on, for example (setf whole-list '(a b
c d))
step 2 define how to get the first and last
elements
(first whole-list) gt A
(last whole-list) gt (D)
step 3 define how to get a list of the two
(cons ... ...) the results
already obtained are enveloped in a cons form
step 4 envelop the cons form in a defun form
with whole-list as a parameter.

2
Building user-defined functions the comment
translation technique

Create an outline of the function in a
comment form, and then
translate comments into LISP forms
Example the both-ends procedure
step 1 write a pseudo definition for both-ends
using comments instead of actual forms
(defun both-ends (whole-list)
get the first element
get the last element
combine the two elements in a list)

3
The comment translation technique (cont.)

step 2 gradually translate the comments into
LISP forms
(defun both-ends (whole-list)
(first whole-list)
(first (last whole-list))
combine the two elements in a list)
step 3 complete the comment translation
(defun both-ends (whole-list)
(list
(first whole-list)
(first (last whole-list))))

4
Binding parameters to initial values the LET
primitive

The general format of the let form is the
following
(let ((ltparameter 1gt ltinitial-value 1gt)
(ltparameter ngt ltinitial-value mgt))
ltform 1gt
ltform ngt)
Example
(setf whole-list (a b c d))
(let ((first-el (first whole-list))
(last-el (last whole-list)))
(cons first-el last-el))
(A D)

5
Let can be used within defun but let parameters
are local to the let form

Example
(defun both-ends-with-let (whole-list)
(let ((first-el (first whole-list))
(last-el (last whole-list)))
(cons first-el last-el)))
BOTH-ENDS-WITH-LET
(both-ends-with-let whole-list)
(A D)

(defun both-ends-with-let (whole-list)
(let ((first-el (first whole-list))
(last-el (last whole-list)))
(cons first-el last-el))
(print first-el))
BOTH-ENDS-WITH-LET
(both-ends-with-let whole-list)
Error Unbound variable FIRST-EL in
BOTH-ENDS-WITH-LET

6
Let can be used within defun but let parameters
are local to the let form another example

CG-USER(3) (defun another-example ()
(let ((a 5)
(b 6)
(c 7))
(print ( a b
c)))
(print ( a b c)))
ANOTHER-EXAMPLE
CG-USER(4) (another-example)
18
Error Attempt to take the value of the unbound
variable A'.
condition type UNBOUND-VARIABLE

7
LET evaluates its initial-value forms in parallel
before any LET parameter is bound, while LET
does this sequentially.

Example
(setf x 'first-value)
FIRST-VALUE
(let ((x 'second-value)
(y x))
(list x y))
(SECOND-VALUE FIRST-VALUE)
(let ((x 'second-value)
(let ((x
second-value))
(y x))
or
(let ((y x))
(list x y))
equivalent (list
x y)))
(SECOND-VALUE SECOND-VALUE)

8
Predicates for establishing equality between
arguments

EQUAL tests two arguments to see if their
values are the same.
(equal ( 5 5 5) 15)
T
(setf list-1 '(This is a list))
(THIS IS A LIST)
(equal '(This is a list) list-1)
T
(equal 15 15.0) 15 and
15.0 have different
NIL
internal representations
EQUALP tests two arguments to see if they are
the same ignoring case and data type differences
(equalp 15 15.0)
T
(equalp '(THIS IS 1) '(this is 1))
T

9
Equality predicates (cont.)

EQL tests two arguments to see if they are are
the same atom (i.e. number or symbol).
(eql 'atom-1 'atom-1)
T
(eql 15 15)
T
(eql 15 15.0) 15 and 15.0 are not the
same atom
NIL
tests to see if two arguments are the same
number.
( 15 15.0)
T
EQ tests to see if two arguments are the same
symbol, i.e. if they are represented by the same
chunk of computer memory. They will be, if they
are identical symbols numbers are not always
represented by the same memory address.

10
Member a predicate for testing whether the
first argument is an element of the second
argument

Example
(setf list-1 '(It is a nice day))
(IT IS A NICE DAY)
(member 'day list-1)
(DAY)
(member 'is list-1)
(IS A NICE DAY)
(member 'is '((It is) (a nice day)))
NIL
Member works only on top-level elements.

11
Member tests arguments with eql

(setf pairs '((a b) (c d) (e f)))
((A B) (C D) (E F))
(member '(c d) pairs) member fails to
identify list membership of a list
NIL
To modify the basic behavior of member, an
appropriate keyword
argument must be used.
(member '(c d) pairs test 'equal)
((C D) (E F))
(member '(c d) pairs test-not 'equal)
((A B) (C D) (E F))
(member '(a b) pairs test-not 'equal)
((C D) (E F))
(member '(c d) '((c d) (c d)) test-not
'equal)
NIL

12
Keywords are self-evaluated symbols they always
start with

test
TEST keywords evaluates to themselves
test symbols evaluate to the value stored
in the variable named by the
symbol
Error Unbound variable TEST in ltfunction 1
x811040gt
Keyword arguments act as variables, storing
procedure objects.
(setf predicate 'equal) 'equal
produces a procedure object out of
ltfunction 2 x8D1794gt procedure name
equal.
(member '(c d) pairs test predicate)
((C D) (E F))

13
More examples

(member 4.0 '(6 7 8 4 9))
NIL
(setf predicate ')
ltfunction 0 xA617E4gt
(member 4.0 '(6 7 8 4 9) test predicate)
(4 9)
(setf predicate 'equalp)
equalp ignores case differences and
ltfunction 2 x8D1D4Cgt
data types. It is the most liberal
equality
(member 4.0 '(6 7 8 4 9) test predicate)
predicate
(4 9)

14
Predicates for testing object types

Atom tests to see if the argument is an atom.
(atom 'pi)
T
(atom pi) pi has a
built-in value of 3.14159265358979
T
Numberp tests to see if the argument is a
number.
(numberp 'pi)
NIL
(numberp pi)
T
Symbolp tests to see if the argument is a
symbol.
(symbolp 'pi)
T
(symbolp pi)
NIL

15
Predicates for testing object types (cont.)

Listp tests to see if the argument is a list.
(listp 'pi)
NIL
(listp '(pi in a box))
T
Consp tests to see if the argument is a
non-empty list.
(consp '())
NIL
(consp nil)
NIL
(consp '(a non-empty list))
T
(consp '(a . b))
T

16
Predicates for testing for an empty list

Null tests to see if the argument is an empty
list.
(null '(not an empty list))
NIL
(null 'a) the
argument can be an atom
NIL
(null nil)
T
(null ())
T
Endp tests to see if the argument is an empty
list
(endp '(not an empty list))
NIL
(endp ())
T
(endp 'a) the argument must be a
list
T this is a surprising
result - the expected result is an error.

17
Numerical predicates

Numberp tests to see if the argument is a
number.
Zerop tests to see if the argument is zero.
Plusp tests to see if the argument is a
positive number.
Minusp tests to see if the argument is a
negative number.
Evenp tests to see if the argument is an even
number.
Oddp tests to see if the argument is an odd
number.
gt tests to see if the arguments are in
descending order.
lt tests to see if the arguments are in
ascending order.
(plusp (- 7))
(gt 8 6 4 2)
NIL
T
(evenp ( 9 5))
(lt 1 3 5 7)
NIL
T
(oddp ( 9 5))
(gt 1 3 5 7)
T
NIL

18
Results of two or more predicates can be combined
by means of AND, OR and NOT primitives

And returns NIL if any of its arguments is NIL,
otherwise returns the value of the last argument
(setf list-1 '(a b c d))
(A B C D)
(and (member 'a list-1) (member 'c list-1))
(C D)
(and (member 'e list-1) (member 'c list-1))
NIL
Or returns NIL if all arguments are NIL,
otherwise returns the value of the first non-NIL
argument.
(or (member 'e list-1) (member 'c list-1))
(C D)
(or (member 'e list-1) (member 'a list-1)
(member 'c list-1))
(A B C D)

19
Logical predicates (cont.)

Not returns T if its argument is NIL.
(not nil)
T
(not ())
T
(not (member 'c '(a b d e)))
T
(not (member 'c '(a b c d)))
NIL
Not behaves the same way as the Null
predicate, because NIL and the empty list ( ) is
one and the same thing.

20
Conditionals if, when and unless forms

If has the following format
(if lttestgt ltthen formgt ltelse formgt)
Example
(setf symbol-or-number 'name)
NAME
(if (symbolp symbol-or-number) 'symbol 'number)
SYMBOL
(setf symbol-or-number '7)
7
(if (symbolp symbol-or-number) 'symbol 'number)
NUMBER

21
Conditionals (cont.)

when has the following format
(when lttestgt ltthen formgt)
This is equivalent to (if lttestgt ltthen formgt
NIL).
unless has the following format
(unless lttestgt ltelse formgt)
This is equivalent to (if lttestgt NIL ltelse
formgt).
when and unless may have unlimited number of
arguments, where the first argument is always the
test, the last argument supplies the value to be
returned, and all others are evaluated for their
side effects.

22
Example

(setf high 98 temperature 102)
102
(when (gt temperature high)
(setf high temperature)
'new-record)
NEW-RECORD
high
102

23
Cond selects among alternatives

The general form of cond is the following
(cond (lttest 1gt ltconsequent 1-1gt ...
ltconsequent 1-ngt)
(lttest 2gt ltconsequent 2-1gt ...
ltconsequent 2-ngt)
....
(lttest mgt ltconsequent m-1gt ...
ltconsequent m-ngt)),
where (lttest igt ltconsequent i-1gt ...
ltconsequent i-ngt) is called a clause.
A clause whose test is evaluated to non-NIL is
said to be triggered,
and its consequents are evaluated. None of the
rest clauses is
evaluated.
