AI, HPF, Grid Computing: Chronicles of failures

1

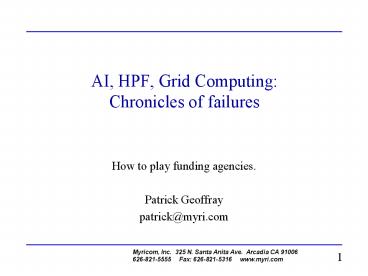

AI, HPF, Grid Computing Chronicles of failures

• How to play funding agencies.
• Patrick Geoffray
• patrick_at_myri.com

2
HPC lies and the lying liars telling them

• How the HPC community gave up on checks and
  balances.
• Patrick Geoffray
• patrick_at_myri.com

3
Hardware folks are from Mars, Software guys are
from Venus.

• Design choices for Myrinet / MX.
• Patrick Geoffray
• patrick_at_myri.com

4
Addressing woes

• Hardware folks use IO space addresses, only valid
  on the IO bus.
• Software people manipulate virtual memory
  addresses, allocated to them by the OS, only
  meaningful in the OS virtual memory mapping.
• Sometimes, the IO address space is mapped
  one-on-one with the physical memory space.
• X86, AMD64, IA-64 (some).
• Sometimes, an IOMMU is sitting between the IO bus
  and the memory bus and maps the IO space into the
  physical memory space.
• PPC (Power, G5), IA-64 (some).
• For zero-copy, we need to convert addresses from
  virtual memory space into IO space gt memory
  registration/deregistration.

5
Memory registration/deregistration

• Memory registration
• Trap into OS kernel.
• Lock access to OS page table.
• Loop for every page
• Walk the OS page table to find the virtual page.
• Eventually swap the virtual page in.
• Increment the page reference count.
• Pin virtual page in the OS page table (marked not
  swappable).
• Get the IO address of the related physical memory
  page (may require to use the IOMMU).
• Unlock access to OS page table.
• Return to user space.

• Memory deregistration
• Trap into OS kernel.
• Lock access to OS page table.
• Loop for every page
• Walk the OS page table to find the virtual page.
• Unpin virtual page in the OS page table (marked
  swappable).
• Decrement the page reference count.
• Eventually clear the related entry in the IOMMU.
• Eventually clear the related entry in any cache
  on the NIC.
• Unlock access to OS page table.
• Return to user space.

6
Dodging the bullet

• Memory registration can be very expensive.
• Hardware folks did not think that it would be
  used in the critical path explicit memory
  registration in low-level hardware-driven
  hardware API such as VIA and Infiniband.
• No explicit memory registration in higher level
  communication libraries such as MPI or Sockets.
• Various methods to attempt to dodge the bullet
• Not do zero-copy make sense for small messages
  where memory copy is cheaper.
• trashes cache, uses CPU.
• Implement a registration cache lazy
  deregistration with garbage collector.
• Need to hijack malloc to catch when memory pages
  are released to the OS.
• Maintenance nightmare.
• Poor efficiency on complex code 9 cache hit on
  Linpack.
• Do not register memory maintain a copy of the OS
  page table in the NIC.
• No OS support requires patching the OS,
  portability issues.

7
State of the Union
8
Design choice in Myrinet / MX

• Patching the OS is bad for many reasons.
• Customers dont like it, maintenance nightmare.
• Memory registration is in the critical path,
  lets live with it.
• Optimize the register/deregister code path.
• Factorize page table access, aggressive locking.
• 4 us for the first page, 0.15 us asymptotically
  (8 pages).
• No long term caching in the NIC.
• Will deregister after single usage.
• No explicit memory registration for Send/Recv
  semantic.
• Keep the door open for registration cache.
• Just for Linux where its easy to catch the
  free() syscall.
• No big reward, but its so simple.

9
MX/GM MPI Pingpong
10
MX/GM MPI Pingpong (no regcache)
11
The Right Thing

• Hardware would provide an IOMMU mapping virtual
  memory addresses into physical memory addresses.
  All IO devices would then directly manipulates
  virtual memory addresses.
• If the IOMMU resolution miss, interrupt the OS
  and Nack the IO transaction.
• Software would maintain a copy of the OS page
  table into this IOMMU, or only in a specific
  device. At the very least, the OS should provide
  well-defined hooks to let the driver maintain by
  itself a copy of the OS page table.

Who said As the memory copy is always going to
be much faster than the network, zero-copy just
does not make sense ?
Linus Torvalds, 2002
12
Message passing woes

• Hardware folks like simple semantics like PUT or
  GET.
• Called RDMA by the marketing department.
• Software guys use two-sided interfaces such as
  MPI or Socket.
• Two-sided interfaces are easier to manipulate for
  large, complex code.
• MPI is the de facto programming standard in HPC.
• Mapping MPI on top of RDMA is like
• Train an AI to be a shrink.
• Using HPF to generate non-trivial parallel code.
• Running HPC codes on a set of loosely coupled,
  geographically widely distributed machines.

It sounds easy but it is a pain to implement and
it performs poorly.
13
MPI over RDMA

• History repeats itself Memory Channel, Giganet
  (VIA), SCI, IB.
• How to implement a matching semantic on top of a
  one-sided API ?
• Matching as to be done somewhere sometime by
  someone.
• Matching can be done after sending data
• Eager mode, copy on the receive side.
• Where do you PUT the eager message in the first
  place ?
• Shared queue with tokens ? Multiple windows ?
  Polling or blocking ?
• Matching can be done before sending data
• Rendez-vous with small packets containing
  matching information.
• Matching done by the host whenever the
  rendez-vous happen.
• If the host is not available, either wait or
  interrupt it.

14
State of the Union
15
Classical MPI overlap problem
16
Matching in the NIC ?

• Matching between incoming message and posted
  receives in MPI.
• 64 bits of matching information.
• Receives are posted by the host.
• If no matching receives found -gt unexpected
  message.
• Asynchronous aspect is important for large
  messages.

• Bad
• Limited resources
• NIC cycles (linear matching).
• NIC memory (number of posted receives).
• MPI state in the NIC.

• Good
• Perfect overlap of communication with
  computation.
• Does not interrupt the host.
• Very loose rendez-vous for zero-copy.

17
Design choice in Myrinet / MX

• Limited number of posted receives in the NIC 32
  or 64 per endpoint.
• Pass it to the host if
• No matching found.
• Race between incoming message and posting of
  receive handle.
• When host receive message
• Check posted receives, starting after the ones
  tried by the NIC.
• If no match found -gt unexpected message.
• Progression thread NIC may need to ask the host
  to be involved
• Matching large messages unmatched by the NIC.
• Host queues are full.
• No periodic timer, only when needed.

18
The Right Thing

• The interconnects should natively support the
  interfaces that people uses in real world
  applications
• Reliable matching (MPI, Socket, Storage).
• Datagram (IP, Databases).
• The hardware people should not impose their
  simplistic notion of low-level communication
  software.
• The software people should not passively accept
  the domination from the hardware clan and do the
  best they can with what they are given.

Who is behind RDMA-based low-level interfaces ?
Intel
19
What to take home

• Hardware and software people like each other,
  they just try to make their own life easier.
• Linus Torvalds does not know much about high
  speed networking.
• Memory registration is a false problem.
• Size of the pipe is only one factor.
• Appropriate semantic and overlap is also
  important.
• RDMA will not save the world.
• It just makes the hardware easier, at the cost of
  software complexity.
• Look for MX at SC04 !
• Physicists are from Pluto, Grid Computing folks
  are from Melmak.
• Physicists claim that the speed of light is a
  constant but Grid Computing people say that
  latency is not a problem.
