Title: JP Koutchouk


1

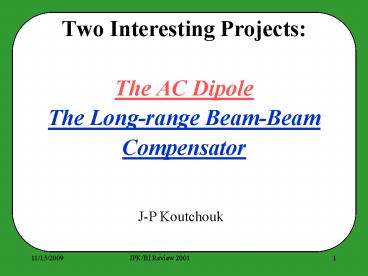

Two Interesting ProjectsThe AC DipoleThe
Long-range Beam-Beam Compensator
  • J-P Koutchouk

2
AC DipoleOutline
  • Motivation
  • Principle
  • Preliminary Results at Cern,
  • AC Dipole Parameters
  • Conclusions

3
Motivation
  • Excite transversely the beam to study its
    response without the drawback of decoherence and
    emittance blow-up (hadrons). This is especially
    important for LHC the anharmonicity due to the
    magnetic field multipoles induced by the
    persistent currents in the s.c. material may be
    large producing a fast decoherence.
  • Small amplitudes, for the study of linear optics
    (Twiss parameters, coupling, dispersion,...),
  • Large amplitudes to study the non-linearity.

4
Principle
  • Studies carried out at BNL/AGS and RHIC by M.
    Bai, S.Y. Lee, S. Peggs et al., first for spin
    manipulations.
  • Excite transverse forced oscillations of the beam
    with anAC dipole whose frequency is close but
    outside the beams eigen-frequencies.
  • If the excitor tune is m/n, the beam may be
    viewed as circulating on a closed orbit which
    closes over n turns.
  • The equilibrium oscillation amplitude is given
    by

5
Example at Cern using the SPS damper
SL-Note-00-062 MD O. Berrig, W. Hofle, R. Jones,
J. Koopman, J.P. Koutchouk, F. Schmidt, MD 2001
A. Burns, J. Klempt
6
Amplitude and Emittance versus Excitor Frequency
Beam
7
Implementation at LHC
  • Linear measurements Use of the LHC damper to
    excite the beam. 1 BPM provided on each side of
    the damper.
  • Large amplitude measurements 4 AC dipoles
    needed.
  • Parameters look feasible (O. Berrig, H.
    Schmickler) 2 times the strength of the RHIC AC
    dipole. Resonant circuit 1KA, 400V, 1 KW at 3
    KHz, adjustable bank of capacitors

8
Conclusion and Prospects
  • The AC dipole principle is very well adapted to
    the LHC constraints, especially at collision
    energy.
  • For this reason, we are testing the principle
    with the SPS damper.
  • Linear measurements in LHC The LHC feedback
    system may be used as an AC dipole. A few BPMs
    were added to allow for Q measurements.
  • Non-Linear Measurements hardly any experience
    world-wide we plan experiments with the SPS. RD
    on implementation of an AC dipole for LHC to be
    launched.

9
Long-Range Beam-beam CompensatorOutline
  • Motivation
  • Principle
  • Simulation Results
  • Parameters of the BBLR Compensator
  • Conclusions

10
Motivation
  • At the nominal performance level, the long-range
    beam-beam effect has been recognized for long to
    be the limiting mechanism.
  • The enlarged crossing angle (300 mrad, i.e.
    9.5s average separation) and the alternate
    crossing (cancellation of the linear tune shift)
    do not appear to leave a sufficient aperture
    where the beam motion is well behaved (Beam-beam
    workshops Cern 1999, Fermilab 2001).
  • Proposal made of an active system to cancel the
    non-linear LRBB kicks (LHC Project Note 223
    PAC01).

11
Principle
  • A straight conductor at 9.5s from the beam
    (transverse) simulates the other beam magnetic
    field to 4 (1 averaged over the betatron angle)
    in the useful aperture it can be used to cancel
    the LR beam-beam kicks.
  • The topology must be identical for the BB kicks
    and for the correction (separation, plane, aspect
    ratio, i.e. identical ratios of the b functions)
    no phase shift.
  • The integrated corrector current is simply -the
    integrated (other) beam current nominal 1 meter
    80 Amperes.
  • The corrector need not be pulsed for normal
    bunches.

12
Position of the Correctors
13
Position of the Correctors
  • To correct for all non-linear effects (detuning
    is insufficient), the correction must be local.
  • Layout 41 m upstream of D2, both sides of
    IP1/IP5

14
Simulation Results
  • .16s
  • .005s
  • .016s

Beam separation at IP
15
Implementation Studies
  • Miniteam J.P. Koutchouk, G. de Rijk, F.
    Zimmermann
  • Robustness with respect to parameters (FZ) no
    critical parameter except noise on the current if
    relevant.
  • Move the corrector beyond the aperture limit
    Try 12s for its center and 1s radius (1s1mm).
    May require a distribution of wires at a radius
    of 12s.
  • Extract the heat enlarge corrector
    cross-section, passive or active cooling.
  • Moving mecanisms and straightness of the
    corrector.
  • Vacuum vessel and impedance minimization.

16
Moving out the corrector at 12s and scaling up
its current
16/11/01, F. Zimmermann
17
Implementation Studies
  • DC version normal bunches are corrected but not
    the PACMAN bunches. A simple standard LHC PC(s)
    can do the job (100A).
  • Pulsed version rise time is 15 bunch periods.
    Feasibility studied by G. Schroeder just OK with
    available switching components.

18
Conclusion
  • The long-range beam-beam correction scheme
    received strong support from the latest BB
    Workshop. It appears to have more potential than
    the e-lens device. Interest was expressed as well
    by Fermilab.
  • In order to be ready to build the correction
    scheme when the machine approaches nominal
    performance, RD studies are to be carried out
    actively.
