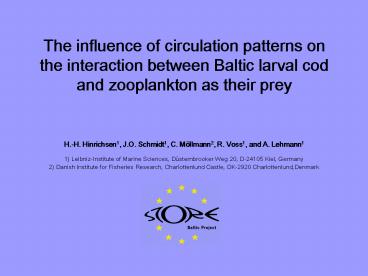

The influence of circulation patterns on the
interaction between Baltic larval cod and
zooplankton as their prey
H.-H. Hinrichsen1, J.O. Schmidt1, C. Möllmann2,
R. Voss1, and A. Lehmann1 1) Leibniz-Institute
of Marine Sciences, Düsternbrooker Weg 20,
D-24105 Kiel, Germany 2) Danish Institute for
Fisheries Research, Charlottenlund Castle,
DK-2920 Charlottenlund,Denmark
2

• Aims of the study
• Analyses of intra- and interannual variability of
  drift in the Baltic
• Dependency of food availability for larval cod in
  the Baltic on circulation patterns
• Impact of temporal mismatch between cod larvae as
  predator and copepods as their prey as an impact
  on the spatial availability of food

3
Spawning and feeding areas of Baltic cod
Sweden
Gotland Basin
Bornholm Basin
Gdansk Deep
After Bagge et al. 1994
4
Particle tracking model and experimental design

• Utilisation of eddy-resolving baroclinic
  circulation model
• individual drifter representing cod larvae
  inserted into simulated current velocity fields
• release locations represent Baltic cod spawning
  area
• release during entire spawning season of cod
  (April to September) every 10 days
• drift duration 60 days (pelagic larval phase)
• time period 1979-1998

5
initial retention 1
retention 2
mean dist. gt, variance dist. lt
mean dist. lt, variance dist. lt
dispersal 1
dispersal 2
mean dist. lt, variance dist. gt
mean dist. gt, variance dist. gt
6
Mean drift-distance
Km
7
Variance of mean drift-distance
Km
8
Mean seasonal cycles of copepod abundance in the
Baltic
Deep water area
Shallow water area
9
Plankton Prey
Development of copepod species in the Baltic Sea
Main reproduction Spring, Central Basin, deep
water layers
Main reproduction Summer, shallow water areas
10
Prey density, size
Swim speed, Reactive area, Turbulence
Individual-Based Model of larval survival
Encounter
Foraging
Growth
Starvation
Predator size, Density, Preference, Availability
of other prey
Avoidance, escape
Predation
modified after Letscher et al. (1996)
Next Day
11
Larval Survival
Output of coupled IBM and hydrodynamic model
interannual variability in larval survival in
comparison to observations
R2 0.61 p lt 0.02
Prey field inclusive P. elongatus (1992 no
data) Observed survival through the
larval phase recruitment at age 0 per daily egg
stage III production
12
Larval Survival
Spatial variability in larval survival, scenario
without P. elongatus
13
From model results to observations
For time period 1966 1988, Anomalies
recruits vs. food availability r2 0.60

• Recruitment of Baltic Cod (Virtual Population
  Analysis)
• Food availability of Pseudocalanus elongatus
  (developmental days x nauplii abundance)

14
Calculation of overlap coefficients (1)

Determination of statistical rectangles
15
Calculation of overlap coefficients (2)
A and B are the proportions of larvae found in
each rectangle at hatch (A) and after a given
time period of larval drift (B) n is the number
of statistical rectangles Date of peak prey
abundance corresponds to larval occurrence after
larval drift (B)
16
Coefficients of overlap after 10 days of larval
drift
17
Summary and Conclusions

• Identification of regime shift by simple
  statistical parameters of larval drift
• Transport processes in combination with prey
  availability create temporal and spatial survival
  windows for larvae
• Spatial overlap patterns larvae and their prey
  depend on variation of circulation patterns
  (retention vs. dispersal)
• Variability of larval prey encounter can be
  coupled to variations in the timing of the
  match/mismatch between predator and prey
