Membrane Structure

1

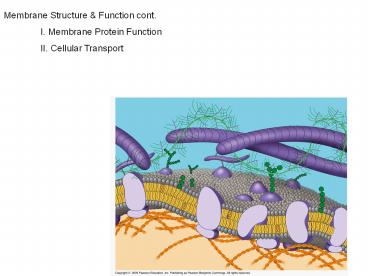

Membrane Structure Function cont. I. Membrane
Protein Function II. Cellular Transport
2

• Integral proteins
• span lipid bilayer
• called transmembrane proteins
• hydrophobic regions consist of one or more
  stretches of nonpolar amino acids
• often coiled into alpha helices
• Visualize and draw membrane with transmembrane
  protein containing 2 helices

3
LE 7-8
EXTRACELLULAR SIDE
N-terminus
C-terminus
CYTOPLASMIC SIDE
a Helix
4

• Six major functions of membrane proteins
• Transport
• Enzymatic activity
• Signal transduction
• Cell-cell recognition
• Intercellular joining
• Attachment to the cytoskeleton and extracellular
  matrix (ECM)

5
LE 7-9a
Signal
Enzymes
Receptor
ATP
Transport
Enzymatic activity
Signal transduction
6
LE 7-9b
Glyco- protein
Attachment to the cytoskeleton and
extra- cellular matrix (ECM)
Cell-cell recognition
Intercellular joining
7
The Role of Membrane Carbohydrates in Cell-Cell
Recognition

• Cells recognize each other by binding to surface
  molecules, often carbohydrates, on the plasma
  membrane
• Carbohydrates covalently bonded to lipids
  (glycolipids) or more often to proteins
  (glycoproteins)
• Much variability of extracellular carbohydrates
  among species, individuals, cell types in an
  individual
• Example of Pneumococcus

8
Synthesis and Sidedness of Membranes

• Membranes distinct inside and outside faces
• Plasma membrane is added to by vesicles from ER
  Golgi.
• Secreted and integral membrane proteins, lipids
  and associated carbohydrates transported to
  membrane by these vesicles.

9
LE 7-10
ER
Transmembrane glycoproteins
Secretory protein
Glycolipid
Golgi apparatus
Vesicle
Plasma membrane
Cytoplasmic face
Extracellular face
Transmembrane glycoprotein
Secreted protein
Plasma membrane
10
Transport across cellular membranes

• To exchange materials with surroundings in part
  to take in nutrients and give off waste
• Exchange(or transport) regulated
• selective permeability

11
Structure Dictates Membrane Permeability

• Hydrophobic (nonpolar) molecules cross membrane
  rapidly
• e.g., hydrocarbons, oxygen, CO2 can dissolve in
  the lipid bilayer and pass through the membrane
  rapidly
• Polar molecules cross slowly
• e.g. sugars, charged proteins, water

12
How do hydrophilic substances cross membranes?
With Help!

• Transport proteins
• Some create hydrophilic channels across membranes
  for polar molecules or ions to pass through
• Example Aquaporin
• water channel protein

13

• Carrier proteins
• binds solutes change the shape of carrier
• help to facilitate passage across membrane
• highly specific for transported solutes
• Examples glucose transporter is a carrier
  protein for glucose only

14
Transport Can be Passive or Active
15
LE 7-11a
Passive Transport Diffusion
Molecules of dye
Membrane (cross section)
WATER
Net diffusion
Net diffusion
Equilibrium
Diffusion of one solute
16

• Substances diffuse down their concentration
  gradient
• High to low
• Substances reach dynamic equilibrium
• No work (no added energy) required

17
LE 7-11b
Net diffusion
Net diffusion
Equilibrium
Net diffusion
Net diffusion
Equilibrium
Diffusion of two solutes
18
Effects of Osmosis on Water Balance

• Osmosis
• diffusion of water across a selectively permeable
  membrane
• Diffuses across a membrane from the region of
  lower solute (such as an ion) concentration to
  the region of higher solute concentration
• The direction of osmosis is determined only by a
  difference in total solute concentration

19
LE 7-12
Lower concentration of solute (sugar)
Higher concentration of sugar
Same concentration of sugar
H2O
Selectively permeable mem- brane sugar
mole- cules cannot pass through pores, but water
molecules can
Osmosis
20
Water Balance of Cells Without Walls

• Tonicity
• ability of a solution to cause a cell to gain or
  lose water
• Isotonic solution
• solute concentration is equal inside and
  outside the cell --gt no net water movement
  cell remains same size

21
Hypertonic solution external solute
concentration is greater than that inside the
cell--gt cell loses water
22
Hypotonic solution external solute
concentration is less than that inside the
cell--gt cell gains water May expand enough to
burst!
23
LE 7-13
Hypotonic solution
Isotonic solution
Hypertonic solution
Animal cell
H2O
H2O
H2O
H2O
Shriveled
Lysed
Normal
H2O
Plant cell
H2O
H2O
H2O
Turgid (normal)
Flaccid
Plasmolyzed
24
Water Balance of Cells with Walls vs No Walls

• Cell walls help maintain water balance
• Plant cell in hypotonic solution swells --gtturgid
  (firm)
• Animal cell?
• Plant cell and its surroundings isotonic--gt no
  net water movemen the cell becomes flaccid
  (limp), and the plant may wilt
• Animal cell?
• In hypertonic environment, plant cells lose
  water--gt membrane pulls away from the wall
  plasmolysis
• Lethal
• Animal cell?

25
Passive Transport Aided by Proteins

• Facilitated diffusion
• transport proteins speed movement of molecules
  across the plasma membrane
• Channel proteins
• Carrier proteins

26
LE 7-15a
EXTRACELLULAR FLUID
Solute
Channel protein
CYTOPLASM
27
LE 7-15b
Carrier protein
Solute
28
Active transportuses energy to
move solutes against their gradients

• Requires energy, usually ATP
• Performed by specific membrane proteins
• Example
• sodium-potassium pump

29
LE 7-16
EXTRACELLULAR FLUID
Na high K low
Na
Na
Na
Na
Na
Na
Na
Na
ATP
Na low K high
P
Na
P
CYTOPLASM
ADP
Phosphorylation causes the protein to
change its conformation, expelling Na to the
outside.
Cytoplasmic Na bonds to the
sodium-potassium pump
Na binding stimulates phosphorylation by
ATP.
K
K
K
K
K
P
K
P
Extracellular K binds to the protein,
triggering release of the phosphate group.
Loss of the phosphate restores the
proteins original conformation.
K is released and Na sites are receptive
again the cycle repeats.
30
LE 7-17
Passive transport
Active transport
ATP
Facilitated diffusion
Diffusion
31

• Electrogenic pumps
• is a transport protein that generates a voltage
  across a membrane--gt opposite charges across
  membrane (membrane potential)
• Example In animals, Na-K pump
• In plant fungi and bacteria, proton pump
• Requires ATP (active transport)

32
LE 7-18

EXTRACELLULAR FLUID


ATP

H
H
Proton pump
H


H
H


CYTOPLASM
H


33
Cotransport Coupled Transport by a Membrane
Protein

• When active transport of one solute indirectly
  drives transport of another
• Example
• Plants commonly use the proton gradient
  generated by proton pumps to drive transport of
  nutrients into the cell

34
LE 7-19


H
ATP
H


Proton pump
H
H


H


H
Diffusion of H
Sucrose-H cotransporter
H




Sucrose
35
How do large molecules move in and out of cells?

• Small molecules and water enter or leave the cell
  through the lipid bilayer or by transport
  proteins
• Large molecules, such as polysaccharides and
  proteins, cross the membrane via vesicles

36
Exocytosis

• Transport vesicles with cargo migrate to the
  membrane, fuse with it, and are release contents
• Example
• Many secretory cells use exocytosis to export
  their products
• Pancreatic cells (beta-cells) secrete insulin

37
LE 7-10
ER
Transmembrane glycoproteins
Secretory protein
Glycolipid
Golgi apparatus
Vesicle
Plasma membrane
Cytoplasmic face
Extracellular face
Transmembrane glycoprotein
Secreted protein
Plasma membrane
38
Endocytosis

• Cell takes in macromolecules by forming vesicles
  at the plasma membrane
• Reversal of exocytosis, involving different
  proteins

39

• Three types of endocytosis
• Phagocytosis (cellular eating) Cell engulfs
  particle in a vacuole
• Pinocytosis (cellular drinking) Cell creates
  vesicle around fluid
• Receptor-mediated endocytosis Binding of ligands
  to receptors triggers vesicle formation

40
LE 7-20c
RECEPTOR-MEDIATED ENDOCYTOSIS
Coat protein
Coated vesicle
Receptor
Coated pit
Ligand
A coated pit and a coated vesicle
formed during receptor- mediated endocytosis (TEMs
).
Coat protein
Plasma membrane
0.25 µm
