Data Design

1

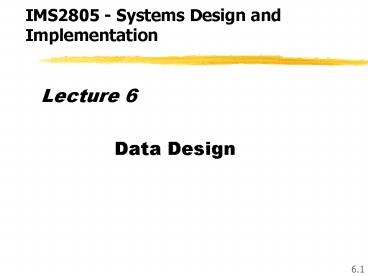

IMS2805 - Systems Design and Implementation

• Lecture 6
• Data Design

2
References

• HOFFER, J.A., GEORGE, J.F. and VALACICH (2002)
  3rd ed., Modern Systems Analysis and Design,
  Prentice-Hall, New Jersey, Chap 12
• HOFFER, J.A., GEORGE, J.F. and VALACICH (2005)
  4th ed., Modern Systems Analysis and Design,
  Prentice-Hall, New Jersey, Chap 10
• WHITTEN, J.L., BENTLEY, L.D. and DITTMAN, K.C.
  (2001) 5th ed., Systems Analysis and Design
  Methods, Irwin/McGraw-Hill, New York, NY.
  Chapter 12

3
Data Design

• Logical data design
• Logical data modelling
• Physical file and database design

4
Overview of logical data modelling

• Logical data modelling involves
• collecting detailed attributes for each entity
  and relationship identified
• converting ER models to relations
• normalising the relations
• merging relations from each user viewpoint
• converting the normalised and merged relations to
  create a data structure diagram

5
Data Design

• The data structures developed in the logical
  system design phase need to be converted to
  physical data structures for the physical design
  stage.
• A knowledge of the relevant data base management
  system (DBMS) is important for this phase.
• The aim is to develop a compromise between the
  ideal (most flexible) structure developed
  during normalisation and the most efficient
  (fastest, cheapest) structure preferred for
  implementation.

6
Physical Data Design

• Information required
• Normalised relations, including volume estimates
• Definitions of each attribute
• Descriptions of where and when data are used
  (CRUD)
• Expectations/requirements for response time and
  data integrity
• Descriptions of technologies to be used for
  implementing the files and databases

7
Physical Data Design

• Key decisions
• The storage format (data type) for each
  attribute, e.g. length,coding scheme, decimal
  places, range of values
• Grouping of attributes into physical records
  (data structure)
• Arranging records in secondary memory for
  storage, retrieval, update (file organisation)
• Selection of media and structures for efficient
  access
• DBMS technologies require selection of options
  for retrieval and for implementation of
  relationships between entities

8
The relational database model

• The relational database model represents data in
  the form of tables or relations
• Important concepts are
• relation
• primary key
• foreign key
• functional dependency
• normalisation

9
Normalisation

• Normalisation is a process for converting complex
  data structures into simple, stable data
  structures in the form of relations.
• Data models consisting of normalised relations
• are robust and stable
• have minimum redundancy
• are flexible
• are technology-independent (logical)

10
Normalisation

• Normalisation ensures that each attribute is
  attached to the appropriate relation
• i.e. each attribute is contained in the relation
  which represents the real world system object or
  concept that the attribute describes or is a
  property of
• e.g. the attribute Student-name should be in the
  relation STUDENT which represents the real world
  object student of interest to a student records
  system

11
Normalisation

• Normalisation was originally developed as part of
  relational database theory by E.F. Codd (1970)
• Normalisation is accomplished in stages, each of
  which corresponds to a normal form
• Originally, Codd defined first, second and third
  normal forms. Third normal form is adequate for
  most business applications.
• Later extensions include Boyce-Codd, 4th, 5th and
  domain-key normal forms.

12
Relation

• A relation is a named, two-dimensional table of
  data
• Each relation consists of a set of named columns
  and an arbitrary number of rows
• Each column corresponds to an attribute of the
  relation
• Each row corresponds to an instance (or record)
  that contains values for that instance

13
Example relation

• A relation generally corresponds to some real
  world object or concept of interest to the system
  (similar to an entity) e.g.

Employee
Emp
Name
Salary
Dept
1247
Adams
24000
Finance
1982
Smith
27000
MIS
9314
Jones
33000
Finance
Employee (Emp, Name, Salary, Dept)
14
Properties of relations

• Relational tables are tables in which
• data values are atomic (single-valued)
• data values in columns are from the same domain
• each row in the relation is unique
• the sequence of columns is insignificant
• the sequence of rows is insignificant

15
Primary key

• An attribute or group of attributes which
  uniquely identifies a row of a relation
• Entity integrity (relational data base theory)
  requires that each relation has a non-null
  primary key
• Where several possible keys are identified, they
  are known as candidate keys - choose one to be
  the primary key

E.g.
Employee (Emp, Name, Salary, Dept) Order-item
(Order, Item, Qty-ordered)
16
Foreign key

• A foreign key is an attribute in one relation
  that is also a primary key in another relation
• The referential integrity constraint (relational
  database theory) specifies that if an attribute
  value exists in one relation then it must also
  exist in a linked relation
• A foreign key must satisfy referential integrity

17
Foreign key example

• In the example below, if a given Dept exists in
  an Employee relation then that Dept must exist
  in the Department relation

Employee (Emp, Name, Salary, Dept)
foreign key
Department (Dept, Dname, Budget)
18
Functional dependency

• A functional dependency is a particular
  relationship between attributes in a relation
• For any relation R, attribute B is functionally
  dependent on attribute A if each value of A has
  only ONE value of B associated with it,
• i.e. if for every valid instance of A, that
  value of A uniquely determines the value of B

A identifies B A B Emp
Emp-name Emp Salary
19
Steps in normalisation

• Normalisation to third normal form is
  accomplished in 3 steps each corresponding to a
  basic normal form
• A normal form is a state of a relation that can
  be determined by applying simple rules concerning
  dependencies within that relation
• Each step of the normalisation process is applied
  to a single relation in sequence so that the
  relation is converted to third normal form

20
Steps in normalisation
Unnormalised table
Remove repeating groups
First Normal Form
Remove partial dependencies
Second Normal Form
Remove transitive dependencies
Third Normal Form
21
Well Structured Relations

• A well structured relation contains a minimum
  amount of redundancy and allows users to insert,
  modify, and delete rows in a table without errors
  or inconsistencies (known as anomalies)
• Three types of anomaly are possible
• insertion
• deletion
• Modification
• Third normal form relations are considered to be
  well structured relations

22
First normal form (1 NF)

• A relation is in first normal form if it contains
  no repeating data
• the value of the data at the intersection of
  each row and column must be single-valued
• Remove any repeating groups of attributes to
  convert a relation to 1 NF (key of the removed
  group is a composite key)

Order (Order, Customer, (Item, Desc,
Qty)) Order-Item (Order, Item, Desc, Qty)
Order (Order, Customer)
23
Second normal form (2 NF)

• A relation is in 2 NF if it is in 1 NF and every
  non-ket attribute is fully functionally dependent
  on the primary key
• A partial dependency exists if one or more
  non-key attributes are dependent on only part of
  a composite primary key
• Remove any partial dependencies to convert a 1 NF
• relation to 2 NF
• If the primary key consists of only one attribute
  or there are no non-key attributes, then a 1 NF
  relation is automatically in 2 NF

24
Second normal form (2 NF)

• Remove Partial Dependencies
• a non-key attribute cannot be identified by part
  of a composite key

• Order (Order, Item, Desc, Qty-ordered)
• Order-Item (Order, Item, Qty-ordered)
• Item (Item, Desc)

25
Partial dependency anomalies
Order-Item
Order
Item
Qty
Item-desc
2
27
873
nut
1
28
402
bolt
10
28
873
nut
50
30
495
washer

• UPDATE change item -desc in many places
• DELETE data for last item lost when last order
  for that item is deleted
• CREATE cannot add new item until it is ordered

26
The solution for these anomalies 2 NF
Order
delete last order for item, but item remains
Order
Item
Qty
27
873
2
28
402
1
28
873
10
30
495
50
Item
add new item at any time
Item
Desc
873
nut
change item description in one place only
402
bolt
495
washer
27
Dependencies within the primary key

• If a relation has a composite key, it must be
  checked for dependencies within the key to
  determine whether they should be retained e.g.
• DEPT (Dept, Dept-name, (Emp, Emp-name))
• DEPT (Dept, Dept-name), DEPT-EMP (Dept, Emp,
  Emp-name)
• But DEPT-EMP (Dept, Emp, Emp-name)
• Remove Dept from the key
• EMP (Emp ,Emp-name, Dept)

28
Third normal form (3 NF)

• A relation is in 3 NF if it is in 2 NF and no
  transitive dependencies exist
• A transitive dependency is a functional
  dependency between two or more non-key attributes
• Remove any transitive dependencies to convert a 2
  NF relation to 3 NF

29
Third normal form

• Remove Transitive Dependencies
• a non-key attribute cannot be identified
• by another non-key attribute

Employee (Emp, Ename, Dept, Dname) Employee
(Emp, Ename, Dept) Department( Dept, Dname)
(look for foreign keys and their attributes)
30
Transitive Dependency Anomalies
Employee
Emp
Emp-name
Dept
Dname
10
Smith
D5
MIS
20
Jones
D7
Finance
25
Smith
D7
Finance
30
Black
D8
Sales

• UPDATE change dept name in many places
• DELETE data for dept lost when last employee
  for that dept is deleted
• CREATE cannot add new dept until an employee is
  allocated to it

31
The solution for these anomalies 3 NF
delete last emp in dept, but dept remains
Employee
Emp
Ename
Dept
10
Smith
D5
20
Jones
D7
25
Smith
D7
30
Black
D8
Item
add new dept at any time
Dept
Dname
D5
MIS
D7
Finance
change dept name in one place
D8
Sales
32
Normalisation to 3 NF

• A relation is normalised if all attributes are
  fully
• functionally dependent on the primary key

Remove repeating groups
Remove partial dependencies
Remove transitive dependencies
33
Transforming ER Diagrams into Relations

• Transforming an ER diagram into normalised
  relations, and then merging all the relations
  into one final, consolidated set of relations can
  be accomplished in four steps
• 1. Represent entities as relations
• 2. Represent relationships as relations
• 3. Normalise each relation
• 4. Merge the relations

34
Representing Entities as Relations

• Each entity in the ER model is transformed into a
  relation e.g.
• becomes

CUSTOMER
Customer (Customer-no, Name, Address, City,
State, Postcode, Discount)
35
Representing Relationships as Relations

• 1. Binary Relationships (1N, 11)

places
CUSTOMER
ORDER
Customer (Customer-no, Name, Address, City,
State, Postcode, Discount) Order (Order-no,
Order-date, Promised-date, Customer-no)
36
Representing Relationships as Relations

• 1. Binary Relationships (1N, 11)
• For 1M, add the primary key of the entity on
  the one side of the relationship as a foreign
  key in the relation that is on the many side
• For 11 relationship involving entities A and
  B, choose from
• add the primary key of A as a foreign key of B
• add the primary key of B as a foreign key of A
• both of the above

37
Representing Relationships as Relations

• 2. Binary and Higher Degree Relationships
  (MN)

PRODUCT
ORDER
requests
Where we wish to know the quantity of each
product on each order, i.e. this attribute is an
attribute of the relationship requests/requested
by
Order (Order-no, Order-date, Promised-date) Order
Line (Order-no, Product-no, Quantity-ordered) Prod
uct (Product-no, description, (other attributes))
38
Representing Relationships as Relations

• 2. Binary and Higher Degree Relationships
  (MN)
• For MN, first create a relation for each for
  each of the entity types, and then create a
  relation for the relationship, with a composite
  primary key formed from the primary keys of the
  participating entity types.

39
Representing Relationships as Relations

• 3. Unary Relationships

manages
Has component
EMPLOYEE
ITEM
Reports to
Is a component of
(1N)
(MN)
Item (Item-no, Name, Cost) Item-Bill (Item-no,
Component-no, Quantity)
Employee (Emp-id, Name, Birthdate,
Manager-id)
40
Representing Relationships as Relations

• 4. IS-A Relationship (Class-Subclass or
  generalisation)

PROPERTY
BEACH PROPERTY
MOUNTAIN PROPERTY
Property (Street-address, City-state-postcode,
No-rooms, Typical-rent) Beach (Street-address,
City-state-postcode , Distance-to-beach) Mountain
(Street-address, City-state-postcode , Skiing)
41
Normalisation of relations merging relations

• During the normalisation process two or more
  relations with the same primary key may appear
• The set of 3NF relations must not contain any
  duplicate data
• Relations with the same primary key should be
  merged

42
Normalisation of relations

• Synonyms
• Two or more attributes may have different names
  but the same meaning
• Either adopt one of the names as a standard or
  choose a third name
• STUDENT1 (Student-id, Name, Phone-no)
• STUDENT2 (VCE-no, Name, Address)
• STUDENT (Student-id, Name, Address, Phone-no)

43
Normalisation of relations

• Homonyms
• Two or more attributes may have the same name but
  different meanings
• To resolve the conflict, new attribute names need
  to be created
• STUDENT1 (Student-id, Name, Address)
• STUDENT2 (Student-id , Name, Phone-no, Address)
• STUDENT (Student-id, Name, Phone-no,
  Campus-address, Permanent-address )

44
Normalisation of relations

• Transitive dependencies

• When two 3NF relations are merged, transitive
  dependencies may result e.g.
• STUDENT1 (Student-id, Major)
• STUDENT2 (Student-id , Advisor)
• STUDENT (Student-id, Major, Advisor)
• BUT MAJOR ADVISOR
• STUDENT1 (Student-id, Major)
• MAJOR (Major , Advisor)

45
Data Structure Diagrams

• A set of 3 NF relations may be converted to a
  simple diagrammatic form to begin physical
  database design
• The conversion is simple
• 1. Draw a named rectangle for each relation
• 2. Draw a relationship line between rectangles
  linked by foreign keys with a many
  cardinality at the foreign key end of the
  relationship

46
Data Structure Diagram example

• CUSTOMER (Cust, Cname,Phone number)
• SALES ORDER (Sord, Sord-date, Cust)
• SALES ORDER-ITEM (Sord, Item, Qty)
• ITEM (Item, Item-desc)

CUSTOMER
ITEM
SALES ORDER
SALES ORDER LINE
47
Data Structure Diagram example

• Eliminate Redundant Relationships

TOUR
(Tourcode, ...)
DEPARTURE
(Tourcode, depdate, ...)
redundant
(Booking, ... , Tourcode, depdate)
BOOKING
48
Relational Database Design
Logical Process Model Designer Added
Procedures Frequency Response
Req. Constraints
Logical Data Model Designer Added Data Volume
Sizing Info Constraints
Logical Database Design Logical Transaction
Model
Target Platform Specific Design
49
Database Design Objectives
Structure (Stability / Adaptability) Preserve
correspondence to normalised data model Preserve
data integrity
Performance (Speed and Resource
Utilisation) Transaction response
requirements Minimise secondary storage
requirements Minimise transfers between primary
and secondary storage
50
Database Design - Logical Design

• Logical Design
• Designer added entity types and attribute types
• Review primary and foreign keys
• Review derived and aggregate data
• Define table and column structure
• Establish row and column ratios
• Define transaction access maps
• Review transaction access maps considering
  performance
• Develop composite load map
• Evaluate design in terms of corporate standards,
  response requirements and resource utilisation.

51
Database Design - Physical Design

• Selection of table access paths including indexes
  and file organisation.
• Selection of data types and sizes
• Selection of other DBMS dependent variables
• page size,
• free space management option,
• data and index clustering,
• compression,
• concurrency control issues,
• database sizing - fill for tables,
• buffer sizes,
• access control constraints.

52
Designer Added Data

• It is often necessary to extend the logical data
  model with extra entity types, attribute types
  and / or relationship types to reflect design and
  implementation decisions.
• Additional data may be required to support
• archiving
• back-up
• access control
• restart and recovery
• audit and integrity requirements
• system housekeeping functions and the storing of
  historical information

53
Example Designer Added Data

• Adding entities for the purpose of archiving

Has Assigned
Project
Employee
Archived Project
Archived Employee
Last Used Empno
54
Convert Logical Data Model

• Relations become tables.
• Attributes become columns
• a number of decisions must be made when mapping
  attributes to columns.
• Domains must be defined and linked to the
  appropriate table columns. (if domains are
  supported by the DBMS)

55
Primary Keys

• Some guidelines regarding primary keys
• Primary keys identified in the logical data model
  may not always be suitable for implementation.
• The length of each attribute forming the primary
  key should be as short as possible. Avoid long
  character fields.
• Keep the use of composite keys to a minimum.
• Surrogate keys may be used to reduce these
  problems. Sometimes these keys may be hidden
  from the users.
• Compact unique identifiers are particularly
  suitable as primary and therefore foreign keys.
• No component of a primary key can accept null
  values, and the uniqueness property must be
  enforced.

56
Transaction Analysis

• A technique to analyse the data access loads
  generated by each transaction type.
• This allows alternative approaches and their
  impact on data access loads to be considered.
• The loads generated by each transaction type may
  be aggregated to calculate the total access
  loads on the database, and this information is
  useful in identifying heavily loaded structures
  of the database.

57
Statistics Must be Representative

• To properly evaluate a design it may be necessary
  to calculate several sets of performance
  statistics.
• Transaction loads may vary widely from peak to
  average.
• Database size may vary widely during application
  execution particularly if cumulative data is
  held.
• It is much safer to perform design calculations
  using peak loads, rather than 'average' loads.
• Planned equipment utilisation should never exceed
  70.

58
Transaction Analysis Technique

• Define the cardinality of each table, and the
  ratios between table rows.
• Develop transaction access maps for each
  transaction type showing the sequence in which
  each table is accessed and the basis of each
  access.
• Use table cardinality and ratio information to
  determine the number of rows of each table that
  each transaction type will access.

59
Transaction Analysis Technique

• Aggregate these details to produce total access
  loads for each table in the database.
• The individual loads for each transaction type
  and the composite load map should be carefully
  examined for opportunities to improve the
  efficiency of the system.
• Great care needs to be taken to balance
  flexibility against performance, when considering
  amendments to transaction access paths.

60
Transaction Analysis Technique

• The following data model fragment will be used
  for examples. The numbers relate to
• table cardinality (eg Order table 900)
• table ratios (eg Order to Orderline ratio 110)

61
Table Cardinality Row Ratios

• Item (Item, Description, Price,
  Quantity-on-hand)
• 1000 records with 5 growth pa
• Order-line (Order, Item, Qty-ordered,
  Qty-shipped, Unit-price)
• 9000 records with 7 growth pa,
• Ratios ( 1 Item 9 Order-lines), (1 Order 10
  Order-lines)
• Order ( Order, Ord-date, etc)
• 900 records with 7 growth pa,
• Next Order (Order)
• 1 record with no growth
• Each Item has on average 9 Order-lines
• Each Order has on average 10 Order-lines

62
Transaction Access Path Maps

• Developed from action diagrams for elementary
  processes. For each transaction, or at least the
  most critical, it is necessary to identify
• Each table access,
• The sequence of the access within the
  transaction,
• The type of access C. R. U. D.(create, read,
  update, delete)
• The columns and predicate of the search condition
  for the CRUD access
• Whether the predicate values come from other
  tables accessed by the same transaction,
• The columns required as a result of this access,
• The number of accesses per transaction,
• The number of accesses per period.

63
Example Transaction Access Path Map
3
1 2
4 5
6
64
Example Transaction Access Path Map
(1000)
Item
1 2
Assumption 70 of enquiries are by Item, 30
by description (Desc)
65
Example Transaction Access Path Map
1.
3.
2.
66
Ad Hoc Queries

• Complicate the situation, because they are
  difficult to quantify and predict in advance.
• Some controls on when ad hoc queries are
  permitted may be necessary.
• Some DBMS allow the cost of a query to be
  calculated and the user may be forewarned or
  prevented from executing an expensive query.
• Data may be extracted from the production
  database during quiet times and loaded onto
  another database on a different machine to
  minimise the impact of ad hoc query.

67
Analysis of the Transaction Access Path Map

• The access path for each transaction should be
  reviewed for efficiency.
• A number of techniques may be used to reduce the
  cost of transactions.
• Alteration of aggregation time.
• Alteration of column derivation time.
• Data Replication
• Combining and splitting tables
• Introducing codes simplify identification and
  compress data

68
Developing the Composite Load Map

• Summarise the information from each transaction
  access map to show the total number of accesses
  by table, access type, table columns used for
  access and the access predicate.
• This will highlight possible keys and indexes,
  row sequencing requirements and the columns used
  to join tables.
• Ideally the production of the composite load map
  should be automated to allow for automatic
  re-calculation of totals following changes to
  transaction access maps.

69
Example Composite Load Map
70
Interpreting the Composite Load Map

• The composite load map is designed to highlight
  table access types that have a very high
  frequency.
• One logical input-output operation does not
  necessarily result in one physical input-output
  operation. Buffering techniques, indexes, and
  logging complicate the actual number of physical
  I/O operations.
• The transactions contributing to these high
  levels of access should be closely scrutinised to
  determine whether the number of I/O accesses
  could be reduced by altering their data access
  strategy.
• The composite load map also provides a base for
  determining where entry point access methods such
  as primary and secondary indexes may provide
  substantial benefit.

71
Interpreting the Composite Load Map

• Where the composite load map shows high join
  frequencies between tables, control of table row
  placement, or the use of table access methods
  such as hashing techniques or indexes may be used
  to optimise join operations.
• Where a table has a high frequency of sequential
  access, physical ordering of table rows, or the
  creation of an index to support the access could
  be useful.
• Tables with a small number of rows could be held
  in main storage, if this option is supported by
  the DBMS.
• The actual access path taken will depend on the
  DBMS query optimiser.

72
Compromising the Logical Model

• Given the limitations of some DBMS it may be
  necessary to compromise the logical data model
  for performance reasons.
• In general this should be hidden from application
  logic by the use of special access routines that
  are responsible for mapping the normalised
  application view to the de-normalised storage
  view.
• Some DBMS specific design techniques may allow a
  normalised application view to be maintained.

73
Transaction Design

• Some transactions may implement designer added
  procedures that are part of the designed business
  system rather than part of the process model
  developed during analysis.
• The starting point for transaction design for
  process implementing procedures is the logic
  defined via an action diagram for the elementary
  process(es) which the transaction (procedure) is
  to implement.
• If action diagrams have not been developed during
  analysis then these should be developed in close
  association with the data model as part of
  design.

74
Physical Issues in Transaction Design

• Operational, audit and access control issues.
• Impact of designer added data on procedure logic.
• Concurrency and locking issues.
• Failure, fallback, restart and recovery issues.
• Standardisation of transaction resource
  requirements.
• Frequency of use and transaction response
  requirements.
• The use of derived and redundant data to minimise
  access to secondary storage.
• The most appropriate time to derive aggregate
  data.
