Title: CDA 6506 Network Architecture and ClientServer Computing


1

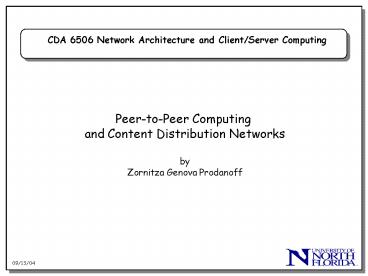

CDA 6506 Network Architecture and Client/Server
Computing
Peer-to-Peer Computing and Content
Distribution Networks by Zornitza Genova
Prodanoff
09/13/04
2
Lecture Outline
  • Client/Server Model
  • Peer-to-Peer Model
  • Content Distribution Networks

ZGP002
3
Client/Server Communication
  • The client (process)
  • Runs on a desktop
  • Makes requests for services
  • Executes a portion of the application code
  • The server (process)
  • Executes a set of functionally related services
  • Never initiates a message exchange with a client
  • Implements a queue to hold client requests as
    they arrive
  • Request-reply protocol client sends requests and
    server replies
  • Queue of client requests at the server
  • Server throughput is the number of requests
    served per unit time

ZGP003
4
Client/Server Communication (continued)
  • Server Types
  • File servers
  • Database servers
  • Application servers
  • Groupware servers
  • Object servers
  • Web servers
  • Software servers

ZGP004
5
C/S Example Hyper Text Transfer Protocol (HTTP)
  • Hypertext Markup Language (HTML)
  • Integrate images and other multimedia objects, as
    well as software applications
  • Application layer protocol
  • Runs on top of TCP/IP

ZGP005
6
C/S Example Hyper Text Transfer Protocol (HTTP)
  • HTTP 1.0 vs. HTTP 1.1
  • HTTP 1.0
  • Allows for embedded documents in the HTML file
  • The client browser opens a separate connection
    with the server for each requested file html,
    image, etc.
  • Client does not need to wait for connection
    termination before another connection request is
    sent
  • Images are downloaded transparent to user HTTP
    response, containing the URL for the image is
    parsed before a new connection request is made

ZGP006
7
C/S Example Hyper Text Transfer Protocol (HTTP)
  • HTTP 1.1
  • Allows for embedded documents in the HTML file
  • Persistent connections The client browser
    opens a (single) connection with the server for
    the html file. Then, embedded documents are
    requested within this same TCP connection
  • Pipelined requests multiple requests are sent
    without waiting for response (ACK)
  • Pipelined HTTP 1.1 outperforms parallel
    connection based HTTP 1.0

ZGP007
8

ZGP008
9
Peer-to-Peer Model
  • Problems with C/S model
  • Server seen as a central node
  • Scalability
  • Reliability
  • Peer-to-Peer model a collaborative and
    distributed approach to computing
  • A study conducted at a major company with 10,000
    workstations
  • 75 of CPU cycles in the workstations or network
    nodes such as routers are idle
  • 50 of disk space is free

ZGP009
10
Peer-to-Peer Model (continued)
  • 10 billion MHz 10,000 TB not utilized at the
    edges of the Internet (see openP2P.com)
  • The size of the networks and the
    complexity/requirements from the protocols
    steadily increase
  • Bandwidth consumption attributed to popular file
    sharing applications reaches 60 of the total
    Internet traffic
  • Must be able to locate the resources efficiently

ZGP0010
11
Peer-to-Peer Model (continued)
  • Peer-to-Peer model sharing of resources
    available at the edges of the Internet
  • In a P2P system, distributed computing nodes of
    equal roles or capabilities exchange information
    directly with each other
  • Resources could be content, storage, CPU-cycles,
    bandwidth
  • P2P paradigm has many plausible characteristics
  • Scalability
  • No centralized authority,
  • Robustness
  • Cooperation, sharing
  • Anonymity

ZGP0011
12

13
Peer-to-Peer Model (continued)
  • Routing Indexes
  • No-indexing (Gnutella)
  • Centralized index (Napster)
  • Distributed index (FreeNet)

ZGP0013
14
Peer-to-Peer Model (continued)
  • Advantages of Peer-to-Peer model
  • Performance gain with much less cost
  • Self-organization
  • Load balancing
  • Adaptation
  • Fault-tolerance
  • Mobile devices

ZGP0014
15
Peer-to-Peer Model (continued)
  • Open problems
  • Locating and addressing
  • Caching of passing through objects
  • How to identify an Object
  • Network usage and participation

ZGP0015
16
Peer-to-Peer Model (continued)
  • Queries propagate across nodes, each node does
    some processing and uses resources
  • Bandwidth The average over a set of
    representative queries of the aggregate BW
    consumed (in bytes) over each edge on behalf of
    the query
  • Processing The average over a set of
    representative queries of the aggregate
    processing power consumed at each node on behalf
    of the query

ZGP0016
17
Peer-to-Peer Model (continued)
  • Gnutella BFS technique is used with depth limit
    of D, where D TTL of the message. At all levels
    lt D query is processed by each node and results
    are sent to source and at level D query is
    dropped.
  • Freenet uses DFS with depth limit D. Each node
    forwards the query to a single neighbor and waits
    for a definite response from the neighbor before
    forwarding the query to another neighbor (if the
    query was not satisfied), or forwarding the
    results back to the query source (if query was
    satisfied).

ZGP0017
18
Content Distribution Networks
  • Next generation Internet - Content Distribution
    Networks
  • A CDN is an overlay network on the Internet
  • A CDN co-locates content throughout the world
  • CDNs are of a great commercial and research
    interest
  • 15 million in NSF funding for Web services
    research
  • Akamai is one major CDN provider

ZGP0018
19
Content Distribution Networks
Global content distribution in a CDN
http//214.29.2.15/page
http//www.some.com/page
http//334.249.2.8/page
ZGP0019
20
Content Distribution Networks
  • HTTP redirection in a CDN
  • (1) HTTP request and redirect
  • (2) HTTP re-request and response

Reverse cache
Origin site
Proxy cache
Clients
Distributed server
ZGP0020
21

Content Distribution Networks
  • Caching
  • reduces both Internet traffic and server load
  • implemented
  • local to the client
  • as a caching hierarchy in the Internet
  • at the server site
  • content information best shared as compressed
    digests
  • update interval - seconds to minutes in length

ZGP0021
22

Content Distribution Networks
  • Selection of the best server with
  • satisfactory response time to the user and
  • minimized network traffic.
  • (Selection criteria server load, server
    contents, and network path characteristics)

ZGP0022
23

Content Distribution Networks
  • Scaling from local to distributed cluster
  • internet connections constrained by bandwidth and
    delay
  • state information shared with less frequency
  • state information smaller in size
  • herd effect
  • chose least-loaded server
  • unbalanced and oscillating loads.

ZGP0023
24
Content Distribution Networks
Architecture of a new URL router
One armed URL router
HTTP requests and redirects
Network links
Layer 3 switch
ZGP0024
