Title: EECE Embedded System Design


1

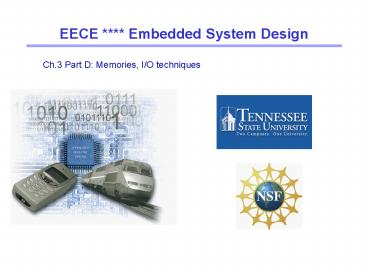

EECE Embedded System Design
2
Memory
  • For the memory, efficiency is again a concern
  • speed (latency and throughput) predictable
    timing
  • energy efficiency
  • size
  • cost
  • other attributes (volatile vs. persistent, etc)

3
Access times and energy consumption increases
with the size of the memory
"Currently, the size of some applications is
doubling every 10 months"
Example (CACTI Model)
4
Access times and energy consumptionfor
multi-ported register files
  • Rixners et al. model HPCA00, Technology of
    0.18 mm

5
Reducing energy consumption with Sub-banking
  • shorter wires,
  • lower capacitances,
  • faster access

6
How much of the energy consumption of a system is
memory-related?
7
CPU Power Dissipation
42/40 again memory-related !
IEEE Journal of SSC Nov. 96
Proceedings of ISSCC 94
8
Access-times will be a problem
  • Speed gap between processor and main DRAM
    increases
  • early 60ties (Atlas)page fault 2500
    instructions
  • 2002 (2 GHz µP)access to DRAM 500
    instructions
  • ? penalty for cache miss about same as for page
    fault in Atlas

9
Predictability is a problem (1)
  • Embedded system systems are often real-time
    systems
  • Have to guarantee meeting timing constraints.
  • Predictability For satisfying timing constraints
    in hard real-time systems, predictability is the
    most important concernpre run-time scheduling
    is often the only practical means of providing
    predictability in a complex system Xu, Parnas
  • Time-triggered, statically scheduled operating
    systems

10
Predictability is a problem (2)
  • Currently available caches dont solve the
    problem
  • Improve the average case behavior
  • Use non-deterministic cache replacement
    algorithms
  • Scratch-pad/tightly coupled memory based
    predictability

11
Hierarchical memoriesusing scratch pad memories
(SPM)
Hierarchy
Example
  • Address space

no tag memory
12
Comparison of currents using measurements
E.g. ATMEL board with ARM7TDMI andext. SRAM
/3
13
Comparison of energy consumption
Example Atmel ARM-Evaluation board
Main memory access takes more cycles?savings
(86) larger than for current.
energy reduction/ 7.06
14
Why not just use a cache ?
  • Predictability?

Worst case execution time (WCET) may be large
15
Why not just use a cache ? (2)
  • Energy for parallel access of sets, in
    comparators, muxes.

16
Influence of the associativity
Parameters different from previous slides
17
Flash Memory Based on EPROM/EEPROM-Memory
EPROM storage cell
Row (j)
FG charged
FG not charged
Ground
Read amplifier
floating gate FG can be charged by high
voltage. Charged transistor non-conducting if row
selected. Discharging with UV light.
18
EEPROMS storage cell
EEPROM electrically erasable read only
memory. EEPROM needs additional transistor per bit
Writing and erasing requires just electrical
signals
19
NOR- and NAND-Flash
  • NOR Transistor between bit line and ground
  • NAND Several transistor between bit line and
    ground

contact
contact
20
Properties of NOR- and NAND-Flash memories
