Title: EEL 3705 / 3705L Digital Logic Design


1

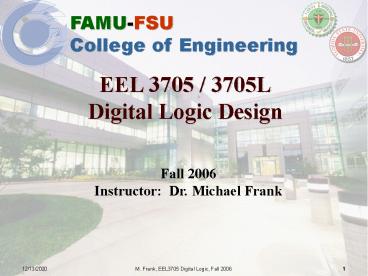

EEL 3705 / 3705LDigital Logic Design
  • Fall 2006Instructor Dr. Michael Frank

2
Lecture Outline
  • Overview of the subject area
  • Whats Digital Logic Design all about?
  • Overview of the course
  • Syllabus, policies, procedures
  • Administrative matters
  • Sign-in sheet, Prereq form, Blackboard, 1st
    assignment

3
What do we mean by Digital Logic Design?
  • Digital
  • Using discrete physical states (e.g., on/off
    transistor, high/low voltage) to represent
    information
  • Logic
  • Using the basic operations of Booles algebra of
    logic to interpret, manipulate and process
    information
  • Design
  • To conceive, plan, analyze and construct the
    structure of working systems that will meet
    application requirements

4
Applications of Digital Logic Design
  • All complex electronic systems today rely heavily
    on components whose design and operation is based
    (almost entirely) on digital logic principles,
    including
  • Microprocessors and microcontrollers
  • The heart of the modern computer, and also
    embedded within all manner of other consumer and
    industrial electronic devices
  • Digital Signal Processors
  • Used in cellphones, cameras, networking equipment
  • FPGAs (Field-Programmable Gate Arrays)
  • Used for prototyping in a wide range of
    equipment
  • ASICs (Application-Specific Integrated Circuits)
  • Semi-custom, used in many specialized applications

5
Electrical Computer Engineeringand the Design
of Electronic Systems
  • Although electrical engineering and computer
    engineering are considered different disciplines,
    its important to always remember that any
    complex electronic component includes both
  • Physical/electrical characteristics
  • Such as power, current, inductance, capacitance,
    etc.
  • And computation-related characteristics
  • E.g., information content, logical function,
    software, protocols
  • To successfully design working systems requires
    multidisciplinary teams that understand and can
    take care of the engineering considerations on
    both sides!

6
What does a modernDigital Logic Designer do?
System-levelrequirements
Functional design
  • Design engineering, in general, involves taking
    abstract, system-level requirements, and
    translating them into ever more concrete and
    specific designs for technological artifacts.
  • Digital Logic Design is no different.
  • In modern industrial practice, increasingly many
    of the steps of the design process have been
    automated.
  • This is true for digital functions especially.
  • See e.g. resources at eda.org
  • Today, computer-based tools do most of the grunt
    work and heavy lifting
  • But, the designer has to understand what the
    tools are doing in order to use them!

Functional orbehavioralspecification
Structuraldesign
Schematic orstructuralspecification
Logic design
Gate-LevelDesign
Designcompiler
Circuit synthesis
FPGAProgram
Transistor-levelSchematics
Layout
Loading
ConfiguredFPGA
VLSI Mask Layers
Fabrication
Physical chip
7
The Basis of Digital Logic todayThe MOSFET
  • Nearly all digital systems today (2006) are based
    on an electronic device called the MOSFET
  • Metal-Oxide-Semiconductor Field-Effect Transistor
  • This device is a voltage-controlled switch
  • Two basic types of FET
  • nFET The dominant charge carriers are electrons
    (negative)
  • Conducts low voltages well
  • pFET The dominant charge carriers are holes
    (positive)
  • Conducts high voltages well

gate
source
drain
nFET icon used in schematics
8
Todays Dominant Logic StyleCMOS
  • Most logic today is done in the CMOS
    (Complementary MOS) logic style
  • Each logic gate (hardware to do a given logic
    operation) is built using both nFETs and pFETs
  • nFETs pull output low, pFETs pull it high
  • Uses energy mainly only when switching
  • Here are a simple CMOS inverter circuit and its
    logic gate icon
  • When input is high (1) output is low (0) and
    vice-versa.
  • This and a few other simple gates are sufficient
    to build any digital system!

Vdd (PWR)
Vin
Vout
Vss (GND)
in
out in
9
Course Overview
  • Go through syllabus posted on Blackboard

10
Administrative Matters
  • Sign the attendance sheet being passed around
  • Clearly print your preferred email address
  • Pick up and sign a prerequisite form
  • Turn it in at the end of class
  • Make sure you are enrolled on Blackboard
  • Email Dr. Frank if you arent
  • Download the Quartus II software
  • Labs begin next week!

11
First-Day Homework Assignment
  • To be completed by this Wednesdays lecture
  • No time to waste!
  • The assignment is
  • 1. Turn in the signed course prerequisite form to
    Dr. Frank
  • Preferably, at the end of todays lecture
  • 2. Ensure you are enrolled for the course on
    Blackboard
  • Email instructor at mpf_at_eng.fsu.edu immediately
    if not
  • 3. On your home or laptop computer, download
    install the Quartus II software (web version)
  • Available from altera.com (see link on Blackboard)
