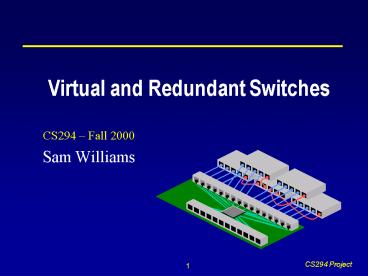

Virtual and Redundant Switches

1
Virtual and Redundant Switches

• CS294 Fall 2000
• Sam Williams

2
Outline

• Motivation
• Existing Products
• Arrayed Commodity Switches
• Adding Redundancy
• Optimizing
• Conclusions

3
Motivation

• Cost of switches grows very quickly
• O(Ports2) for crossbar based
• Additionally address tables and buffers must
  grow
• Industry leading MTBF for a single switch is
  about 50K hours
• and typical is perhaps only 25K.
• Modular Switches provide redundancy for
  management and power, but not the data transport
  fabric.
• MTTR is typically over 1 hour
• Can the money saved by cascading commodity
  switches be applied towards improved performance
  or redundancy?
• The goals are to improve the MTBF, improve
  performance, and simplify the work that must be
  done to replace a failed switch.

4
Existing Products

• Existing modular aggregators can merge several
  smaller switches (modules) into a single large
  virtual switch.
• In this case, each 36 port switch module has a
  pair of gigabit uplinks to the switching fabric,
  which has either 6 or 24 gigabit ports (full
  duplex)
• Redundancy is also provided for management
  modules, fans, and power supplies.
• However, not for modules or switching fabric.
• So if the switching fabric fails, the entire
• device fails, but if individual switching
• modules fail, then only that sub network
• fails.
• Management modules can infer priority to
• improve performance for critical activity

3com switch 4007
5
Existing Products (Analysis)

• The cost analysis here is based on use of either
  18 or 48 Gbps switching fabrics, 36 port
  switching modules and either a 7 or 13 bay
  chassis.
• Performance is slowdown on the time to send from
  every node to every other node compared to a true
  n36 port switch.
• MTBF is for any part of the network
• MTTR was at least 1 hour.
• Repair cost is about 4000/failure
  modularization helps to keep this low, but yearly
  maintenance cost will grow with the number of
  ports

6
Virtual switch from commodity switches

• Although without the management functions, and
  performance, cheaper virtual switches can be
  built nothing more than just cascading them
• This is based on 5, 8, 16, and 24 port switches,
  each with the last port MDI type, and from 5
  different companies
• Performance is poor since the uplinks are only
  100Mbps
• Adding a second uplink port only moderately
  alleviates this deficiency

7
Virtual switch from mid-range switches

• By using switches more suited to this design
  (higher speed uplink(s)), we can improve
  performance
• These switches use an 8 or 24 port switch at the
  bottom, each with 1 or 2 gigabit uplink modules,
  and a 4, 8, or 12 port gigabit switch at the top
• The gigabit uplinks and gigabit switches drive
  cost to at least twice as much as commodity
  solution, but with 10x better performance
• Performance is near that of a monolithic switch
  if 2 uplinks are used.
• Compared to packaged solution, its about half the
  cost, and slightly less performance, but no
  management functionality.

8
Port Virtualization for Redundancy

• The re-mapping stage is much simpler than a full
  nm port switch. Essentially each of the m n bit
  busses are mapped to one of the k n bit internal
  busses which are connected directly to the
  switches
• For this example each of the 4 groups of 8
  virtual ports is mapped to one of the 5 groups of
  physical ports. The uplinks of the first stage
  switches are sent back, and into one of the top
  level switches.
• An even simpler solution, for single redundancy,
  would be to map either directly, or to the spare
• In this design the the single point of failure is
  the re-mapping block, since first and second
  level switches have redundancy
• So for the example below, MTBF is improved by
  about 50 (from 208 days to 347 days)

9
Port Virtualization for Higher Performance

• Previous performance analysis was based on
  1-to-all messaging.
• However, it is likely that network access
  patterns can be broken into groups of high
  inter-node communication
• Thus monitoring can be performed, and the network
  can be periodically paritioned into activity
  groups
• Create a graph based on bandwidth used between
  nodes, use something like Kernighan partitioning
  to separate it into a number of partitions equal
  to the number of first stage switches (power of
  2).
• The re-mapping stage is only slightly simpler
  than a full nm port switch (no buffers, never
  any contention, etc)

Logical View 3 switches reserved as spares. 1
failed, and the network was repartitioning
10
Conclusion

• It is possible to make a larger virtual switch
  out of smaller switches, and still get reasonable
  performance.
• With little additional hardware, and monitoring
  agent, it is possible to make it fault tolerant,
  with several spare switches which can be
  automatically swapped in simple case cost
  O(Spares Ports).
• more complex designs make it O(Ports2)
• With a very simple, but large switch, it is
  possible to also optimize for performance by
  balancing network bandwidth among switches in the
  pool. This is a much more costly solution.
• A generalization would provide a pool of switches
  connected by the port mapper, and some or none
  reserved as spares.
• Both of these concepts and their functionality
  could be integrated into a single ASIC or board.
