The Many Facets of Natural Computing

1

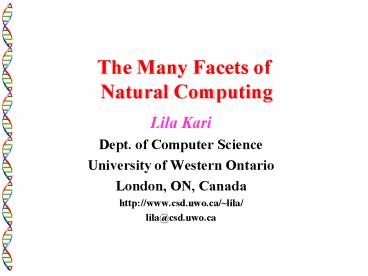

The Many Facets of Natural Computing

• Lila Kari
• Dept. of Computer Science
• University of Western Ontario
• London, ON, Canada
• http//www.csd.uwo.ca/lila/
• lila_at_csd.uwo.ca

2
Natural Computing

• Investigates models and computational techniques
  inspired by nature
• Attempts to understand the world around us in
  terms of information processing
• Interdisciplinary field that connects computer
  sciences with natural sciences

3
Natural Computing

• (i) Nature as Inspiration
• (ii) Nature as Implementation Substrate
• (iii) Nature as Computation

4
(i) Nature as Inspiration

• Cellular Automata self-reproduction
• Neural Computation the brain
• Evolutionary Computation evolution
• Swarm Intelligence group behaviour
• Immunocomputing immune system
• Artificial Life properties of life
• Membrane Computing cells and membranes
• Amorphous Computing - morphogenesis

5
1.Cellular Automata

• Cellular automaton dynamical system consisting
  of a regular grid of cells
• Space and time and discrete
• Each cell can be in a finite number of states
• Each cell changes its state according to a list
  of transition rules, based on its current state
  and the states of its neighbours
• The grid updates its configuration synchronously

6
CA Example Rule 30

• 111 110 101 100 011 010 001 000
• 0 0 0 1 1 1 1
  0

7
Conus Textile pattern
8
2.Neural Computation

• Artificial Neural Network a network of
  interconnected artificial neurons
• Neuron A n real- valued inputs x1,,
  xn
• weights w1,,wn
• computes
• fA(w1x1 w2x2
  wnxn)
• Network Function vectorial function that,
• for n input values, associates the outputs of
  the m pre-selected output neurons

9
Applications to Human Cognition T.Schultz,
www.psych.mcgill.ca/labs/lnsc
10
3.Evolutionary Computation

• Constant or variable-sized population
• A fitness criterion according to which
  individuals are evaluated
• Genetically inspired operators (mutation or
  recombination of parents) that produce the next
  generation from the current one

11
Genetic Algorithms

• Individuals fixed-length bit strings
• Mutation cut-and-paste of a prefix of a parent
  with a suffix of another
• Fitness function is problem-dependent
• If initial population encodes possible solutions
  to a given problem, then the system evolves to
  produce a near-optimal solution to the problem
• Applications real-valued parameter optimization

12
Using Genetic Algorithms to Create Evolutionary
Art M.Gold
13
4.Swarm Intelligence

• Swarm group of mobile biological organisms
  (bacteria, ants, bees, fish, birds)
• Each individual communicates with others either
  directly or indirectly by acting on its
  environment
• These interactions contribute to collective
  problem solving collective intelligence

14
Particle Swarm Optimization

• Inspired by flocking behaviour of birds
• Start with a swarm of particles (each
  representing a potential solution)
• Particles move through a multidimensional space
  and positions are updated based on
• previous own velocity
• tendency towards personal best
• tendency toward neighbourhood best

15
Ant Algorithms

• Model the foraging behaviour of ants
• In finding the best path between nest and a
  source of food, ants rely on indirect
  communication by laying a pheromone trail on the
  way back (if food is found) and by following
  concentration of pheromones (if food is sought)

16
(No Transcript)
17
5.Immunocomputing

• Immune systems function protect our bodies
  against external pathogens
• Role of immune system recognize cells and
  categorize them as self or non-self
• Innate (non-specific) immune system
• Adaptive (acquired) immune system

18
Artificial Immune Systems

• Computational aspects of the immune system
  distinguishing self from non-self, feature
  extraction, learning, immunological memory,
  self-regulation, fault-tolerance
• Applications computer virus detection, anomaly
  detection in a time-series of data, fault
  diagnosis, pattern recognition

19
6.Artificial Life

• ALife attempts to understand the very essence of
  what it means to be alive
• Builds ab initio, within in silico computers,
  artificial systems that exhibit properties
  normally associated only with living organisms

20
Lindenmayer Systems

• Parallel rewriting systems
• Start with an initial word
• Apply the rewriting rules in parallel to all
  letters of the word
• Used, e.g., for modelling of plant growth and
  morphogenesis

21
L-Systems Applications

• Plant growth Fuhrer, Wann Jensen, Prusinkiewicz
  2004-05
• Architecture and design J.Bailey, Archimorph

22
Mechanical Artificial Life

• Evolving populations of artificial creatures in
  simulated environments
• Combining the computational and experimental
  approaches and using rapid manufacturing
  technology to fabricate physical evolved robots
  that were selected for certain abilities (to walk
  or get a cube)

23

• How to insert pdf file

24
7.Membrane Computing

• Inspired by the compartmentalized internal
  structure of cells
• Membrane System a nested hierarchical
  structure of regions delimited by membranes
• Each region contains objects and transformation
  rules transfer rules

25
8.Amorphous Computing

• Inspired by developmental biology
• Consist of a multitude of irregularly placed,
  asynchronous, locally interacting computing
  elements
• The identically programmed computational
  particles communicate only with others situated
  within a small radius
• Goal engineer specified coherent computational
  behaviour from the interaction of large
  quantities of such unreliable computational
  particles.

26
Amorphous ComputingGenerating patterns
Abelson, Sussman, Knight, Ragpal
27
(ii) Nature as Implementation Substrate

• Molecular Computing (DNA Computing)
• Uses biomolecules, e.g., DNA, RNA
• Quantum Computing
• Uses, e.g., ion traps, superconductors,

• nuclear magnetic resonance

28
(ii-1) Molecular Computing

• Data can be encoded as biomolecules (DNA, RNA)
• Arithmetic/logic operations are performed by
  molecular biology tools
• The proof-of-principle experiment was Adlemans
  bio-algorithm solving a Hamiltonian Path Problem
  (1994)

29
Molecular (DNA) Computing

• Single-stranded DNA is a string over the
  four-letter alphabet, A, C, G, T

30
Power of DNA Computing

• Data DNA single and double strands

• WatsonCrick Complementarity
• W(C) G, W(A) T
• Bio-operations cut-and-paste by enzymes,
  extraction by pattern, copy, read-out
• R.Freund, L.Kari, G.Paun. DNA computing based on
  splicing the existence of universal computers.
  Theory of Computing Systems, 32 (1999).

31
DNA-Encoded Information

• DNA strands interact with each other in
  programmed but also undesirable ways
• The information has no fixed location
• The results of a biocomputation are not
  deterministic, as they depend e.g. on
  concentration of populations of DNA strands,
  diffusion reactions, statistical laws

32
DNA-Motivated Concepts

• ?-periodicity
• w u1u2un where ui is in u, ?(u)
• and ? is an antimorphic involution
• Generalize Lyndon-Schutzenberger
• un vm wm
• ?-prefix, ?-infix, ?-compliant codes

33
Our DNA Information Research

• L. Kari, S. Seki, On pseudoknot-bordered words
  and their properties, Journal of Computer and
  System Sciences, (2008)
• L.Kari, K.Mahalingam, Watson-Crick Conjugate and
  Commutative Words, Proc. DNA Computing 13, LNCS
  4848 (2008)
• L. Kari, K. Mahalingam, S. Seki, Twin-roots of
  words and their properties, Theoretical Computer
  Science (2008)
• E.Czeizler, L.Kari, S.Seki. On a Special Class of
  Primitive Words. MFCS (2008)
• M. Ito, L. Kari, Z. Kincaid, S. Seki, Duplication
  in DNA sequences. Proc. of Developments in
  Language Theory (2008)

34
Computing by Self-Assembly

• Self-Assembly The process by which objects
  autonomously come together to form complex
  structures
• Examples
• Atoms bind by chemical bonds
• to form molecules
• Molecules may form crystals or macromolecules
• Cells interact to form organisms

35
Motivation for Self-Assembly

• Nanotechnology miniaturization in medicine,
  electronics, engineering, material science,
  manufacturing
• Top-Down techniques lithography (inefficient in
  creating structures with size of molecules or
  atoms)
• Bottom-Up techniques self-assembly

36
Computing by Self-Assemblyof Tiles

• Tile square with the edges labelled from a
  finite alphabet of glues

• Tiles cannot be rotated
• Two adjacent tiles on the plane stick if they
  have the same glue at the touching edges

37
Computation by DNA Self-Assembly Mao, LaBean,
Reif, , Seeman, Nature, 2000
38
Our Self-Assembly Research

• L.Adleman, J.Kari, L.Kari, D.Reishus, P.Sosik.
• The Undecidability of the Infinite Ribbon
  Problem Implications for Computing by
  Self-Assembly
• (SIAM Journal of Computing, to appear, 2009)
• This solves an open problem formerly known as the
  unlimited infinite snake problem
• Undecidability of existence of arbitrarily large
  supertiles that can self-assemble from a given
  tile set (starting from an arbitrary seed)
• E.Czeizler, L.Kari, Geometrical tile design for
  complex neighbourhoods (2008, submitted)
• L.Kari, B.Masson, Simulating arbitrary
  neighbourhoods by polyominoes (2008, in
  preparation)

39
DNA Clonable Octahedron Shih, Joyce, Nature,
2004
40
Nanoscale DNA TetrahedraGoodman, Turberfield,
Science, 2005
41
DNA OrigamiRothemund, Nature, 2006
42
(ii-2) Quantum Computing

• A qubit can hold a 0, a 1 or a quantum
  superposition of these
• Quantum mechanical phenomena such as
  superposition and entanglement are used to
  perform operations on qubits
• Shors quantum algorithm for factoring integers
  (1994)

43
Quantum Crytography

• Unbreakable encryption unveiled (BBC News, Oct
  2008)
• Perfect secrecy has come a step closer with the
  launch of the world's first computer network
  protected by unbreakable quantum encryption.
• The network connects six locations across Vienna
  and in the nearby town of St Poelten, using 200
  km of standard commercial fibre optic cables.

44
(iii) Nature as Computation

• Understand nature by viewing
• natural processes as information processing
• Systems Biology
• Synthetic Biology
• Cellular Computing

45
(iii-1) Systems Biology

• Attempt to understand complex interactions in
  biological systems by taking a systemic approach
  and focusing on the interaction networks
  themselves and on the properties that arise
  because of these interactions
• gene regulatory networks
• protein-protein interaction networks
• transport networks

46
The Genomic Computer Istrail, De Leon,
Davidson, 2007

• Molecular transport replaces wires
• Causal coordination replaces imposed temporal
  synchrony
• Changeable architecture replaces rigid structure
• Communication channels are formed on an
• as-needed basis
• Very large scale
• Robustness is achieved by rigorous selection

47
(iii-2) Synthetic Biology

• TIMES best inventions 2008 21
• The Synthetic Organism
  C.Venter et al.
• Generate a synthetic genome (5,386bp) of a virus
  by self-assembly of chemically synthesized short
  DNA strands

48
(iii-3) Cellular Computing

• Computation in living cells ciliated protozoa

49
Ciliates Gene Rearrangement
Photo courtesy of L.F. Landweber
50
Our Cellular Computing Research

• L.Landweber, L.Kari. The evolution of cellular
  computing nature's solution to a computational
  problem. Biosystems 52(1999)
• L.Kari, L.F.Landweber. Computational power of
  gene rearrangement. Proc. DNA Computing 5, DIMACS
  Series, 54(2000)
• L.Kari, J.Kari, L.Landweber. Reversible
  molecular computation in ciliates. In Jewels are
  Forever, Springer-Verlag (1999)

51
Natural Computing

• Nature as inspiration cellular automata, neural
  networks, evolutionary computation, swarm
  intelligence, immunocomputing, ALife, membrane
  computing, amorphous computing
• Nature as implementation substrate molecular
  (DNA) computing, quantum computing
• Nature as computation systems biology, synthetic
  biology, cellular computing
• Research interests of
  the UWO Biocomputing Lab

52
Biocomputing at Western

• UWO Biocomputing Lab
• http//www.csd.uwo.ca/lila/biocomplab.html
• DNA COMPUTING, CS 9562B/4462B
• http//www.csd.uwo.ca/lila/cs662.html
• UWO Biocomputing Student Award
• http//www.csd.uwo.ca/lila/award.html

53
Natural Sciences, Ours to Discover

• Biology and computer science
• life and computation are related.
• I am confident that at their interface great
  discoveries await those who seek them
• Leonard Adleman, Scientific American, August
  1998
