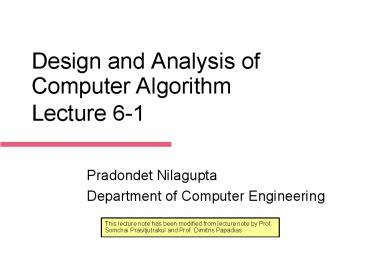

Design and Analysis of Computer Algorithm Lecture 61

1
Design and Analysis of Computer AlgorithmLecture
6-1

• Pradondet Nilagupta
• Department of Computer Engineering

This lecture note has been modified from lecture
note by Prof. Somchai Prasitjutrakul and Prof.
Dimitris Papadias
2
Dynamic Programming
3
Dynamic Programming

• An algorithm design method that can be used when
  the solution to a problem may be viewed as the
  result of a sequence of decision.
• Dynamic Programming algorithm store results, or
  solutions, for small subproblems and looks them
  up, rather than recomputing them, when it needs
  later to solve larger subproblems
• Typically applied to optimiation problems

4
Topics Cover

• Matrix-Chain Multiplication
• Longest Common Subsequence
• Optimal Binary Search Tree

5
Principle of Optimalilty

• An optimal sequence of decisions has the property
  that whatever the initial state an decision are,
  the remaining decisions must constitute an
  optimal decision sequence with regard to the
  state resulting from the first decision.
• Essentially, this principles states that the
  optimal solution for a larger subproblem contains
  an optimal solution for a smaller subproblem.

6
Dynamic Programming VS. Greedy Method

• Greedy Method
• only one decision sequence is ever genertated.
• Dynamic Programming
• Many decision sequences may be genertated.

7
Dynamic Programming VS. Divide-and Conquer

• Divide-and-Conquer
• partition the problem into independent
  subproblems, solve the subproblems recursively,
  and then combine their solutions to solve the
  original problem
• Dynamic Programming
• applicable when the subproblems are not
  independent, that is, when subproblems share
  subsubproblems.

8
Dynamic Programming VS. Divide-and Conquer (cont.)

• Solves every subsubproblem just once and then
  saves its answer in a table, thereby avoiding the
  work of recomputing the answer every time the
  subsubproblem is encountered

9
4-Steps of Developing Dynamic Programming
Algorithm

• Characterize the structure of an optimal solution
• Recursively define the value of an optimal
  solution
• Compute the value of an optimal solution in a
  bottom-up fashion
• Construct an optimal solution from computed
  information

10
Dynamic programming

• It is used, when the solution can be recursively
  described in terms of solutions to subproblems
  (optimal substructure)
• Algorithm finds solutions to subproblems and
  stores them in memory for later use
• More efficient than brute-force methods, which
  solve the same subproblems over and over again

11
Example C(n,k)

• C(n-1,k-1) C(n-1,k) if oltkltn
• C(n,k) 1 if k 0 or k n
• 0 otherwise
• C(n,k)
• if k 0 or k n then return 1
• if k lt 0 or k gtn then return 0
• return( C(n-1,k-1) C(n-1,k) )

12
Top-Down Recursive

• C(n-1,k-1) C(n-1,k) if oltkltn
• C(n,k) 1 if k 0 or k n
• 0 otherwise

0
1
2
3
0
1
2
C(6,3)
3
4
5
6
13
Top-Down Recursive Tree Structure
C(6,3)
C(5,2)
C(5,3)
C(4,1)
C(4,2)
C(4,2)
C(4,3)
C(3,1)
C(3,0)
C(2,0)
C(2,1)
C(1,0)
C(1,1)
14
Top-Down Recursive Memorization

• C(n-1,k-1) C(n-1,k) if oltkltn
• C(n,k) 1 if k 0 or k n
• 0 otherwise

0
1
2
3
0
1
1
1
2
1
2
1
C(6,3)
3
3
3
1
1
4
4
6
4
5
10
10
20
6
15
Top-Down Memorization Tree Structure
C(6,3)
C(5,2)
C(5,3)
C(4,1)
C(4,2)
C(4,2)
C(4,3)
C(3,1)
C(3,0)
C(2,0)
C(2,1)
No need to recalculate
C(1,0)
C(1,1)
Memory every value
16
Pseudo Code of Top-Down Memorization

• Lookup_C( n, k )
• if k 0 or k n then return 1
• if k lt 0 or k gt n then return 0
• if cn,k lt 0 then
• cn,k Lookup_C(n-1,k-1) Lookup_C(n-1,k) )
• return cn,k

17
Bottom-Up Dynamic Programming

• C(n-1,k-1) C(n-1,k) if oltkltn
• C(n,k) 1 if k 0 or k n
• 0 otherwise

0
1
2
3
0
1
1
1
1
2
1
2
1
C(6,3)
3
3
3
1
1
4
4
6
4
1
5
10
10
1
5
20
6
1
6
15
18
Bottom-Up Dynamic Programming
7
8
C(3,1)
C(3,2)
4
5
6
C(2,1)
C(2,2)
2
3
C(1,1)
1
C(0,0)
19
Top Down VS Bottom Up

• Bottom-up dynamic programming
• all subproblems must be solved
• regular pattern of table access can be exploited
  to reduce time or space
• Top-down memoization
• solve only subproblems that are definitely
  required
• recursion overhead

20
Dynamic Programming

• Generally used for solving optimization problem
• Two key ingredients
• optimal substructure (principle of optimality)
• overlapping subproblems

21
Optimal Substructure

• An optimal solution to the problem contains
  within it optimal solutions to subproblems.

y
S
T
X
Shortest path problem
22
Longest Simple Path Problem
y
S
T
X
23
Longest Simple Path Problem
y
S
T
X
24
Longest Simple Path Problem
y
S
T
X
25
Longest Simple Path Problem
y
S
T
X
26
Overlapping Subproblems

• Space of subproblems must be small (polynomial
  in the input size)
• Recursive algorithm solves the same subproblems
  over and over.
• Dynamic prog. solves all subproblems but solves
  each once and then stores the solution in some
  data structure.

27
Matrix-Chain Multiplication

• Input Given Matrices A1, A2,, An
• where Ai has dimensions d i-1 x di
• Goal Determine the order of multiplication to
  minimize
• the number of scalar multiplication.
• Assumption The multiplication of a p x q matrix
  by a q x r matrix requires pqr scalar
  multiplications.

28
Example

• A A1 A2 A3 A4
• 10 x 20 20 x 50 50 x 1 1 x 100

Order 1 A1 x (A2 x (A3 x A4 )) Cost(A3 x A4 )
50 x 1 x 100 Cost(A2 x (A3 x A4 )) 20 x 50 x
100 Cost(A1 x (A2 x (A3 x A4 ))) 10 x 20 x
100 Total Cost 125000
29
Example (cont.)
Order 2 (A1 x (A2 x A3)) x A4 Cost(A2 x A3 )
20 x 50 x 1 Cost(A1 x (A2 x A3 )) 10 x 20 x
1 Cost((A1 x (A2 x A3)) x A4 ) 10 x 1 x
100 Total Cost 2200
30
Principle of Optimality

• Principle of Optimality
• If (A1 x (A2 x A3 )) x A4 is optimal for A1 x A2
  x A3 x A4 ,
• then (A1 x (A2 x A3 )) is optimal for A1 x A2 x
  A3
• Reason
• If there is a better solution to the subproblem,
  we
• can use it instead! Contradicting the optimality
  of
• (A1 x (A2 x A3 )) x A4

31
Example

• The product A1 A2 A3 A4 can be fully
  parenthesized in 5 distinct ways
• (A1 (A2(A3A4)))
• (A1 ((A2A3)A4))
• ((A1 A2)(A3A4))
• ((A1 (A2A3)A4))
• (((A1 A2)A3)A4)

32
Counting the number of parenthesization

• How many full parenthesizations are there in a
  matrix chain of length n ?
• ( ( X X X X X ) )

n
P(n)
P(k)xP(n-k)
k
n-k
33
Optimal Parenthesization

• If the optimal parenthesization of A1 x A2 x x
  An is split between Ak and Ak1 , then
• optimal parenthesization optimal parenthesization
• for for A1 x x Ak
• A1 x A2 x x An optimal parenthesization
• for Ak1 x x An

The only uncertainty is the value of k Try all
possible values of k. The one that returns the
minimum is the right choice.
34
Define

• A1 has dimension p0 x p1
• A2 has dimension p1 x p2
• Ai has dimension p i-1 x pi
• Ai Aj has a solution p i-1 x pj
• Let m i, j be the minimum number of scalar
  operation for Ai ... Aj
• m 1 , n solution

35
Optimal Sub
( A1 A2 A3 A4 A5 A6 )
m1,3
m4,6
( A1 A2 A3 ) ( A4 A5 A6 )
p0 x p3
p3 x p6
m1,3 m4,6 p0p3p6
36
Optimal substructure

• (A1 A2 A3 A4 A5 A6 ) m1 ,6 ?
• ( (A1) (A2 A3 A4 A5 A6 ) ) m1,1 m2,6 p0
  p1 p6
• ( (A1 A2) (A3 A4 A5 A6 ) ) m1,2 m3,6 p0
  p2 p6
• ( (A1 A2 A3) (A4 A5 A6 ) ) m1,3 m4,6 p0
  p3 p6
• ( (A1 A2 A3 A4) (A5 A6 ) ) m1,4 m5,6 p0
  p4 p6
• ( (A1 (A2 A3 A4 A5) (A6 ) ) m1,5 m6,6 p0
  p5 p6

37
A recursive formulation

• 0 (i j)
• mi,j
• min mi,k mk 1, j pi-1pkpj
  (i lt j)
• iltkltj
• mi, k optimal cost for Ai x x Ak
• mk1, j optimal cost for Ak1 x x Aj
• pi-1pkpj cost for (Ai x x Ak) x (Ak1 x x
  Aj)

38
Time Complexity for recursive Algorithm (Top
Down )
Unacceptable
Overlapping subproblems
39
Example Overlapping Subproblem

• m1,6 --gt m1,1, m2,6, m1,2, m3,6,
  m1,3, m4,6,m1,4, m5,6, m1,5, m6,6
• m2,6 --gt m2,2, m3,6, m2,3, m4,6,m2,4,
  m5,6, m2,5, m6,6

40
Solve the problem

• How many subproblems are there?
• Or How many mi,j are there? O(n2)
• Using bottom up Dynamic programming

41
Create Table
j
Form a 2-dim table (mi j) with rows
corresponding to i and columns to j.
1
2
3
4
5
i
1
2
Fill the table up in order of increasing values
of j - i mi,js where j-i 0 mi,js where
j-i 1 mi,js where j-i 2
3
4
5
42
Finding M1,6
Solution
1
2
3
4
5
6
M1,6
1
0
x
x
x
x
x
2
0
x
x
x
x
3
0
x
x
x
4
0
x
x
5
0
x
6
0
43
Example

• A A1 x A2 x A3 x A4
• 10x20 20x50 50x1 1x100
• case j-i 1
• m1,2 m1,1 m2,2 1000
• 1000
• m2,3 20 x 50 1000
• m3,4 50 x 100 5000

44
Example (cont.)

• case j-i 2
• m1,1 m2,3 10 x 20 x 1
• m1,3 min
• m1,2 m3,3 10 x 50 x 1 min
  1200,10500 1200
• m2,2 m3,4 20 x 50 x 100
• m2,4 min
• m2,3 m4,4 20 x 1 x 100 min
  10500,3000 3000

45
Example (cont.)

• case j-i 3
• m1,1 m2,4 10 x 20 x 100
• m2,4 min m1,2 m3,4 10 x 50 x 100

• m1,3 m4,4 10 x 1 x 100
• min 23000,65000,2200 2200

46
How to construct an optimal solution?

• Keep another 2-dimensional table Split1..n
  1..n
• such that SplitI, j, i lt j, tells you the value
  of k
• in splitting Ai x x Aj
• Previous example again
• j- i 1 Split1, 2 1
• Split2, 3 2
• Split3, 4 3
• j- i 2 Split1, 3 1
• Split2, 4 3
• j- i 3 Split1, 4 3

47
Matrix-Chain Multiplication Dynamic Programming

• Matrix-Chain-Order( p, n )
• for i 1 to n
• mi,i 0
• for len 2 to n
• for i 1 to n - len 1
• j i len - 1
• mi,j 8
• for k i to j-1
• q mi,k mk1,j pi-1pkpj
• if q lt mi,j then
• mi,j q
• si,j k
• return s

48
Longest Common Subsequence
49
Subsequence

• X lt s, o, m, c, h, a, i gt
• subsequences of X
• lt s, o, m, c, h, a, i gt ? lt s, o, m gt
• lt s, o, m, c, h, a, i gt ? ltc, h, a, igt
• lt s, o, m, c, h, a, i gt ? lts, o, h, a, igt

50
Common Subsequence

• X lt s, o, m, c, h, a, i gt, Y lt c, h, u, a, n
  gt
• common subsequences of X and Y
• lt s, o, m, c, h, a, i gt ? lt c gt
• lt c, h, u, a, n gt
• lt s, o, m, c, h, a, i gt ? ltc, agt
• lt c, h, u, a, n gt

51
Longest Common Subsequence

• Instance Two sequences X and Y
• Question What is a longest common subsequence of
  X
• and Y
• Example
• If X ltA, B, C, B, D, A, Bgt
• and
• Y ltB, D, C, A, B, Agt
• then a longest common subsequence is either
• ltB, C, B, Agt
• or
• ltB, D, A, Bgt

52
What is the LCS?

• Brute-force algorithm For every subsequence of
  x,
• check if its a subsequence of y
• How many subsequences of x are there?
• What will be the running time of the brute-force
  alg?

53
LCS Algorithm

• if X m, Y n, then there are 2m
  subsequences of x we must compare each with Y (n
  comparisons)
• So the running time of the brute-force algorithm
  is O(n 2m)
• Notice that the LCS problem has optimal
  substructure solutions of subproblems are parts
  of the final solution.
• Subproblems find LCS of pairs of prefixes of X
  and Y

54
Longest Common Subsequence

• Suppose that
• X ltx1, x2, , xmgt
• Y lty1, y2, , yngt
• and that they have a longest common subsequence
• Z ltz1, z2, , zkgt
• If xm yn then zk xm yn and zk-1 is a LCS of
  xm-1 and yn-1
• Otherwise Z is either a LCS of Xm-1 or LCS of X
  and Yn-1

55
A recursive solution (1/2)
xi
X
xi yj LCS(X,Y) LCS(X i-1,Y j-1) xi
Y
yi
When we calculate ci,j, we consider two
cases First case xiyj one more symbol in
strings X and Y matches, so the length of LCS Xi
and Yj equals to the length of LCS of smaller
strings Xi-1 and Yi-1 , plus 1

56
A recursive solution (2/2)
xi
xi ltgt yj LCS(X,Y) LCS(X i-1,Y j) or LCS(X,Y)
LCS(X i,Y j-1)
X
Y
yi
Second case xi ltgt yj As symbols dont match,
our solution is not improved, and the length of
LCS(Xi , Yj) is the same as before (i.e. maximum
of LCS(Xi, Yj-1) and LCS(Xi-1,Yj)

57
LCS recursive solution

• 0 if ij 0
• l(i,j) l( i - 1, j - 1) 1 if i, j gt 0 and
  xiyj
• max( l(i - 1,j), l(i , j - 1) ) if i, j gt 0
  and xiltgtyj
• We start with i j 0 (empty substrings of x
  and y)
• Since X0 and Y0 are empty strings, their LCS is
  always empty (i.e. l0,0 0)
• LCS of empty string and any other string is
  empty, so for every i and j l0, j li,0 0

58
LCS Length Algorithm

• LCS-Length(X, Y)
• 1. m length(X) // get the of symbols in X
• 2. n length(Y) // get the of symbols in Y
• 3. for i 1 to m li,0 0 // special case
  Y0
• 4. for j 1 to n l0,j 0 // special case
  X0
• 5. for i 1 to m // for all Xi
• 6. for j 1 to n // for all Yj
• 7. if ( Xi Yj )
• 8. li,j li-1,j-1 1
• 9. else li,j max( li-1,j, li,j-1 )
• 10. return l

59
Example

• For our worked example we will use the sequences
• X lt0, 1, 1, 0, 1, 0, 0, 1gt
• and
• Y lt1, 1, 0, 1, 1, 0gt
• Then our initial empty table is

60
The first Table

• First we fill in the border of the table with
  thezeros.

61

• If xi yj then put the symbol in the
  square, together with the value l(i - 1, j -1)
  1
• Otherwise put the greater of the value l(i - 1,
  j) or l(i, j -1) into the square with the
  appropriate arrow.

62

• It is easy to compute the first row, starting in
  the (1, 1) position

63
The Final array

• After filling it in row by row we eventually
  reach the final array

64
Finding the LCS

• The LCS can be found (in reverse) by tracing the
  path of the arrows from l(m, n). Each diagonal
  arrow encountered gives us another element of the
  LCS.
• LCS(8,6) 5
• Proceeding in this way, we nd that the LCS is
  11010
• Notice that if at the very nal stage of the
  algorithm (where we had a free choice) we had
  chosen to make l(8, 6) point to l(8, 5) we would
  have found a different LCS 11011
