Chapter Eight File Management

• The File Manager
• Interacting With File Manager
• File Organization
• Physical Storage Allocation
• Data Compression

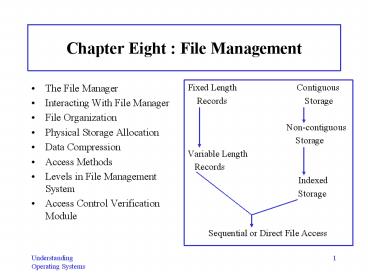

• Access Methods
• Levels in File Management System
• Access Control Verification Module

• Fixed Length Contiguous
• Records Storage
• Non-contiguous
• Storage
• Variable Length
• Records
• Indexed
• Storage
• Sequential or Direct File Access

2
The File Manager

• File Manager controls every file in system which
  is a complex job.
• Efficiency depends on
• how systems files are organized (sequential,
  direct, or indexed sequential).
• how theyre stored (contiguously,
  noncontiguously, or indexed).
• how each files records are structured
  (fixed-length or variable-length).
• how access to these files is controlled .

3
Responsibilities of File Manager

• Track where each file is stored.
• Determine where and how files will be stored.
• Efficiently use available storage space.
• Provide efficient access to files.
• Allocate each file when a user has been cleared
  for access to it, then record its use.
• Deallocate file when it is returned to storage.
• Communicate its availability to others waiting
  for it.

4
Important Definitions

• Field -- group of related bytes that can be
  identified by user with name, type, and size.
• Record -- group of related fields.
• File (flat file) -- group of related records that
  contains info used by specific application
  programs to generate reports.
• Database -- groups of related files that are
  interconnected at various levels to give flexible
  access to users.
• Appears to File Manager to be a type of file.

5
Definitions - 2

• Program files contain instructions.
• Data files contain data.
• Directories -- listings of file names and their
  attributes.
• Every program and data file accessed by computer
  system, and every piece of computer software, is
  treated as a file.
• File Manager treats all files exactly same way as
  far as storage is concerned.

6
Interacting With File Manager

• Users communicates with File Manager via specific
  commands that may be either embedded in users
  program or submitted interactively by user.
• Embedded commands
• OPEN CLOSE pertain to availability of file for
  program invoking it.
• READ WRITE are I/O commands.
• MODIFY specialized WRITE command for existing
  data files that allows for appending/rewriting
  records.

7
Interactive Commands

• CREATE DELETE -- deal with systems knowledge
  of file.
• SAVE -- first time used, a file is actually
  created.
• OPEN NEW -- within a program indicates file must
  be created.
• OPENFOR OUTPUT -- creates file by making entry
  for it in directory finding space for it in
  secondary storage.
• RENAME -- allows users to change name of existing
  file.
• COPY allows user to make duplicate copies of
  existing files.

8
Commands Are Device-Independent

• Interface commands designed to be as simple as
  possible to use.
• Lack detailed instructions to run device where
  file is stored.
• Device independent.
• To access a file, user doesnt need to know its
  exact physical location on disk pack or storage
  medium.
• Each logical command broken down into sequence of
  low-level signals that
• Trigger step-by-step actions performed by device.

• Supervise progress of operation by testing
  devices status.

9
Typical Volume Configuration

• Each secondary storage unit (removable or
  non-removable) is considered a volume.
• Each volume can contain several files called
  multifile volumes.
• Some files are extremely large and are contained
  in several volumes called multivolume files.
• Generally, each volume in system is given name.
• File Manager writes name other descriptive info
  on easy-to-access place on each unit.

10
Master File Directory (MFD)

• MFD stored immediately after volume descriptor
• Lists names characteristics of every file
  contained in volume.
• File names refer to program files, data files,
  and/or system files.
• Subdirectories, if supported.
• Remainder of volume is used for file storage.
• Early OS supported only a single directory per
  volume.
• Created by File Manager.
• Contains names of files, usually organized in
  alphabetical, spatial, or chronological order.
• Simple to implement and maintain.
• Some major disadvantages

11
Volume Descriptor
12
Some Major Disadvantages of Single Directory Per
Volume

• Takes long time to search for an individual file,
  especially if MFD was organized in an arbitrary
  order.
• If user has many small files stored in volume,
  directory space fills before disk storage space
  fills. User told disk full when only directory
  full.
• Users cant create subdirectories to group
  related files.
• Multiple users cant safeguard files from other
  users browsing file lists cause entire directory
  listed on request.
• Each program in entire directory needs unique
  name.
• E.g., Only 1 person using directory can name
  program PROG1.

13
About Subdirectories

• Semi-sophisticated File Managers create MFD for
  each volume with entries for files
  subdirectories.
• Subdirectory created when user opens account to
  access computer.
• MFD entry flagged to indicate subdirectory with
  unique properties.
• Improvement from single directory scheme.
• Still cant group files in a logical order to
  improve accessibility efficiency of system.

14
Subdirectories Can Be Implemented As an
Upside-down Tree

• Todays File Managers allow users to create
  subdirectories so related files are grouped
  together.
• Extension of previous two-level directory
  structure.
• Tree structures allow system to efficiently
  search individual directories due to fewer
  entries in each.
• Path to requested file may lead through several
  directories.
• When user wants to access specific file, file
  name is sent to File Manager. File Manager
  searches MFD for user's directory. Then searches
  user's directory any subdirectories for
  requested file location.

15
File Descriptor

• Each file entry in every directory contains info
  describing file
• File nameusually represented in ASCII code.
• File typeorganization and usage that are
  dependent on system (e.g., Files and
  directories).
• File sizesize is kept here for convenience.
• File locationidentification of first physical
  block (or all blocks) where file is stored.
• Date and time of creation.
• Owner.
• Protection informationaccess restrictions based
  on who is allowed to access file and what type of
  access is allowed.
• Record size its fixed size or its maximum size,
  depending on type of record

16
File Names

• Absolute file name (complete file name) long
  name that includes all path info.
• Relative file name short name seen in
  directory listings.
• Selected by user when file is created.
• E.g., ACCOUNT ADDRESSES, TAXES 2001, or AUTOEXEC.

• Extension 2-3 character name used to identify
  type of file or its contents.
• Separated from relative name by a period.
• E.g., CPP, BAS, BAT, COB, EXE signal to system
  to use specific compiler or program to run these
  files.
• E.g., TXT, DOC, OUT, MIC, KEY created by
  applications or by users for own identification.

17
File Naming Conventions

• Can vary in length from 1 or more characters.
• Can include letters of alphabet digits.
• Every OS has specific rules that affect length of
  relative name types of characters allowed.
• E.g., MS-DOS allows 1-8 alphanumeric character
  names without spaces.
• More modern OS allow names with dozens of
  characters including spaces.
• Try to select descriptive relative names that
  readily identify file contents/purpose of file.

18
Base and Current Directories Used by File Manager
to Locate Files

• File Manager selects base directory for user when
  interactive session begins.
• All file operations requested by that user start
  here.
• Then, user selects subdirectory (current
  directory or working directory).
• Thereafter, files presumed to be located in
  current directory.
• Whenever file accessed, user types in relative
  name File Manager adds proper prefix.
• As long as users refer to files in working
  directory, can access them without entering
  complete name.

19
File Organization Record Format

• Fixed-length records easiest to access
  directly.
• Most common type ideal for data files.
• Record size critical (too small truncation too
  large wastes space).
• Variable-length records -- difficult to access
  directly because hard to calculate exactly where
  record is located.
• Dont leave empty storage space dont truncate
  any characters.
• Frequently used in files accessed sequentially
  (e.g,. text files, program files) or files using
  index to access records.
• File descriptor stores record format, how its
  blocked, other related info.

20
Physical File Organization

• Concerned with how records are arranged
  characteristics of medium used to store it.
• On magnetic disks, files can be organized as
• Sequential
• Direct
• Indexed sequential.

21
Characteristics Considered When Selecting File
Organization

• Volatility of datafrequency with which additions
  deletions made.
• Activity of file records processed during a
  given run.
• Size of file.
• Response timeamount of time user is willing to
  wait before requested operation is completed.

22
Sequential Record Organization

• Easiest to implement because records are stored
  retrieved serially, one after other.
• To speed process some optimization features may
  be built into system.
• E.g., select a key field from record then sort
  records by that field before storing them.
• Aids search process.
• Complicates maintenance algorithms because
  original order must be preserved every time
  records added or deleted.

23
Direct Record Organization (Random Organization)

• Uses direct access files which can be implemented
  only on direct access storage devices.
• Give users flexibility of accessing any record in
  any order without having to begin search from
  beginning of file.
• Records are identified by their relative
  addresses (their addresses relative to beginning
  of file).
• Logical addresses computed when records are
  stored again when records are retrieved.
• Use hashing algorithms.

24
Advantages of Direct Access Organization

• Fast access to records.
• Can be accessed sequentially by starting at first
  relative address incrementing it by one to get
  to next record.
• Can be updated more quickly than sequential files
  because records quickly rewritten to original
  addresses after modifications.
• No need to preserve order of the records, so
  adding or deleting them takes very little time.

25
Collisions Are a Problem With Direct Access
Organization

• Several records with unique keys may generate
  same logical address (collision).
• Program generates another logical address before
  presenting it to File Manager for storage.
• Colliding records stored in overflow area via
  links.
• File Manager handles physical allocation of
  space.
• Maximum file size established when created
  eventually file is full or too many records are
  stored in overflow area.
• Programmer must reorganize rewrite file.

26
Indexed Sequential Record Organization

• Combines best of sequential direct access.
• Created maintained through Indexed Sequential
  Access Method (ISAM) software package.
• Doesnt create collisions because it doesnt use
  result of hashing algorithm to generate a
  records address.
• Uses info to generate index file through which
  records retrieved.
• Divides ordered sequential file into blocks of
  equal size.
• Size determined by File Manager to take advantage
  of physical storage devices to optimize
  retrieval strategies.
• Each entry in index file contains highest record
  key physical location of data block where this
  record, records with smaller keys, are stored.

27
Indexed Sequential - 2

• To access any record in file, system begins by
  searching index file then goes to physical
  location indicated at that entry.
• Overflow areas are spread throughout file
• Existing records can expand new records are in
  close physical logical sequence.
• Last-resort overflow area is located apart from
  main data area but is used only when the other
  overflow areas are completely filled.
• When retrieval time becomes too slow, file has to
  be reorganized..
• Allows both direct access to a few requested
  records sequential access to many records for
  most dynamic files.
• A variation of indexed sequential files is
  B-tree.

28
Physical Storage Allocation

• File Manager must work with files not just as
  whole units but also as logical units or records.

• Records within file must have same format but can
  vary in length.
• Records are subdivided into fields.
• Structure usually managed by application
  programs, not OS.
• When we talk about file storage, were actually
  referring to record storage .

29

• Unblocked, fixed-length records
• Blocked, fixed length records
• Unblocked, variable-length records
• Unblocked, variable-length records
• Blocked, variable-length records

30
Contiguous Storage

• Records stored one after other.
• Any record can be found read once starting
  address size are known, so directory is very
  streamlined.
• Direct access easy every part of file is stored
  in same compact area.
• Files cant be expanded unless theres empty
  space available immediately following it.
• Room for expansion must be provided when file is
  created.
• Fragmentation occurs (slivers of unused storage
  space).
• Can compact rearrange files.
• Files cant be accessed while compaction is
  taking place.

31
Noncontiguous Storage

• Allows files to use any storage space available
  on disk.
• Files records are stored in a contiguous manner
  if enough empty space.
• Any remaining records, all other additions to
  file, are stored in other sections of disk
  (extents).
• Linked together with pointers.
• Physical size of each extent is determined by OS
  (e.g., 256 bytes).

32
Linking File Extents

• Linking at storage level each extent points to
  next one in sequence.
• Directory entry consists of file name, storage
  location of first extent, location of last
  extent, total number of extents, not counting
  first.
• Linking at directory level each extent listed
  with its physical address, size, pointer to
  next extent.
• A null pointer indicates that it's last one.
• Eliminate external storage fragmentation need
  for compaction.
• Dont support direct access because no easy way
  to determine exact location of specific record.

33
Indexed Storage

• Allows direct record access by bringing pointers
  linking every extent of that file into index
  block.
• Every file has its own index block (addresses of
  each disk sector that make up the file)
• Lists each entry in same order in which sectors
  linked .
• When a file is created, pointers in index block
  set to null.
• As each sector is filled, pointer set to
  appropriate sector address.
• Address is removed from empty space list copied
  into its position in index block.

34
Indexed Storage - 2

• Supports both sequential direct access.
• Doesnt necessarily improve use of storage space
  because each file must have index block.
• For larger files with more entries, several
  levels of indexes can be generated.
• To find a desired record, File Manager accesses
  first index (highest level), which points to a
  second index (lower level), which points to an
  even lower level index eventually to data
  record.

35
Data Compression

• Several techniques (3) used to save space in
  files.
• System must be able to distinguish between
  compressed uncompressed data.
• Trade-off storage space gained, but processing
  time lost.
• Records with repeated characters can be
  abbreviated.
• E.g., fixed-length field with short name many
  blank characters replaced with variable-length
  field special code to indicate blanks
  truncated.
• ADAMSbbbbbbbbbb ? ADAMSb10
•   300000000 ? 38

36
Data Compression Repeated Terms

• Repeated terms compressed by using symbols to
  represent each of most commonly used words in the
  database.
• E.g., in a universitys student database common
  words like student, course, teacher, classroom,
  grade, department could each be represented
  with single character.

37
Data Compression Front-end Compression

• 3. Front-end compression used for index
  compression.
• For example, student database where the students
  names are kept in alphabetical order could be
  compressed

38
Access Methods

• Access methods dictated by a files organization
• Most flexibility is allowed with indexed
  sequential files and least with sequential.
• File organized in sequential fashion can support
  only sequential access to its records, these
  records can be of fixed or variable length.
• File Manager uses the address of last byte read
  to access the next sequential record.
• Current byte address (CBA) must be updated every
  time a record is accessed.

39
Sequential Access

• For sequential access of fixed-length records,
  CBA updated by incrementing it by record length
  (RL), which is constant
• CBA CBA RL
• For sequential access of variable-length records,
  File Manager adds length of record (RLk) plus
  number of bytes used to hold record length (N) to
  CBA.
• CBA CBA N RLk

40
Direct Access Fixed-Length Records

• If file is organized in direct fashion, accessed
  easily in direct or sequential order if have
  fixed-length records.
• For direct access with fixed length records, CBA
  computed directly from record length desired
  record number RN (info provided through READ
  command) minus one
• CBA(RN1) RL

41
Direct Access Variable-Length Records

• Virtually impossible to access a record directly
  because address of desired record cant be easily
  computed.
• To access a record, File Manager must do
  sequential search through records.
• If File Manager saves address of last record
  accessed, can do half-sequential read through
  file. When next request arrives it could search
  forward from CBA.
• Or File Manager can keep table of record numbers
  their CBAs. Search table for exact storage
  location of desired record.
• To avoid this problem, many systems force users
  to have files organized for fixed-length records
  if want direct access to records.

42
Access of Records in Indexed Sequential File

• Accessed either sequentially or directly,
• Either CBA computations apply but with one extra
  step.
• Index file must be searched for pointer to block
  where data stored.
• Because index file is smaller, kept in main
  memory quick search to locate block where
  desired record is located.
• Block retrieved from secondary storage
  beginning byte address of record calculated.
• In systems with several levels of indexing, index
  at each level must be searched before computing
  CBA.
• Entry point to this type of data file is usually
  through index file.

43
Levels in a File Management System

• Efficient management of files cant be separated
  from efficient management of devices that house
  them.
• A wide range of functions must be organized for
  I/O system to perform efficiently.
• Each level implemented by using structured
  modular programming techniques, which also set up
  a hierarchy.

• Basic File System
• Access Control Module
• Logical File System
• Physical File System
• Device Interface Module
• Device

44
Basic File System

• Highest level module that passes info to logical
  file system, which notifies physical file system,
  which works with Device Manager.
• Activates access control verification module to
  verify that this user is permitted to perform
  this operation with this file.

45
Access Control Verification Module

• Any file can be shared.
• Saves space allows for synchronization of data
  updates.
• Improves efficiency of system's resources,
  because if files are shared in main memory, I/O
  operations reduced.
• However, integrity of each file must be
  safeguarded
• Control over who is allowed to access file and
  what type of access is permitted.
• READ only, WRITE only, EXECUTE only, DELETE only,
  or some combination.

46
File Access Control Methods

• Each file management system has own file access
  control method.
• Access control matrix
• Access control lists Most
• Capability lists Common Methods
• Lockword control.

47
Access Control Matrix

• Intuitively appealing easy to implement.
• Works well only for systems with few files few
  users.
• In matrix each column identifies a user each
  row identifies a file.
• Intersection of row column has access rights
  for that user to that file.

48
Access Control Lists

• Modification of access control matrix technique.
• Each file is entered in list contains names of
  users allowed to access it type of access
  permitted.
• To shorten list, only those who may use file are
  named those denied any access are grouped under
  global heading such as WORLD.
• Or shorten by putting every user into a category

• SYSTEM system personnel with unlimited access
  to all files.
• OWNER absolute control over all files created
  in own account.
• GROUP all users belonging to appropriate group
  have access.
• WORLD all other users in system default access
  types given by File Manager.

49
Access Control List Example
50
Capability Lists

• Lists every user and files to which each has
  access.
• Requires less storage space than an access
  control matrix.
• Easier to maintain than an access control list
  when users are added or deleted from system.

51
Lockword Control

• Lockword is similar to a password but protects a
  single file.
• When file created, owner protects it via lockword
• Stored in directory but isnt revealed with
  directory listing.
• User must provide correct lockword to access
  protected file.
• Require smallest amount of storage for file
  protection.
• Can be guessed by hackers or passed on to
  unauthorized users.
• Generally doesnt control type of access to file.
• Anyone who knows lockword can read, write,
  execute, or delete file.

52
Terminology

• access control list
• access control matrix
• capability list
• complete file name
• current byte address (CBA)
• current directory
• data compression
• data file
• database
• device independent
• direct access files
• direct record organization

• directory
• extension
• extents
• file
• file descriptor
• fixed-length record
• hashing algorithm
• indexed sequential record organization
• key field
• lockword
• logical address

53
Terminology - 2

• logical address
• master file directory (MFD)
• relative address
• relative file name
• sequential record organization
• subdirectory
• variable-length record
• volume
• working directory
