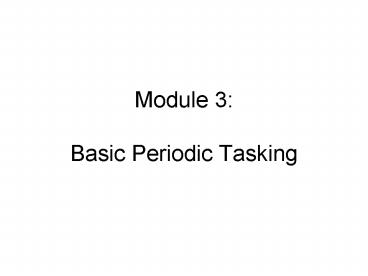

Module 3: Basic Periodic Tasking

1
Module 3Basic Periodic Tasking
2
Some Definitions

• A job is a one-time finite-length activity
  performed by a processor.
• The amount of work required to perform that
  activity, measured in units of time, is called
  the execution time, denoted by ei.
• A task is a (usually conceptually infinite)
  sequence of jobs.

T1
J1,2
J1,1
T2

J2,1
J2,2
J2,3
timeline
3
Notes on Definitions

• A job can be code executed by a processor, or
  bits transferred by a bus or switch or network
  link.
• A job is sometimes called a task instance or task
  dispatch.
• We will restrict attention here to sequences of
  non-overlapping jobs, i.e. a job will not begin
  until its predecessor has completed.
• A task may be denoted by t (Greek letter tau) in
  some literature.
• Job execution time is often called compute time
  in some literature, denoted by C.
• Execution time is the preemption-free,
  contention-free time required for the processor
  to perform that job to completion.
• Execution time is not equal for all jobs in a
  task. The parameter ei is interpreted as the
  maximum or worst case execution time (WCET).

4
Events in the Life of a Job




absolute deadline
release time
completion time
response time
relative deadline
5
Notes on Job Events

• Response time is not equal for all jobs in a task
  due to
• Variations in job execution time
• Variations due to system scheduling
• Response time of a task is the largest response
  time for any of its jobs.
• Deadline usually means relative deadline, not
  absolute deadline.

6
Hard versus Soft

• Hard real-time means failure to meet a deadline
  is considered a fault.
• No general consensus on a precise definition of
  soft real-time.
• In practice, hard real-time models are useful
  engineering abstractions, e.g. The hard
  real-time requirement simplifies the process of
  validating the overall system. (And simplifies
  the process of designing the overall system.)

7
Timing VV

• Timing requirements must be verified and
  validated.
• Validation means insuring the numbers in the
  requirements specification really solve the end
  users problem, e.g. the specified maximum screen
  update time following a button push really does
  avoid irritating the pilot. (We wont cover
  this.)
• Verification means insuring the implementation
  complies with the requirements. (Well talk
  about some methods for this.)
• Many timing requirements are derived
  requirements, meaning they are specified by other
  engineers, e.g. control task periods.
• VV of timing requirements must be mapped into
  the VV process somewhere, but this depends on
  the exact VV processes used.

8
Periodic Tasks
period
P

execution time
e


timeline
A periodic task is a sequence of jobs that are
released at times 0f, P f, 2P f, 3P f, A
periodic task Ti is specified using the
parameters Pi period ei maximum execution
time Fi phase or offset (almost always zero) Di
relative deadline (almost always Pi)
9
Notes on Periodic Tasks

• Di Pi (absolute deadline equals next release
  time) is very common. If deadlines are not
  stated then this is assumed (called the implicit
  deadline assumption).
• Non-zero phase is sometimes used in distributed
  system scheduling, well ignore it for now.
• Pi can be interpreted as the minimum time between
  releases, often called the minimum interarrival
  time. It turns out that many uni-processor
  scheduling and schedulability analysis results
  hold under this relaxed model. These are called
  sporadic rather than periodic tasks. (We will
  use the term purely periodic when we want to
  explicitly exclude sporadic tasks.)
• Ti is often used in the literature instead of Pi.

10
Jitter
Suppose rk and rk1 are consecutive release
times. Then abs (P (rk1 rk)) is the jitter,
or the variation between the ideal and actual
inter-release time. The release time jitter is
the maximum jitter between any pair of job
release times. The completion time jitter is
similarly defined. How much jitter is tolerable
depends on the application. Jitter is often
ignored as a constraint in the scheduling
literature. Where jitter is tightly constrained
(e.g. multi-media), the system is often designed
to constrain it (e.g. outputs are buffered and
output with very low jitter at a periodic
interrupt).
11
Processor Utilization

• The utilization of a processor is the asymptotic
  fraction of time that processor is busy executing
  jobs.
• The utilization due to a periodic task Ti is
• Ui ei / Pi
• For a sporadic task this is the maximum
  utilization.
• For a single task, it should be obvious that Ui gt
  1 implies no feasible schedule can exist.

12
Utilization due to a Task Set

• For a set of periodic tasks hosted on a common
  processor, the utilization is

Ugt1 means the task set cannot possibly be
scheduled so that every job of every task always
meets its deadline. We say the task set is
infeasible, or cannot be feasibly scheduled.
13
Breakdown Utilization

• U 1 does not necessarily mean a task set can be
  feasibly scheduled.
• The breakdown utilization U of a given
  scheduling algorithm is the value such that U
  U guarantees the task set can be feasibly
  scheduled by that algorithm.
• Theoretical breakdown utilizations are known for
  only a few scheduling algorithms.
• In practice, be aware that resources cannot
  always be perfectly utilized (especially in
  multi-processor systems).

14
Hyperperiod

• A periodic system schedule can be defined by
  giving a finite-length schedule that is repeated
  over and over.
• The length of the smallest such schedule is
  called the hyperperiod for that task set.
• For a purely periodic task set, the hyperperiod
  is

15
Harmonic Task Set

• A periodic task set is harmonic (simply periodic)
  if
• Every period evenly divides all larger periods
• Every period is evenly divisible by all smaller
  periods
• The hyperperiod of a harmonic task set is equal
  to the largest task period.
• Harmonic task sets are of interest because
• They occur commonly in practice
• Scheduling algorithms may be simpler and more
  efficient (higher breakdown utilizations)
• Shorter hyperperiods may enable more efficient
  implementations (e.g. smaller scheduling tables)

16
Drift
Release time drift can occur when the mechanisms
used to dispatch tasks (clocks and software) are
not explicitly synchronized. This occurs
sometimes in multi-processor systems, and systems
architected as compositions of individual
controllers (e.g. hierarchical control
architecture). This is undesirable among the
tasks in a single multi-rate controller
17
Periodic Tasking
18
Representing Time
Implementations often synchronize/align job
dispatches. Exact alignment is necessary to
model an infinite schedule as a repeated
hyperperiod schedule. Operations like mod and
exactly divisible by appear in many
formulas. In implementations (simulations,
analysis algorithms, embedded code) avoid using
floating point numbers to represent time. Most
commonly, integers and a sufficiently small
quantization of time are used. (There are a few
theoretical models best served by rational
numbers.)
19
Clock-Driven Scheduling

• Static
• Off-line
• Non-preemptive
• No run-time context swaps
• Implemented using a single processor thread
• May use off-line splitting, though
• Implementation idioms
• Timer-Driven (Table-Driven) Scheduling
• Frame-Based (Cyclic) Scheduling

20
Basic Idea

• Define a hyperperiod schedule during development,
  to be executed repeatedly at run-time.
• Release time and latest completion time for each
  job, relative to the start of the hyperperiod,
  are fixed at development-time.

one hyperperiod
21
Table-Driven Scheduling

• Construct a table that lists the relative release
  time of every job in the hyperperiod.

22
Run-Time Table-Driven Scheduler

• int 0
• k 0
• set clock interrupt handler to Scheduler
• start clock with first interrupt at
  Release_Time(0)
• procedure Scheduler is
• job Job_To_Release(k)
• int int 1
• k int mod Table_Size
• h floor (int / Table_Size)
• set next clock interrupt to hHyperperiod
  Release_Time(k)
• call job
• end Schedule

23
Run-Time Table-Driven Scheduler Notes

• This is a little different than in the book, e.g.
  omits background servicing during idle jobs,
  omits check for job overrun.
• Note clock and int may overflow. Either assure
  these are large enough, or modify the idiom so
  clock and all variables are maintained modulo the
  hyperperiod (or some multiple thereof).

24
So, How do you Generate a Table?

• General problem is NP-hard.
• Special cases are easier, e.g. theoretical
  results for unit execution times.
• Intuitively, big jobs make the puzzle-solving
  harder.
• Break big jobs into smaller pieces (this can
  become a scheduling maintenance nightmare)
• Adapt X-fit decreasing bin packing techniques
• Simulate off-line non-preemptive earliest
  deadline first.
• See references on the class web site

25
Frame-Based Scheduling
J21
J12
J22
J11
J14
J13
t11
t21
t12
t13
t22
t14

• Evenly divide the hyperperiod into a number of
  equal-length frames, and assign jobs to frames.
• Jobs assigned to a frame are executed
  back-to-back when that frame begins.
• The frame structure is essentially a fixed
  strictly periodic scheduling table structure,
  which admits a simpler implementation idiom.

26
Run-Time Cyclic Scheduler

• cycle 0
• set periodic clock interrupt handler to
  Scheduler
• start clock with interrupt period
  Size_Of_Frame
• procedure Scheduler is
• case cycle is
• when 0 gt J11 J21
• when 1 gt J12
• when 2 gt J13 J22
• when 3 gt J14
• end case
• cycle (cycle 1) mod Number_Of_Frames
• end Scheduler

27
Run-Time Cyclic Scheduler Notes

• Again, a little different than in the book, e.g.
  omits overrun checks and background servicing,
  illustrates a slightly different implementation
  idiom.

28
So, How do you Generate a Frame-Based Schedule?

• 1. Pick a frame size
• Text gives constraints to be satisfied for the
  general problem (but no constraint satisfaction
  algorithm).
• For harmonic workloads, typically use the
  smallest task period.
• 2. Assign jobs to frames
• Treat this as a kind of bin packing problem.
• See references on the class web site.

29
Static Scheduling Notes 1

• Advantage fairly easy to include all
  time-critical processor activity in the time
  line, e.g. scheduler/interrupt handler, state
  copy and I/O code.
• Advantage verification is relatively easy.
• Advantage overheads can be low, e.g.
  implementable using a single interrupt-handling
  thread.
• Advantage jobs are always mutually exclusive

30
Static Scheduling Notes 2

• Using a COTS RTOS, hard real-time periodic tasks
  can be executed by the interrupt handling thread,
  leaving any other RTOS threads to execute in
  background. These should be non-time-critical.
  Background response times may become quite large
  as the periodic utilization becomes large.
• Disadvantage Not well-suited to sporadic (or
  other not-strictly-periodic hard real-time)
  tasks. Requires such tasks to be scheduled as
  polling tasks, which adds up to one period
  worst-case response between actual event and job
  completion time.

31
Static Scheduling Notes 3

• Disadvantage Producing an efficient schedule is
  a challenge.
• NP-hard problem in general.
• Scheduling tool may exhibit anomalous behaviors
• Small change to problem results in big change to
  schedule
• Small change to problem results in big change in
  scheduling tool running time
• Making the problem simpler (e.g. reducing an
  execution time) may cause the scheduling tool to
  fail (anomalous scheduling)
• Usually cant say much about breakdown
  utilization
• Off-line manual pseudo-preemption of large jobs
  can help, but be careful of complicating the
  scheduling and maintenance problem.

32
Static Scheduling Notes 4

• Lots of literature on all kinds of fancy,
  high-powered methods applied to this problem,
  e.g.
• Various pruned search heuristics
• Simulated annealing
• Highly personal and totally unsubstantiated
  opinion the complicated stuff probably only gets
  you a little bit more than fairly fast algorithms
  based on theoretically good (if not optimal)
  methods for bin-packing, non-preemptive
  scheduling, etc.
• If finding static schedules becomes a major
  development challenge (e.g. overnight runs,
  management nail-biting) then you probably should
  rethink some of the architectural decisions (e.g.
  add another processor, switch to another
  scheduling paradigm). (But sometimes its too
  late.)

33
Static Scheduling Notes 5

• Recommended for relatively simple periodic task
  sets, especially where very low implementation
  complexity and overhead is desirable.
• Not recommended for complex workloads (e.g.
  non-harmonics, sporadics, multi-processor),
  especially where high utilizations are required.

34
Preemptive Priority Scheduling

• A job becomes ready at its release time.
• A job remains ready until it has received enough
  processor time to complete.
• Among all ready jobs, the processor executes the
  one having highest priority.
• The scheduling problem reduces to assigning
  priorities to jobs.
• We initially assume task priorities are distinct,
  no two tasks have the same priority.

35
Example

• P1 2, e1 1 P2 3, e2 1
• T1 has higher priority than T2
• (all jobs of T1 have higher priority than jobs of
  T2)

36
Notes on Example

• This is called a fixed priority assignment (aka
  static assignment, off-line assignment). All
  jobs of a task have the same priority, and
  priorities are assigned at development-time.
• This schedule is just barely feasible at U 5/6
  (breakdown utilization lt 1 it is a non-harmonic
  task set).

37
Priority Assignment Algorithms

• Preemptive Fixed Priority
• Rate Monotonic Assignment (RMA) priorities
  assigned monotonically with periods, shorter
  periods get higher priority
• Deadline Monotonic Assignment (DMA) priorities
  assigned monotonically with deadlines, shorter
  deadlines get higher priority (generalizes RMA).
• Earliest Deadline First
• Job with earliest absolute deadline has highest
  priority (not a fixed/static priority assignment)

38
PFP Lemma

• When thinking about the timing and scheduling
  properties of a job, you can ignore all jobs from
  all tasks of lower priority.

39
Critical Instant Result

• For periodicsporadic fixed priority schedules,
• Among all possible relative task phases (whether
  due to explicit phases or drift),
• The maximum response time of a job will occur
  when it is dispatched simultaneously with jobs of
  every higher priority.
• So, to determine worst-case response times, we
  only have to simulate a schedule starting at an
  instant at which all tasks are dispatched
  simultaneously up to the point the job of
  interest has completed.

40
Intuitive Critical Instant Proof case 1
Suppose this phasing gave the greatest response
time for the lower priority job. If we slide the
high priority jobs later in time (to the right),
we bring in more preemption from the left, and
can at most push the same amount of preemption
out to the right. Thus, this can only increase
and never decrease the amount by which the lower
priority job is preempted, hence can only
increase and never decrease its response time.
41
Intuitive Critical Instant Proofcase 2
Suppose this phasing gave the greatest response
time for the lower priority job. If we slide the
high priority jobs earlier in time (to the left),
we do decrease any preemption at the start of the
interval, and might increase preemption at the
end. Thus, this can only increase and never
decrease the amount by which the lower priority
job is preempted, hence can only increase and
never decrease its response time.
42
Intuitive Critical Instant ProofInduction Step

• Suppose for a task with k higher-priority tasks,
  we are given a phasing that has worst-case
  response time.
• Apply this argument to align the phase of the
  next lower priority task. The response time is
  the same as a single task combining the
  dispatched work of both within the response time
  interval.
• Recursively apply the argument to the next lower
  priority task.

43
DMA is an Optimal PFP Assignment

• Among all possible preemptive fixed priority
  assignments, DMA is optimal in the sense
• If any priority assignment produces a feasible
  schedule, then DM will also.
• If a DM schedule is not feasible, then there
  exists no feasible fixed priority assignment.
• There are periodic task sets for which DMA and
  non-DMA priority assignments are feasible.
• There are periodic task sets for which PFP DMA is
  infeasible but dynamic priority assignments are
  feasible (e.g. EDF).

44
Intuitive DMA Optimality Proof
busy interval

• Suppose we are given a feasible non-DM priority
  assignment.
• Search from highest to lowest priority until we
  find a pair of tasks having non-DM priority.
• We can switch their priorities without making the
  schedule infeasible.
• This has no effect on the total preemption by
  higher priority tasks in their combined busy
  interval.
• The completion time of the formerly lower
  priority task decreases.
• The completion time of the formerly higher
  priority task becomes that of the formerly lower
  priority task, but this meets the deadline.

45
Analyzing Worst-Case Response Times
A rate-monotonic priority assignment. By
convention in the literature, 1 is the highest
scheduling priority. (This convention is not
followed by all RTOS products, however.)
3
2
1
46
Time Demand Analysis
The maximum number of dispatches that can occur
in an interval of length t.
The maximum amount of work that can be dispatched
in an interval of length t.
47
Time Demand Analysis(aka Busy Period Analysis)
The maximum amount of work that can be dispatched
in an interval of length t for all tasks having
higher priority than task i.
48
Time Demand Analysis
Find the least Wi(t) where this holds.
49
Fixed-Point Time Demand Analysis(for a single
task Ti)
Loop
Until t does not change
50
Analyzing Worst-Case Response Times
3
Analyze task 2
2
1
Ignore everything of lower priority.
51
Analyzing Worst-Case Response Times

t e2 initially
t e2 e1 (one dispatch of each could have
occurred in the above interval)
t e2 2e1 (1 dispatch of task 2 and 2
dispatches of task 1 could have occurred in the
above interval)
52
Time Demand Analysis(Another View)
Demand curve for tasks 1 and 2 (amount of work
dispatched)
Supply curve (amount of work processor could have
performed)
Point at which work performed catches up with
work dispatched
Response time
Critical instant
53
Time Demand Criteria

• The processor will remain busy from the time job
  i is dispatched until that job completes, which
  occurs only when the processor has performed at
  least this much work, i.e. wi(t)t.
• This is actually the basis for two algorithms
• Check every release time for all jobs at priority
  level i and higher (exact characterization
  algorithm, in the text)
• Compute the minimum t as a least fixed point
  (response time algorithm, next slide)

54
Response Time Analysis

• For each i from highest to lowest priority loop
• t ei
• If wt t then next i
• t wt
• If t gt Di then infeasible
• end loop

55
Other Schedulability Analyses

• RMA for implicit deadlines and harmonic periods
  has a theoretical breakdown utilization of 1.
• EDF for implicit deadlines has a theoretical
  breakdown utilization of 1.
• Extensions exist to compute critical scaling
  factors.
• Extensions exist to include things like context
  swap times, real-time semaphore waiting times,
  etc. (covered in a future class).

56
PFP vs EDF

• EDF
• is optimal, even for more general models than
  this
• (PFP breakdown is theoretically as low as 69
  but generally gt90, and 100 for harmonics)
• PFP
• Is stable and predictable under overload
• Is widely supported by available HW SW
• Has a large body of extensions tricks
• (EDF proponents have addressed many of these in
  recent years)

57
COTS RTOS Support

• RTOS maintains a priority ready queue
• Service calls to set thread priority
• Various service calls move threads to/from the
  ready queue
• At scheduling points, RTOS selects highest
  priority ready thread to execute

58
Self-Dispatching Periodic Thread

• Next_Dispatch 0
• loop
• ltltcomputationgtgt
• Next_Dispatch Next_Dispatch Period
• RTOS.Wait_Until (Next_Dispatch)
• end loop

59
Self-Dispatching Periodic Thread

• RTOS.Setup_Periodic_Signal (Psig, Period)
• Loop
• RTOS.Wait_For (Psig)
• ltltcomputationgtgt
• end loop

60
Periodic Dispatcher(aka System Executive)

• cycle 0
• Int_Period GCD (P1, P2, .)
• set periodic clock interrupt handler to
  Scheduler
• start clock with interrupt period Int_Period
• procedure Scheduler is
• if cycle mod (P1 / Int_Period) 0 then
  dispatch T1
• if cycle mod (P2 / Int_Period) 0 then
  dispatch T2
• .
• cycle (cycle 1) mod (Hyperperiod /
  Int_Period)
• end Scheduler

61
Implementation Comments

• A separate dispatcher adds another thread, but
• Can assure synchronized dispatching
• Is a place to put com, I/O, initialization,
• Can help detect and manage overruns
• Centralized place for task data
• Dispatcher appears as the highest rate, highest
  priority task in the workload model.

62
Assignment for 8 Feb

• Chapter 6
• 6.8-6.8 (practical factors)
• Chapter 8
• 8.1-8.6 (real-time semaphore protocols)

63
Select A Real-Time Project(to be completed by 1
March 2008)

• Implement a deadline-monotonic priority
  assignment algorithm and a preemptive fixed
  priority response time analysis algorithm. Run
  on a few example workloads. UI not relevant.
• Implement a non-preemptive cyclic scheduling
  algorithm. Run on a few example workloads. UI
  not relevant. You may assume harmonic periods.
• Download apply a ROTS schedulability analysis
  tool to an example problem (not one of the
  included examples).
• http//mast.unican.es/
• http//beru.univ-brest.fr/singhoff/cheddar/
• Implement a periodic dispatching idiom to
  periodically dispatch a small number of
  non-trivial procedures and capture sequences of
  execution times. Experiment with changes in
  input, other loads on the processor. Discuss
  selecting a WCET value.
• Student proposal
