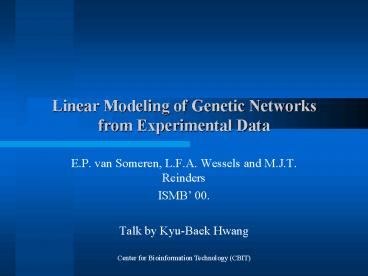

Linear Modeling of Genetic Networks from Experimental Data

1
Linear Modeling of Genetic Networksfrom
Experimental Data

• E.P. van Someren, L.F.A. Wessels and M.J.T.
  Reinders
• ISMB 00.
• Talk by Kyu-Baek Hwang

2
Abstract

• Topic
• Modeling regulatory interactions between genes
• Linear genetic networks
• Gene expression data
• The dimensionality problem (contribution of this
  paper)
• The number of genes gtgt the number of measured
  time points ? many solutions that fit the
  training data
• Prototypical genes (by clustering) ? biological
  genetic networks are sparse and redundant.
• Experiments
• An artificial dataset
• S. cerevisiae yeast cell-cycle dataset

3
Exploitation ofDNA Microarray Datasets

• DNA microarray ? simultaneous measurements on the
  expression levels of thousands of genes
• Infer functionality of genes based on this new
  massive datasets.
• Clustering and pattern recognition techniques
  (NNs and SVMs)
• The regulatory interactions between genes
• Boolean networks, Bayesian networks, linear
  networks, neural networks, and differential
  equations
• Data sparseness problem inherent in the analysis
  of microarray data ? as few parameters as possible

4
Linear Networks

• The basic linear model
• ?? 1
• where xj(t) represents the activity level of gene
  j at time point t, ri,j represents how strongly
  gene i controls gene j and N is the total number
  of genes under consideration.
• Prototypical genes ? hierarchical clustering
• Tackling the dimensionality problem
• Input and output sharing among genes involved
  within a gene family or pathway
• Genes are estimated to interact with four to
  eight other genes.

5
The Modeling Approach
6
Preprocessing Step I Thresholding

• Eliminate insignificant signals (genes).
• Due to experimental noises
• Gene expression levels in different cultures
  under similar conditions
• Vary up to ratio of two
• Gene expression levels in different cultures
  under different conditions
• Vary up to ratio of two to five
• Genes with profiles that remain below an absolute
  value of two ? do not participate in regulation
• Reduce the dimensionality problem.
• Avoid learning erroneous relationships.

7
Preprocessing Step II Normalization

• If two signals share the actually (?) same
  characteristics, these two signals should be very
  similar after normalization. (Euclidean distance
  vs. Pearson correlation)

Used in the experiments
8
The Linear Model Calls Clustering

• A set of measurements of gene expression levels
  at consecutive time points.
• The linear model is learned by Gaussian
  elimination.
• P a particular solution
• H a basis of homogeneous solutions
• F a set of free variables

More details on the whiteboard.
9
Clustering ? Prototypes

• Find groups (clusters) of signals based on the
  similarity.
• Conceptualize the data by representing each
  cluster with a proper prototype.
• Selection of distance measuring metric is very
  important.
• Clustering method complete linkage hierarchical
  clustering based on the Euclidean distance
  measure.
• Prototype
• Reduction of noises in the gene expression levels
• The mean value of all the signals in one cluster
  (RMS)

10
Prototypes

• Transforming signals to prototypes
• The inverse

11
Experiments
12
An Artificial Linear System

• An artificial linear system with five genes.
• R5 matrix in graphical representation.

13
Expansion of the System

• Replication of R5 to R25 matrix.
• The (i, j)-th 5 ? 5 sub-matrix in R25 is
  constructed by placing r5i, j on the diagonal
  with all other positions in the sub-matrix
  occupied by zeros.

14
Time Response for the 25 ? 25 System

• Initial values of genes in the same cluster were
  set to the more similar values than the values of
  genes in the other clusters. (20 time points)

15
Estimation of the Model (1/2)

• Experimental steps (k 1 25)
• 1. The set of prototypes, Yk associated with the
  clusters in Ck was determined.
• 2. The weight matrix, , corresponding to
  each clustering was determined from Yk.
• 3. Given the complete model and the initial
  state, approximations to the original signals can
  be computed as follows
• One-step approximation
• Free-run approximation

16
Estimation of the Model (2/2)

• Experimental steps (continued)
• 4. The mean squared errors (MSE) were computed.
  (Eos,k, Efr,k)
• 5. The weighted prototype MSE, Ewp,k is computed.

17
Error Curves

• Error curves as a function of the number of
  clusters

18
The Resulting Model

• The resulting model (analysis of multiple causes
  is not easy.)

19
Real Experiments Yeast Data Set

• Gene expression profiles extracted from the 2467
  genes in the budding yeast S. cerevisiae by
  Eisen.
• Considered conditions
• Mitotic cell division cycle, sporulation and
  temperature and reducing shocks
• Thresholding
• For the ALPHA subset 18 time points with 45
  genes.
• For the CDC15 subset 15 time points with 113
  genes.

20
The Effect of Normalization

• Normalization
• If the cluster size is equal to or greater than
  one less than the time step size, the prototype
  free run error is zero. (the limit of
  over-constrained condition)

The one-step MSE of all datasets and the four
kinds of normalization
21
Error Curves on the CDC15 Dataset

• Fitting the linear model on the CDC15 subset.
• The error curve

22
The Resulting Model on CDC15

• The resulting model

23
Error Curves on the ALPHA Dataset

• Fitting the linear model on the ALPHA subset.
• The error curve

24
The Resulting Model on ALPHA

• The resulting model

25
Resulting Model without Normalization

• The resulting model without normalization (more
  reasonable ?)

Mating
26
Summary

• The dimensionality problem was tackled by
  clustering.
• Biologically sound.
• Linear models were used to represent the
  relationships between the resulting
  gene-prototypes.
• Good balance between the model complexity and the
  accuracy.
• No intrinsic semantics was found.
