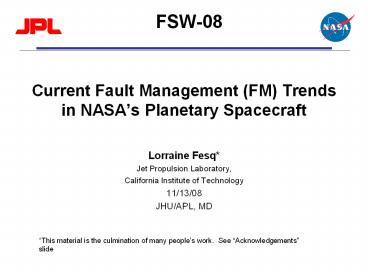

Current Fault Management (FM) Trends in NASA

1
Current Fault Management (FM) Trends in NASAs
Planetary Spacecraft
FSW-08

• Lorraine Fesq
• Jet Propulsion Laboratory,
• California Institute of Technology
• 11/13/08
• JHU/APL, MD

This material is the culmination of many
peoples work. See Acknowledgements slide
2
The Vision
Jim Adams, Deputy Director, Planetary Science
Division, NASA SMD Ken Ledbetter, Science Mission
Directorate Chief Engineer, NASA OCE

• Problem There exist schedule, cost and
  predictability challenges on deep space and
  planetary robotic missions when testing and
  operating Fault Management (FM) systems.
• Objective Identify issues plaguing FM systems
  in unmanned, autonomous spacecraft today and make
  recommendations for future missions
• Approach Assemble key players in the spacecraft
  fault management field across NASA, industry and
  other organizations, to
• Capture current state of FM
• Identify challenges associated with
  engineering/operating FM systems
• Characterize issues underlying the challenges and
  propose steps to mitigate them
• Discuss and document best practices and lessons
  learned in FM
• Explore promising state-of-the-art technology and
  methodology solutions to identify potential
  investment targets.
• All attendees are participants
• Begin to form a community
• Deliverable White Paper for future programs and
  technology development
• Lessons Learned / Best Practices
• Opportunities for Investment

3
Overview of FM Workshop

• Steering Committee John McDougal - MSFC, Chris
  Jones - JPL, Steve Scott/Ray Whitley - GSFC,
  George Cancro Dave Watson - JHU/APL
• Technical Coordinator Lorraine Fesq - JPL
• Held April 14-16, 2008 in New Orleans, LA
• gt100 attendees from 31 organizations --
  government, industry and academia

4
FM Workshop Goals

• Identify issues plaguing Fault Management in
  unmanned, autonomous spacecraft today
• Provide guidance for future programs and
  technology development
• Lessons Learned
• Best Practices
• Opportunities for Investment
• Target Audience for White Paper Current and
  future practitioners (FM, SE, SWE, VV, etc.),
  proposal evaluators to assess viability of
  proposals, reviewers and program managers to
  evaluate credibility of program plans
• Not looking to produce a recipe or a single
  approach. Instead, identify expectations
  associated with different approaches
• Rise above institutional preferences!

This initial workshop was intended to start the
discussions. The next workshop should focus on
solutions to the issues.
5
FAULT MANAGEMENT WORKSHOPAgenda
Identify and characterize cardinal issues via
Breakout Sessions
View Future Directions via Poster Sessions and
Invited Speakers
Expose current state of FM through Case Study
presentations
6
General Observations

• Three key concepts emerged during the workshop
• FM Architectures are surprisingly similar across
  organizations Monitors/Alarms and Responses
• FM in current missions not limited by technology,
  but by a lack of engineering and programmatic
  discipline.
• In-flight performance of the FM systems on
  participating projects has been successful.
  However, getting there wasnt pretty.

7
FM WORKSHOP RESULTS
The Dirty Dozen Key Findings and Recommendations
8
FM WORKSHOP RESULTS
The Dirty Dozen Key Findings and
Recommendations- cont.
9
FM WORKSHOP RESULTS
The Dirty Dozen Key Findings and
Recommendations- cont.
10
Finding 1 Avoid the downstream testing crunch

• Finding 1 Unexpected cost and schedule growth
  during final system integration and test are a
  result of underestimated Verification and
  Validation (VV) complexity combined with late
  resource availability and staffing.

Managements solution Add more people to get
caught up!
Lesson learned Minimize downstream testing
complexity
Recommendation 1a Allocate FM resources and
staffing early, with appropriate schedule,
resource scoping, allocation, and prioritizing.
Schedule VV time to capitalize on learning
opportunity. Recommendation 1b Establish
Hardware / software / sequences /operations
function allocations within an architecture
early. Recommendation 1c Engrain FM into the
system architecture. FM should be dyed into
design rather than painted on.
11
Finding 2 Find a home for FM within Project
organization

• Finding 2 Responsibility for FM currently is
  diffused throughout multiple organizations
  unclear ownership leads to gaps, overlap and
  inconsistencies in FM design, implementation and
  validation.
• Inefficiencies in defining the task
• Fault Mission Set and failure modes defined by
  SE, FM or SMA?
• Systems Engineers responsibility -- or not?
• Weak FM definition and requirements delay testing

• Recommendation 2 Establish clear roles and
  responsibilities for FM engineering. Rotate
  engineers through different project roles. Find
  a home for FM.

12
Finding 3 Standardize FM Terminology

• Finding 3 There is a lack of standard
  terminology of FM systems that causes problems in
  reviews and discussions.
• Different Interpretation of same term e.g.,
  Single Fault Tolerance may or may not include
  SEUs and Operator errors Fault, Autonomy
• Two terms to mean the same thing e.g., Fault
  Protection Redundancy Management FDIR
• Many papers/presentations begin with definitions
  of terms -gt immature discipline

• Recommendation 3 and O for I Standardize FM
  terminology to avoid confusion and to provide a
  common vocabulary that can be used to design,
  implement and review FM systems.
• Low-hanging fruit
• Performed across larger community to achieve
  consensus and acceptance
• Tailor for individual missions

Opportunity for Investment (O for I) Develop a
Practitioners Handbook that will provide
practitioners with standard terminology to use
throughout and across projects.
13
Finding 4 Identify FM representation techniques
and FM design guidelines

• Finding 4 There is insufficient formality in
  the documentation of FM designs and
  architectures, as well as a lack of principles to
  guide the processes.
• Difficult to visualize FM systems and to assess
  changes
• Causes lack of reviewability
• Little effort to date devoted to applying
  rigorous architectural specs and representations

• Recommendation 4a and O for I Identify
  representation techniques to improve the design,
  implementation and review of FM systems.
• Representation suggestions SysML? Statecharts?
• Recommendation 4b and O for I Establish a set
  of design guidelines to aid in FM design.
• Establish and document FM design principles
  e.g., provide a safety net
• software FMEA/FTA is a relatively new area for
  aerospace, but represents a potentially important
  approach to overall FM design

O for I Develop a Practitioners Handbook that
will provide practitioners with FM representation
techniques and FM design guidelines/principles.
14
Finding 5 Establish FM Metrics

• Finding 5 Metrics have not been established to
  evaluate the appropriateness or measure the
  progress of FM systems.
• Functional properties (e.g., diagnostic coverage
  of the fault space, timing and responsiveness of
  the fault responses, and determinism) and
  Non-functional properties (e.g., testability,
  useability, and maintainability)
• Performance Measures and progress metrics

• Recommendation 5a Identify FM as a standard
  element of the system development process (e.g.,
  separate WBS) to promote innovative solutions and
  realistic estimates of complexity, cost,
  schedule.
• Recommendation 5b and O for I Establish
  evaluation criteria, metrics and process
  specifications with milestones that will allow
  proposal evaluators and project teams to assess
  the FM relevance, merits and progress.

Note We do not recommend a standard architecture
for all missions on the contrary, risks,
constraints, and requirements across different
mission classes classes imply fundamentally
different approaches to FM
O for I Develop a Practitioners Handbook that
will provide practitioners with FM metrics and
process specifications.
15
Finding 6 Apply CPI to FM

• Finding 6a Practices, processes, and tools for
  FM have not kept pace with the increasing
  complexity of mission requirements and spacecraft
  systems
• More capable complex missions gt growth in
  number of potential fault scenarios
• Finding 6b - Indications of potential spacecraft
  anomalies exist in test data, but are not always
  observed or not adjudicated.
• test programs are becoming overwhelmed with data

• Recommendation 6a Design for testability
  Architectures should enable post-launch and
  post-test diagnosis.
• Establish sensor placement for diagnosability --
  recommendations from FM?
• Recommendation 6b Examine all observed,
  unexpected behavior.
• all anomalies in VV should be adjudicated
• Recommendation 6c Implement CPI for FM
  lifecycle.
• Emphasis should be on learning and applying from
  the VV process
• Recommendation 6d and O for I Catalog and
  integrate existing FM analysis and development
  tools to identify capability gaps in the current
  generation of tools, and to facilitate technology
  development to address these gaps.

O for I Develop tools to fill the capability
gaps e.g., complexity analysis tools for concept
development and requirements definition,
evolvable system models.
16
Finding 7 Assess mission-level requirements on
FM complexity

• Finding 7 The impact of mission-level
  requirements on FM architecture complexity and
  VV is not fully recognized.
• Fail Operational
• Number of interactions number of
  monitors/responses2

• Recommendation 7 Review and understand the
  impacts of mission-level requirements on FM
  complexity. FM designers should not suffer in
  silence, but should assess and elevate impacts to
  the appropriate levels of management.

17
Finding 8 Assess if FM architecture is
appropriate for Mission

• Finding 8a FM architectures often contain
  complexity beyond what is defined by project
  specific definitions of faults and required fault
  tolerance.
• Programming model useful for other purposes.
  Flexibility friend or foe?
• Junk drawer concept e.g. perform resource
  management
• Finding 8b Increased FM architecture
  complexity leads to increased challenges during
  IT and mission operations.
• Emergent behavior
• Variations in initial conditions cause differing
  results Fly as you test operational
  constraints

• Recommendation 8 Assess the appropriateness of
  the FM architecture w.r.t. the scale and
  complexity of the mission, and the scope of the
  autonomy functions to be implemented within the
  architecture.

O for I Create a trade space of existing (and
future) FM architectures showing how each handles
complexity, flexibility, growth, risk,
testability, etc.
18
Finding 9 Establish and maintain risk tolerance

• Finding 9 FM architecture development is
  subject to changing priorities toward cost and
  risk over the course of system development.
• Early phases -gt cost
• Late phases -gt risk
• FM Flexibility used as a response to accommodate
  buying down risk

• Recommendation 9 Define and establish risk
  tolerance as a mission-level requirement.

O for I Define Risk Posture for each NASA
Mission Class, and identify the resulting impacts
to FM testing.
19
Finding 10 Be skeptical of inheritance claims

• Finding 10a The bulk of existing FM systems
  (e.g., mission-specific monitors and responses)
  is not inheritable. Heritage, similarity and
  inheritance assumptions tend to underestimate
  budgeting for necessary VV activities and review
  milestones.
• Timing issues, Environmental differences
• Finding 10b Current FM systems do not support
  significant re-use.
• Cultural differences

• Recommendation 10 Examine claims of FM
  inheritance during proposal evaluation phase to
  assess the impacts of mission differences.

20
Finding 11 Provide adequate testbed resources

• Finding 11 Inadequate testbed resources is a
  significant schedule driver during VV.
• FM VV often delayed until other subsystems
  tested
• Lack of simulation fidelity cause incorrect test
  results

• Recommendation 11 Develop high-fidelity
  simulations and hardware testbeds to
  comprehensively exercise the FM system prior to
  spacecraft-level testing.

21
Finding 12 Capture and understand FM cultural
differences among aerospace organizations

• Finding 12 Organizations have different and
  sometimes conflicting institutional goals and
  risk postures that drive designs, architectures
  and VV plans in different directions, causing
  friction between customers and contractors.
• The why often is missing --gt lack of
  documentation
• Differences in culture -- Institutional fears
  probable faults vs possible faults

• Recommendation 12 Collect and coordinate FM
  assumptions, drivers, and implementation
  decisions into a single location that is
  available across NASA, APL and industry.
  Utilize this information to establish / foster
  dedicated education programs in FM.

O for I Develop course material and identify
courses that can be augmented with FM training.
O for I Develop a Practitioners Handbook that
will provide practitioners with necessary
background to make informed decisions.
O for I Develop a Textbook containing the
background and historical perspective that will
be used to train the next generation of FM
practitioners.
22
FM Roadmap Opportunities for Investment
2009
2012
2015
2018

• Standardize FM Terminology -------gt

• Establish FM Performance Metrics -------gt

• Create trade space of FM architectures -------gt

• Define establish FM evaluation criteria -------gt

• Establish FM as WBS element -------gt

• Identify FM deliverables by Mission Phase
  -------gt

Methodology Standards

• Standardize Process -------gt

• Establish FM Process specification -------gt

• Define Risk posture for each Mission Class
  -------gt

• Estimate Metrics for IT scheduling -------gt

• Establish NASA FM Working Group -------gt

• Perform Tool Surveys (e.g., VV, design) -------gt

• Develop situation awareness tools for operation
  -------gt

• Design Tools/Representation Methods to Specify
  Review FM designs -------gt

• Design Tools for Formal VV methods -------gt

Technology

• Establish cost/risk estimation techniques
  -------gt

• Identify/develop tools for complexity analysis
  -------gt

• Identify/develop tools for complexity management
  -------gt

• Share findings with larger community through
  presentations, publications, workshops -------gt

• Develop training material for current NASA
  courses -------gt

Education Training

• Develop text for university programs -------gt

• Develop university programs -------gt

• Develop FM Practitioners Handbook -------gt

2009
2012
2018
2015
Sample Target Missions
IXO (2014)
Mars Astrobiology Field Lab (2016)
SAFIR (2018)
Solar Probe Plus
Lunar Sample Return
JWST (2013)
GRAIL (2011)
MSL (2011)
JUNO (2011)
23
Current/Future Plans

• White Paper to be published this month, capturing
  Lessons Learned, Best Practices and Opportunities
  for Investment
• Make use of the findings
• Keep the dialog going
• Explore standardization opportunities -- are
  there areas that NASA should standardize? (e.g.,
  terminology and taxonomy)
• Training/Education -- within our community and
  students for pipeline
• Collect Schedule and Cost metrics to form bases
  of estimates
• Opportunities for in-flight Technology
  Demonstrations (e.g., via extended missions)
• Show the business case (return on investment
  possibilities) in terms of reducing technical and
  programmatic risk by utilizing some of these
  techniques
• Propose a 2nd Planetary Spacecraft FM Workshop to
  identify solutions/approaches to dealing with the
  issues

24
Acknowledgements

• Program Chair and Sponsor Jim Adams, Deputy
  Director, Planetary Science Division, Science
  Mission Directorate, NASA HQ
• Program Host Paul Gilbert, Manager, Discovery
  and New Frontiers Office, NASA MSFC
• Workshop Director John M. McDougal, MSFC
• Steering Committee
• George Cancro, JHU/APL
• Chris Jones, JPL
• John McDougal, MSFC
• Steven Scott /Ray Whitley GSFC
• Venue Organizer Pauline Burgess, NRESS
• Workshop Technical Coordinator and Point of
  Contact Lorraine Fesq, JPL, 818-393-7224,
  Lorraine.M.Fesq_at_jpl.nasa.gov
• Workshop Organizers and White Paper Authors
• Mitch Ingham, JPL
• Jesse Leitner, GSFC
• Marilyn Newhouse, CSC
• Eric Rice, JPL
• David Watson, JHU/APL
• Julie Wertz, JPL
