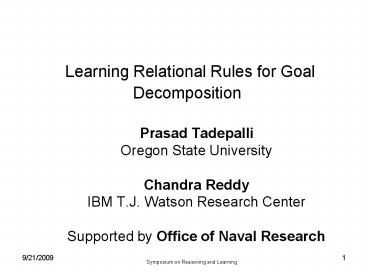

Learning Relational Rules for Goal Decomposition

1
Learning Relational Rules for Goal Decomposition

• Prasad Tadepalli
• Oregon State University
• Chandra Reddy
• IBM T.J. Watson Research Center
• Supported by Office of Naval Research

2
A Critique of Current Research

• Most work is confined to learning in isolation
• Predominantly employs propositional
• representations
• The learner is passive and has to learn
• from random examples
• The role of prior knowledge in learning
• is minimal

3
Our Approach

• Learning in the context of hierarchical problem
  solving
• The goals, states and actions are represented
  relationally
• Active Learning Learner can ask questions, pose
  problems to itself, and solve them
• Declarative prior knowledge guides and speeds up
  learning

4
Air Traffic Control (ATC) Task(Ackerman and
Kanfer study)
5
Goal Decomposition Rules (D-rules)

• D-rules decompose goals into subgoals.
• goal land(?plane)
• condition plane-at(?plane, ?loc) level(L3,
  ?loc)
• subgoals move(?plane, L2) move(?plane, L1)
  land1(?plane)
• Problems are solved by recursive decomposition of
  goals to subgoals
• Control knowledge guides the selection of
  appropriate decomposition rules.

6
Domain theory for ATC task

• Domain Axioms
• can-land-short(?p) - type(?p propeller)
• can-land-short(?p) - type(?p DC10)
  wind-speed(low) runway-cond(dry)
• Primitive Operators
• jump(?cursor-from, ?cursor-to),
• short-deposit(?plane, ?runway),
• long-deposit(?plane, ?runway),
• select(?loc, ?plane)

7
Learning from Demonstration

• Input Examples
• State at(p1, 10), type(p1, propeller),
  fuel(p1, 5),cursor-loc(4), free(1), free(2),,
  free(9), free(11),, free(15), runway-cond(wet),
  wind-speed(high), wind-dir(south)
• Goal land-plane(p1)
• Solution jump(4, 10), select(10,p1),
  jump(10,14), short-deposit(p1,R2)
• Output underlying D-rules

8
Generalizing Examples

• Examples are inductively generalized
• Examples to D-rules
• Example goal D-rule Goal
• Initial state Condition
• Literals in other states Subgoals
• Least General Generalization (lgg)

lgg
X
H
Problem Size of lgg grows exponentially with
the number of examples.
9
Learning from Queries

• Use queries to prevent the exponential growth of
  the lgg
• (Reddy and Tadepalli, 1997) Non-recursive,
  single-predicate Horn programs are learnable
  from queries and examples.
• Prune each literal in the lgg and ask a
  membership query (a question) to confirm that the
  result is not overgeneral.

10
Need for queries
D
11
Need for queries
x
D
12
Need for queries
x
lgg
D
13
Need for queries
x
D
target
14
Need for queries
overgeneral
x
D
15
Need for queries
x
D
16
Using Prior Knowledge

• Explanation-Based Pruning
• Remove literals that don't play a causal role in
  the plan e.g., free(1), free(2), ...etc.
• Abstraction by Forward Chaining
• can-land-short(?p) - type(?p propeller)
• Helps learn a more general rule.
• Learning subgoal order
• Subgoal literals are maintained as a sequence of
  sets of literals. A set is refined into a
  sequence of smaller sets using multiple examples.

17
Learning Multiple D-Rules

• Maintain a list of d-rules for each goal.

• Combine a new example x with the first d-rule
  hi for which lgg(x,hi) is not over-general

• Reduce the result and replace hi

18
Results on learning from demonstration
19
Learning from Exercises

• Supplying solved training examples is too
  demanding for the teacher.
• Solving problems from scratch is computationally
  hard.
• A compromise solution learning from exercises.
• Exercises are helpful intermediate subproblems
  that help solve the main problems.
• Solving easier subproblems makes it possible to
  solve more difficult problems.

20
Difficulty Levels in ATC Domain
21
Solving Exercises

• Use previously learned d-rules as operators .
• Iterative-deepening DFS to find short rules.
• Generalization is done as before.

22
Query Answering by Testing

• Generate test problems InitialState, Goal that
  match the d-rule.
• Use the decomposition that the d-rule suggests,
  and solve the problems
• If some problem cannot be solved the rule is
  over-general.

23
Results on learning from exercises

• 14 d-rules

24
Conclusions

• It is possible to learn useful problem-solving
  strategies in expressive representations.
• Prior knowledge can be put to good use in
  learning.
• Queries can be implemented approximately using
  heuristic techniques.
• Learning from demonstration and learning from
  exercises make different tradeoffs with respect
  to learning and reasoning.

25
Learning for Training Environments(Ron Metoyer)

• Task Training
• Sports
• Military

Boston Dynamics Inc.
Who creates the training content?
26
Research Challenges

• Learning must be on-line. Must learn quickly,
  since users can only give a few examples.
• Extension to more complex strategy languages that
  include concurrency, partial observability,
  real-time execution, multiple agents, e.g.,
  ConGolog
• Provide a predictable model of generalization.
• Allow learning from demonstrations,
  reinforcement, advice, and hints e.g., improving
  or learning to select between strategies.

27
Vehicle Routing Product Delivery
28
Learning Challenges

• Very large number of states and actions
• Stochastic demands by customers and shops
• Multiple agents (trucks, truck companies, shops,
  distribution centers)
• Partial observability
• Hierarchical decision making
• Significant real-world impact

29
ICML Workshop onRelational Reinforcement Learning

• Paper Deadline April 2
• Check ICML website
