Memory Management Motivation

1
Memory Management - Motivation

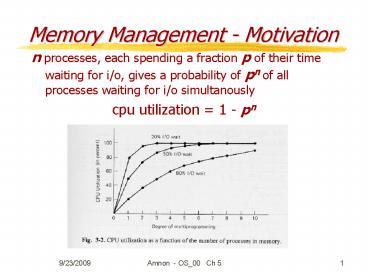

• n processes, each spending a fraction p of their
  time waiting for i/o, gives a probability of pn
  of all processes waiting for i/o simultanously
• cpu utilization 1 - pn

2
Utilizing Memory

• Assume each process takes 200k and so does the
  operating system
• Assume there is 1Mb of memory available and that
  p0.8
• space for 4 processes 60 cpu
  utilization
• Another 1Mb enables 9 processes
• 87 cpu utilization

3
Issues - Relocation and Linking

• Compile time - create absolute code
• Load time - linker lists relocatable
  instructions and loader changes instructions (at
  each reload..)
• Execution time - special hardware needed to
  support moving of processes during run time
• Dynamic Linking - used with system libraries and
  includes only a stub in each user routine,
  indicating how to locate the memory-resident
  library function (or how to load it, if needed)

4
Multiprogramming with fixed partitions

• How to organize the memory ?
• How to assign jobs to partitions ?
• Separate queues vs. single queue

5
Allocating memory - growing segments
6
Memory allocation - Keeping track (bitmaps
linked lists)
7
Strategies for Allocation

• First fit do not search too much..
• Next fit - start search from last location
• Best fit - a drawback generates small holes
• Worst fit - solve the above problems badly
• Quick fit - several queues of different sizes
• An example elaborate scheme the Buddy system
  (Knuth 1973)
• Separate lists of free holes of sizes of powers
  of two
• For any request, pick the 1st hole of the right
  size
• Not very good memory utilization
• Freed blocks can only be merged with their own
  size
• Main problem of memory allocation -
  Fragmentation
• Internal wasted parts of allocated space
• External wasted unallocated space

8
Memory Protection

• Hardware
• history IBM 360 had a 4bit protection code in
  PSW and memory in 2k partitions - process code in
  PSW matches memory partition code
• Two registers - base limit
• base is added by hardware without changing
  instructions dynamic relocation
• every request is checked against limit
  runtime bound checking
• reminder In the IBM/pc there are segment
  registers (but no limit)

9
Managing memory by Swapping

• Processes from disk to memory and from memory to
  disk
• Whenever there are too many jobs to fit in memory
• To use memory more efficiently - variable
  partitions
• Allocating memory
• Freeing memory and holes
• possible solution memory compaction
• some form of swapping is required with any
  multiprogramming
• since swapping is performed on whole processes
  it results in a noticeable response time
• longer queues of blocked processes can lead to
  many swaps..
• Allocating swap space
• Processes are swapped in/out from the same
  location
• Allocate space for non-memory resident processes
  only

10
Paging and Virtual Memory

• Divide memory into fixed-size blocks
  (page-frames)
• Small enough blocks - many for one process
• Allocate to processes non-contiguous memory
  chunks - avoiding holes..
• 232 addresses for a 32 bit (address bus) machine
  - virtual addresses
• A memory management unit (MMU) does the mapping
  to physical addresses
• pages ---gt page frames
• Machine instructions reference addresses more
  than one address per instruction plus fetching
  instructions
• absolute code becomes meaningless..

11
Memory Management Unit
12
Paging
13
MMU Operation - page fault if accessed page is
absent
14
Page table considerations

• Can be very large (1M pages for 32bits addresses)
• Must be fast (every instruction needs it)
• One extreme will have it all in hardware - fast
  registers that hold the page table and are loaded
  with each process, too expensive for the above
  size
• The other extreme has it all in memory (using a
  page table base register (ptbr) to point to it -
  each memory reference during instruction
  translation is doubled...
• To avoid keeping complete page tables in memory -
  make them multilevel (and avoid the danger of
  accumulating memory references per instruction by
  caching)
• a fast cache (additional 20) and a 98 hit
  ratio, on a four-level page table, for a 100
  nanoseconds memory access machine
• effective access time 0.98 x 120 0.02 x 520
  128 nanosecs

15
Page Tables - Handling the size problem
16
SPARC 3 level pagingContext table (MMU
hardware) - 1 entry per process
17
Associative Memory - content addressable
memorypage insertion - complete entry from page
tablepage deletion - just the modified bit to
page table
18
Associative Memory - comments

• With a large enough hit-ratio the average access
  time is close to 0
• linked lists, for example, are bad..
• Only a complete virtual address (all levels) can
  be counted as a hit
• with multi-processing associative memory can be
  cleared on context switch - wasteful..
• Add a field to the associative memory to hold
  process ID and a special register for PID

19
No page tables - MIPS R2000

• 64 entry associative memory for virtual pages
• if not found, TRAP to the operating system
• software uses some hardware registers to find the
  virtual page needed
• a second trap may happen by page fault...

20
Inverted page tables

• for very large memories (page tables) one can
  have an inverted page table sorted by
  (physical) page frames
• IBM RT HP Spectrum (thinking of 64 bit
  memories)
• to avoid linear search for every virtual
  address of a process use a hash table (one or a
  few memory references)
• only one page table the physical one for all
  processes currently in memory
• in addition to the hash table, associative
  memory registers are used to store recently used
  page table entries
• the only way to deal with a 64 bit memory 4k
  size pages two-level page tables can result in
  242 entries

21
Inverted Page Table Architecture
22
Pages the dataPage frames the physical memory
locations

• Page Table Entries (PTE) contain (per page)
• Page frame number (physical address)
• Present/absent bit (valid bit)
• Dirty (modified) bit
• Referenced (accessed) bit
• Protection
• Caching disable/enable

page frame number
23
Page fault Handling

• 1. trap to kernel, save PC on stack and
  (sometimes) partial state in registers (and/or
  stack)
• 2. assembly routine saves volatile information
  and calls the operating system
• 3. find requested virtual page
• 4. check protection. If legal, find free page
  frame (or invoke page replacement algorithm)
• 5. if replacing, check if modified and start
  write to disk. Mark frame busy. Call scheduler
  to block process until the write-to-disk process
  has completed.

24
Page fault Handling (contnd.)

• 6. transfer of requested page from disk
  (scheduler runs alternative processes)
• 7. upon transfer completion, enter page table,
  mark new page as valid and update all other
  parameters
• 8. back up faulted instruction which was in
  principle in mid execution now the PC can be
  set back to its initial value
• 9. schedule faulting process, return from
  operating system
• 10. restore state (i.e. all volatile information
  stored by the assembly routine) and restart
  execution of faulted process

25
Architecture - Instruction backup

• page faulting instructions trap to OS
• OS must restart instruction
• The page fault may originate at the op-code or
  any of the operands - PC value useless
• the location of the instruction itself is lost
• worse still, undoing of autoincrement or
  autodecrement - was it already performed ??
• Hardware solutions
• Register to store PC value of instruction and
  register to store changes to other registers
  (increment/decrement)
• Micro-code dumps all information on the stack
• Restart complete instruction and redo increments
  etc.
• Do nothing - RISC ......

26
Demand Paging

• Processes reside on disk and their swapping-in
  is performed partially only part of their pages
• During run time a process may encounter a
  missing page and demand it
• a missing page has its invalid bit on (which
  will need to be differentiated by the page-fault
  routine from illegal address)
• Page missing ?? Retrieve page into empty page
  frame
• No empty page frame ?? Evict (replace) a page
• Many algorithms possible for selecting a page for
  replacement
• Optimal page replacement
• Discard page to be used the longest time ahead
• Not realizable...
• but can be used to compare to real algorithms !!

27
Optimal page replacement

• Demand comes in for pages
• 7, 5, 1, 0, 5, 4, 7, 0, 2,
  1, 0, 7
• an optimal algorithm faults on
• 7 5 1 (0,1) - (4,5) - - (2,4) (1,2)
  - -
• altogether 7 page-replacements
• take FIFO for example
• 7 5 1 (0,7) - (4,5) (7,1) - (2,0) (1,4)
  (0,7)(7,2)
• 3 additional page-replacements

28
Good old FIFO

• implemented as a queue
• the usual drawback
• oldest page may be a referenced (needed) page
• second chance FIFO
• if reference bit is on - move to end of queue
• Better to implement as a circular queue
• save overhead of movements on the queue

29
Page replacement NRU - Not Recently Used

• There are 4 classes of pages, according to
  reference and modification bits
• Select a page at random from the least-needed
  class
• Easy scheme to implement
• Prefers a frequently referenced (not modified)
  page on an old modified page
• Class b is interesting, can only happen when
  clock tick generates an erasure of the referenced
  bit..

30
LRU - Least Recently Used

• Approximate the optimal algorithm -
• most recently used page as most probable next
  reference
• Replace page used furthest in the past
• Not easy to implement - needs counting of
  references
• Use a large counter (number of operations) and
  save in a field in the page table, for each page
  reference operation
• Another option is to use a bit array of nxn bits
• In both cases the page entry with the smallest
  number attached to it is selected for replacement

31
LRU with bit tables
32
NFU - Not Frequently Used

• In order to record frequently used pages add a
  counter to all table entries
• At each clock tick add the R bit to the counters
• Select page with lowest counter for replacement
• problem remembers everything
• remedy (an aging algorithm)
• shift-right the counter before adding the
  reference bit
• add the reference bit at the left
• Less operations than LRU, depends on the
  intervals used for updating

33
NFU - the aging simulation version
34
Modelling paging algorithms

• Beladys anomaly
• Example FIFO with reference string 123412512345

35
Characterizing paging systems

• a Reference string (of requested pages)
• number of virtual pages n
• number of physical page frames m
• a page replacement algorithm
• can be represented by an array M of n rows

36
Stack Algorithms

• Definition Set of pages in physical memory with
  m page frames is a subset of the pages in
  physical memory with m1 page frames (for every
  reference string)
• Stack algorithms have no anomaly
• Example LRU, optimal replacement
• FIFO is not a stack algorithm
• Useful definition
• Distance string distance from top of stack

37
Predicting page fault number

• Ci is the number of times that i is in the
  distance string
• the number of page faults with m frames is
• Fm

38
Page Frame Allocation

• for a page-fault rate p, memory access time of
  100 nanosecs and page-fault service time of 25
  milisecs the effective access time is (1-p) x
  100 p x 25,000,000
• for p of 0.001 the effective access time is
  still larger than 100 nanosecs by a factor of 250
• for a goal of only a 10 degradation in access
  time we need p 0.0000004
• policies for page-frame allocation must allocate
  as much as possible to processes, to enhance
  performance leave no unassigned page-frame
• difficult to know how much frames to allocate to
  processes differ in size structure priority

39
Allocation to multiprocesses

• Fair share is not the best policy (static !!)
• allocate according to process size
• must be a minimum for running a process...

Age
A6
A6
40
(dynamic) Page Allocation Policies

• 1st option - fixed number of pages per process
  2nd option proportional to process size
• Locality of reference - a valid statistical
  phenomenon
• Working set - sets of pages used by each process
• Working set model - dynamic number of pages per
  process, a necessary condition for running (can
  be used for prepaging - load working set before
  running process)
• Keep track by aging by lookback parameter
  WSClock
• Thrashing - very frequent page faults (more than
  computation)
• cpu utilization decreases ? increase
  multiprogramming degree ? more utilization
  decreases ?
• whenever the in-memory pages are not the working
  set
• what to do for processes being swapped ?

41
Dynamic set - Page Allocation

• 0 2 1 3 5 4 6 3 7 5 7 3 3 5 6 4
• with 5 page frames (LRU)
• p p p p p p p - p - - - - - -
  - optimal
• with ? 5 (and LRU)
• p p p p p p p - p - - (4)(3) - p -

• for a window of size 5 the allocated WS is
  decreasing after request 12 and 14
• the maximum page allocation is ?
• extra page fault, because of the size of the WS
• after the last request, page 4, the number of
  allocated page frames increases again (4)

42
Dynamic set - Clock Algorithm

• WSClock is a global clock algorithm - for pages
  held by all processes in memory
• Circling the clock, the algorithm uses the
  reference bit and adds to it a measure of window
  size ?
• Each time a reference bit is set an additional
  data structure, ref(frame), is set to the current
  virtual time of the process
• WSClock Use an additional condition that
  measures elapsed (process) time and compares it
  to ?
• replace page when two conditions apply
• reference bit is unset
• Tp -- ref(frame) gt ?

43
Dynamic set - WSClock Example

• 3 processes p0, p1 and p2
• current (virtual) times of the 3 processes are
• Tp0 50 Tp1 70 Tp2 90
• WSClock replace when Tp -- ref(frame) gt ?
• the minimal distance (window size) is ? 20
• The clock hand is currently pointing to page
  frame 4
• page-frames 0 1 2 3 4 5 6
  7 8 9 10
• ref. bit 0 0 1 1 1 0 1
  0 0 1 0
• process ID 0 1 0 1 2 1 0
  0 1 2 2
• last_ref 10 30 52 71 81 37 61 37 31
  47 55

44
Page Daemons - Unix

• It is assumed useful to keep a number of free
  pages
• freeing of page frames can be done by a page
  daemon - a process that sleeps most of the time
• awakened periodically to inspect the state of
  memory - if there are too few free page frames
  then they free page frames
• yet another type of (global) dynamic page
  replacement policy
• this strategy performs better than evicting pages
  when needed (and writing the modified to disk in
  a hurry)

45
Comment - Page size analysis

• To minimize wasted memory
• process size s
• page size p
• page table entry size e
• Fragmentation overhead is
• Table space overhead is
• Total overhead is
• Minimize overhead
• Example s 128k e 8bytes
• optimal page size is 1488 bytes... i.e. use
  1k or 2k

46
Additional issues - Locking and Sharing

• i/o channel/processor (DMA) transfers data
  independently
• page must not be replaced during transfer
• OS can use a lock variable per page
• Pages of editors code - shared among processes
• swapping out, or terminating, process A (and its
  pages) may cause many page faults for process B
  that shares them
• looking up for evicted pages in all page tables
  is impossible
• solution maintain special data structures for
  shared pages

47
Handling the backing store

• need to store non-resident pages on disk
• the backing store (disk swap area) need to be
  managed
• allocate swap area to (whole) processes and
  address pages by offset from swap address
• processes grow during execution - assign separate
  swap areas to Text Data and Stack
• allocate disk blocks when needed - needs disk
  addresses in memory to keep track of swapped pages

48
Segmentation

• several logical address spaces per process
• a compiler needs segments for
• source text
• symbol table
• constants segment
• stack
• parse tree
• compiler executable code
• Most of these segments grow during execution

symbol table
symbol table
Source Text
source text
constant table
parse tree
call stack
49
Segmentation vs. Paging
50
Segmentation - segment table
51
Segmentation with Paging

• MULTICS combined segmentation and paging
• 218 segments of up to 64k words (36 bits)
• addresses are 34 bits -
• 18 bit segment number
• 16 bit - page number (6) offset within page
  (10)
• Each process has a segment table (STBR)
• the segment table is a segment and is paged
  (8bits page10 offset). STBR added to 18 bits
  seg-num
• Each segment is a separate virtual memory with a
  page table (6 bits)
• segment tables contain segment descriptors - 18
  bits page table address 9 bits segment length

52
MULTICS segment descriptors
53
segmentation and paging - locating addresses
54
Segmentation - Memory reference procedure

• 1. Use segment number to find segment descriptor
• segment table is itself paged because it is
  large, so in actuality a STBR is used to locate
  page of descriptor
• 2. Check if page table is in memory
• if not a segment fault occurs
• if there is a protection violation TRAP (fault)
• 3. page table examined, a page fault may occur.
• if page is in memory the address of start of page
  is extracted from page table
• 4. offset is added to the page origin to
  construct main memory address
• 5. perform read/store etc.

55
Paged segmentation on the INTEL 80386

• 16k segments, each up to 1G (32bit words)
• 2 types of segment descriptors
• Local Descriptor Table (LDT), for each process
• Global (GDT) system etc.
• access by loading a 16bit selector to one of the
  6 segment registers CS, DS, SS, (holding the
  16bit selector during run time, 0 means
  not-in-use)
• Selector points to segment descriptor (8 bytes)

Privilege level (0-3)
0 GDT/ 1 LDT
13
1
2
Index
56
80386 - segment descriptors
57
80386 - Forming the linear address

• Segment descriptor is in internal (microcode)
  register
• If segment is not zero (TRAP) or paged out (TRAP)
• Segment size is checked against limit field of
  descriptor
• Base field of descriptor is added to offset (4k
  page-size)

58
80386 - paged segmentation (contnd.)

• Combine descriptor and offset into linear address
• If paging disabled, pure segmentation (286
  compatibility). Linear address is physical
  address
• Paging is 2-level
• page directory (1k) page table (1k)
• pages are 4k bytes each (12bit offset)
• Page directory is pointed to by a special
  register
• PTEs have 20bits page frame and 12 bits of
  modified, accessed, protection, etc.
• Small segments have just a few page tables

59
80386 - 2-level paging
60
Intel 30386 address translation
61
The Buddy System
