AllPairsShortestPaths for Large Graphs on the GPU

1

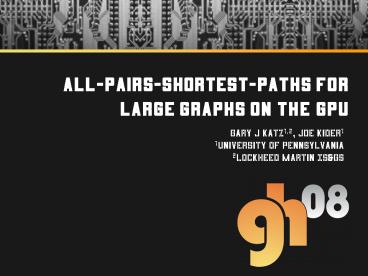

All-Pairs-Shortest-Paths for Large Graphs on the
GPU

• Gary J Katz1,2, Joe Kider1
• 1University of Pennsylvania
• 2Lockheed Martin ISGS

2
What Will We Cover?

• Quick overview of Transitive Closure and
  All-Pairs Shortest Path
• Uses for Transitive Closure and All-Pairs
• GPUs, What are they and why do we care?
• The GPU problem with performing Transitive
  Closure and All-Pairs.
• Solution, The Block Processing Method
• Memory formatting in global and shared memory
• Results

3
Previous Work

• A Blocked All-Pairs Shortest-Paths Algorithm
• Venkataraman et al.
• Parallel FPGA-based All-Pairs Shortest Path in
  a Diverted Graph
• Bondhugula et al.
• Accelerating large graph algorithms on the GPU
  using CUDA
• Harish

4
NVIDIA GPU Architecture

• Issues
• No Access to main memory
• Programmer needs to explicitly reference L1
  shared cache
• Can not synchronize multiprocessors
• Compute cores are not as smart as CPUs, does
  not handle if statements well

5
Background

• Some graph G with vertices V and edges E
• G (V,E)
• For every pair of vertices u,v in V a shortest
  path from u to v, where the weight of a path is
  the sum of he weights of its edges

6
Adjacency Matrix
7
Quick Overview of Transitive Closure

• The Transitive Closure of G is defined as the
  graph G (V, E), whereE (i,j) there is
  a path from vertex i to vertex j in G
• -Introduction to Algorithms, T. Cormen

Simply Stated The Transitive Closure of a graph
is the list of edges for any vertices that can
reach each other
1
5
1
5
Edges 1, 5 2, 1 4, 2 4, 3 6, 3 8, 6
Edges 1, 5 2, 1 4, 2 4, 3 6, 3 8, 6 2, 5 8, 3 7,
6 7, 3
2
2
4
4
6
6
3
8
8
3
7
7
8
Warshalls algorithm transitive closure

• Computes the transitive closure of a relation
• (Alternatively all paths in a directed graph)
• Example of transitive closure1

0 0 1 0 1 1 1 1 0 0 0 0 1 1 1 1
0 0 1 0 1 0 0 1 0 0 0 0 0 1 0 0
Design and Analysis of Algorithms - Chapter 8
7
9
Warshalls algorithm

• Main idea a path exists between two vertices i,
  j, iff
• there is an edge from i to j or
• there is a path from i to j going through vertex
  1 or
• there is a path from i to j going through vertex
  1 and/or 2 or
• there is a path from i to j going through vertex
  1, 2, and/or k or
• ...
• there is a path from i to j going through any of
  the other vertices

Design and Analysis of Algorithms - Chapter 8
8
10
Warshalls algorithm

• Idea dynamic programming
• Let V1, , n and for kn, Vk1, , k
• For any pair of vertices i, j?V, identify all
  paths from i to j whose intermediate vertices are
  all drawn from Vk Pijkp1, p2, , if Pijk??
  then Rki, j1
• For any pair of vertices i, j Rni, j, that is
  Rn
• Starting with R0A, the adjacency matrix, how to
  get R1 ? ? Rk-1 ? Rk ? ? Rn

Vk
P1
i
j
p2
Design and Analysis of Algorithms - Chapter 8
9
11
Warshalls algorithm

• Idea dynamic programming
• p?Pijk p is a path from i to j with all
  intermediate vertices in Vk
• If k is not on p, then p is also a path from i to
  j with all intermediate vertices in Vk-1
  p?Pijk-1

k
Vk
Vk-1
p
i
j
Design and Analysis of Algorithms - Chapter 8
10
12
Warshalls algorithm

• Idea dynamic programming
• p?Pijk p is a path from i to j with all
  intermediate vertices in Vk
• If k is on p, then we break down p into p1 and p2
  where
• p1 is a path from i to k with all intermediate
  vertices in Vk-1
• p2 is a path from k to j with all intermediate
  vertices in Vk-1

p
k
Vk
p1
p2
Vk-1
i
j
Design and Analysis of Algorithms - Chapter 8
11
13
Warshalls algorithm

• In the kth stage determine if a path exists
  between two vertices i, j using just vertices
  among 1, , k
• R(k-1)i,j (path using
  just 1, , k-1)
• R(k)i,j or
• (R(k-1)i,k and R(k-1)k,j) (path from
  i to k
•
  and from k to j
•
  using just 1, , k-1)

k
i
kth stage
j
Design and Analysis of Algorithms - Chapter 8
12
14
Quick Overview All-Pairs-Shortest-Path

• The All-Pairs Shortest-Path of G is defined for
  every pair of vertices u,v E V as the shortest
  (least weight) path from u to v, where the weight
  of a path is the sum of the weights of its
  constituent edges.
• -Introduction to Algorithms, T. Cormen

Simply Stated The All-Pairs-Shortest-Path of a
graph is the most optimal list of vertices
connecting any two vertices that can reach each
other
1
5
Paths 1 ? 5 2 ? 1 4 ? 2 4 ? 3 6 ? 3 8 ? 6 2 ? 1 ?
5 8 ? 6 ? 3 7 ? 8 ? 6 7 ? 8 ? 6 ? 3
2
4
6
8
3
7
15
Uses for Transitive Closure and All-Pairs
16
Floyd-Warshall Algorithm
1
1
1
1
1
5
2
4
Pass 1 Finds all connections that are connected
through 1
Pass 6 Finds all connections that are connected
through 6
Pass 8 Finds all connections that are connected
through 8
6
8
3
Running Time O(V3)
7
17
Parallel Floyd-Warshall
Each Processing Element needs global access to
memory
This can be an issue for GPUs
Theres a short coming to this algorithm though
18
The Question

• How do we calculate the transitive closure on the
  GPU to
• Take advantage of shared memory
• Accommodate data sizes that do not fit in memory

Can we perform partial processing of the data?
19
Block Processing of Floyd-Warshall
Organizational structure for block processing?
Data Matrix
20
Block Processing of Floyd-Warshall
21
Block Processing of Floyd-Warshall
N 4
22
Block Processing of Floyd-Warshall
K 1
i,j i,k k,j (5,1) -gt (5,1)
(1,1) (8,1) -gt (8,1) (1,1) (5,4) -gt (5,1)
(1,4) (8,4) -gt (8,1) (1,4)
K 4
i,j i,k k,j (5,1) -gt (5,4)
(4,1) (8,1) -gt (8,4) (4,1) (5,4) -gt (5,4)
(4,4) (8,4) -gt (8,4) (4,4)
Wi,j Wi,j (Wi,k Wk,j)
For each pass, k, the cells retrieved must be
processed to at least k-1
23
Block Processing of Floyd-Warshall
Putting it all Together Processing K 1-4
Pass 1 i 1-4, j 1-4 Pass 2 i
5-8, j 1-4 i 1-4, j 5-8 Pass 3 i
5-8, j 5-8
Wi,j Wi,j (Wi,k Wk,j)
24
Block Processing of Floyd-Warshall
Range i 5,8 j 5,8 k 5,8
N 8
Computing k 5-8
25
Block Processing of Floyd-Warshall
Putting it all Together Processing K 5-8
Pass 1 i 5-8, j 5-8 Pass 2 i
5-8, j 1-4 i 1-4, j 5-8 Pass 3 i
1-4, j 1-4
Transitive Closure Is complete for k 1-8
Wi,j Wi,j (Wi,k Wk,j)
26
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 1
27
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 2
28
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 3
29
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 4
30
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 5
31
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 6
32
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 7
33
Increasing the Number of Blocks

• Primary blocks are along the diagonal
• Secondary blocks are the rows and columns of the
  primary block
• Tertiary blocks are all remaining blocks

Pass 8
In Total N Passes 3 sub-passes per pass
34
Running it on the GPU

• Using CUDA
• Written by NVIDIA to access GPU as a parallel
  processor
• Do not need to use graphics API

Grid Dimension

• Memory Indexing
• CUDA Provides
• Grid Dimension
• Block Dimension
• Block Id
• Thread Id

Block Id
Thread Id

Block Dimension
35
Partial Memory Indexing
1

• SP1

1
N - 1
0
SP2
1
N - 1
SP3
N - 1
36
Memory Format for All-Pairs Solution

• All-Pairs requires twice the memory footprint of
  Transitive Closure

1
5
Connecting Node
Distance
2
4
6
1
2
3
4
5
6
7
8
8
3
1
0
1
0
1
1
2
2
3
0
1
0
1
4
N
7
5
0
1
6
7
3
8
6
7
8
3
8
2
0
1
8
6
2
0
1
2N
Shortest Path
37
Results
SM cache efficient GPU implementation compared to
standard GPU implementation
38
Results
SM cache efficient GPU implementation compared to
standard CPU implementation and cache-efficient
CPU implementation
39
Results
SM cache efficient GPU implementation compared to
best variant of Han et al.s tuned code
40
Conclusion

• Advantages of Algorithm
• Relatively Easy to Implement
• Cheap Hardware
• Much Faster than standard CPU version
• Can work for any data size

Special thanks to NVIDIA for supporting our
research
41
Backup
42
CUDA

• CompUte Driver Architecture
• Extension of C
• Automatically creates thousands of threads to run
  on a graphics card
• Used to create non-graphical applications
• Pros
• Allows user to design algorithms that will run in
  parallel
• Easy to learn, extension of C
• Has CPU version, implemented by kicking off
  threads
• Cons
• Low level, C like language
• Requires understanding of GPU architecture to
  fully exploit
