Grid Computing Using Modern Technologies

1
Grid Computing Using Modern Technologies

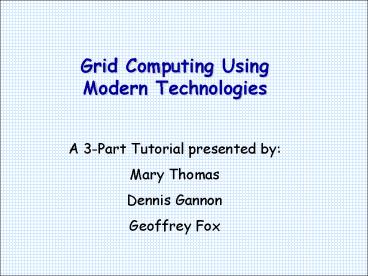

• A 3-Part Tutorial presented by
• Mary Thomas
• Dennis Gannon
• Geoffrey Fox

2
Tutorial Outline

• Part I Mary Thomas (TACC/UT)
• Understanding Web and Grid portal technologies
• Building application portals with GridPort
• Grid Web services
• Part II Dennis Gannon (Indiana)
• Distributed Software Components
• Grid Web services and science portals for
  scientific applications
• Part III Geoffrey Fox (Indiana)
• Integrating Peer-to-Peer networks and web
  services with the Grid
• Grid Web services and Gateway

3
Introduction to Developing Web-BasedGrid
Computing Portals

• Mary Thomas
• Texas Advanced Computing Center
• The University of Texas at Austin
• and
• NPACI
• Presented at GGF4, Toronto, Canada, Sunday,
  2/15/02

4
Goals of Part 1

• Introduce basic portal technologies and concepts
• Provide enough knowledge to go out and begin
  process of evaluating/understanding technologies
• Provide enough knowledge to build a computing
  portal based on GridPort/Perl/CGI
• Not going to teach you how to install Grid
  software assume you can do this is you have
  someone who takes care of this
• Audience application developers or scientists

5
Approach

• Introduce the concept of a portal for
  computational Grids and science applications
• Use GridPort Toolkit to demonstrate the basic
  concepts needed to understand how to use the web
  and grid technologies
• Show examples of how to program a portal

6
Outline

• Defining Portals and Web Technologies
• The GridPort Portal Architecture
• GridPort-Based Portals
• Application Portals
• Programming Example
• Portal Services for Remote Clients
• Client Portal Services
• Grid Portal Web Services

7
Defining The Web
8
What is the Web?
9
What is the Grid Web?
10
Web Server Technologies

• Web Servers
• Run on a machine, and clients access the process
• Common Versions
• Netscape (http//www.netscape.com)
• Apache (http//www.apache.org) - open source
• OSs Windows, Unix, MacIntosh, Lynus, etc.
• Web Programming Languages
• Server Java, Javascript, Python, PHP, Perl
• Client HTML, Javascript
• Protocols HTTP/CGI/Servlets/Applets
• Security
• HTTPS, SSL, Encryption
• Cookies
• Certificates

11
Web Clients

• Multiple display devices
• Desktop workstations, PCs, PDAs, cell phones,
  pagers, other wireless devices, televisions
• Various viewing tools
• Browsers Internet Explorer, Netscape Navigator,
  Opera
• Visually Impaired tools
• OSs Windows/WinCE, Unix, Mac, Lynux, Palm, etc.
• Web Programming Languages
• HTML, Javascript
• Perl, Java for scrapers
• Security
• HTTPS, SSL, Encryption, Cookies
• Certificates

12
Defining ComputationalWeb Portals
13
What is a Portal?

• Web sites that provide centralized access to a
  set of resources
• Characterized by
• Personalization
• Security/authentication/authorization
• What you see often changes based on what you are
  looking for (e.g. adds)
• Navigation/choices
• Gateway for Web access to distributed
  resources/information
• Hub from which users can locate all the Web
  content that they commonly need.

14
Classes of portals

• Horizontal or mega-portals
• information from search engines and the ISP's
  (yahoo)
• everybody comes in, sees the same thing
• allow personalization to some degree
• Vertical
• portals that are customized by the system.
• the system recognizes who you are, and gives you
  a different view of the university or the company
  that you're going to build.
• More specialized (amazon, travelocity, etc.)
• Intranet
• inside a company that give particular people the
  information that they need

15
Scientific Web Portals

• Differ from Commercial Portals (yahoo, amazon)
• Types of Science Portals
• User Portals
• simplify users ability to interact with and
  utilize a complex, often distributed environment
• direct access to resources (compute, data,
  archival, instruments, and information)
• Application Interfaces
• Enables scientists to conduct simulations on
  multiple resources
• EOT Portals
• Educates public (future scientists?) about
  science using software simulations,
  visualizations, etc
• Learning tools
• Individual Portals
• Users can roll out their own portals by writing
  web pages using standard HTML or Perl/CGI

16
Why Use Portals for Computational Science?

• Computational science environment is complex
• Users have access to a variety of distributed
  resources (compute, storage, etc.).
• Interfaces, OSs, Grid tools to these resources
  vary and change often
• Environment changes
• Relocation/upgrade of binaries
• Policies at sites sometimes differ, allocations
  change
• Using multiple resources can be cumbersome
• Grid adds complexity for programmers

17
(No Transcript)
18
Portals Provide Simple Interfaces

• Portals are web based and that has advantages -
• Users know understand the web
• Can serve as a layer in the middle-tier
  infrastructure of the Grid
• Integrate various Grid services and resources
• Users can be isolated from resource specific
  details
• Single web interface isolates system
  changes/differences
• Not and end-all solution - several
  issues/challenges here
• Performance, scaleability

19
Virtual Organizations

• GGF Model, based on Foster paper
• Anatomy of the Grid
• Hierarchical tree based
• Each node represents collections of
• Compute resources
• Projects,
• Centers
• HotPage portals represent VOs
• NPACI, PACI
• Like to build HiPCAT as a VO to run as DTF node

20
Virtual Organizations (HotPage)
NSF
HiPCAT
PACI
DTF
NPACI
PSC
Alliance
SDSCI
TACC
Mich
21
Portal Toolkits

• Commercial
• Sun Java Servlets, iPlanet
• IBM WebSphere
• MSFT .NET
• Special interest groups
• uPortal, Javaspeed
• RD within Grid community
• GridPort Toolkit (http//gridport.npaci.edu)
• GPDK ()
• GirdSphere (refer to ACM site???)
• Gateway (Fox)
• CCA (Gannon)

22
Building Application Portals Using theGridPort
Toolkit
23
GridPort Architecture
24
GridPort Toolkit Design Concepts

• Key design goals
• Any site should be able to host a user portal
• Any user should be able to create their own user
  portal if they have accounts and certificate
• Key Requirements
• Base software design on infrastructure provided
  by World Wide Web
• use commodity technologies wherever possible
• avoid shell programs/applications/applets
• GridPort Toolkit should not require that
  additional services be run on the HPC Systems
• reduce complexity -- there are enough of these
  already
• so, leverage existing grid research development
• GSI certificate (PKI)

25
GridPort Designed for Ease of Use

• WWW interface is common, well understood, and
  pervasive
• User Portals can be accessed by anyone who has
  access to a web browser, regardless of location
• Users can construct customized application web
  pages
• only basic knowledge of HTML and Perl/CGI
• Application programmers can extend the set of
  basic functions provided by the Toolkit
• Portal services hosts can modify support services
  by adding/remove/modifying broker or grid
  interface codes

26
Commodity Web Technologies

• Use of commodity web technologies -gt Portability
• contribute to a plug-n-play grid
• Requirements
• Any Browser Communicator, IE
• HTTP, HTTPS, SSL, HTML/JavaScript, Perl/CGI, SSH,
  FTP
• Netscape or Apache servers
• Based on simple technology, this software is
  easily ported to, and used by other sites.
• easy to modify and adapt to local site policies
  and requirements
• Goal is to design a toolkit that is simple to
  implement, support, port, and develop

27
Grid Technologies

• Security
• Globus Grid Security Infrastructure (GSI), SSH
• Myproxy for remote proxies
• Job Execution
• Globus GRAM
• Information
• Globus Grid Information Services (GIS)
• File Management
• SDSC Storage Resource (SRB)
• GridFTP

28
Information Services

• Designed to provide a user-oriented interface to
  NPACI Resources and Services
• Consists of on-line documentation, static
  informational pages, and links to events within
  NPACI, including basic user information such as
• Documentation, training , news, consulting
• Simple tools
• application search
• systems information
• generation of batch scripts for all compute
  resources
• Network Weather System
• No user authentication is required to view this
  information.

29
Information Services Dynamic

• Dynamic information provided by automatic data
  collection scripts that provide real-time
  information for each machine (or summaries) such
  as
• Status Bar displays live updates showing
  operational status and utilization of all NPACI
  resources
• Machine Usage displays summary of machine
  status, load, and batch queues
• Batch Queues displays currently executing and
  queued jobs
• Node Maps displays graphical map of how running
  applications are mapped to nodes
• Network Weathering System provides connectivity
  information between a users local host and grid
  resources
• Pulled from 3 possible sources
• MDS, web services, local cron jobs

30
Web Server to Grid Resource

31
Interactive Sessions

• How do they work?
• What do they do
• Job submission
• File management
• Authentication
• What do we use to do them?
• List of grid technologies

32
GridPort Interactive Services Diagram
33
Interactive Sessions Login/Logout

• Login
• client browser connects to an HTTPS server
• user enters valid NPACI Portal account ID
• login into Portal using CA authentication
  (Globus)
• Globus infrastructure manages user accounts on
  remote hosts
• username used to map passphrase to valid key and
  certificate (local repository), or Myproxy
  (remote)
• passphrase used to create proxy cert. using
  globus-proxy-init
• if proxy-init successful, session key stored on
  client browser
• data passed through web server over SSL channel
• Session info stored in secure, local repository

34
Interactive Sessions Login/Logout

• Logout
• user automatically logged out
• if logout selected
• session times out
• on logout
• active session data files cleared
• relevant user information archived for future
  sessions stored

35
Grid Security at all Layers

• GSI authentication for all portal services
• transparent access to the grid via GSI
  infrastructure
• Security between the client -gt web server -gt
  grid
• SSL/RC4-40 128 bit key/ SSL RSA X509 certificate
• authentication tracked with cookies coupled to
  server data base/session tracking
• Single login environment (another key goal)
• provide access to all NPACI Resources where GSI
  available.
• with full account access privileges for specific
  host
• use client browser cookies to track state

36
Portal Accounts

• Portal accounts are not the same as resource
  accounts.
• valid Grid user on resource, need allocations
• processes run under own account with same access
  and privileges as if they had logged onto
  resource
• Portal users must have a digital certificate
  signed by a known Certificate Authority (CA)
• And must get DN into mapfile
• Accounts for NPACI users obtained via an on-line
  web form
• Can generate a certificate - certificate and key
  are placed in a secure repository

37
Interactive Sessions Job Execution

• Web server transactions
• confirm/authenticate user login status
• parse command/request (CGI vars)
• establish user environment
• assemble remote command (Globus/SSH)
• verify proxy (if Globus) or recreate
• send command (e.g., Globus daemon on remote
  host)
• parse, format, and return results to the web
  browser on the users workstation or store data
  (e.g., FTP).
• While the user login is in the active state
• check for timeout
• track current state
• record information about job requests and user
  data for use in subsequent transactions or
  sessions.

38
GridPort File System

• Without SRB capabilities, files are distributed
• Adds to complexities when migrating and managing
  data

39
GridPort SRB Architecture

• With SRB capabilities, file access is direct
• Single SRB account access allows for more
  flexible data management

40
Variety of GridPort Applications

• Current applications in production
• NPACI/PACI HotPages (also _at_PACI/NCSA )
• https//hotpage.npaci.edu
• LAPK Portal Pharmacokinetic Modeling (live demo
  of Pharmacokinetic Modeling Portal)
• https//gridport.npaci.edu/LAPK
• GAMESS (General Atomic and Molecular electronic
  Structure System)
• https//gridport.npaci.edu/GAMESS
• Telescience (Ellisman)
• https//gridport.npaci.edu/Telescience
• Protein Data Bank CE Portal (Phil Bourne)
• https//gridport.npaci.edu/CE

41
Programming Example Job Submit

• Client
• Example of Client HTML page
• HTML Code
• Server
• Perl/CGI parser script running on server
• GridPort Toolkit function code

42
HotPage View Job Submission
43
JobSubmit Web Page
44
JobSumbit HTML Code

• ltFORM action"https//hotpage.npaci.edu/tools/cgi-
  bin/job_submit.cgi"
• methodpost enctype"application/x-www-form-
  urlencoded" name"job_submit"gt
• Arguments ltINPUT TYPE"text" NAME"args"gt
• Select Queue ltSELECT NAME"queue"gt
• ltOPTION VALUE"low"gtlow
• ltOPTION VALUE"normal"gtnormal
• ltOPTION VALUE"high"gthigh
• ltOPTION VALUE"express"gtexpress
• lt/SELECTgt
• Number of Cpus ltINPUT TYPE"text" NAME"cpus"gt
• Max Time (min) ltINPUT TYPE"text"
  NAME"max_time"gt
• ltINPUT TYPE"hidden" NAME"mach" VALUE"SSPHN"gt
• ltINPUT TYPE"hidden" NAME"exe"
  VALUE"/rmount/paci/sdsc/mthomas/mpi_pi"gt
• ltINPUT TYPE"submit" METHOD"post"
  ACTION"https//hotpage.npaci.edu/tools/cgi-bin/jo
  b_submit.cgi" gt
• lt/FORMgt

45
JobSumbit Server Perl/CGI Parser

• GRABS HTTP/CGI data and sends it to GridPort
  subroutine, waits for results
• !/usr/local/bin/perl
• use CGI qw(all)
• my query new CGI
• 1
• BEGIN
• GET THE SCRIPTS LOCATION AND THE GLOBAL
  VARS
• MY_LOCATION "tools/cgi-bin"
• CURRENT_DIR pwd
• (PORTAL_ROOT, rest) split(/MY_LOCATION/,
  CURRENT_DIR)
• GLOBAL_VARS_CONFIG PORTAL_ROOT .
  "cgi-bin/global_vars.cgi"
• require "GLOBAL_VARS_CONFIG"
• require "PORTAL_HOME_DIR/cgi-bin/hotpage_authe
  n.cgi"

46
JobSubmit Server Perl/CGI code (cont.)

• load in code to do job submission through
  globus
• require "GRIDPORT_HOME_DIR/services/globus/cgi-bi
  n/gridport_globus_job.cgi"
• subroutines to get/set user directories
  (home,work, current) and do job handling
• require "PORTAL_HOME_DIR/tools/cgi-bin/user_dirs.
  cgi"
• require "PORTAL_HOME_DIR/tools/cgi-bin/user_jobs.
  cgi"
• my args query-gtparam(args)
• my queue query-gtparam(queue)
• my cpus query-gtparam(cpus)
• my max_time query-gtparam(max_time)
• mach query-gtparam(mach)
• my exe query-gtparam(exe)
• exe exe . " args"
• run the command through Globus, trap output,
  return to caller process
• _at_output gridport_globus_job_submit(mach,cpus,6
  0,exe,max_time,queue)

47
gridport_globus_job_submit

• sub gridport_globus_job_submit
• my _at_job ()
• my user get_username()
• get the input and set up globus
• my (mach, cpus, timeout, exe,
  max_cpu_time, queue) _at__
• globus_config(user) verify data
• mach_config(mach) verify data
• build the globus command
• my globus_submit "globus_job_submitmachi
  nesmachgv "
• globus_submit . "machinesmachnamejob
  -np cpus -queue queue "
• globus_submit . "-maxtime max_cpu_time
  exe"
• _at_job run_command_timeout(globus_submit,
  timeout) run job
• return _at_job

48
Laboratory for Applied Pharmacokinetics

• (LAPK) Portal
• Users are Doctors, so need extremely simple
  interface
• Must be portable run from many countries
• Need to hide details such as
• Type of resources (T3E), file storage, batch
  script details, compilation,UNIX command line
• Major Success
• LAPK users can now run multiple jobs at one time
  using portal.
• Not possible before because developers had to
  keep codes scripts simple enough for doctors to
  use on T3E

49
Laboratory for Applied Pharmacokinetics

• Uses gridport.npaci.edu portal services/capabiliti
  es
• File upload/download between local
  host/portal/HPC systems
• Job Submit
• submission (builds batch script, moves files to
  resource, submit jobs)
• Job tracking in the background portal tracks
  jobs on system and moves results back over to
  portal storage when done
• Job cancel/delete
• Job History maintains relevant job information

50
LAPK Job Submit and Job History
51
Portal Services for Remote Clients
52
Portal Services

• How does one convert/modify existing
  applications?
• Can develop your own version of GridPort
• Can install GridPort or other toolkits
• Remote clients are typically browsers accessing
  local portal (HotPage)
• Application website located on ANY server
• either on local filespace/system where webserver
  and GridPort toolkit installed
• Or, running on a remote machine
• Want to allow remote users to have control over
  access, display, interactions, etc
• Need for a new service model

53
Remote Portal Services

• Must be Grid based
• Critical to support GSI
• 2 current solutions (GridPort)
• GridPort Client Toolkit
• Allows client to use simple HTML to build remote
  web pages limited to HTML/FORMS, CGI/JSP model
• Grid Portal Web Services
• supports variety of clients
• Can be an application
• can be a portal server program
• Can be another web service

54
Remote Portal Running on Laptop
55
GridPort Client Toolkit

• Focus on medium/small applications and
  researchers
• Not all app. Scientists can afford to hire web
  team
• Base on simple protocols (HTTPS/CGI/Perl)
• Could use applets or JSP
• Connection to portal services is through the GCT
• GridPort Client Toolkit
• https//portals.npaci.edu/client/tools/FUNCTIONS
• Inherits all existing portal services running on
  portal
• Limited job functions, but concept works and is
  needed
• An Experiment in progress
• not production yet

56
GridPort Client Toolkit

• Ease of use
• Do not have to install complex code to get
  started
• webservers, no Globus, no SSH, no SSL, no PKI,
  etc.
• Do not have to write complex interface scripts to
  access these services (weve done that already)
• Do not have to fund advanced web development
  teams
• Client has local control over project, including
  filespace, etc.
• Integration to existing portals can be done
• Bays to Estuaries project

57
How Does GCT Work?
FORM/CGI action
user_job_submit.html
https//portals.npaci.edu/client/tools/auth/jobsub
mit.cgi
Job_submit.html
HREF job_error.html
HREF user_job_submit.html
58
Services Implemented in GCT

• Authentication
• Login
• Logout
• Check authentication state
• Jobs
• Sumbit jobs to queues
• Cancel jobs
• Execute commands (command like interface)

• Files
• Upload from local host
• Download to local host
• FTP move FILE
• View Portal FILEpace (?)
• Commands
• Pwd
• Cd
• Whoami
• Etc.

59
Basin, Bays to Estuaries (BBE) Portal

• Community model scientific portal for conducting
  multi-model Earth System Science (ESS)
• Simulations are run to forecast the transport of
  sediments within the San Diego Bay area during a
  storm.
• Technology developed for the BBE project
• Website located on BBE webserver/machine
• Uses SRB for file management (GSI)
• Perl/CGI
• Uses GCT for all interactive functions
• minimal effort required to modify code
• roughly 14 tests needed to integrate GCT
• four new perl scripts required

60
Basin, Bays to Estuaries (BBE) Portal
61
Grid Portals the Problem

• Example portal or applications need to perform
  grid tasks for any arbitrary user, on any
  arbitrary resource, and span all layers of the
  grid
• portals must be aware of resources (use GIS)
• What grid services are running on that resources
• Globus/Legion/VegaGrid/SSH, etc
• GIS
• GSI/Kerberos, MyProxy
• Request syntax differs for each resource
• GRAM/Legion/SSH/MAUI/PBS/Others
• Portal must have permission to use/access for
  user (GSI, MyProxy)

62
GridPort Web Services
63
Grid Portals Complexity Grows

• Growth of Grid presents a huge complexity problem
  for developers and systems that does not scale
• Portals interact with/integrate all layers
• GIU/Client interface
• Uses all middleware services (Globus, SRB,
  GSI-FTP, etc.)
• Each portal in the world must store and configure
  same data
• Repeated data, open to errors, variations
• Multiple programmers repeating same tasks and
  implementations
• Much portal software is hard-coded and not
  dynamic
• The Grid is international, need for scaleable,
  interoperable services
• Too much hard-coding needed at this time (big
  issue for Portals)

64
Web Services a Proposed Solution

• Web services architecture provides mechanisms for

• dynamic service discovery (UDDI)
• Separation of implementation from function (WSDL)
• Know protocol (SOAP/HTTP, SOAP/RPC)
• Service provider encapsulates implementation
  details
• Client does not need to know details, just where
  to send the request
• Challenge will be discovery ? problem with
  Jini/CORBA
• Commercial world developing web services
  technologies in P2P world
• Implies funding/support
• rapid development/technology advancement
• Caution this does NOT imply cohesiveness or
  standards
• Note in some ways, Globus/GRAM is a web service
• Advantage language independent, so can run on
  any system
• We are pursuing Perl, Python, Java, C at this
  time

65
Proposed Web Service Architecture

• Adopt W3C standards for
• WSDL 1.1 current standard (note uses old XML
  version)
• SOAP 1.1 over HTTP/HTTPS/GSI for authentication
• Java 1.3 or greater
• Python 2.0 or greater
• XML schemas for language/description
• Explore UDDI 2.0/WSIL
• Require
• GSI
• Adopt anatomy of the Grid model
• virtual organizations
• Portals be built as services in addition to
  applications

66
Portals Web Services Architecture
67
Web Services Example Job Submit
68
ApplicationPortals
Grid Web Services
Grid ServicesCollective and Resource Access
Resources
Clients
Job Submission / Control
XML / SOAP over Grid Security Infrastructure
Grid Protocols and Grid Security Infrastructure
Grid Protocols and Grid Security Infrastructure
Discipline / Application SpecificPortals (e.g.
SDSCTeleScience)
http, https
CORBA
File Transfer
GRAM
Data Management
Condor-G
Monitoring
ProblemSolvingEnvironments(AVS, SciRun,Cactus)
SRB/MCAT
Events
Web Browser

GridFTP
Replica Catalog / Management
EnvironmentManagement(LaunchPad,HotPage)
Credential Management
GridMonitoringArchitecture
Workflow Management
Grid X.509CertificationAuthority

• other services
• visualization
• interface builders
• collaboration tools
• numerical gridgenerators
• etc.

MPI
compositionframeworks
Secure, ReliableGroup Comm.
GridInformationService
Python, Java, Perl, etc., JSPs format to html
CoG Kits implementing Web Services in servelets,
servers, etc.
Grid Web ServiceDescription (WSDL) Discovery
(UDDI)
Apache TomcatWebSphereCold FusionJVM
servlet instantiation routing
Apache SOAP,.NET, etc.
69
GridPort Team

• GridPort Project represents collaboration efforts
  spanning TACC, SDSC, NPACI
• Mary Thomas, Rich Toscano (TACC)
• Steve Mock, Maytal Dahan, Cathie Mills, Kurt
  Mueller (SDSC)
• And input from other Institutions
• Argonne/ISI Globus development team
• NCSA/Alliance
• NASA/IPG
• GGF/GCE Interoperable Web Services Testbed

70
References

• www.w3c.org
• www.soaplite.com
• www.apache.org
• http//www-106.ibm.com/developerworks/webservices/

• GridPort Toolkit Contact Mary Thomas
  (mthomas_at_tacc.utexas.edu)
• https//gridport.npaci.edu
• HotPage User Portals
• https//hotpage.npaci.edu, https//hotpage.paci.or
  g
• Downloads
• http//gridport.npaci.edu/download
• GridPort Toolkit, NPACI HotPage, GCT Portal
  (frames based)
• GGF/GCE website http//www.computingportals.org
