Interdomain Routing

1

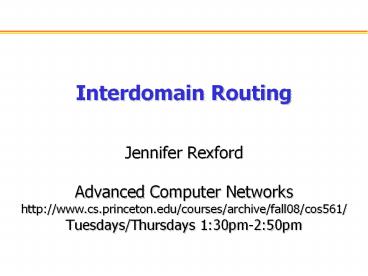

Interdomain Routing

• Jennifer Rexford
• Advanced Computer Networks
• http//www.cs.princeton.edu/courses/archive/fall08
  /cos561/
• Tuesdays/Thursdays 130pm-250pm

2
Outline

• Interdomain routing
• Autonomous Systems (ASes)
• Path-vector routing
• Loop detection and convergence
• Flexible path selection
• Business relationships
• Customer-provider and peer-peer
• Hierarchy from tier-1 ASes to stubs
• Border Gateway Protocol (BGP)
• Announcements and withdrawals
• Import and export policies
• Discussion of Paxson96 and Labovitz97

3
Interdomain Routing Between Networks

• AS-level topology
• Nodes are Autonomous Systems (ASes)
• Destinations are prefixes (e.g., 12.0.0.0/8)
• Edges are links and business relationships

4
3
5
2
6
7
1
Client
Web server
4
AS Numbers (ASNs)
ASNs are 16 bit values.
64512 through 65535 are private
Currently around 30,000 in use.

• Level 3 1
• MIT 3
• Harvard 11
• Yale 29
• Princeton 88
• ATT 7018, 6341, 5074,
• UUNET 701, 702, 284, 12199,
• Sprint 1239, 1240, 6211, 6242,

ASNs represent units of routing policy
5
Challenges for Interdomain Routing

• Scale
• Prefixes 250,000, and growing
• ASes 30,000, and growing
• Routers at least in the millions
• Privacy
• ASes dont want to divulge internal topologies
• or their business relationships with neighbors
• Policy
• No Internet-wide notion of a link cost metric
• Need control over where you send traffic
• and who can send traffic through you

6
Policy-Based Path-Vector Routing
7
Path-Vector Routing

• Extension of distance-vector routing
• Support flexible routing policies
• Reduce convergence time (avoid count-to-infinity)
• Key idea advertise the entire path
• Distance vector send distance metric per dest d
• Path vector send the entire path for each dest d

d path (2,1)
d path (1)
3
1
data traffic
data traffic
d
8
Faster Loop Detection

• Node can easily detect a loop
• Look for its own node identifier in the path
• E.g., node 1 sees itself in the path 3, 2, 1
• Node can simply discard paths with loops
• E.g., node 1 simply discards the advertisement

d path (2,1)
d path (1)
3
1
d path (3,2,1)
9
Flexible Policies

• Each node can apply local policies
• Path selection Which path to use?
• Path export Whether to advertise the path?
• Examples
• Node 2 may prefer the path 2, 3, 1 over 2, 1
• Node 1 may not let node 3 hear the path 1, 2

10
Business Relationships
11
Business Relationships

• Neighboring ASes have business contracts
• How much traffic to carry
• Which destinations to reach
• How much money to pay
• Common business relationships
• Customer-provider
• E.g., Princeton is a customer of USLEC
• E.g., MIT is a customer of Level3
• Peer-peer
• E.g., UUNET is a peer of Sprint
• E.g., Harvard is a peer of Harvard Business School

12
Customer-Provider Relationship

• Customer needs to be reachable from everyone
• Provider tells all neighbors how to reach the
  customer
• Customer does not want to provide transit service
• Customer does not let its providers route through
  it

Traffic to the customer
Traffic from the customer
d
provider
provider
customer
d
customer
13
Multi-Homing Two or More Providers

• Motivations for multi-homing
• Extra reliability, survive single ISP failure
• Financial leverage through competition
• Better performance by selecting better path
• Gaming the 95th-percentile billing model

Provider 1
Provider 2
14
Princeton Example

• Internet customer of USLEC and Patriot
• Research universities/labs customer of Internet2
• Local non-profits provider for several
  non-profits

Patriot
Internet2
USLEC
15
Peer-Peer Relationship

• Peers exchange traffic between customers
• AS exports only customer routes to a peer
• AS exports a peers routes only to its customers
• Often the relationship is settlement-free (i.e.,
  no )

Traffic to/from the peer and its customers
peer
peer
d
16
AS Structure Tier-1 Providers

• Tier-1 provider
• Has no upstream provider of its own
• Typically has a national or international
  backbone
• Top of the Internet hierarchy of 10 ASes
• AOL, ATT, Global Crossing, Level3, UUNET, NTT,
  Qwest, SAVVIS (formerly Cable Wireless), and
  Sprint
• Full peer-peer connections between tier-1
  providers

17
AS Structure Other ASes

• Other providers
• Provide transit service to downstream customers
• but, need at least one provider of their own
• Typically have national or regional scope
• Includes several thousand ASes
• Stub ASes
• Do not provide transit service to others
• Connect to one or more upstream providers
• Includes vast majority (e.g., 85-90) of the ASes

18
Border Gateway Protocol
19
Border Gateway Protocol

• Prefix-based path-vector protocol
• Policy-based routing based on AS Paths
• Evolved during the past 18 years

• 1989 BGP-1 RFC 1105, replacement for EGP
• 1990 BGP-2 RFC 1163
• 1991 BGP-3 RFC 1267
• 1995 BGP-4 RFC 1771, support for CIDR
• 2006 BGP-4 RFC 4271, update

20
BGP Operations
Establish session on TCP port 179
AS1
BGP session
Exchange all active routes
AS2
While connection is ALIVE exchange route UPDATE
messages
Exchange incremental updates
21
Incremental Protocol

• A node learns multiple paths to destination
• Stores all of the routes in a routing table
• Applies policy to select a single active route
• and may advertise the route to its neighbors
• Incremental updates
• Announcement
• Upon selecting a new active route, add node id to
  path
• and (optionally) advertise to each neighbor
• Withdrawal
• If the active route is no longer available
• send a withdrawal message to the neighbors

22
ASPATH Attribute
AS 1129
128.112.0.0/16 AS Path 1755 1239 7018 88
Global Access
AS 1755
128.112.0.0/16 AS Path 1129 1755 1239 7018 88
128.112.0.0/16 AS Path 1239 7018 88
Ebone
AS 12654
RIPE NCC RIS project
128.112.0.0/16 AS Path 7018 88
AS7018
128.112.0.0/16 AS Path 3549 7018 88
128.112.0.0/16 AS Path 88
ATT
AS 3549
AS 88
128.112.0.0/16 AS Path 7018 88
Global Crossing
Princeton
128.112.0.0/16
Prefix Originated
23
BGP Policy Applying Policy to Routes

• Import policy
• Filter unwanted routes from neighbor
• E.g. prefix that your customer doesnt own
• Manipulate attributes to influence path selection
• E.g., assign local preference to favored routes
• Export policy
• Filter routes you dont want to tell your
  neighbor
• E.g., dont tell a peer a route learned from
  other peer
• Manipulate attributes to control what they see
• E.g., make a path look artificially longer than
  it is

24
BGP Policy Influencing Decisions
Open ended programming. Constrain
ed only by vendor configuration language
Apply Policy filter routes tweak attributes
Apply Policy filter routes tweak attributes
Receive BGP Updates
Best Routes
Transmit BGP Updates
Based on Attribute Values
Best Route Selection
Apply Import Policies
Best Route Table
Apply Export Policies
Install forwarding Entries for best Routes.
IP Forwarding Table
25
Import Policy Local Preference

• Favor one path over another
• Override the influence of AS path length
• Apply local policies to prefer a path
• Example prefer customer over peer

Local-pref 90
Sprint
ATT
Local-pref 100
Tier-2
Yale
Tier-3
26
Import Policy Filtering

• Discard some route announcements
• Detect configuration mistakes and attacks
• Examples on session to a customer
• Discard route if prefix not owned by the customer
• Discard route that contains other large ISP in AS
  path

USLEC
Patriot
Princeton
128.112.0.0/16
27
Export Policy Filtering

• Discard some route announcements
• Limit propagation of routing information
• Examples
• Dont announce routes from one peer to another

Sprint
UUNET
ATT
28
Export Policy Filtering

• Discard some route announcements
• Limit propagation of routing information
• Examples
• Dont announce routes for network-management
  hosts or the underlying routers themselves

USLEC
network operator
Princeton
29
Export Policy Attribute Manipulation

• Modify attributes of the active route
• To influence the way other ASes behave
• Example AS prepending
• Artificially inflate the AS path length seen by
  others
• To convince some ASes to send traffic another way

Sprint
USLEC
Patriot
88 88
88
Princeton
128.112.0.0/16
30
BGP Policy Configuration

• Routing policy languages are vendor-specific
• Not part of the BGP protocol specification
• Different languages for Cisco, Juniper, etc.
• Still, all languages have some key features
• Policy as a list of clauses
• Each clause matches on route attributes
• and either discards or modifies matching routes
• Configuration often done by human operators
• Implementing the policies of their AS
• Biz relationships, traffic engineering, security,


31
Measuring Internet Routing
32
Motivations for Measuring the Routing System

• Characterizing the Internet
• Internet path properties
• Demands on Internet routers
• Routing convergence
• Improving Internet health
• Protocol design problems
• Protocol implementation problems
• Configuration errors or attacks
• Operating a network
• Detecting and diagnosing routing problems
• Traffic shifts, routing attacks, flaky equipment,


33
Techniques for Measuring Internet Routing

• Active probing
• Inject probes along path through the data plane
• E.g., using traceroute
• Passive route monitoring
• Capture control-plane messages between routers
• E.g., using tcpdump or a software router
• E.g., dumping the routing table on a router
• Injecting network events
• Cause failure/recovery at planned time and place
• E.g., BGP route beacon, or planned maintenance

34
Internet Routing is Hard to Measure

• Nobody knows the Internet topology
• No central registry of the AS-level graph
• Little public information about intra-AS
  topologies
• Deploying monitoring infrastructure is hard
• Forwarding active probes of end-to-end paths
• Routing passive monitoring of routing messages
• Many measurement challenges
• Network conditions vary by location
• Network conditions change over time
• One-way measurements are hard to collect
• Controlled experiments are hard to do

35
Two Papers for Today

• Both early measurement studies of routing
• Initially appeared at SIGCOMM96 and 97
• Both won the best student paper award ?
• And recently won the SIGCOMM test of time
  award!
• Early glimpses into the health of Internet
  routing
• Early wave of papers on Internet measurement
• Differences in emphasis
• Paxson96 end-to-end active probing to measure
  the characteristics of the data plane
• Labovitz97 passive monitoring of BGP update
  messages from several ISPs to characterize
  (in)stability of the interdomain routing system

36
Backup Slides Summarizing Paxson96 and Labovitz97
37
Active Measurement Traceroute

• Time-To-Live field in IP packet header
• Source sends a packet with a TTL of n
• Each router along the path decrements the TTL
• TTL exceeded sent when TTL reaches 0
• Traceroute tool exploits this TTL behavior

Time exceeded
TTL1
destination
source
Send packets with TTL1, 2, 3, and record
source of time exceeded message
38
Paxson Study Forwarding Loops

• Forwarding loop
• Packet returns to same router multiple times
• May cause traceroute to show a loop
• If loop lasted long enough
• So many packets traverse the loopy path
• Traceroute may reveal false loops
• Path change that leads to a longer path
• Causing later probe packets to hit same nodes
• Heuristic solution
• Require traceroute to return same path 3 times

39
Paxson Study Causes of Loops

• Transient vs. persistent
• Transient routing-protocol convergence
• Persistent likely configuration problem
• Challenges
• Appropriate time boundary between the two?
• What about flaky equipment going up and down?
• Determining the cause of persistent loops?
• Causes of persistent loops
• E.g., misconfiguration

0.0.0.0/0
12.1.2.0/24
40
Paxson Study Path Fluttering

• Rapid changes between paths
• Multiple paths between a pair of hosts
• Load balancing policies inside the network
• Packet-based load balancing
• Round-robin or random
• Multiple paths for packets in a single flow
• Flow-based load balancing
• Hash of some fields in the packet header
• E.g., IP addresses, port numbers, etc.
• To keep packets in a flow on one path

41
Paxson Study Routing Stability

• Route prevalence
• Likelihood of observing a particular route
• Relatively easy to measure with sound sampling
• Poisson arrivals see time averages (PASTA)
• Most host pairs have a dominant route
• Route persistence
• How long a route endures before a change
• Much harder to measure through active probes
• Look for cases of multiple observations
• Typical host pair has path persistence of a week

42
Paxson Study Route Asymmetry

• Hot-potato routing

• Other causes
• Asymmetric link weights in intradomain routing
• Cold-potato routing, where AS requests traffic
  enter at particular place
• Consequences
• Lots of asymmetry
• One-way delay is not necessarily half of the
  round-trip time

Customer B
Provider B
multiple peering points
Early-exit routing
Provider A
Customer A
43
Labovitz Study Surprising Statistics

• BGP is an incremental protocol
• In theory, no update messages in steady state
• Two kinds of update messages
• Announcement advertising a new route
• Withdrawal withdrawing an old route
• Study saw an alarming number of updates
• At the time, Internet had around 45,000 prefixes
• Routers were exchanging 3-6 million updates/day
• Sometimes as high as 30 million in a day
• Placing a very high load on the routers

44
Labovitz Study Classifying Update Messages

• Analyze update messages
• For each (prefix, peer) tuple
• Classify the kinds of routing changes
• Forwarding instability
• WADiff explicit withdraw, replaced by alternate
• AADiff implict withdraw, replaced by alternate
• Pathological
• WADup explicit withdraw, and then reanounced
• AADup duplicate announcement
• WWDup duplicate withdrawal

45
Labovitz Study Duplicate Withdrawals

• Time-space trade-off in router implementation
• Common system building technique
• Trade one resource for another
• Can have surprising side effects
• The gory details
• Ideally, you should not send a withdrawal if you
  never sent a neighbor a corresponding
  announcement
• Requires remembering what update message you sent
  to each neighbor
• Easier to just send everyone a withdrawal when
  your route goes away

46
Labovitz Study Practical Impact

• Stateless BGP is compliant with the standard
• But, it forces other routers to handle more load
• So that you dont have to maintain state
• Arguably very unfair, and bad for global Internet
• One router vendor was largely at fault
• Router vendor modified its implementation
• ISPs then deployed the updated software

47
Labovitz Study Still Hard to Diagnose Problems

• Despite having very detailed view into BGP
• Some pathologies were very hard to diagnose
• Possible causes
• Flaky equipment
• Synchronization of BGP timers
• Interaction between BGP and intradomain routing
• Policy oscillation
• Topics addressed more in subsequent work
