Origin Authentication in Interdomain Routing

1

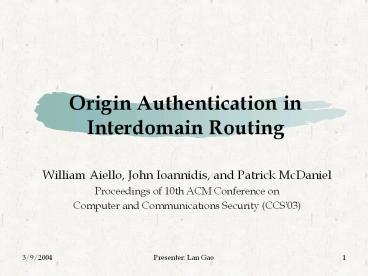

Origin Authentication inInterdomain Routing

• William Aiello, John Ioannidis, and Patrick
  McDaniel
• Proceedings of 10th ACM Conference on
• Computer and Communications Security (CCS'03)

2
What does the paper solve?

• Problem
• How do we ensure that addresses are associated
  with only those ASes that own them?
• Origin Authentication
• Provide a way to validate claims of address
  ownership in interdomain routing
• Authenticate address usage
• Defense against
• Attacks by malicious entities
• misconfigurations

3
Overview

• Background
• Formalization
• semantics of address delegation
• Origin authentication proof systems
• Modeling
• address delegation graph
• Evaluating resource costs

4
Interdomain Routing

• The Internet consists of many routing domains
• routing inside a domain is determined by an
  intradomain routing protocol
• routing between domains is governed by an
  interdomain routing protocol
• Intradomain and interdomain routing decisions are
  largely made independently
• Reasons
• Scale
• Administrative autonomy

5
BGP (Border Gateway Protocol)

• BGP
• the interdomain routing protocol used on the
  Internet
• routing domains is called Autonomous Systems
  (ASes), e.g. ATT.
• ASes
• announce the prefixes that they own (IP address
  ranges, e.g. 12.1.1.0/24) to its neighboring
  ASes.
• announce the prefixes that it learns from each of
  its neighbors to its other neighbors.

6
Intra-AS and Inter-AS Routing Example
The route from A.d to B.b intra-AS and inter-AS
path segments.
Source Computer Networking A Top-Down Approach
Featuring the Internet
7
Security Issues in Interdomain Routing

• ASes are not authenticated
• Paths are not authenticated
• Addresses are not authenticated
• What is addressed in the paper?
• Validate an ASs authority to advertise a prefix

8
Origin Authentication

• Goal
• Provide evidence (cryptographically strong
  authentication tags) of the relations between
  organizations, ASes, and prefixes.

BGP Speakers
Validated Address Advertisements
Address Advertisements
Evidence
9
Address Delegation

• The IPv4 address space is governed by IANA
• IANA delegates parts of the global address space
  to organizations
• Each organization may further
• Delegate some or all of the received address
  space to any organization it desires
• Assign its address space to the AS in which the
  addresses reside

10
Address Delegation Example

• ATT delegates 12.1.1.0/24 to ALPHA
• ATT assigns 12.0.0.0/8 to AS7018
• Longest prefix matching for 12.1.1.0/24
• Address announcements ASes advertise the set of
  prefixes that they originate (prefix, ASN)

11
Definition Organization

• ASN 1, 2, , K , where currently K 216
• E.g. AS7018, AS29987
• S all BGP speaking organizations
• E.g. ATT, ARIN, ALPHA, BETA
• ASN(C) AS currently assigned to C
• E.g. for C ALPHA, ASN(C) AS29987
• O S ? IANA ? other prefix registries

12
Definition Prefixes

• IPA 0, 1 l, where l 32/64 for IPv4/IPv6
• Address Prefixes x/j
• x is a j bit number, and j ? 0, l , e.g.
  128/8
• x/j x?y y is a (l-j) bit number
• IPA ?/0

x/j
x?1/(j1)
x?0/(j1)

• Disjoint Union
• Superset
• subprefix superprefix

13
Prefix Tree of IPA
14
Definition delegation policy

• For a given prefix y/k and an organization C
• (C, y/k, n) C assigns y/k to an ASN n
• (C, y/k, C) C delegates y/k to C
• (C, y/k, R) C declares y/k as RESERVED
• (C, y/k, U) Cs delegation or assignment of y/k
  is UNAUTHENTICATED
• C may perform zero, one, or more of the above
  options
• The set of triples is Cs delegation policy for
  y/k

15
Subtree Semantics

• Definition
• a property of a prefix x/j implies the same
  property for all of the subprefixes of x/j
• Consider the previous delegation policy
• Delegations, RESERVED and UNAUTHENTICATED
  declarations have subtree semantics
• Assignments do not have subtree semantics

16
Delegation Graphs

• A directed graph G (V, E)
• VO ? ASN ? R ? U ? ?
• E(x, y/k, z)
• Example
• V IANA, ATT,
• E (IANA,12.0.0.0/8,ATT),
• Definition
• Ownership Source
• Assignment Edge
• ASN-respecting

17
Valid Faithful

• A directed path is valid for y/k if
• The ownership source is IANA
• The path is monotonic
• The path is acyclic
• The ass edge is labelled y/k and is
  ASN-respecting
• Cs delegation policy is faithful for y/k if
  there is at most one triple in the form
• (C, y/k, n)
• (C, x/j, C), (C, x/j, U), or (C, x/j, R), where
  x/j is a superprefix of y/k

18
Verification of Origin Announcements

• OAs are verified by Origin Authentication Tags
  (OATs)
• A delegation path
• A set of delegation attestation, one for each
  edge in the path
• An ASN Ownership Proof

19
Simple Delegation Attestation

• A signature by C for a prefix x/j
• ( C, x/j, FC(x/j) ) C
• A signed statement (by Cs key) binding the
  prefix (x/j) to an organization identifier
  (FC(x/j))
• The simple delegation attestation for D(C)
• ( C, x1/j1, FC(x1/j1) ) C,
• ( C, x2/j2, FC(x2/j2) ) C,
• ,
• ( C, xs/js, FC(xs/js) ) C

20
SDA An Example

• The delegation path for 12.1.1.0/24 is
• (IANA, ATT, ALPHA, AS29987)
• The delegation attestation for the path are
• (IANA, 12.0.0.0/8, ATT)IANA,
• (ATT, 12.1.1.0/24, ALPHA)ATT,
• (ALPHA, 12.1.1.0/24, AS29987)ALPHA

21
Authenticated Delegation List

• C creates a single list of all of its delegations
  and sign that list
• ( C, x1/j1, FC(x1/j1) ) ,
• ( C, x2/j2, FC(x2/j2) ) ,
• ,
• ( C, xs/js, FC(xs/js) ) C
• If C delegates xi/ji to B
• C signs all of the delegations it makes to
  everyone.
• B advertises xi/ji and provides this attestation

22
ADL An Example

• The delegation path for 12.1.1.0/24 is
• (IANA, ATT, ALPHA, AS29987)
• The delegation attestation for the path are
• (IANA, 12.0.0.0/8, ATT),
• (IANA, 64.0.0.0/8, ARIN)IANA,
• (ATT, 12.1.1.0/24, ALPHA),
• (ATT, 64.1.0.0/16, AS7018),
• (ATT, 12.0.0.0/8, AS7018)ATT,
• (ALPHA, 12.1.1.0/24, AS29987)ALPHA

23
AS Authenticated Delegation List

• C breaks up the entire list into several lists
  and signs each of the smaller lists.
• The list is splitted according to those prefixes
• delegated to the same organization or
• assigned to the same AS number
• If C delegates xi/ji to B
• C signs all of the delegations it makes to B.
• B advertises xi/ji and provides this attestation

24
AS ADL An Example

• The delegation path for 12.0.0.0/8 is
• (IANA, ATT, AS7018)
• The delegation attestation for the path are
• (IANA, 12.0.0.0/8, ATT)IANA,
• (ATT, 64.1.0.0/16, AS7018),
• (ATT, 12.0.0.0/8, AS7018)ATT

25
Authenticated Delegation Tree

• C creates a Merkle hash tree
• The values of the leaves ( C, x/j, FC(x/j) )
• The values of each internal node H( L, R )
• If C delegates xi/ji to B
• C only signs the root h0C
• C provides the value of the children of all of
  the nodes on the path in the Merkel tree from the
  root to ( C, xi/ji, B )
• B advertises xi/ji and provides this attestation

26
ADT An Example
H(L12, R34)
H(L1, R2)
H(L3, R4)
(C, x1/j1, A)
(C, x2/j2, B)
(C, x3/j3, D)
(C, x4/j4, E)

• The delegation attestation for (C, x2/j2, B)
• H(L12, R34)C, H(L3, R4), (C, x1/j1, A)

27
Authenticated Delegation Dictionaries - 1

• The model for an authenticated dictionary
• An Authenticated Dictionary for C
• Element (C, y/k, FC(y/k))
• The search key address prefixes
• Data Structure balanced 2-3 trees, with leaves
  sorted based on the search key

28
Authenticated Delegation Dictionaries - 2

• Prefix Tree rooted at x/j
• A total order of the prefixes
• x/j lt x?y/(jk) lt z/j
• The smallest element x/j
• The largest element x?1l-j/l

29
Authenticated Delegation Dictionaries - 3

• ADD for C
• The delegation attestation for (C, x2/j2, B)
• The signed root k0?H(L123, R45)C
• The value of the children of the nodes of the
  path k3?H(L4, R5), (C, x1/j1, A), (C, x3/j3, D)
• The search tree path

30
Approximating IP Address Delegation

• Goal
• To understand how and by whom delegation occurs
• Sources IANA and BGP announcements
• What do we learn?
• Dense (16 orgs delegate 80 address space)
• Stable (10-30 movement in 5 months)

31
Approximation Example
32
Delegation in the ApproximateDelegation Graph

• The overwhelming number of delegations are being
  performed by a relatively few ASes/organizations

33
Trace-Based Simulation

• The OAsim simulator
• Models the operation of a single BGP speaker
• Accepts timed BGP UPDATE streams
• Computes bandwidth/computational costs
• Implements four service designs
• Dataset
• Obtained from RouteViews
• A trace of BGP updates over a 24 hour period

34
Computational Costs
35
Bandwidth Costs
36
Conclusions

• OA is important in inter-domain routing
• trace and validate the delegation of address
  usage
• Formalization
• semantics of address ads proofs of delegation
• Modeling
• the current IPv4 address delegation dense
  static
• Performance Evaluation
• consolidate proofs by delegator to reduce costs

37
Comments?
Questions ?
