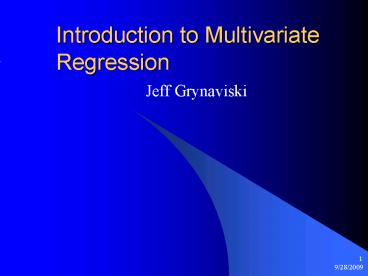

Introduction to Multivariate Regression

1
Introduction to Multivariate Regression

• Jeff Grynaviski

2
Motivation

• In the natural sciences, researchers can often
  conduct controlled experiments to isolate the
  effects of one variable on another.
• Example An agronomist wants to know the effect
  of nitrogen on the growth of a certain plant.
• However, she also knows that the plants growth
  also depends on how much light, water, and
  nutrients (e.g. nitrogen, phosphorous, potassium,
  and boron) it receives.
• To isolate the effect of nitrogen on plant
  growth, the researcher can conduct a controlled
  experiment involving 50 similar plants, and then
  try to give each plant the same amounts of light,
  water, and important nutrients (other than
  nitrogen), in order to control for these effects
  on plant growth.
• These 50 plants will be given different amounts
  of nitrogen and there plant growth recorded.
• Because the other important growth factors have
  been held constant, the researcher can attribute
  the observed variations in plant growth to the
  different applications of nitrogen.
• There will inevitably be chance variation in
  observed plant growth because a) not all plants
  are created equal b) errors in measurement c)
  the application of light, water, and nutrients
  cannot be precisely identical for each plant and
  d) there are always other growth influences over
  which the researcher has not control.
• Nevertheless, the most important influences have
  been identified and controls carefully imposed.
• The experiment should yield useful data for
  estimating the equation
• Y B0 B1 X1 e

3
Motivation (cont.)

• In the social sciences, researchers can seldom
  set up these sorts of controlled laboratory
  experiments. Instead, they must make do with
  natures experiments and try to unravel the
  effects of one variable on another in a world in
  which many variables are changing at the same
  time.
• In multiple regression, an equation with several
  explanatory variables is estimated in an attempt
  to isolate the separate effect of each dependent
  variable.
• In other words, rather than trying to impose
  restrictions on the values of influences like
  sunlight and other nutrients through physical
  controls, we measure these variables, along with
  the independent variable about which we are
  interested.

4
The Set-Up

• In general, a multiple regression can be written
  as
• Y B0 B1 X1 B2 X2 Bk Xk e
• Thus, the dependent variable Y depends on k
  explanatory variables plus an error term. (It
  does not matter what order the explanatory
  variables are listed.)
• The regression coefficient B1 gauges the effect
  of the first explanatory variable X1 on the
  dependent variable Y, holding the other variables
  constant. Similarly, B2 gives the effect of X2 on
  Y.
• In effect, the regression coefficient B1 measures
  the same thing that controlled laboratory
  experiments seek, which is to control for the
  effect on Y of an isolated change in one
  explanatory variable.

5
Example

• Plant Growth B0 B1 X1 B2 X2 B3 X3 e
• X1 Average hours of Light / day
• X2 ml of Nitrogen / day
• X3 ml of Water / day
• B1 measures the effect of the number of hours of
  light per day on plant growth, holding constant
  the effects of nitrogen and water.
• B2 measures the effect of nitrogen on plant
  growth, holding constant the effects of light and
  water.
• B3 measures the effect of water on plant growth,
  holding constant the effects of light and
  nitrogen.
• What this shows is that while a controlled
  experiment can estimate a regression coefficient
  Bi by holding the other variables constant, a
  multiple regression procedure estimates Bi by
  taking into account how uncontrolled changes in
  the other variables influence Y.

6
Derivation of OLS estimators

• The OLS estimators for the multiple regression
  model are chosen in order to minimize the error
  squared, which is precisely the approach that we
  took with the bivariate regression model.
• In other words, for the model
• Y B0 B1 X1 B2 X2 Bk Xk e
• B0, B1, B2, Bk are chosen in order to minimize
• ?ei2 ?i(Yi - Yhati)2 ?i(Yi (B0 B1X1i
  BkXki ))2

7
Derivation of OLS estimators (cont.)

• The solution to the optimization problem
• min B0, B1, B2,, BK ?i(Yi - (B0 B1X1i
  BkXki ))2
• is quite complicated, and requires a fair amount
  of linear algebra.
• It is enough for you to know that statistical
  routines in Excel or SPSS are more than adequate
  to determine the values of the regression
  intercept and coefficients.
• In addition, computer software will provide
  estimates of
• - the standard errors for each regression
  coefficient which are interpreted as the amount
  of uncertainty about B0, B1, , Bk which we use
  for hypothesis tests about each of the
  independent variables
• - the R2 which indicates the proportion of the
  variance in the dependent variable Y which is
  explained by our independent variables
• - and other stuff which we may talk about later.
• The key point for you, is that each of the
  concepts from bivariate regression has an analog
  in multiple regression, and should be interpreted
  in essentially the same way.

8
Example

• Rather than presenting a lot of math, or a
  fictitious example, we shall go over an actual
  application of multiple regression.

9

• State Policy Components of Interstate Migration
  in the United States
• Robert Preuhs
• Political Research Quarterly
• 1999

10
Overview of the Argument

• 1) State are laboratories for democracy
• 2) Better laboratories may provide more
  desirable places to live to some people.
• 3) People vote with their feet
• 4) Governments compete for citizen resources
  (they want more tax ).

11
Theory

• The Consumer-Voter Model of Political Behavior
• Citizens make migration decisions to maximize
  their utility.
• Utility for a location is a function of
• Public Policy
• ratio of government investment spending to
  government consumption spending
• State ideology (provides a general indicator of a
  states policy preferences).
• Economic Performance
• Climate

12
Epistemic Relationships

• The Dependent Variable is Percent Change in a
  states total population from 1991 to 1994.
• Independent Variables
• A. Public Policy Variables
• The Ratio of Government Investment Spending to
  Government Consumption Spending is measured by
• ( Per Capita State Highway Spending Per Capita
  State Education Spending )
• / ( Per Capita State Welfare Spending ) FY
  1987-1989.
• State Ideology is measured by the average
  ideological identification of respondents to
  public opinion polls in the state (-100
  conservative 0 moderate 100 liberal)
• Tax Burden is measured by the average per capita
  state and local taxes in the State from FY
  1987-1999.

13
Epistemic Relationships cont.

• Independent Variables
• B. Economic Variables
• New Jobs is measured by
• ( Number of Jobs 1990 Number in 1987 ) /
  Number in 1987
• Income is measured by the
• ( average median income for a family of four in
  1990 )
• / (national mean income for a family of four)
  in 1990.
• C. Control Variables.
• Migration in the 1980s Average annual change in
  population for state i from 1980-1989.
• Mean Temperature Mean Temp for the largest city
  in state i.

14
Regression Model and Hypotheses

• The following OLS model was estimated (with
  research hypotheses in parentheses).
• Net Migrationi
• B0 B1 Tax Burdeni (H1 B1 lt 0)
• B2 Investment Consumption Ratioi (H1 B2 gt
  0)
• B3 Ideologyi (H1 B3 ?)
• B4 New Jobsi (H1 B4 gt 0)
• B5 Migration in the 1980si (H1 B5 gt 0)
• B6 Mean Temperaturei (H1 B6 gt 0)

15
Findings
Indicates that a regression coefficient is
significant at .05 in a one-tailed test.
