An Introduction to: Network Assessments

1

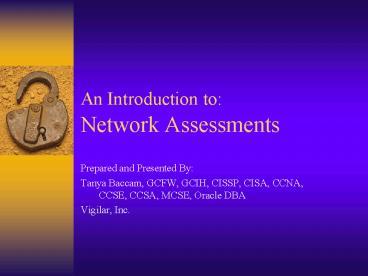

An Introduction to Network Assessments

• Prepared and Presented By
• Tanya Baccam, GCFW, GCIH, CISSP, CISA, CCNA,
  CCSE, CCSA, MCSE, Oracle DBA
• Vigilar, Inc.

2
Why perform Assessments?

• Prevention is the best medicine!
• Part of a Defense in Depth strategy
• Identify potential intrusion
• Identify extent of a compromise

3
Strategy

• Identify Devices
• Understand Vulnerabilities and Risks
• Assess and Secure the Perimeter
• Assess and Secure the DMZ
• Assess and Secure the Internal Environment

4
Sources of Information

• Interviews
• ISP
• Administrators
• DNS Servers
• Network Diagrams
• Whois Queries

5
Cheops

• http//cheops-ng.sourceforge.net/download.php

6
Tkined
7
Tkined
8
Superscan

• Ping hosts
• Port Scan hosts

9
Fingerprinting Devices

• Active
• Queries the machine for information
• Passive
• Sniffs passing traffic for information

10
Active Fingerprinting

• Send a packet and look at the response.
• Change the flags for the packet
• ISN numbers
• Initial windows size
• Handling of ICMP messages
• TOS field
• TCP options
• How fragmentation is handled
• Paper
• www.insecure.org/nmap/nmap-fingerprinting-article.
  html

11
Passive Fingerprinting

• Passively watch for information during
  communication
• TTL
• Window Size
• Dont fragment bit
• TOS

12
P0f - Example Database Entries

• http//www.stearns.org/p0f/

sackOK flag
Window scaling
DF flag
Maximum Segment Size
nop flag
Time to Live
Packet Size
Operating System
Window Size
13
Critical Devices

• Make sure you know where the critical devices are

14
Strategy

• Identify Devices
• Understand Vulnerabilities and Risks
• Assess and Secure the Perimeter
• Assess and Secure the DMZ
• Assess and Secure the Internal Environment

15
Research is essential!

• www.google.com
• Vendor web sites
• www.securityfocus.com/bid/

16
Think like an attacker
17
Prioritize

• Based on your research, what vulnerabilities are
  the highest risk to your environment?

18
Strategy

• Identify Devices
• Understand Vulnerabilities and Risks
• Assess and Secure the Perimeter
• Assess and Secure the DMZ
• Assess and Secure the Internal Environment

19
Scanning

• ICMP
• SYN
• TCP Stealth
• Fragment
• UDP

20
Nmap

• Sample Options
• -sS SYN scan
• -sT TCP connect scan
• -sF FIN scan
• -sX Xmas tree scan
• -sN Null scan
• -sP ping scan
• -sU UDP scan
• -sA ACK scan
• -sR RPC scan

21
Nmap fragment scan

• nmap f tiny-fragment scan
• 170259.418110 10.10.10.10 gt 10.10.10.102
  icmp echo request170259.418110
  10.10.10.10.45994 gt 10.10.10.102.http . ack
  269371834 win 4096170259.418110 10.10.10.102 gt
  10.10.10.10 icmp echo reply170259.418110
  10.10.10.102.http gt 10.10.10.10.45994 R
  269371834269371834(0) win 0170259.718110
  10.10.10.10.45974 gt 10.10.10.102.2307 tcp
  (frag 4978316_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 497834_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.6003 tcp
  (frag 5118716_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 511874_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.275 tcp
  (frag 959316_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 95934_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.678 tcp
  (frag 2513016_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 251304_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.344 tcp
  (frag 3339616_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 333964_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.478 tcp
  (frag 6139316_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 613934_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.1001 tcp
  (frag 4951616_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 495164_at_16)170259.718110
  10.10.10.102.2307 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.718110
  10.10.10.10.45974 gt 10.10.10.102.884 tcp
  (frag 2869716_at_0)170259.718110 10.10.10.10 gt
  10.10.10.102 (frag 286974_at_16)170259.718110
  10.10.10.10.45974 gt 10.10.10.102.47557 tcp
  (frag 2327516_at_0)170259.728110 10.10.10.10 gt
  10.10.10.102 (frag 232754_at_16)170259.728110
  10.10.10.10.45974 gt 10.10.10.102.6145 tcp
  (frag 6291216_at_0)170259.728110 10.10.10.10 gt
  10.10.10.102 (frag 629124_at_16)170259.728110
  10.10.10.102.6003 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.275 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.678 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.344 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.478 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.1001 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.884 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.47557 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0170259.728110
  10.10.10.102.6145 gt 10.10.10.10.45974 R 00(0)
  ack 1402132342 win 0

22
Scan for Services

• nmap v g53 sS sR P0 O p 1-65535 o
  firewall.out ip_address
• v verbose mode, nmap returns additional
  information
• g53 sets the source port number utilized for
  the scans
• sS conducts a SYN scan
• sR conducts a RPC scan all the ports found
• P0 do not conduct pings before scanning
• p 1-65535 ports to be scanned
• o firewall.out output file to send the results
  to
• ip_address the IP address to be scanned

23
Hping2 Options (1)

• The following are the more commonly utilized
  hping options
• -h help
• -c the number (count) of packets to send
• -n numeric output only, no resolution for host
  names
• -V verbose output
• -D debug
• -a alternative source IP address

24
Hping2 Options (2)

• -f split the packet into fragments
• -y set the dont fragment IP flag (You can
  perform MTU path discovery with this option.)
• -o set the Type of Service (TOS)
• -d sets the data size of the packet
• -E filename use the filename file to complete
  the data in the packet
• -j or J dumps the received packet in hex or
  printable characters, respectively

25
Hping2
26
Fragmentation with Hping

• Fragmentation testing
• hping2 V I eth0 --data 40 --count 3 --syn p 22
  ip_address
• hping2 V --frag I eth0 --data 40 --count 3
  --syn p 22 ip_address
• V verbose mode
• I eth0 interface name
• --data 40 data size
• --count 3 packet count
• --syn sets the SYN flag
• p 22 sets the destination port
• ip_address sets the destination address
• --frag split packets in more fragments

27
Tcpdump/Windump

• Capture data from the wire

225509.908986 10.10.10.4.4125 gt 10.10.10.1.ssh
S 19596950111959695011(0) win 5840 ltmss
1460,sackOK,timestamp 229493tcpgt
(DF) 225509.908986 10.10.10.1.ssh gt
10.10.10.4.4125 S 28968992092896899209(0) ack
1959695012 win 5792 ltmss 1460,sackOK,timestamp
2245851tcpgt (DF) 225509.908986
10.10.10.4.4125 gt 10.10.10.1.ssh . ack 1 win
5840 ltnop,nop,timestamp 229493 2245851gt
(DF) 225509.918986 10.10.10.1.ssh gt
10.10.10.4.4125 P 126(25) ack 1 win 5792
ltnop,nop,timestamp 2245852 229493gt
(DF) 225509.918986 10.10.10.4.4125 gt
10.10.10.1.ssh . ack 26 win 5840
ltnop,nop,timestamp 229494 2245852gt
(DF) 225509.918986 10.10.10.4.4125 gt
10.10.10.1.ssh P 125(24) ack 26 win 5840
ltnop,nop,timestamp 229494 2245852gt
(DF) 225509.918986 10.10.10.1.ssh gt
10.10.10.4.4125 . ack 25 win 5792
ltnop,nop,timestamp 2245852 229494gt (DF)
28
TCPDumps Role

• Keep a sniffer on the wire to verify the real
  results
• tcpdump i eth0 n vvv w output.txt
• Listen on interface eth0
• Do not convert addresses to names
• Print in very, very verbose mode
• Save the output to output.txt
• tcpdump r output.txt
• Read the file created

29
Ethereal

• Theres even a GUI based tool!

Step 1 Selecting Capture, Start or CtrlK
brings up the screen to the right. Step 2
Select your options and click OK.
Step 3 The Ethereal Capture screen tracks the
number and type of packets received, while the
packets are displayed on the main window.
30
Correct

• Make sure you make corrections when you find
  vulnerabilities

31
Strategy

• Identify Devices
• Understand Vulnerabilities and Risks
• Assess and Secure the Perimeter
• Assess and Secure the DMZ
• Assess and Secure the Internal Environment

32
Vulnerability Assessments

• Nessus
• SARA
• SAINT
• Cerberus
• N-Stealth

33
Nessus
34
SARA
35
Cerberus Internet Scanner
36
N-Stealth
37
Strategy

• Identify Devices
• Understand Vulnerabilities and Risks
• Assess and Secure the Perimeter
• Assess and Secure the DMZ
• Assess and Secure the Internal Environment

38
Nlog
mydb.db
...
80


39
NDiff

• Options available
• http//www.vinecorp.com/ndiff/

ndiff ndiff -b-baseline ltfile-or-taggt
-o-observed ltfile-or-taggt -op-output-port
s ltocufxgt -of-output-hosts ltnmcgt
-fmt-format ltterse minimal verbose
machine html htmlegt
Open Closed Filtered Unfiltered Unknown
New hosts Missing hosts Changed hosts
40
Ndiff Output
41
Conclusion

• Quality Assessments are hard to do well, but it
  is possible with the right strategies and tools!

42
Resources

• www.sans.org
• www.tcpdump.org
• www.ethereal.com
• www.insecure.org/nmap/nmap_download.html
• www.stearns.org/p0f/
• www.nessus.org
• www.insecure.org/nmap/nmap-fingerprinting-article.
  html
• www.saintcorporation.com
• www.cerberus-infosec.co.uk/CIS-5.0.02.zip
• www.nstalker.com
• www.vinecorp.com/ndiff/
