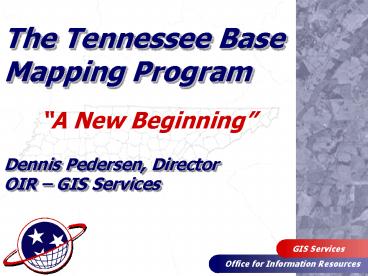

The Tennessee Base Mapping Program

1
The Tennessee Base Mapping Program

• A New Beginning

Dennis Pedersen, DirectorOIR GIS Services
2
TNBMPA New Beginning

• Initial Production Complete
• Accomplishments Summary
• Ortho Imagery Pilot Program
• TDOT Partnership
• Enterprise GIS TNMap
• (The Tennessee Map)

3
TNBMPA New Beginning
Lets take a look back
4
TN Base Mapping Program
Pilot Counties 1997, 1998
5
(No Transcript)
6
Milestones/AccomplishmentsA few quick facts

• Total cost 28 million
• 19 million (ortho, DTM, planimetrics)
• 9 million (parcels)

• Collaboration/Local partnerships
• 5 million in contracts
• 250 organizations in 57 counties
• Leveraged existing data in 6 counties
• Local GIS maintenance in 45 counties

7
(No Transcript)
8
Sustainable Ortho Imagery Principles

• Cost effective approach that meets needs of State
  and local users

• Leverage federal funding to help reduce or
  eliminate duplication of effort

• Regional or Statewide acquisition
• County by county more expensive/inefficient
• Eliminate production of overlapping map sheets

• Develop set schedule for updates

• Examine State/local cost share

9
Data Maintenance Strategies

• Initial statewide production complete
• Ortho Imagery is 7 years old in some counties
• Population growth/development driving demand for
  new imagery
• Need a plan for ortho imagery update/maintenance

10
Data Maintenance Strategies

• FY07 - 08 Funding in place
• Extended current contract from 10/07 to 10/08 and
  modified specs to emulate Imagery for the
  Nation and local requirements
• Identify counties with significant growth,
  imagery that is outdated, TDOT region 1 (upper
  East TN)
• Continue operating under current cost share model
  (75 State / 25 local)

11
Ortho Maintenance Pilot Program2007-2008
12
TNBMP Digital Terrain Model
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Dept. of Transportation

• Existing analog aerial photography program
• Large scale engineering projects (site specific)
• Right-of-way corridor studies
• Regional planning efforts

• Identified need to update current photogrammetry
  processes

• Completed Gap analysis to provide detailed
  recommendations

• Need to develop or enhance internal processes for
  using new technology

20
OIR-GIS/TDOT - Partnership

• TDOT Modernizing Equipment
• Digital camera suitable for ortho photo
  production
• Training staff on new photogrammetry production
  req.
• ortho acquisition for ¼ of State annually

• OIR-GIS responsible for data hosting and
  distribution
• TNMap enterprise GIS
• Dissemination to local government

• 2008 Acquisition Region 4 (West TN)

21
(No Transcript)
22
(No Transcript)
23
Future
Current
Aerial Surveys
Standards/Funding
T N B M P
24
Sustainable Ortho Imagery Principles

• Cost effective approach that meets needs of State
  and local users

• Leverage federal funding to help reduce or
  eliminate duplication of effort

• Regional or Statewide acquisition
• County by county more expensive/inefficient
• Eliminate production of overlapping map sheets

• Develop set schedule for updates
• 4 year cycle

• Revisit State/local cost share

25
Enterprise GIS Development

• How can State agencies create and maintain
  spatial data once and use (share) it many times?

The Tennessee Map (TNMap)
26
The Tennessee Map (TNMap) Enterprise GIS
Architecture

• Goals
• Develop enterprise GIS infrastructure to provide
  secure, usable, and easy access to TNBMP data
• Provide State agencies with ability to publish
  data to enterprise GIS
• Support vision of USGS National Map and NSDI
• Identify data stewards, reduce or eliminate
  redundant GIS data collection

27
The Tennessee Map (TNMap) Enterprise GIS
Architecture

• Initiatives/Strategies
• Staffing requirements (2 to 8)
• Enterprise Geospatial Data Repository
• GIS Data Inventory and Data Stewardship
• TN Geospatial Data Sharing Standards
• Enterprise Services and Geospatial Applications
• Geospatial Standards (software, metadata)

28
Business Case for Enterprise GIS
The Tennessee Map (TNMap) Enterprise GIS
Architecture

• Comptroller Manage real property
• TWRA/TDEC/Ag. Governors Heritage Conservation
  Trust Fund
• TDOT Right-of-way acquisition
• ECD community planning, land use regulations,
  business development

ROI Create once use many times, eliminates
duplication of effort, saves time and money
29
(No Transcript)
30
The Tennessee Map (TNMap) Enterprise GIS
Architecture
TNMapMore than just a map

• Geo-portal application
• Base Map Data Repository
• Shared GIS infrastructure for application hosting
• Access Public, State GIS users

TNMap portal demonstration
31
TNBMPA New Beginning

• State will provide local government with updated
  ortho imagery 4 year cycle
• Local gov. will provide the State with updated
  parcels, street centerline GIS data
• Counties with new imagery (2007 or 2008)
• Local cost share is 25 of parcels only

32
TNBMPA New Beginning

• Vision Maintain a statewide GIS base map
  through partnership development that can be used
  in support of a wide range of local, state, and
  federal programs

33
Thank you.

• Contact Information
• Dennis Pedersen, Director, GIS Services312 8th
  Avenue North16th Floor, WRS Tennessee
  TowerNashville, TN 37243-0288
• E-mail dennis.pedersen_at_state.tn.us
• Phone [phone]

http//tnmap.state.tn.us/portal
