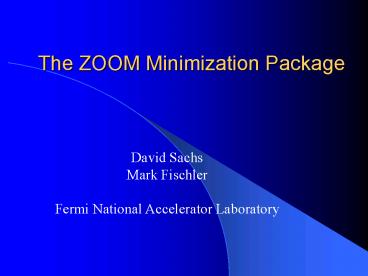

The ZOOM Minimization Package

1
The ZOOM Minimization Package

• David SachsMark FischlerFermi National
  Accelerator Laboratory

2
Minimization Package

• Object-oriented C library for minimization
• Minuit capabilities, and more
• Suitable for use
• In stand-alone programs
• As part of Root applications
• In other frameworks
• The OO design allows the Minimizer to play well
  with others
• As central part of a fitter provided as examples
  will be
• an unbinned maximum likelihood fitter
• a binned chi-squared fitter,

3
Benefits of OO Design

• User convenience
• Domain concepts reflected more directly in code
• Natural to encapsulate function to be minimized
• Avoidance of global variables allows
• multiple simultaneous minimizations
• use in multi-threaded applications
• Extensibility
• Separation of concepts allows for independent
  replacement
• Benefits from any revision of code
• Find features that should have been there
• Sometimes you uncover flaws yes, even in Minuit

4
Brief Survey of C Minimizers

• Other C packages are available, but do not use
  modern C
• and so lack the OO advantages
• Other Projects include
• The MINUIT Project SEAL/MathLib
• Hand-translation of Minuit (James and Winkler)
• ROOT minimization/fitting
• Hand-smoothed automated translation of Minuit

5
An Example of Use
double f(const stdvectorltdoublegt x) return
x0x0 // some function of // x0
thru x4 int main() using namespace
Minimization const int Ndimensions 5
Problem m(UserFunction(Ndimensions, f))
m.minimize() cout ltlt m.currentPoint() ltlt endl
6
Directions of Extensibility

• class Terminator
• When do we stop improving the minimum?
• class Domain
• How do we restrict the allowed values of the
  parameters?
• class Algorithm
• How do we refine existing minimization methods?
• How do we add new minimization techniques?

7
Terminators

• A terminator is an object that can be asked
  whether or not minimization is complete
• it must be an instance of a class derived from
  class Terminator
• Several standard terminators are provided
• These can be combined by ORs and ANDs
• Terminators typically make use of the state of
  the minimization
• Users can easily create their own terminator
  classes

8
An Example Terminator
class NCalls public Terminator int
n public explicit NCalls(int limit)n(limit)
... TerminationType finished (const
ProblemState p) return
p.functionCallCount gt n ? TTStop
TTContinue
9
Domains

• A domain is an object that maps internal
  coordinates to external coordinates and vice
  versa
• It must be an instance of a class derived from
  Domain
• Custom domain classes must provide
• Mapping from external M-space to interior
  unrestricted N-space, and vice versa
• Gradient calculation
• One domain is provided RectilinearDomain
• independent -?, ?, a,b, -?, b, a, ?
  intervals
• maps for a,b intervals match those in Minuit

10
Some Possible Custom Domains

• Orthogonal domain, but with sigmoid mappings
  instead of arcsine mappings
• Superior for some cases, worse for others
• Multiple probability space
• All parameters must be non-negative
• Parameters must sum to 1
• Interior (or surface) of N-Sphere
• Lots of possible mappings
• But watch out if minimum lies very near a mapping
  singularity

11
Algorithms

• An algorithm is an object that encapsulates a
  minimization technique
• It must be an instance of a class derived from
  Algorithm
• Custom algorithm classes can be written by
  experts.
• Two algorithms are provided
• Migrad
• Simplex
• Other algorithms will be provided
• Seek and others completing Minuit collection
• Further algorithm implementation possibilities
• Fumili
• biConjGradStab
• LEAMAX

12
Adding a New Algorithm

• We might wish to add a Simplex-like algorithm but
  with
• improved estimation of the distance to the
  minimum (edm)
• strategies to avoid false convergence
• The mathematics of finding the best strategy is
  still hard
• OO design makes adding the algorithm
  straightforward, once the proper strategy is
  discovered

13
The Simplex Algorithm

• The algorithm
• N1 points in N-space form a simplex
• Repeatedly reflect the worst point about the
  centroid of the remaining points
• Sometimes shrink if that improves function
• Sometimes expand if reflected point is best point
• When estimated distance to minimum is small, stop
• Problem The edm estimate formed by simplex is
  largely fantasy.

14
Discovery of a Flaw in Minuit

• Simplex can converge to a non-minimum
• Even on well-behaved (quadratic) functions!
• When starting a large distance from the true
  minimum
• How does this happen?
• Simplex becomes thin, aligned with an
  equipotential
• There is a good direction to expand off that line
  but
• simplex shrinks before it finds that direction
  and
• triggers convergence criterion based on the false
  edm
• If the edm were big at that point, we would at
  least know something was wrong
• The fix is still not trivial but knowing a
  meaningful edm is a start

15
Apparent Convergence
MINUIT
Minimization
The simplex algorithm is stopped when it
indicates it is near the function minimum.
16
Convergence Failure
MINUIT
Minimization
MINUITs simplex indicates convergence while
still far from it. The error is fixed in
Minimization
17
Conclusion

• Minimization package available from
• http//cepa.fnal.gov/aps/minimization.shtml
• Standard build mechanism (configure/make)
• Modern, Object Oriented C
• Suitable for some multi-threaded operation
• Designed to be extensible to new
• Termination criteria
• Domains (parameter restrictions)
• Algorithms
• Corrects a flaw in Minuit
• In the Simplex algorithm

18
