Description of some multimedia ontologies

1

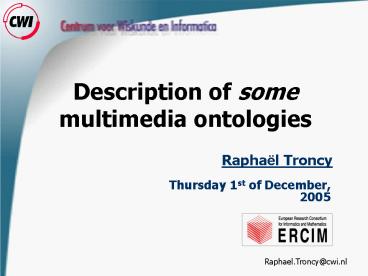

Description of some multimedia ontologies
Raphaël Troncy
Thursday 1st of December, 2005
Raphael.Troncy_at_cwi.nl
2
Multimedia Ontologies

• Multimedia ontologies can be related to many
  works, standards, communities
• Focus here on MPEG-7 ... as a whole
• ISO Standard composed of 11 parts but it is still
  growing
• DDL XML Schema small extensions
• Descriptors and Description Schemes
• 1182 elements, 417 attributes, 377 complex types
  in the schema (MDS Visual Audio parts)
• 40 Classification Schemes

3
Agenda

• DSTC's Proposal
• Jane Hunter Suzanne Little (ABC model)
• TUC's Proposal
• Chrisa Tsinaraki (DELOS)
• INA's Proposal
• Antoine Isaac Raphaël Troncy
• DMAG/MTG's Proposal
• Roberto Garcia Oscar Celma

4
DSTC's Proposal (summary)

• 1st proposal chronologically
• MPEG-7 ontology developed in RDFS, then converted
  into DAMLOIL and now OWL
• Contains 60 classes and 40 properties
• OWL Full ontology
• Cover the upper level of the MDS
• segments and decomposition
• agent, role, place, time and instrument
• basic visual descriptors
• Available at http//maenad.dstc.edu.au/slittle/mp
  eg7.owl

5
TUC's Proposal

• Software Engineering Framework aiming to
  facilitate Knowledge-based MPEG-7 Multimedia
  Application Development
• Being developed in TUC/MUSIC
• Consists of
• An Ontological Infrastructure
• Methodologies for Interoperability between MPEG-7
  and OWL
• An underlying MPEG-7 Repository
• Tools implementing the DS-MIRF approach

6
DS-MIRF Ontological Infrastructure
7
DS-MIRF Ontological Infrastructure

• An Upper Ontology that fully captures the MPEG-7
  MDS and a part of the MPEG-7 Visual
• Being extended to capture the MPEG-21 DIA
  Architecture
• Transformation Rules to transform OWL Ontologies
  and OWL/RDF metadata into MPEG-7 documents
• Implemented in the GraphOnto Ontology and
  Metadata Editor

8
TUC's Ontology Definition Methodology

• Manual definition based on the following rules
• MPEG-7 Simple Datatype Representation
  Integration of the XML Schema simple datatypes
  (rdfsDatatype)
• MPEG-7 Complex Type Representation Homonym OWL
  Classes
• Attributes Simple Type Elements Datatype
  Properties
• Complex Type Elements Object Properties
• Subclassing
• Simple Types Datatype property with rdfID
  type_nameContent where type_name is the type
  of the supertype
• Complex Types rdfssubclassOf
• Constraints OWL Restrictions
• MPEG-7 Classification Scheme Representation
  Individuals of the MDS type ClassificationSchemeT
  ype

9
TUC's Proposal (summary)

• Cover the full standard
• Contains 420 classes and 175 properties for the
  MDS part
• OWL DL
• Cover also the CSs
• The 40 CSs have been translated into simple OWL
  hierarchy
• Available at http//elikonas.ced.tuc.gr/ontologie
  s/av_semantics.zip

10
INA's Proposal

• Different uses of AV Document Descriptions
• Archival and description of documents from a
  cultural heritage point of view INA
• Exchanging program identification and
  characterization for interactive TV TV-Anytime
• Diffusion of program information (news agencies)
  ProgramGuideML
• Storing and sharing AV content descriptions
  (automatic extraction results) MPEG-7 standard

11
Can we find an AV core ontology?

• There are many common needs amongst observed
  applications
• Characterization of programs and sequences
• Decomposition of programs and sequences
• Ability to introduce description of the
  activities that constitute the context of AV
  documents (roles of people involved, ways
  production and broadcast are achieved)
• These concepts are close to a "neutral" archival
  viewpoint

12
C.O. content

• Concerning AV objects
• distinction sequence/program
• decomposition and qualification of those objects
• link to external world themes and entities
  (content description)
• Underlying use patterns for elicited categories

13
ExampleUpper-level categorization of sequences
14
ExampleUpper-level categorization of program
15
INA's Proposal (summary)

• Cover the MDS upper part, and partially the audio
  and visual parts
• Contains 610 classes
• OWL DL
• Cover also (partially) the CSs
• adapted to TV Anytime (and ProgramGuideML)
• adapted to INA's needs
• Linked to the DOLCE ontology
• Available at http//www.cwi.nl/troncy/MPEG-7/

16
DMAG/MTG's Proposal

• Reuse MPEG-7 implicit semantics.
• XML ? Semantic Web
• XSD2OWL schema to ontology.
• XML2RDF XML instance data to RDF instances.
• Tested as integration base forMusicBrainz,
  Simac, Music Vocabulary, etc.

17
XMLSchema to OWL Mappings
18
DMAG/MTG's Proposal (summary)

• Cover the whole MPEG-7 the upper level of the
  Classification Schemes
• Contains 2372 classes and 975 properties
• OWL Full
• Available at http//dmag.upf.edu/ontologies/mpeg7
  ontos/

19
Questions ?
20
Towards an harmonization of these multimedia
ontologies
Raphaël Troncy
Thursday 1st of December, 2005
Raphael.Troncy_at_cwi.nl
21
Preliminary results

• Current state
• Proposals are made individually, for specific
  research project
• The OWL files contains some errors
• Corrected versions available for DSTC and
  DMAG/MTG ontologies
• Different conceptualizations have been obtained
  even if they start from the same MPEG-7 schema
• No MPEG-7 endorsement

22
(Personal) Idea Three step process

• Aligning pair-wise ontologies
• Visual part of aceMedia vs DMAG vs TUC
• MDS part of Hunter vs DMAG vs TUC vs INA
• CSs part of DMAG vs TUC vs INA
• Merging and fusing
• Re-engineering (manually) !
• Current proposals are based on automatic
  translation rules from XSD to OWL (except INA)
• Does NOT go beyond what XML Schema can express

23
Open Issues

• OWL DL vs OWL Full
• Real modularization of MPEG-7
• upper part, visual, audio, CSs
• requires breaking some existing relationships !
• Do we have to capture all MPEG-7 ?
• people, agent, role, place are not
  multimedia-specific
• Are there more multimedia ontologies currently
  developed ?
• Proton http//proton.semanticweb.org/
• Boemie re-use the aceMedia ontologies (MDO, VDO)

24
Questions ?
