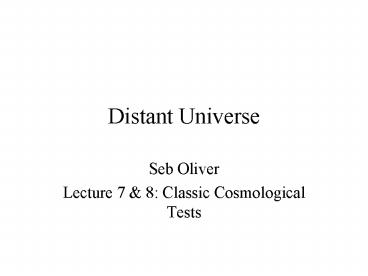

Seb Oliver

1
Distant Universe

• Seb Oliver
• Lecture 7 8 Classic Cosmological Tests

2
Main Topics

• Standard Hot Big Bang Model
• Classical Observational Cosmology
• Galaxy Evolution
• The Hunt for the First Galaxies
• Background Light
• Structure Formation

3
Classical Observational Cosmology

• Observable Parameters
• Distances
• Classical Tests
• The microwave background and Primordial
  Abundances

4
Classic Cosmological Tests

• Hubble Diagram
• Number Counts
• Tolman Test
• Angular-Diameter Distance Test
• Age of the Universe
• The microwave Background and Primordial
  Abundances

5
Hubble Diagram
Ideally choose a standard candle, i.e. a class of
object whose Luminosities do not change over
cosmological time
Predict f(z) from DL in cosmological model
6
Hubble Diagram Plots
Same information can be plotted in a variety of
ways
Measure Dl from ratio of flux to Luminosity
7
Luminosities z
My luminosity is 1000
My luminosity is 100
My luminosity is 10
zz3
z0
zz2
zz1
How to measure luminosity?
Standard candles?
8
Hubble Diagram

• Not possible to find a class of fixed luminosity
  object
• Usually choose a class whose luminosity in the
  local Universe depends in a known way on a
  limited number of other parameters

• So measuring a1,etc. give L
• The stronger the correlation with a and smaller
  the dispersion the better

9
Hubble Diagram
Measurement of a reduces the spread in standard
candle luminosities, but a residual dispersion re
mains
Local calibration
L(a)
Uncertainty in L, knowing a
Uncertainty in L
s
10
What makes a good candle?

• Small range of luminosities
• High Luminosities
• Few calibration parameters
• Low dispersion of calibration relation
• Doesnt evolve

11
Hubble Diagram

• Cephid variables a is period
• Spiral galaxies a is rotational velocity
• Elliptical galaxies a is velocity dispersion
• Brightest Cluster Galaxy (BCG) a is cluster
  X-ray temperature
• Super Novae Ia a is time-constant of light curve

See. The Cosmological Distance Ladder
(Rowan-Robinson) or 5.3, 5.4 5.5 Cosmological
Physics Peacock
12
Supernovae Hubble Diagram
We will discuss this on Friday
13
Supernovae Hubble Diagram
We will discuss this on Friday
14
Number Counts
15
Euclidean Number Counts
Assume a class of objects with L which with a
sensitivity f are visible to a distance r
16
Euclidean Number Counts
17
Cosmological Number counts
Assume co-moving density is constant
Co-moving volume element (all-sky)
Co-moving volume
since we know
we can deduce N(f)
18
Cosmological Number counts
Number density of sources
Assume co-moving density is constant
Proper volume element
since we know
we can deduce N(f)
19
Measuring Number Counts
N (f2)
time since begin of Universe
N (f1)
20
Number Counts
Perform a surveys often at different deeper flux
limits
All matter-dominated, P0 models have
21
Olbers Paradox again

• Another statement of Olbers paradox says that
  the Sky should be infinitely bright as in an
  infinite Universe

(4p converts from surface brightness to flux over
whole sky, f max is brightest object in the sky)
True in a Euclidean Universe, but not in other
cosmological models with
22
Tolman Test
23
Surface Brightness
Surface brightness is flux per unit solid angle
Independent of cosmology!
24
Surface Brightness / Tolman Test
Gregory D. Wirth ltwirth_at_uvastro.phys.uvic.cagt Last
modified Sat Apr 19 131318 1997
25
Angular-Diameter Distance Test
26
Angular Diameter Distance Test

• Virtually identical to the Hubble diagram
• Except instead of flux the observed parameter is
  angular diameter of object
• Instead of luminosity the true quantity is
  length, so a standard rod rather than standard
  candle is required

27
What makes a good rod?

• Small range of sizes
• Sizes at frequencies that are observable with
  high resolution
• Large sizes!
• Few calibration parameters
• Low dispersion of calibration relation
• Doesnt evolve

28
Angular-Diameter Distance Test
29
Angular - Diameter test
30
Angular - Diameter Distance test
Using Clusters
31
Angular - Diameter Distance Test
Using Radio galaxies
32
Angular - Diameter Distance Test
Using Radio galaxies
33
Age of the Universe
34
Age of the Universe
Different models give different ages e.g. for
matter dominated
luckily
35
Age of the Universe
empty
half way between
critical

• Age can be measure by
• Age of globular clusters
• age of Universe gt age of stars
• Nuclear Cosmo-chronology
• Age of Universe gt age of chemicals

e.g. Peacock Chapter 5.
36
Cosmic Microwave Background and Nucleosynthesis
37
Nucleosynthesis
38
Summary

• Black-body CMBR and nucleosynthesis confirm big
  picture but dont constrain models
• Hubble Diagram assumes Luminosity of standard
  candle does not depend on redshift
• Number counts diagram assumes co-moving number
  density of sources is constant
• Angular-diameter distance assumes rods dont
  change length (plus large scatter)
• Age of the Universe assumes we can measure the
  age accurately
