Enterprise Java Beans

1

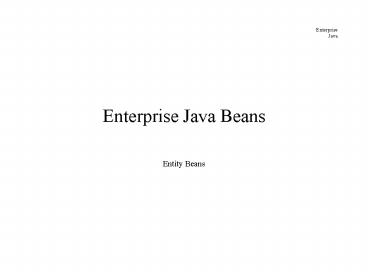

Enterprise Java Beans

• Entity Beans

2
Topics

• Entity Bean Overview
• Bean Managed Persistence
• Container Managed Persistence
• Weblogic Extensions
• Resources
• References

3
Enterprise Bean

• Component that can be deployed in any
  EJB-compliant application server
• Remote interface for its operations
• extends EJBObject
• Home Interface for create, find, and remove
• Bean Implementation
• implement SessionBean or EntityBean
• Required container lifecycle callbacks
• implement business methods

4
Bean Types

• Session Beans
• Represents business logic operations
• Teller and transfer()
• Stateless and Stateful
• Exist for lifetime of client session
• Entity Beans
• Represents persistent data in a database
• Exist indefinitely
• Bean-managed and Container-managed persistence

5
Container and Beans
Home Interface
Container
Pool
Home
Home Stub
create
Client
Remote Object Stub
EJBObject
Account Bean
transfer
Remote Interface
6
Entity Bean (from 1.1 spec)

• Provides an object view of data in the database
• Allows shared access from multiple users
• Can be long-lived (lives as long as the data in
  the database)
• The entity, its primary key, and its remote
  reference survive the crash of the EJB container

7
Entity Bean Support

• Optional in EJB 1.0
• Required in EJB 1.1

8
Bean Characteristics
9
Creating a Customer Entity Bean

• Create the Primary Key Class
• Create the Business Interface
• Create the Remote Object Interface
• Create the Home Interface
• Create the Bean Class
• Create the Deployment Descriptor

10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
PrimaryKey Class

• Two Objects are considered the same if they have
  the same Home and their PrimaryKey objects are
  equal
• PrimaryKey classes
• single primary keys can be mapped to existing
  classes (e.g. String)
• compound primary keys must be encapsulated by a
  custom class
• key values
• must be legal RMI-IIOP types
• must match in type and name with declaration in
  the bean class
• must be public
• class must implement a Default Constructor,
  hashCode() and equals() methods
• must be Serializable

15
Create the PrimaryKey Class

• public class CustomerPK implements
  java.io.Serializable
• public name
• public CustomerPK()
  //this
  one is required
• public CustomerPK(String name)
  this.name name //this on is convenient
• public int hashCode()
  return name.hashCode()
• public boolean equals(Object rhs)
• try
• return ((CustomerPK)rhs).name.equals(name
  )
• catch (Exception ex)
• return false

16
Business Interface

• Defines the business methods to be implemented by
  the Bean
• Is implemented by the Remote Object and Bean
  Classes
• Methods must declare throws java.rmi.RemoteExcept
  ion
• Arguments and return types must be legal RMI-IIOP
  types
• Does NOT extend java.rmi.Remote
• doing so makes the Bean Class a Remote Object
  (bad)
• Does NOT extend any EJB Interfaces
• doing so would limit its use to only that type of
  object

17
Create the Business Interface

• public interface CustomerBI
• public String getName() throws
  java.rmi.RemoteException
• public String getAddress() throws
  java.rmi.RemoteException

18
Remote Object Interface

• Must extend javax.ejb.EJBObject
• Extends Business Interface
• Define the Remote Object Interface
• public interface Customer extends
  javax.ejb.EJBRemote,
•
  CustomerBI

19
Home Interface

• Extends javax.ejb.EJBHome
• create() and create( args )
• creates row in database
• optional with entity beans
• must have matching create() and ejbCreate()
  methods in bean implementation if present
• find()
• findByPrimaryKey() is mandatory
• other finders can be implemented
• ex. Customer findByName(String name)
• ex. Collection findAllByLikeName(String name)
• EJB 1.0 find methods return java.util.Enumeration
• EJB 1.1 allows java.util.Enumeration and
  java.util.Collection

20
Create Home Interface

• public class CustomerHome extends
  javax.ejb.EJBHome
• Customer create(String name, String address)
• throws javax.ejb.CreateException,
  RmiException
• Customer findByPrimaryKey(Customer pkey)
• throws javax.ejb.FinderException,
  java.rmi.RemoteException
• javax.util.Collection findAllByLikeName(String
  name)
• throws javax.ejb.FinderException,
  java.rmi.RemoteException

21
Creation Example

• Context ic getInitialContext()
• CustomerHome ch (CustomerHome)
• javax.rmi.PortableRemoteObject.narrow(ic.lookup
  (CustomerHome),
•
  CustomerHome.class)
• Customer c ch.create(Dan, Pasadena )
• String name c.getName() // Dan
• // Can receive finderException or RemoteException
• c ch.findByPrimaryKey(new CustomerPK(Dan))
• name c.getName() // Dan
• javax.util.Collection customers
  ch.findAllByLikeName(D)
• //converted to D by finder method

22
Create the Bean Class

• public class CustomerBean implements
  javax.ejb.EntityBean,
•
  CustomerBI
• //these must be public in CMP implementations
• public String name
• public String address
• private javax.ejb.EntityContext entityCtx_
• //called after the bean is instantiated and
  prior to being placed in the bean pool
• public void setEntityContext(javax.ejb.EntityCo
  ntext ctx)
• entityCtx_ ctx //can now inspect the
  beans environment (ex. jndi)
• //called when the bean is removed from the
  bean pool and prior to leaving JVM
• public void unsetEntityContext() entityCtx_
  null

23
Implement the Bean Class Business Methods

• public getName()
• return name
• public getAddress()
• return address
• Real business methods can be much more complicated

24
Implement Bean ClassCreate/Remove Methods

• //called prior to creating the Remote Object and
  inserting into the database
• public CustomerPK ejbCreate(String name, String
  address)
• this.name name
• this.address address
• return null //per spec
• //called after associating with Remote Object and
  stored in database
• public void postCreate(String name, String
  address)
• //called before object dis-associated from Remote
  Object and removed from database
• public void ejbRemove()

25
Implement Bean ClassResource Management Methods

• //Called after associated with a
  RemoteObject/removed from the bean pool and
• // placed in the cache. Its not yet synchronized
  with database
• public void ejbActivate()
• //allocate any resources required for object
• //Called prior to dis-associating from
  RemoteObject/returning the instance back to
• // the bean pool and removing from cache. It has
  already been synchronized with
• // the database.
• Public void Passivate()
• //release any allocated resources

26
Implement Bean ClassDatabase Synchronization
Methods

• //Called at the start of a transaction, prior to
  the business method invocation
• public ejbLoad()
• //CMP - process public attributes that have
  been synchronized from the database
• //BMP - obtain database connection and
  manually synchronize from database
• //Called at the end of a transaction when
  container recognizes bean state change.
• // weblogic augments this behavior with an
  isDirty() inspector.
• public void ejbStore()
• //CMP - prepare public attributes for
  synchronization to the database
• //BMP - obtain database connection and
  manually synchronize to database

27
Implement Bean Class Finder Methods (BMP)

• //Container returns Customer Remote Object to
  client
• public CustomerPK ejbFindByPrimaryKey(CustomerPK
  key)
• throws FinderException
• // Perform database select statement to see if
  key.name is present
• // if present return primary key, else throw
  FinderException
• public javax.util.Collection ejbFindAllByLikeName(
  String name)
• // Perform database select statement to locate
  all like matches
• CMP finder methods are defined in the deployment
  descriptor and implemented by the Containers EJB
  compiler

28
Create Deployment Descriptor(ejb-jar.xml)

• Inc.//DTD Enterprise JavaBeans 1.1//EN'
  'http//java.sun.com/j2ee/dtds/ejb-jar_1_1.dtd'
• This component is used to track basic
  information about Customers.
• Customer Component

• ...

29
Define the Individual Beans

• This bean is used to track the individual
  state of each Customer.
• Customer Bean
• Customer

30
Define the Interface and Classes

• ejava.ejb.estore.CustomerHome
• ejava.ejb.estore.personnel.Customerote
• ejava.ejb.estore.CustomerBeanass
• Container

31
Define the PrimaryKey Class

• ejava.ejb.estore.CustomerPKm-key-class
• True

32
Define the Container ManagedFields (CMP)

• name

• address


33
Define Environment Properties

• This is a sample env
  entry.
• sample
• java.lang.Stringype
• Sample Environment
  Value

34
Define EJB References

35
Define Security Role ReferencesHard Coded into
the Bean Class

36
Define Resource ReferencesHard Coded into the
Bean Class

37
Define Security Roles

• Allowed read/write to
  obejcts
• Admin
• Allowed read-only access to
  objects
• User

38
Define Method Restrictions

• These are the writable
  methods.
• Admin
• Customer
• Home
• create
• java.lang.Stringam
• java.lang.Stringam

39
Define Method Restrictions

• These are the read-only
  methods
• Admin
• User
• Customer

40
Define Transaction Properties

• Customer
• Required

41
Define Client Jar File

• PersonnelClient.jar-jar

42
Entity Bean Resource Management

• Bean instances are managed by the container to
  conserve resources and increase performance
• pooling, caching
• Our CustomerBean must implement required
  lifecycle callbacks
• mimic CustomerHome create,find,remove
• implement EntityBean
• Cache
• Activation/Passivation

43
Database Synchronization

• As with all EJBs, only a single thread can be
  running within a bean instance
• Multiple entity bean instances can be created to
  represent same data in database
• Consistency ?
• ejbLoad() and ejbStore() are called to
  synchronize bean with underlying storage

44
State Management

• State synchronization methods
• ejbLoad
• ejbStore
• Resource Management methods
• ejbActivate
• ejbPassivate

45
Entity Bean Lifecycle

• Does Not Exist
• Just in the jar file. Before creation or after
  finalization
• Pooled
• Exists but does not represent any particular
  database entity i.e. not associated with an
  EJBObject
• service find() requests
• Ready
• assigned to an EJBObject
• can handle client request for specific PK

46
Lifecycle (Cont)

• Bean callback methods are invoked as the
  container moves the bean instance through these
  states
• Action required depends on entity bean type
• Container Managed Persistence (CMP)
• Bean Managed Persistence (BMP)

47
Entity Bean Types

• Bean can have total control over loading and
  storing from database
• Bean Managed Persistence (BMP)
• Container can take over this responsibility
• Container Managed Persistence (CMP)
• Specialized Implementations
• Toplink for relational databases
• CICS

48
Bean Managed Persistence

• BMP

49
Bean Managed Persistence (BMP)

• The CustomerBean used BMP
• implemented all database interaction
• create, remove, and find
• Have to do object-relational mapping
• Synchronize bean state with database when
  requested by container

50
Creation

• Container populates pool with unassociated bean
  implementations
• calls no-argument constructor
• sets entity context
• Client calls create on home
• create sent to bean impl. Populates attributes
  and inserts row in database
• EJBObject created for client

51
Creation (Cont)

• Bean implementation is associated with EJBObject
• ejbPostCreate() called on bean instance
• bean is now in the ready state
• Client invokes business method on EJBObject
• EJBObject manages security, transactions, etc.
• Call delegated to bean instance

52
(No Transcript)
53
Removal

• Client calls remove on Home or EJBObject
• Container manages security, transactions, etc.
• remove delegated to beans ejbRemove() method
• removes data from database
• bean moves to pooled state

54
(No Transcript)
55
State Synchronization

• When in the ready state, beans frequently need to
  be synchronized with the underlying data store
• typically at transactional boundaries
• ejbLoad() is called when bean state needs to
  re-read from database
• ejbStore() is called when bean state needs to be
  written to database

56
(No Transcript)
57
Load and Store

• ejbLoad
• Use EntityContext.getPrimaryKey()
• read attributes from database
• ejbStore
• write attributes to database
• Only occur when the bean is in the ready state
• Associated with an EJBObject/PrimaryKey

58
Activation and Passivation

• Beans can be moved to the pooled state
• Passivation
• A few bean instance can service many clients
• As a result of a remove() call
• Can transition from pooled to ready state
• create()
• find()
• activation()

59
(No Transcript)
60
Activation and Passivation

• When Passivated, bean should give up any
  resources held on behalf of the data represented
  by the Primary Key
• When Activated, bean can acquire and resources
  specific to the Primary Key

61
BMP Summary

• Have to handle all database interaction
• except transactions
• ejbLoad() and ejbStore() called when bean
  instance state must be synchronized with database
• ejbActivate() and ejbPassivate() called when bean
  is moved between the ready state and pooled state

62
Container Managed Persistence

• CMP

63
Container Managed Persistence CMP

• Controlled by deployment descriptor
• Create, find, and remove can be implemented by
  the container
• Container can synchronize bean state and the
  database for us
• Affects lifecycle operations
• Callbacks tell us something has occurred vs. you
  must do something now

64
CMP Creation

• Notification that instance is about to be created
  in database
• Simply need to set attributes
• public CustomerPK ejbCreate( String name, String
  address )
• this.name name
• this.address address
• return null

65
CMP Creation (Cont)

• ejbPostCreate( String name, String address )
• called after association with EJBObject
• EntityContext is now meaningful
• action is not required

66
(No Transcript)
67
CMP Remove

• Notification that client is removing the data for
  the associated Primary Key.
• Prepare for removal
• Container will actually remove the data from the
  database

68
(No Transcript)
69
State Synchronization

• Synchronize bean state with database
• Usually at transactional boundaries
• ejbLoad and ejbStore invoked by container
• CMP
• Informational message that container has either
• just loaded state from database
• is ready to store state to database
• Opportunity to pre or post-process attributes

70
(No Transcript)
71
Activation/Passivation

• Resource Management
• Called when bean is moved from ready state to
  pooled state.
• Disassociated with EJBObject/Primary Key
• Release/Acquire resources for specific entity

72
CMP Finders

• Declared in home interface
• Implementation can be automatically generated by
  the container

73
Define Weblogic CMP descriptor(weblogic-cmp-rdbms
-jar.xml)

• "-//BEA Systems, Inc.//DTD WebLogic 5.1.0 EJB
  RDBMS Persistence//EN"
• "http//www.beasus/com/weblogic-rdbms-persistence
  .dtd"
• demoPool
• ejbAccounts

74
Define Attribute Mapping

• name
• name
• address
• addr

75
Define Finder Methods

• findAllByLikeName

• java.lang.Stringam
• 0
• "" _at_0
  ""
• java.lang.Stringsion-type

76
CMP Summary

• Eliminates a lot of code, but capability is still
  limited
• less code means fewer bugs
• Problems
• persistence declaration not sufficiently
  standardized
• many containers can only map a bean to one table

77
Entity Bean Performance Issues
78
Performance Issues

• When could Entity Beans be expensive
• CMP performs eager database synchronization on
  each transaction
• BMP allows for lazy database synchronization
• Who should call the Entity Beans Remote methods
  ?
• Clients should call session bean operations that
  operate on persistent data
• Should you utilize entity beans at all ?
• Performance hit - all calls go through the
  container via the EJBObject
• Higher performance going directly to the
  databases vs. functionality of container

79
Weblogic Extensions
80
Weblogic Extensions (5.1)

• isDirty
• limits calls to ejbStore
• Read-only entity beans
• Do not support transactions
• Container can call ejbLoad at configurable time
  intervals
• Database is shared
• Must be false when clustering is enabled

81
Create Weblogic DelpoymentExtensions
(weblogic-ejb-jar.xml)

• Systems, Inc.//DTD WebLogic 5.1.0 EJB//EN'
  'http//www.bea.com/servers/wls510/dtd/weblogic-ej
  b-jar.dtd'
• Customer

82
Define Caching Properties

83
Define Persistence

• isDirtyfied-method-name
• Truey-updates-until-end-of-tx
• False-ejbload

84
Define Persistence (cont.)

• WebLogic_CMP_RDBMSntifier
• 5.1.0
• META-INF/weblogic-cmp-rdbms-jar
  .xml
• False

85
Define Persistence (cont.)

• WebLogic_CMP_RDBMSype-identifier
• 5.1.0

86
Define Clustering Properties

87
Define Generic Transaction Properties

88
Define Resource Reference Mapping

89
Define the JNDI Mapping for EJBHome

• Trueby-reference
• CustomerHome

90
Define Security Role Mappings

• Admin
• User

91
Entity Bean 1.1 Changes

• Now required to be EJB 1.1 compliant
• Entity Beans can not programmatically start
  transactions (via JTS)
• create() signature for BMP entity beans
• returns null instead of void
• find methods must throw FinderExceptions

92
Entity Bean Summary

• Models persistent state in database
• Facilitates declarative persistence
• BMP vs. CMP
• Performance implications
• wrap calls to entity beans with session beans

93
Resources

• Main EJB Page
• http//java.sun.com/products/ejb/

94
References

• Developing Java Enterprise Applications. Asbury,
  Weiner. Wiley. 1999
• Java Enterprise in a Nutshell. Flanagan et al.
  OReilly 1999
• Mastering Enterprise JavaBeans and the Java 2
  Platform, Enterprise Edition. Roman. Wiley. 1999
• EJB 1.1 Specification
• Java Report. Whats new in EJB 1.1?,
  Monson-Haefel. August 1999.
