Why Parallel Optics

1

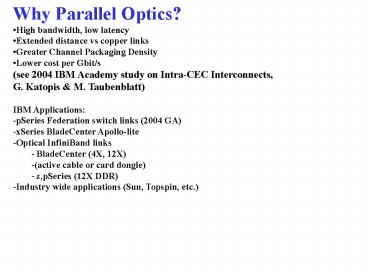

• Why Parallel Optics?
• High bandwidth, low latency
• Extended distance vs copper links
• Greater Channel Packaging Density
• Lower cost per Gbit/s
• (see 2004 IBM Academy study on Intra-CEC
  Interconnects,
• G. Katopis M. Taubenblatt)
• IBM Applications
• pSeries Federation switch links (2004 GA)
• xSeries BladeCenter Apollo-lite
• Optical InfiniBand links
• BladeCenter (4X, 12X)
• (active cable or card dongle)
• z,pSeries (12X DDR)
• Industry wide applications (Sun, Topspin, etc.)

2
Prediction of Component Failures in Enterprise
Server Parallel Optical Interconnects
Dr. Casimer DeCusatis and Rob Atkins IBM eServer
Hardware I/O
3
Prediction of Component Failures in Enterprise
Server Parallel Optical Interconnects
This version is for IBM internal use only.
4

• Overview
• Reliability of multi-channel devices is critical
  for both current and future eServer applications
• Conventional ESD signature fails
• Occur soon after manufacturing
• Tend to occur at the same position in the array
• Affect more than one laser element
• New failure mechanism recently discovered
• Latent damage, MTTF about 25-30 days
• Single laser fails, randomly distributed
• Related to manufacturing process, can be
  screened root cause analysis ongoing

5

• pSeries Federation Switch
• Optical Riser Card
• SNAP 12 Optics

• Two Transmitters per Riser Card

TX
Each TX contains an array of 12 Vertical Cavity
Surface Emitting Lasers (VCSELs)
6
Visual Inspection of VCSEL
7
Spreadsheet Excerpt
8
FA Measurements

• FA on 108 optical riser cards
• Multiple laser fails in one TX were not typically
  adjacent
• Pretty even distribution across array

9
Wafer mapping for some returned arrays
10
Spectral Analysis of remaining channels looked
normal
11
First Increase to Burn-In

• Due to considerable restriction of capacity in
  starting up Proposal A, elected Proposal B at
  first in April 2004.
• Optics Vendor later discovered that these
  calculations were inaccurate
• Current to lasers is limited at the module
  level, reducing the acceleration of the
  temperature.

12
TIVA

• Thermally Induced Voltage Alteration
• How TIVA Works
• Scanned optical beam with wavelength below the
  semiconductor bandgap locally heats integrated
  circuit (IC).
• Temperature rise in IC creates local changes in
  resistance.
• Constant current source supplies bias that
  results in voltage variation with resistance
  changes.
• Digital record of voltage versus scanner position
  produces TIVA image.

13
Failure Mechanism

• Failure Analysis to date indicates VCSEL damage
• Signature suggests ESD / EOS (Electrical Static
  Discharge / Electrical Overstress)
• Verified by Agilent via TIVA analysis

TIVA Analysis Channel 6
TIVA Analysis Channel 7
TIVA Analysis of channel 6. Leaky path at left
hand side along the edge of the aperture.
TIVA Analysis of channel 7. Leaky path at left
hand side along the edge of the aperture.
14
Final Burn-In / Screen Details

• Currently, infant failures observed at customers
  range from a max of 4 days to a max of
  approximately 85 days
• Optics vendor implemented extended module burn in
  at 100C-48H for detection on March 17th, 2004
• Due to the activation energy being unknown, to
  further increase the sensitivity of detection,
  optics vendor extended module burn based on the
  potential for the defect to have a lower
  activitation energy, resulting in burn-in to
  10/18 days.
• Stage 1 one module will be drawn from each
  production lot (max 8 modules per lot) for
  100C-10 days burn in (implementation date May
  26th). This will increase confidence in modules
  shipped in parallel
• Stage 2 implement 100 module burn in at 100C-10
  /18 day. Optics vendor ordered additional burn in
  ovens and burn in boards. By July 16th, 2004,
  optics vendor had adequate capacity for whole
  parallel product line.
• If failures are observed at 100C-10 days module
  burn in, modules will go for additional 8 days
  burn in. If there is any failure after 18 days
  burn in, the shipment will be on hold pending
  analysis and disposition
• To further improve screen / detection
  sensitivity, optics vendor implemented extended
  VCSEL burn in by doubling the current burn in
  time to 96H-100C-15mA (without impacting the end
  life) started May 21st, 2004.

15
Conclusions

• We observe ESD signature fails that appear to
  have been caused by events occurring early in the
  optics vendor manufacturing process
• ESD causes dislocations in VCSEL which grow with
  time when powered on, resulting in latent
  failures
• Extensive ESD audits done at optics vendor (and
  ECAT card manufacturer and IBM for good measure)
• No root cause found
• Overall, optics vendor had very good ESD
  processes. Identified a couple areas for
  improvement
• Screen put in place at final module burn-in at
  optics vendor - 10/18 days
• Caught a few ESD fails before process
  improvements in place
• Optics vendor process improvements were
  implemented. Have not seen an ESD fail from a
  part built after improvements were in place
