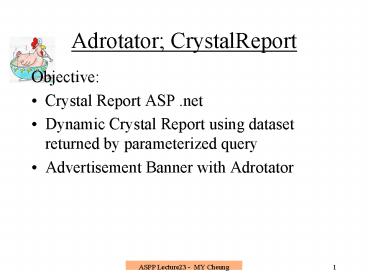

Adrotator CrystalReport

1
Adrotator CrystalReport

• Objective
• Crystal Report ASP .net
• Dynamic Crystal Report using dataset returned by
  parameterized query
• Advertisement Banner with Adrotator

2
Crystal Report (ASP)

• Steps to create a crystal report
• Add a Crystalreportview to webform
• Add a new item crystalreport and
• Configure and design the crystalreport tabs
• Connect the Crystalreportview to the
  Crystalreport

3
Crystal Report (ASP)

• Add a new item? Choose Crystal Report
• Choose Report Expert.
• Configure as follows

4
Crystal Report

• Data Choose OLE DB (ADO) ? Jet 4.0 _? Choose
  the Database.

5
Crystal Report Example

• Data
• Insert Tables-
• Choose Category
• Course

6
Crystal Report Example

• Link (leave as default) click next
• Fields Choose the fields from the 2 tables

7
CR - Group

• Group report grouped in sections
• Grouped by CategoryCode in ascending order

8
CR - Total

• Total Choose Capacity and Fee, select
• summary type Sum

9
CR Chart

• Chart Click Data-Tab to choose chart placement
  Header or Footer.

10
Adding Formula fields

• In Field-explorer, Rightclick Formulae Field
  choose New to add a calculated field Here we
  choose courseFee .9

11
CR Formula Fields

• To re-enter the Report-Expert rightclick the
  empty space in detail section of report.
• Drag the DiscountFee field onto the
  Details-section of report-designer.

12
Connecting Crystalreportviewer

• Connecting Crystalreportviewer to Crystal report
  in the program.
• In page_load sub
• CrystalReportViewer1.ReportSource
  Server.MapPath("CrystalReport1.rpt")
• If Not Page.IsPostBack Then
• Me.CrystalReportViewer1.DataBind()
• End If

13
Moving Web-Crystal report(CR)

• When you move webapplications with crystal
  report. You need to reconnect the database for
  both the webapplication and crystal report
  separately. To reconnect the database for CR
• Rightclick Database Field and
• Choose Set Location. Create
• new connection and
• choose Replace.
• (replacing the old
• database)

14
Dynamic Crystal Report

• To create dynamically generated CR, you need to
  connect the CR to dataset with parameterized
  query. Use Project Data dscourse -Course

15
Dynamic Crystal Report

• Design the other CR designer Tabs as before. But
  choose all fields from dscourse.
• Modify your webform dataadapter (dbcourse) by
  adding parameterized select statement. E.g.
• select from course where (catcode ?)

16
Dynamic CR - SetDataSource

• Create a dataadapter with parameterized query
• Fill the dataset using the dataadapter
• dbCourse.SelectCommand.Parameters(0).Value
  _ "SPORTS"
• dbCourse.Fill(Me.DsCourse1)
• Dynamically set the datasource of your CR
  (objreport) to the dataset e.g.
• Dim objreport As New CrystalReport2
• objreport.SetDataSource(Me.DsCourse1)
• CrystalReportViewer1.ReportSource objreport

17
Adrotator

• Advertisement banner can be accomplished using
  the control Adrotator.
• Set the Adrotator.Advertisementfile
  XMLfile1.xml
• The Advert-xml-file contains
• The ImageURL -
• ltImageUrlgtParadise.jpglt/ImageUrlgt
• The NavigateURL to redirect page
• ltNavigateUrlgthttp//www.paradiselost.co.uk/lt/Navi
  gateUrlgt
• lt!-- The alternate text for the image --gt
• ltAlternateTextgtVisit Microsoft's
  Sitelt/AlternateTextgt

18
Adrotator Example
lt?xml version"1.0" encoding"utf-8" ?gt
ltAdvertisementsgt ltAdgt lt!-- The URL for the ad
image --gt ltImageUrlgtParadise.jpglt/ImageUrlgt lt!
-- The URL the ad redirects the user to
--gt ltNavigateUrlgthttp//www.paradiselost.co.uk/lt
/NavigateUrlgt lt!-- The alternate text for the
image --gt ltAlternateTextgtVisit Microsoft's
Sitelt/AlternateTextgt lt!-- The relative number
of times this ad should appear --gt lt!--
compared to the others --gt ltImpressionsgt80lt/Impr
essionsgt lt!-- The topic of this ad (used for
filtering) --gt ltKeywordgtProductInfolt/Keywordgt lt
/Adgt ltAdgt lt/Adgt
