PRELIMINARIES

1

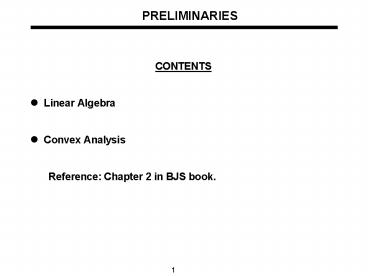

PRELIMINARIES

• CONTENTS
• Linear Algebra
• Convex Analysis
• Reference Chapter 2 in BJS book.

2
Vectors

• Row or Column Vector
• An n vector is a row or column array of n
  numbers. Each n vector can be represented by a
  point or by a line from the origin to the point,
  with an arrowhead at the end point of the line.
•
• Zero Vector
•
• A vector whose every element is zero.
• ith Unit Vector
•
• A vector whose every element is zero except the
  ith element which is 1.
• Sum Vector
• The vector with all elements equal to 1. Denoted
  by 1.

3
Vector Operations

• Addition of two vectors
• a1 (a11, a12, a13, . , a1n)
•
• a2 (a21, a22, a23, . , a2n)
• a1 a2 (a11 a21, a12 a22, a13 a23, . ,
  a1n a2n)
• Scalar multiplication
•
• a (a1, a2, a3, . , an)
• ka (ka1, ka2, ka3, . , kan)
• Inner product (scalar product)
•   a (a1, a2, a3, . , an)
• b (b1, b2, b3, . , bn)

4
Vector Operations (contd.)

• Norm of a vector
• Various norms (measures of size) of a vector can
  be used.
• lp norm of a vector a
• Euclidean norm (l2 norm)
• Euclidean space
• An n-dimensional Euclidean space, denoted by En,
  is the collection of all vectors of dimension n

5
Linear and Affine Combinations

• A vector b in En is said to be a linear
  combination of a1, a2, , ak in En, if
• (i) b
• (ii) ?1, ?2, , ?k are real numbers.
• A linear combination is said to be an affine
  combination if

6
Linear and Affine Subspaces

• A linear subspace SL of En is a subset of En such
  that if a1 and a2 ? SL, then every linear
  combination of a1 and a2 belongs to SL.
• An affine subspace SA of En is a subset of En
  such that if a1 and a2 ? SA, then every affine
  combination of a1 and a2 belongs to SA.

7
Linear Independence

• A collection of vectors a1, a2, , ak of
  dimension n is called linearly independent if
• 0 implies that lj 0 for j 1, 2, , k
• A collection of vectors a1, a2, , ak of
  dimension n is called linearly dependent if there
  exist lj for j 1, 2, , k, not all zero such
  that
• 0

8
Spanning Set

• Spanning Set A collection of vectors a1, a2, ,
  ak in En is said to span En if any vector in En
  can be represented as a linear combination of a1,
  a2, , ak.
• In other words, given any vector b in En, we must
  be able to find scalars l1, l2, , lk such that
  b Sj1,k ljaj.

9
Basis

• Basis A collection of vectors forms a basis of
  En if the following conditions hold
• a1, a2, , ak span En.
• If any of the vectors is removed, the
  remaining collection does not span En.
• Question
• If we have a basis of En, what is the condition
  that will guarantee that if a vector of the
  basis, say aj, is replaced by another vector, say
  ap, then the new set of vectors still forms a
  basis?

10
Matrices

• A matrix is any rectangular array of numbers.
  The number in the ith row and jth column of a
  matrix A is called the ijth element of A and is
  denoted by aij.
•
• A typical mxn matrix
• "mxn" is called the order of the matrix.
• Equality of Matrices Two matrices A aij and
  B bij are said to be equal if and only if A
  and B are of the same order and aij bij for all
  i and all j.

11
Matrix Operations

• Scalar Multiple of a Matrix
• Addition of Two Matrices

12
Transpose of a Matrix

• Transpose of a matrix A is denoted by AT.

13
Matrix Operations (contd.)

• The matrix product C A B of an mxr matrix and
  rxn matrix B is the mxn matrix C defined as
  follows
•
• ijth element of C scalar product of row i of A
  and column j of B

14
Special Matrices

• Zero Matrix
• An nx m matrix is called a zero matrix if each
  entry in the matrix is zero.
• Square Matrix
• A matrix for which m n.
• Identity Matrix In
• An nxn square matrix for which aij 1 if i j,
  and aij 0 if i?j.
• Triangular Matrix
• A square nxn matrix is called an upper triangular
  matrix if all the entries below the diagonal are
  zeros. Similarly, a square matrix is called a
  lower triangular matrix if all elements above the
  diagonal are zeros.

15
Systems of Linear Equations

• A linear system of m equations in n variables is
•
•
• A solution to a system of m equations in n
  unknowns is a set of all possible values for the
  unknowns x that satisfies each of the system's m
  equations.

16
Matrix Representation of a System of Equations
The above system of equations can be represented
as   Ax b,   where
17
Solving Systems of Linear Equations

• We will describe the Gauss-Jordan method for
  solving a system of linear equations. Using this
  method, we show that any system of linear
  equations must satisfy one of the following three
  cases
•
• Case 1 The system has no solution.
•
• Case 2 The system has a unique solution.
•
• Case 3 The system has an infinite number of
  solutions.
•
• The Gauss-Jordan method proceeds by performing
  three types of elementary row operations (ero).

18
Type 1 ero

• This ero transforms a given matrix A into a new
  matrix A' by multiplying a row of A by a nonzero
  scalar.
• Example A'3A

19
Type 2 ero

• Multiply row i of A by a number c ? 0 and add to
  some row j ? i
•
• row j of A' c(row i of A) (row j of A)
•
•
• Multiply row 2 of A by 4 and add to row 3.

20
Type 3 ero

• Interchange any two rows of A. For example,
  interchanging rows 1 and 3 of A, we obtain

21
Gauss Jordan Method

• This method solves a system of linear equations
  by utilizing ero's in a systematic fashion. We
  illustrate the method using the following linear
  system
•
• 2x1 2x2 x3 9
• 2x1 - x2 2x3 6
• x1 - x2 2x3 5
• The augmented matrix representation of the above
  system

22
Gauss Jordan Method (contd.)

• By performing a sequence of ero's we can
  transform the above system to
• This system has a unique solution x1 1, x2 2
  and x3 3.
• We transform the system column by column,
  starting at the first column and going up to the
  last column.

23
Gauss Jordan Method (contd.)
24
When Do We Need Type 3 ero?

• When the diagonal element is zero.

25
System With No Solution
x1 2x2 3 2x1 4x2 4       The
above system has no solution.   RESULT If we
apply the Gauss-Jordan method to a linear system
and obtain a row of the form 0 0 ..... 0
c where c ? 0, then the original linear system
has no solution.
26
System with Infinite Solutions
x1 x2 1 x2 x3
3 x1 2x2 x3 4 x1
- x3 -2 x2
x3 3
27
Inverse of a Matrix
For a given mxm matrix A, the mxm matrix B is the
inverse of A if   BA AB Im.   The inverse
matrix, if it exists, is unique. We denote the
inverse of the matrix A by A-1.   If A has an
inverse, A is called nonsingular otherwise it is
called singular.   Given an mxm matrix A, it has
an inverse if and only if the rows of A are
linearly independent or, equivalently, if the
columns of A are linearly independent.
28
Calculation of the Inverse (contd.)
The inverse matrix, if it exists, can be obtained
through a finite number of eros. The elementary
row operations that reduce A to the identity
matrix, also reduce (A, I) to (I, A-1)
29
Example 1 (A-1 Exists)
Consider the matrix A. Construct A, I
30
Example 1 (A-1 Exists)
Divide the first row by 2. Add the new first row
to the second row and subtract it from the third
row.
31
Example 1 (A-1 Exists) (contd.)
Multiply the second row by 2/5. Multiply the new
second row to the second row by 1/2 and add to
the first row. Multiply the new second row by 3/2
and add to the third row.
32
Example 1 (A-1 Exists) (contd.)
Multiply the third row by 5/12. Multiply the new
third row by 3/5 and add to the second row.
Multiply the new third row by 1/5 and add to the
first row.
33
Example 1 (A-1 Exists)
Therefore, the inverse of A exists and is given
by
34
Example 1 (A-1 Does Not Exists)
Consider the matrix A. Construct A, I
35
Example 1 (A-1 Does Not Exists)
Multiply the first row by 2 and add to the
second row. Multiply the first row by 1 and add
to the third row.
36
Example 1 (A-1 Does Not Exists)
Multiply the second row by 1/3. Then multiply
the new second row by 1 and add to the first
row. Multiply the new second row by 1 and add to
the third row.
There is no way that the left-hand side matrix
can be transformed into the identity matrix by
elementary row operations, hence the matrix A has
no inverse.
37
Properties of the Inverse Matrix

• If A is nonsingular, then At is also nonsingular
  and (At)-1 (A-1)t.
• If A and B are both n x n nonsingular matrices,
  then AB is
• nonsingular and (AB)-1 B-1A-1.
• A matrix A is nonsingular if and only if its
  determinant (det(A)) is nonzero.
• A triangular matrix (either lower or upper
  triangular) with nonzero diagonal elements has an
  inverse. This can be easily established by noting
  that such a matrix can be reduced to the identity
  by a finite number of elementary row operations.
  In particular, let D diag d1,..,dn be a
  diagonal matrix with diagonal elements d1,.,dn
  and all other elements being zero. If d1,.,dn
  are all nonzero,then D-1 diag 1/d1,..,1/dn.

38
Rank of a Matrix
Let A be an mxn matrix. The row rank of the
matrix is equal to the maximum number of linearly
independent rows of A. The column rank of A is
the maximum number of linear independent columns
of A. The row rank of A is always equal to its
column rank.
39
Rank of a Matrix (contd.)
How to determine the rank of a matrix?
40
Rank of a Matrix (contd.)
rank (A) ? minimum (n,m) If rank (A) minimum
(n,m), then A is said to be of full rank.
The rank of A is k if and only if A can be
reduced by performing eros to
41
Convex and Strict Convex Combinations
For any two points x1 and x2 in X, any point
?x1 (1- ?)x2 with 0 ? ? ? 1, is called a
convex combination of x1 and x2. A strict
convex combination of x1 and x2 is any point
?x1 (1- ?)x2 with 0 lt ? lt 1.
42
Convex Functions
A function f(x) is said to be a convex function
if the following inequality holds for any two
vectors x1 and x2 f(?x1 (1 - ?)x2) ? ?f(x1)
(1- ?)f(x2) for all 0 ? ? ? 1 Loosely
speaking, a function is a convex function if the
line joining any two points is an overestimate of
the function. Which of the following functions
are convex functions?
x2
x2
x2
x1
x1
x1
43
Concave Functions
A function f(x) is said to be a concave function
if the following inequality holds for any two
vectors x1 and x2 f(?x1 (1 - ?)x2) ? ?f(x1)
(1- ?)f(x2) for all 0 ? ? ? 1 Loosely
speaking, a function is a concave function if the
line joining any two points is an underestimate
of the function. Which of the following
functions are concave functions?
x2
x2
x2
x1
x1
x1
44
Convex Sets

• A set of points S is a convex set if the line
  segment joining any pair of points in S is wholly
  contained in S.
• A set S is a convex set if every convex
  combination of any two points in the set is also
  in the set. That is,
• If x1 Î S and x2 Î S,
• then lx1 (1-l)x2 Î S for every 0 ? l ? 1

45
Extreme Points
A point x in a convex set X is called an extreme
point of X if and only if x cannot be represented
as a strict convex combination of two distinct
points in X. Give the extreme points of the
following sets
