Title: Intro


1

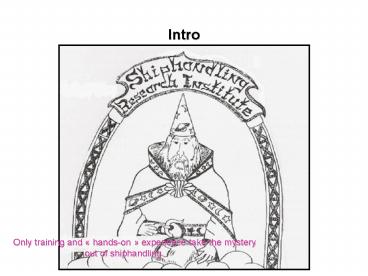

Intro
Only training and  hands-on  experience take
the mystery out of
shiphandling
2
Intro
  • Manoeuvring characteristics of ships
  •  Course keeping ability  and  Dynamic
    stability
  • Dynamically stable ship after small disturbance
    move along a new straight course without using
    rudder
  • Dynamically unstable ship performs turning circle
    with rudder amidships
  • Dynamically unstable ships are more difficult to
    handle
  •  Turning ability
  • Measure of ability to turn the ship with
    hard-over rudder
  • Obtained by performing a  turning circle
    manuvre
  •  Initial turning ability  is defined by the
    amount of heading deviation per unit of distance
    travelled

3
Intro / Dynamic stability
4
Intro/ Dynamic stability
  • Dynamically stable
  • - Fine line ships (cargoships, containerships,
    passengerships) tend to be directionally stable
  • directionally stable ship will move on a straight
    course if rudder is kept amidships
  • When during a turn, rudder is put amidships rate
    of turn reduce to zero and vessel continues on
    straight course
  • Directionally unstable
  • ship deviates with the smallest disturbing cause
  • If rudder put amidships during turn reduction of
    rate of turn but vessel keeps turning on a track
    with larger diameter

5
Turning Ability
6
Intro / Inertia - Momentum
7
Intro / Inertia - Momentum
8
Intro / Inertia - Momentum
9
Intro / Inertia - Momentum
10
Intro / Qualities of a good shiphandler
  • Patience
  • Anticipation be  proactive
  • instead of  reactive
  • Quietness
  • Experience
  • Steadfastness
  • Concentration
  • Knowledge / Know-how
  • The  Art  of shiphandling

11
You will see Fast captains, You will
see Old captains, Very seldom will You
see Old and fast Captains
12
Chapter One

  • Various factors
  • influencing the manoeuvring of the
    ship

13
Ch1. Effect of Fixed Factors on shiphandling
  • Fixed factors of the ship
  • Design and dimensions of the ship
  • Propulsion unit
  • Propellers
  • Rudders

14
Ch1. Effect of Variable Factors on shiphandling
  • Variable factors inherent to the ship
  • - Draft
  • Trim
  • Displacement
  • Fouling
  • Variable factors outside ship
  • Wind, Sea, Swell
  • Current
  • Interaction Depth of water / Shallow waters
  • Interaction Proximity of other ships

15
Ch1. Factors influencing the shiphandling
  • Size of the ship
  • Ships are designed to make speed , not to stop
  • Engine power does not increase in proportion to
    ships size
  • Large ships
  • Difficult to judge speed from the bridge
  • When swinging in port large swinging room
    required
  • Estimation of distances to berth difficult
  • Bridge is isolated from forecastle or poop
  • Large ship causes more damage when colliding with
    berth

16
Ch1. Factors influencing the shiphandling
  • What is a large ship?
  • In 1952 biggest tanker in the world was 45000DWT
  • Lenght is a more relevant criterion than tonnage
  • Below 100m small ship
  • Longer than 200m large ship
  • Between medium size
  • Size of ship versus available space gives degree
    of difficulty
  • For small ports 5000DWT ship is big
  • A 5000 DWT ship does not present same problems of
    dimensions, mass, inertia and momentum as a
    50.000DWT.

17
Ch1. Design of ship / Bridge amidships
Bridge amidships Advantages Shiphandler near the
pivoting point when swinging Best position in a
small ship Close to forecastle and poop / visual
communication Good indication of rate of
swing Disadvantages On large vessels each
end far from the bridge
18
Ch1. Design of the ship / Bridge forward
Bridge forward Advantages Shiphandler has
excellent view of berth on arrival Close to
anchor when anchoring / easy communication with
anchor party Close to entrance of locks good
visual communication with the
shore Disadvantages Difficult to assess the
ships heading without looking aft From the
wings objects on one bow may appear on the other
19
Ch1. Design of the ship / Bridge after
Bridge after Advantages Easy to judge rate of
swing / start and end of swing All ship is seen
when looking ahead / ships heading visualized If
bridge is near stern astern clearance easy to
assess Disadvantages Shiphandler far from
forecastle visual communication impossible when
mooring, anchoring, approaching lock or
berth Difficult to select precise spot for
anchoring Vessel passing ahead from bridge may
still collide with foredeck With restricted
visibility
20
Ch1. Design of the ship
  • Ratio Lenght/Breadth (L/B)
  • Big L/B bad turning / good course keeping
    (dynamically stable ship) / good speed
  • Ratio Lenght/Draft (L/D)
  • Big L/D bad dynamical stability (example
    bulkcarrier or tanker in ballast)
  • Ratio Block coefficient (Cb V/LBT)
  • Big Cb bad dynamical stability, easy turning

21
Ch1. Effect of ship parameters on manoeuvring
perf.
Good turning
Bad Bad
course keeping ability Good

22
Ch1. Effect of the bulb on performance
Reduce the water resistance Increase of speed
one knot / depending on draft/trim Consumption
reduced Better course keeping ability Worse
turning ability
23
Ch1. Vorm achtersteven / Forme de la poupe
Design of the stern influences the flow of the
water striking the propeller and the rudder
24
Ch1. Design of the Hull
New hulls are designed to improve the quantity of
water passing through the propeller/rudder area.
25
Ch1. Design of the Hull
26
Ch1. Propulsion of the Ship / Diesel motor
  • Manoeuvrability is function of type of propulsion
  • Most common diesel engine fixed pitch
    propeller
  • Ship is called m/s (for motorship) or m/v
    (for motor vessel)
  • advantages
  • Can be instantly stopped
  • Can be quickly reverted
  • During a stop manuvre engines can be stopped at
    the moment that the ship is stopped / propulsion
    ceases immediately.
  • Can be quickly accelerated for emergency or kick
    ahead
  • Disadvantages
  • Compressed air quantity limited / Nof
    cons.starts.
  • Big engines cannot run slowly / deadslow 9 or
    10knots
  • Difficult to start astern when speed ahead to
    high

27
Ch1. Propulsion of the Ship / Diesel motor
28
Ch1. Propulsion of the Ship / Steam turbine
  • Second most common Steam turbine. Ship is called
    s/s for steamship.
  • Disadvantages
  • Stern power only 40 to 50 of ahead power
    (smaller turbine used for astern)
  • Problems to stop the vessel mostly in emergency
  • Turbines can keep turning slowly ahead when
    supposed stopped.

29
Ch1. Propulsion of the Ship / Steam turbine
30
Ch1. Propellers
  • Fixed right handed propeller
  • Variable pitch propellers
  • Twin propellers
  • Outturning
  • Inturning
  • Kort Nozzle
  • Azimuth stern drive (ASD)
  • Voith Schneider

31
Ch1. Variable Pitch propeller
32
Ch1. Kort Nozzle / Tuyère Kort
33
Ch1. Propulsion  Voith Schneider
34
Ch1. Rudders
35
Ch1. Effect of Variable Factors on shiphandling
  • Variable factors inherent to the ship
  • - Draft
  • Trim
  • Displacement
  • Fouling

36
Ch1. Effect of Draft / Fully loaded ULCC
Difficult to stop and to bring in a turn
37
Ch1. Effect of draft / Ship in ballast
Ship heavily affected by wind
38
Ch1. Effect of Trim
  • Trim by the head
  • will turn into the wind
  • difficult to steer
  • rudder and propeller come out of the water when
    ship is pitching

Trim by the stern vessel tends to fall off
with side wind
39
Ch1. Fouling / Salissure de coque
40
Ch1. Effect of Fixed Factors on shiphandling
  • Variable factors outside ship
  • Wind, Sea, Swell
  • Current
  • Interaction Depth of water / Shallow waters
  • Interaction Proximity of other ships

41
Ch1. Effect of the wind
Loefgierig schip
Lijgierig schip
42
Ch1. Effect of waves on the ship
The stability of the ship is affected by stern
waves
43
(No Transcript)
44
(No Transcript)
45
Ch1. Effect of current
46
Ch1. Effect of current
47
Ch1. Interaction between ship and shore
Closeness of obstacles like shore, berth, etc
will modify the pressure fields around the ship
and provoke changes of heading, uncontrollable
swings, due to suction and repulsion forces.
48
Ch1. Interaction between ships
Close quarters
49
Ch1. Interaction between ships
  • Overtaking ships

50
Ch1. Interaction between ship and assisting
tugboat
  • The tug is affected by the closeness of the ship
  • Dangerous position when close to the bow

51
Ch1. Comparison between ratios mass/power
  • Airplane 4 to 6 kg/Pk
  • Car 25 kg/Pk
  • Coaster 50 kg/Pk
  • Sea ship 2000 to 3000 kg/Pk
