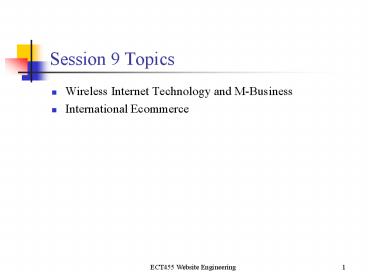

Session 9 Topics

1
Session 9 Topics

• Wireless Internet Technology and M-Business
• International Ecommerce

2
Wireless Technology Mobile Ecommerce

• Wireless technology turns e-business into mobile
  ecommerce and, ultimately, m-business, or mobile
  e-business
• M-commerce is defined as the ability to purchase
  good anywhere through a wireless Internet-enabled
  device.  Primary mobile communication exists
  through web-enabled wireless phones.
• Current applications
• Conduct online transactions
• Make purchases
• Trade stocks
• Send e-mail
• Future applications
• A wireless office, where computers, phones and
  other office equipment are all networked without
  cables

3
Wireless Technology and Devices

• Wireless development
• First-generation wireless technology was the
  cellular phone
• Second generation wireless technology, which
  includes digital cellular phones, is currently in
  use worldwide
• Third generation, or 3G technology will enable
  wireless devices to send and receive data as much
  as seven times faster than a standard 56K modem
• Wireless devices
• Personal digital assistants (PDAs), Palm OS
• Digital cellular phones (WAP Phones)
• Two-way pagers (RIM)
• MS Windows CE/Pocket PC

4
Wireless Internet Access

• Code Division Multiple Access (CDMA)
• Each transmission is assigned a specific channel,
  giving the transmission the benefit of the entire
  bandwidth within that channel and reducing the
  possibility that a connection will be broken
• Able to assign each transmission on the network a
  unique code to ensure security
• Global System for Mobile Communications (GSM)
• Uses Time Division Multiple Access (TDMA) which
  takes multiple calls and assigns each call to a
  different time slot on the same radio frequency,
  eg. Short message service (SMS)

5
Wireless Internet Access

• 3G technologies high speed Internet access,
  email, streaming audio and video
• EDGE (ATT, Nokia)
• Cdma2000 (Sprint PCS)
• W-CDMA (NTT DoCoMo)
• International Telecommunications Union (ITU)
• Establishes guidelines for 3G

6
Wireless Hype Cycle
Source Gartner
7
Wireless Web Technology

• Three technologies are used to provide Web access
  to wireless devices
• Wireless Application Protocol (WAP)
• Palm OS --Web clipping
• Microsofts Pocket Internet Explorer

8
PDA and Web Clipping

• Web clipping
• Allows users to take relevant pieces of a Web
  site and deliver it to a wireless device,
  eliminating excess content and graphics
• Proxy server
• Lies between client (such as a Web browser) and
  Web server
• Query is received by a proxy server controlled by
  the wireless ISP
• Proxy server goes to the Web site and clips the
  necessary data
• The proxy server transmits the data back to your
  wireless device
• If the proxy server does not have the
  information, it passes the request to the regular
  server
• Query Application Builder (QAB)
• Web designers build (PQAs) to be installed on
  users Palm handheld computers

9
WAP

• Wireless Application Protocol (WAP)
• Developed by Nokia, Ericsson, Motorola, etc.
• A set of communication protocols designed to
  enable different kinds of wireless devices to
  communicate and access the Internet
• Designed to standardize development across
  different wireless technologies worldwide
• Intended primarily for Internet-enabled digital
  phones, pagers and other handheld devices
• Uses Web sites specifically designed for wireless
  handheld devices that have small screens and
  low-bandwidth constraints

10
WML

• Wireless Markup Language (WML)
• The scripting language used to create Web content
  to be delivered to wireless handheld devices,
  based on XML
• Removes unnecessary content from Web pages
• WML tags are used to mark up a Web page to
  specify how the page should be formatted on a
  wireless device
• WML works with the WAP to deliver the content
• Similar to HTML, but it does not require input
  devices
• Microbrowsers
• Designed with limited bandwidth and limited
  memory requirements
• Access the Web via the wireless Internet

11
WAP and WML

• How wireless Internet works
• A WAP gateway, which acts as a proxy server,
  receives the request, translates it and sends it
  to the appropriate Internet server
• Server responds by sending the requested WML
  document
• The WAP gateway parses this document's WML (i.e.,
  it analyzes the WML document, checking it for
  correctness) and sends the proper text to the
  digital phone
• Deck
• A WML document
• Card
• Consists of one user interaction, providing the
  WML browser with a small, self-contained document
  for browsing

12
Software Appliances for Wireless Devices

• No widely accepted standard for wireless
  development
• Developers are often required to develop multiple
  applications
• Microsoft Pocket Internet Explorer
• Reformats complete Web pages as they are
  downloaded from the Internet for display on the
  Pocket PC
• Allows Pocket PC users to access most of the
  content currently available on the Web and
  eliminates the need to tailor Web content for
  delivery to handheld devices

13
Wireless Local Area Networks

• Easier to install and maintain without disrupting
  an office or without having to install a new a
  new network connection in each location
• Technologies
• Radio Frequency WLANs (RF WLANs) Used to network
  devices at a distance
• Laser technology
• Infrared technology
• Bluetooth
• Wi-Fi 802.11x

14
Wireless Communications

• Wireless communications can be unreliable and
  slow, wireless-device bandwidth is about one
  fifth of the capabilities of a standard dial-up
  connection
• General packet radio services (GPRS)
• Enables devices to transmit data at speeds of up
  to 114 kbps
• Universal mobile telecommunications standard
  (UMTS)
• Will offer transfer speeds of up to 2 Mbps for
  wireless devices
• Smart phones
• Mobile phones that send and receive both voice
  and data messages
• Used to securely send and receive secure mobile
  transactions

15
The Carriers Rule!

• Rollout of wireless Internet services depends on
  the carriers
• They own the bandwidth licenses
• Competing standards, esp. in the US
• Investment in infrastructure
• Global and nationwide coverage
• Auctions for new bandwidth
• Competition
• Cooperation
• Contrast the situations in Europe, Japan and the
  US.

16
Future of Wireless Internet

• Decreasing cost and size of wireless phones and
  mobile devices
• Improving technology
• Increasing number of devices made wireless
• Increased venture capitalist interest in wireless
  technology

17
Ultimate Wireless Device

• Combination of all features of a mobile phone,
  PDA and two-way pager
• Camera for video telephony and photography
• Make calls from anywhere in the world
• Send and receive e-mail in real-time, without
  having to dial into a service provider
• Maintain your address book, schedules, to-do
  lists, etc.
• Built-in GPS System

18
Transforming the PC-based Web

• Sites must be rearchitected
• Mapping (UAL)
• New business models needed
• Location-based services
• Push vs. Pull
• CRM customer knowledge/preferences
• Device ubiquity
• Interaction b/w voice and data

19
http//www.united.com/page/middlepage/0,1454,66,00
.html
20
Content Adaptation for Mobile Web
Short for compact HTML, a subset of HTML for
small information devices, such as smart phones
and PDAs. cHTML is essentially a pared down
version of regular HTML over the Internet.
Zhou Chan, 2003
21
Tasks with Added Mobile Values

• Time-critical needs and arrangements,
• Spontaneous needs and decisions, such as
  auctions, email, and news,
• Entertainment needs,
• Efficiency needs and ambitions,
• Mobility related needs.
• Source Anckar DIncau, 2002.

22
Wireless Usability Research

• Avoid scrolling,
• Use a flat hierarchy,
• Design a navigation system consistent with a
  regular Web browser,
• Design a back button,
• Provide a history list,
• Provide an indication of signal strength,
• Reduce users memory load, and
• Limit the search scope to improve search
  efficiency.
• Chan et al., 2002.

23
M-commerce Contrasts with Traditional Ecommerce

• Compare to traditional web
• Smaller screens
• Low bandwidth
• Monochrome vs. Color
• Character vs. Bit modes
• Font control
• Limited local memory
• Limited data entry capabilities
• Mini browser features
• Phones vs. PDAs vs. new form factors

24
M-commerce Strengths

• Innovation is a key technologically savvy people
  will continue to develop and improve wireless
  devices for consumers needs globally.
• M-commerce will provide access to web-based
  solutions from virtually every location in the
  world.
• "Methods of mobile payments will create 25
  billion worth of trade by 2006 says a study from
  Frost Sullivan.

25
M-commerce Weaknesses

• History tells us tech companies are far too eager
  to proclaim a revolution. However, history shows
  that a huge new market does not just show up
  overnight.
• It takes years for consumers to catch on to a new
  technological development.
• Tech companies entering into the market have no
  idea what kind of business model they should
  follow.
• Is a consumer really going to pick up their cell
  phone and want to hear a commercial advertising
  Pepsi?
• Wireless Application  Protocol (WAP) is required
  with all web-enabled wireless devices but it has
  several significant limitations.
• Adoption of m-commerce cannot justify the costs
  that go into producing web-enabled wireless
  devices.

26
Obstacles for m-Business Adoption

• One of the challenges is to discover just how
  consumers might be inclined to use wireless
  devices for shopping.
• Wireless service is not universally available or
  reliable and still relatively expensive.
• Limited bandwidth restricts the amount of data
  that can be sent over the wireless network.
• Wireless devices have significantly smaller
  memory capacity and less powerful processors than
  desktop computers.
• Application development and security standards
  still evolving.

27
M-commerce B2B Services

• Industry vertical applications
• Deliveries (UPS, FedEx)
• Construction site supplies
• Agricultural sensors
• Insurance adjustors
• Government inspectors
• Real Estate
• Equipment management
• Incorporating XML
• Replacing EDI

28
m-Business

• m-Business
• e-Business using wireless devices with Internet
  access
• B2C marketplace
• Increased conveniences for consumers
• Frequent, small transactions
• Receiving news, sports scores, e-mail, coupons
  and advertisements
• B2B marketplace
• Salespeople can access product databases and
  place orders
• Address customer needs immediately
• Ordering and billing will be conducted remotely

29
M-business Services Location Tracking

• Location tracking
• Can be used for navigation, such as GPS (Global
  Positioning System) devices installed in cars
• Can be used by shipping companies to track
  delivery trucks, giving customers more accurate
  tracking information and expected delivery time
• Can also be used for targeted marketing

30
Location-based Services

• 911 locator
• Government mandate
• Triangulate position from 3 towers
• Advertising
• Impulse buying, walking past a store
• Discounts
• Mapping and Directions
• Weather forecasts

31
M-business Services Global Positioning System
(GPS)

• Developed by the United States Department of
  Defense
• Uses satellites to track a users position
  (vertical and horizontal), velocity and the time
  in their location
• Six circular orbits (four satellites per orbit),
  five ground stations and three antennas
• Triangulation
• Three (of four) satellites are used to determine
  the latitude, longitude and altitude of the
  receiver, the fourth satellite is used to check
  for errors in the triangulation

32

• Internationalization

33
Global e-Business

• Opportunity for expansion
• An ambitious and expensive investment that does
  not guarantee increased revenue
• Potential global businesses must review expected
  revenues vs. expected cost
• Linguistic and cultural barriers

34
Internationalization and Localization

• Internationalization (I18n)
• Restructuring the software used by your
  e-business so that it can process foreign
  languages, currencies, date formats and other
  variations involved in conducting business
  globally
• Compatible with 16-bit character encoding systems
  (Unicode) and other computing standards
• Localization (L10n)
• Includes the translation and cultural adaptation
  of your sites content and presentation
• Online translation services
• Enterprise Translation Server Alis Technologies

• Logos AltaVistas Babelfish

35
Internationalization and Localization

• Online translators are not 100 percent reliable
• Consider the context of the message in a foreign
  culture
• Translate META tags and text within graphic
  images
• Adaptation of site layout to accommodate
  translations
• Color scheme and logo translation
• Conversion rates
• Examples Ikea, United Airline, Yahoo Amazon

36
Internationalization and Localization

• Consider downloading capabilities in foreign
  markets
• Global content
• Refers to information and design that requires
  translation, but is essentially the same for all
  cultures
• Regional content
• Product and marketing information that is usually
  written once in English and then adapted for
  various markets
• Local content
• Material on specific regional pages that appears
  only on that Web site, such as regional
  promotions, pricing, delivery and store or office
  locations

37
Internalization creates widespread upheaval
increases consumer power
Pre-technology
Adoption
Internalization

Doing
old
things in

Doing
things in

new
Doing
old
things in
new
ways

ways


new
ways
old
Wal-Mart combines
Mom-and-pop
Strip malls aggregate
all stores under one roof,
stores on
mom-and-pop stores
mom-and-pop stores
Main Street
Auto
close their doors
Consumer gain lower
Consumer gain
prices, better selection,
convenience
Massive power leap
more convenience
Incremental power shift
Amazon.com and Wal-Mart
Retailers
Amazon.com and eBay
forced to adopt new
benchmark
challenge Wal-Mart by
Net
business models like
Wal-Mart

s
creating Web versions of
demand aggregation and
distribution model
traditional businesses
personal stores
Consumer gain lower
Consumer gain ability to
prices, better selection,
set prices and drive
more convenience
production
38
Choosing an International Market

• Focus time and money in one or two key markets
  initially
• Research competitors and visitors in foreign
  markets
• When choosing an international market consider
• The number of people online
• Internet usage growth rates
• Per capita income
• The consumers expectations of your business
• Resources
• Global Reach (http//global-reach.biz/globstats/in
  dex.php3
• Projections (http//glreach.com/eng/ed/art/2004.ec
  ommerce.php3)

39
Obtaining a Local Internet Address

• .com domain name is the most universally
  recognized address on the Web
• Domain-name registration in foreign countries is
  often complex
• May require owning a trademark or incorporating
  your business in the foreign country
• Organizations offering domain name registration
  services
• NetNames

40
Internalization is different from adoption

• Adoption layers a new technology onto existing
  behavior. People do old things in new ways.
  Adults are adopting the Net.
• Internalization drives changes throughout
  society. People do new things in new ways. Young
  consumers are the first generation to internalize
  the Net.

41
Internalization changes the rules

• Rule 1 Information is everywhere
• Consumers will access dynamically generated
  information from multiple devices
• Rule 2 Personal information has value
• Consumers will exchange personal information for
  free or customized products and services
• Rule 3 Choice is a human right
• Suppliers will create customized products and
  services in response to individual consumers
  demands
• Rule 4 There is such a thing as a free lunch
• Companies will develop loss-leaders to gain
  exposure to consumers and drive alternate sources
  of revenue
• Rule 5 Building trust doesnt require
  face-to-face interaction
• Consumers will build trust and seek advice online

42
Internationalization Impact on Payment Systems

• Offer alternatives to credit-card payment
• In many countries, credit cards are far less
  common than in the United States
• In Europe, cash-on-delivery is a common form of
  payment
• Giros Wire transfers between bank accounts
• Direct Debit
• e-Payment service from an American company called
  EuroDebit
• Enables electronic debits from European
  customers bank accounts to be sent to merchants
  bank accounts for a small fee
• Other Methods
• smart card, e-cash

43
Ecommerce Future Trends

• Where do we go from here?
• - E-commerce is not dead It is arising from

• the pause that refreshes
• - The price is not right
• - International The next frontier

44
Next Session Highlights

• Final Exam
