perspective

1
perspective

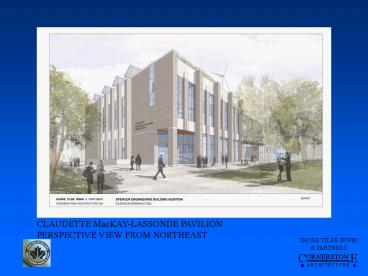

CLAUDETTE MacKAY-LASSONDE PAVILION PERSPECTIVE
VIEW FROM NORTHEAST
2
vision
CLAUDETTE MacKAY-LASSONDE PAVILION PROJECT
VISION APRIL 2007
3
INDIGENOUS LANDSCAPING
PERMEABLE PAVING
BICYCLE RACKS
RAINWATER CISTERN
HORIZONTAL GROUND LOOP
CLAUDETTE MacKAY-LASSONDE PAVILION SITE PLAN
4
EXPERIMENT AREA
GREEN ROOF AREA
ACCESS WALKWAY
WIND TURBINE
PV ARRAYS
CLAUDETTE MacKAY-LASSONDE PAVILION ROOF PLAN
5
COURTYARD LOBBY LINK TO SPENCER ENGINEERING BUIL
DING
ENTRY EXHIBITION AREA
LOUNGE AREA
ATRIUM DISPLAY AREA
STUDENT WORKSHOPS
CLAUDETTE MacKAY-LASSONDE PAVILION GROUND FLOOR
PLAN
6
DAYLIT UPPER LOBBY AREAS
GRADUATE WORKROOMS AROUND PERIMETER
FACULTY OFFICES OFF UPPER ATRIUM LOBBY
DAYLIT UPPER ARTIUM AREA
CLAUDETTE MacKAY-LASSONDE PAVILION FIRST FLOOR
PLAN
7
OFFICES OFF UPPER ATRIUM AREA
PERIMETER LAB MODULES
BRIDGE TO THOMPSON ENGINEERING BUILDING
CLAUDETTE MacKAY-LASSONDE PAVILION SECOND FLOOR
PLAN
8
OFFICES OFF UPPER ATRIUM AREA
PERIMETER LAB MODULES
CLAUDETTE MacKAY-LASSONDE PAVILION THIRD FLOOR
PLAN
9
CLAUDETTE MacKAY-LASSONDE PAVILION LEED SCORECARD
10
HIGH EFFICIENCY LIGHTING
CLERESTORY WINDOWS
GLAZED ELEVATOR LOBBIES
LIVING WALL/PLANTER
GROUND FLOOR DISPLAY SPACE
CLAUDETTE MacKAY-LASSONDE PAVILION PERSPECTIVE
VIEW OF ATRIUM
11
Great Ideas, Green Ideas

• 21 student projects from all departments
• Student group designs incorporated in CMLP
• LED light fixtures
• Geothermal energy
• Green roof
• Permeable paving
• Rain water collection cistern
• Wind and solar energy
• Many more

12
Next Steps

• CMLP as a teaching and research lab

CEE
ECE
MME
CBE
13
Next Steps

• CMLP as a teaching and research lab
• Energy
• Water
• Waste
• Structural
• Others

14
Next StepsCMLP as a teaching and research lab

• Energy
• measure geothermal system performance
• measure green roof performance
• monitor wind turbine and solar array performance
• measure energy use by floor area
• measure wind speed direction
• temperature, humidity moisture sensors embedded
  in walls glazing
• HVAC data for units serving corresponding
  locations
• sensors on full extent of ductwork from AHU incl.
  typical lab, office, etc
• sensors for flow rate, pressure temperature for
  one ERV unit
• information on LED lighting
• make electrical distribution system visible
• Water
• track water useage by floor area in one
  washroom (all fixtures)
• measure water quality
• measure precipitation evaporation from roof
• measure courtyard runoff
• monitor groundwater levels around building
• wastewater treatment using circulating fluidized
  bed
