Title: Customized Air Cooled Heat Exchanger

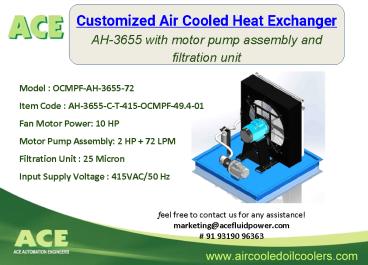

1Customized Air Cooled Heat Exchanger AH-3655 with
motor pump assembly and filtration unit
Model OCMPF-AH-3655-72 Item Code
AH-3655-C-T-415-OCMPF-49.4-01 Fan Motor Power
10 HP Motor Pump Assembly 2 HP 72
LPM Filtration Unit 25 Micron
Input Supply Voltage 415VAC/50 Hz
feel free to contact us for any
assistance! marketing_at_acefluidpower.com 91
93190 96363
2Customized Air Cooled Heat Exchanger AH-3655 with
motor pump assembly and filtration unit
This oil cooling system will be connected to a
suction and delivery port of your tank.
Oil will be pumped by a 72 LPM pump which is
coupled to a 2 HP motor, through the oil
cooler to maintain the temperature of the oil
in the hydraulic system.
The oil will be circulated continuously, even if
the hydraulic system is shut down.
feel free to contact us for any
assistance! marketing_at_acefluidpower.com 91
93190 96363
3Customized Air Cooled Heat Exchanger AH-3655 with
motor pump assembly and filtration unit
Model OCMPF-AH-3655-72 Item Code
AH-3655-C-T-415-OCMPF-49.4-01 Filtration Unit
25 Micron Input Supply Voltage
415VAC/50 Hz Fan Motor Power 10 HP
Motor Pump Assembly 2 HP
72 LPM
This oil cooling system will be connected to a
suction and delivery port of your tank.
Oil will be pumped by a 72 LPM pump which is
coupled to a motor, through the oil cooler to
maintain the temperature of the oil in the
hydraulic system.
The oil will be circulated continuously, even if
the hydraulic system is shut down.
Note Also available in Fans with Flame Proof
Motors and non standard voltage and frequency.
