Importance of Revit families in BIM Modeling projects

1

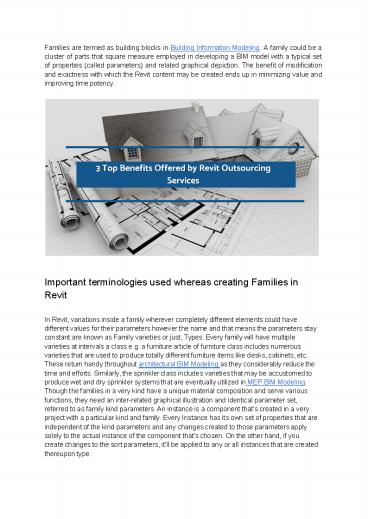

Families are termed as building blocks in
Building Information Modeling. A family could be
a cluster of parts that square measure employed
in developing a BIM model with a typical set of
properties (called parameters) and related
graphical depiction. The benefit of modification
and exactness with which the Revit content may be
created ends up in minimizing value and
improving time potency.
Important terminologies used whereas creating
Families in Revit In Revit, variations inside a
family wherever completely different elements
could have different values for their parameters
however the name and that means the parameters
stay constant are known as Family varieties or
just, Types. Every family will have multiple
varieties at intervals a class e.g. a furniture
article of furniture class includes numerous
varieties that are used to produce totally
different furniture items like desks, cabinets,
etc. These return handy throughout a rchitectural
BIM Modeling as they considerably reduce the
time and efforts. Similarly, the sprinkler class
includes varieties that may be accustomed to
produce wet and dry sprinkler systems that are
eventually utilized in MEP BIM Modeling. Though
the families in a very kind have a unique
material composition and serve various
functions, they need an inter-related graphical
illustration and identical parameter set,
referred to as family kind parameters. An
instance is a component thats created in a very
project with a particular kind and family. Every
Instance has its own set of properties that are
independent of the kind parameters and any
changes created to those parameters apply solely
to the actual instance of the component thats
chosen. On the other hand, if you create changes
to the sort parameters, itll be applied to any
or all instances that are created thereupon type.
2

• Different types of Revit Families and their uses
• Revit Content may be generally classified into 3
  kinds
• System Families
• System parts are planned in Revit and are wont to
  produce basic elements of a building e.g. roofs,
  walls, floors, pipes ducts, etc. System settings
  that have an effect on the project surroundings
  also are System Families e.g. varieties for
  grids, levels, viewports, drawing sheets, etc.
  These will neither be loaded from external files
  nor be saved to locations external to the
  project. However, the parameters may be changed
  and new varieties may be created using component
  properties.
• Loadable Families
• These are external .rfa files that are imported
  or loaded into Revit projects. They are
  extremely customizable in nature and most
  ordinarily created and changed. In cases
  wherever there are multiple varieties, the
  utilization of kind catalogues permits loading
  solely the desired type for the project. Theyre
  used to create Building components, System
  parts, Annotation parts
• In-Place Families
• These are distinctive elements that are created
  for parts that are specific to a selected
  project and restricted to be utilized in that
  project solely. These parts are hooked into the
  geometry of the model. E.g. special trim, custom
  gutters, inbuilt or customized piece of
  furniture, etc.
