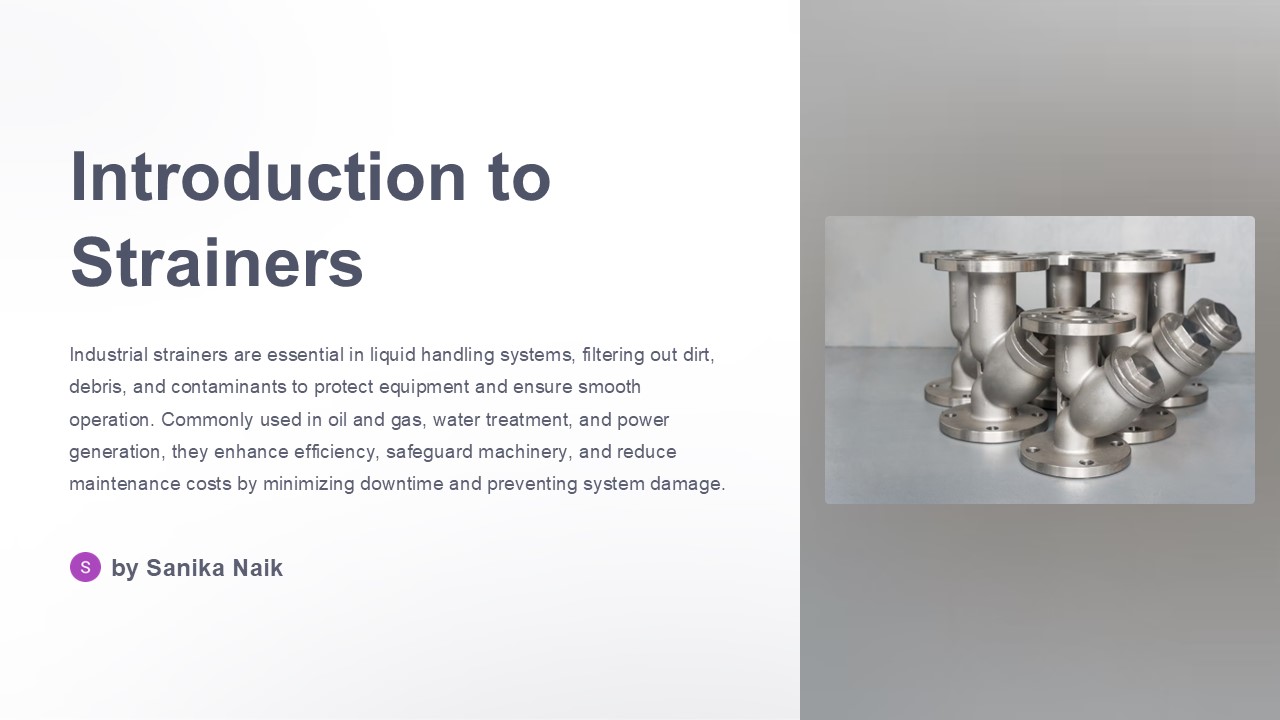

Introduction to Strainers
Industrial strainers are essential in liquid
handling systems, filtering out dirt, debris, and
contaminants to protect equipment and ensure
smooth operation. Commonly used in oil and gas,
water treatment, and power generation, they
enhance efficiency, safeguard machinery, and
reduce maintenance costs by minimizing downtime
and preventing system damage.
by Sanika Naik
2
Y-Type Strainer
Y-Type Strainers are commonly used in piping
systems due to their simple design and efficient
operation. They are designed with a Y-shaped
body, allowing for easy removal of the strainer
basket for cleaning or inspection.
Key Features
Simple design, easy maintenance, effective
filtration, and a variety of sizes available.
Common Applications
Water treatment systems, industrial pipelines,
and oil gas refineries.
3
Basket Strainer
Basket Strainers feature a cylindrical body and a
removable basket that holds a mesh or perforated
screen to capture particles. They are designed
for applications requiring high flow rates and a
large filtration area.
Key Features
Common Applications
Advantages
Large capacity, replaceable baskets, high flow
rates, and minimal pressure drop.
Municipal water systems, industrial processes,
and chemical plants.
Efficient filtration, easy maintenance, and
versatility in various industries.
4
T-Type Strainer
T-Type Strainers are characterized by their
T-shaped body, allowing for easy access to the
strainer basket for cleaning or inspection. The
design also includes a valve for isolating the
strainer during cleaning and maintenance.
Step 1
Fluid enters the strainer through the inlet.
Step 2
Solid particles are trapped by the strainer
basket.
Step 3
Cleaned fluid exits through the outlet.
5
Duplex Strainer and Temporary Strainer
Duplex Strainers provide continuous filtration by
using two strainers that alternate between
operation and cleaning. Temporary strainers are
portable units used for short-term applications,
such as during construction or maintenance.
Duplex Strainers
Temporary Strainers
1
2
Ensure continuous operation by allowing for
cleaning and maintenance without interrupting
flow.
Provide a convenient solution for temporary
filtration needs.
