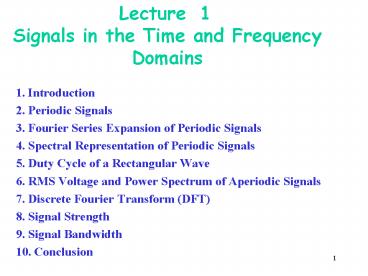

Lecture 1 Signals in the Time and Frequency
Domains
  • 1. Introduction
  • 2. Periodic Signals
  • 3. Fourier Series Expansion of Periodic Signals
  • 4. Spectral Representation of Periodic Signals
  • 5. Duty Cycle of a Rectangular Wave
  • 6. RMS Voltage and Power Spectrum of Aperiodic
    Signals
  • 7. Discrete Fourier Transform (DFT)
  • 8. Signal Strength
  • 9. Signal Bandwidth
  • 10. Conclusion

2
Introduction
  • The tasks of communication is to encode
    information as a signal level, transmit this
    signal, then decode the signal at the receiving
    end.
  • An analog signal varies continuously with time,
    and has an infinite number of possible signal
    levels.
  • A discrete signal changes only once during a
    certain time interval. The signal value during
    this time interval is one sample, and the
    interval length is called the sampling period.
    Each sample has a infinite number of possible
    signal levels.
  • A digital signal is discrete, but each sample has
    a finite number of possible signal levels. The
    limited number of levels means that each sample
    transmits a single information. It also means
    that each sample can be represented as digital
    data, a string of ones and zeroes.
  • A digital signal is preferred in computer
    communications because computers already store
    and process information digitally.

3
  • In an analog signal, noise are added to the
    signal during transmission. The received signal
    will never be identical to the original signal.
  • A digital signal will still be subject to
    noise, but the difference between signal levels
    (an 0101 and an 0110) will be sufficiently
    large so that the receiver can always determine
    the original signal level in each sampling
    period. The regenerated, so that the received
    digital data is an exact replica of the original
    digital data.
  • Analog to digital conversion reduces the
    amount of information of the signal by
    approximating the analog signal with a digital
    signal. The sampling period and number of levels
    of the digital signal should be selected in order
    to capture as much information of the original
    signal as possible




4
A
A
f
1/T
A
T0
f
1/T
A
T
1/T
f
5
  • Analog and digital signals in the time and the
    frequency
  • domain.
  • The time domain is simply the signal level
    expressed as a function of time.
  • The frequency domain is comprised of amplitude
    and a phase for an infinite number of cosine
    functions. These correspond to the superposition
    of an infinite number of sinusoidal waveforms in
    the time domain.
  • To convert from the time domain to the frequency
    domain, we take the Fourier transform of the time
    domain representation.
  • The frequency domain representation of a signal
    does not change with time, but the Fourier
    transform for the signal over an infinitely long
    time period would be impossible. Instead, we
    assume that the signal has some finite duration,
    over a sampling interval
  • 1. We assume that outside of the sampling
    interval, the signal repeats itself, so that the
    signal is periodic.
  • 2. An alternative assumption is that the
    time-domain signal has a zero value outside of
    the sampling interval, so that the signal is
    aperiodic.

6

  • A periodic signal satisfies the condition
  • Period of the signal.
  • Aperiodic. signals
  • An even function S (t) S (-t)
  • Symmetric.
  • The phase of the signal.

7
Fourier Series Expansion of Periodic Signals
  • a. There are a finite number of discontinuities
    in the period T.
  • b. It has a finite average value for the period
    T.
  • c. It has a finite number of positive and
    negative maxima in the
  • period T.

f0 Fundamental frequency, n f0
Frequency of each term an , bn Fourier series
coefficients
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
Duty Cycle of a Rectangular Wave
The duty cycle
12
ndinteger, An0
13
RMS Voltage Values and Power Spectrum
  • The RMS voltage measures the signals power it
    is the square root of the average value of the
    voltage squared, taken over one period of the
    signal

For a sinusoidal signal
14
Aperiodic Signals
  • The Fourier transform of an aperiodic signal can
    be found from integration of the time-domain
    waveform

X( f ) has continuous variation in both the
amplitude spectrum and the phase spectrum.
Because each point in the amplitude spectrum of
an Aperiodic signal is infinitesimally higher in
frequency than the last point, the voltage at any
point in the amplitude spectrum is
infinitesimally small. The output of the
Fourier transform is therefore not voltage, but
the power spectral density of the waveform. This
value is the voltage of a single spectral line
whose power equals the amount of power contained
an a 1 Hz wide frequency band with constant
spectral density.
15
(No Transcript)
16
  • Match the fundamental frequency of the signal to
    the sampling interval. All points on the digital
    spectrum analyzer output will be multiples of the
    inverse of the sampling interval. If the
    sampling interval contains an integer number of
    signal periods, the harmonics of the periodic
    signal will appear as sharp peaks on the
    amplitude spectrum.
  • A rectangular wave with a frequency of 2000
    Hz must be sampled with a Digital Spectrum
    Analyzer that samples at a rate of 500,000
    samples per second. How many samples should be
    taken if the sampling interval must contain 15
    complete waveforms?


17
Signal Strength
  • In signal analysis we frequently want to compare
    the power of two signals.
  • The decibel (dB) provides a convenient way to
    measure the difference of two power levels.
  • It measures the logarithmic power difference
    between two signals.
  • If a signal is attenuated by 2 dB in one stage of
    transmission, then is attenuated by 5 dB in the
    next stage of transmission, we the two decibel
    measurements to find the total attenuation of the
    two stages, in this case 7 dB.
  • Signal power equals to waveform power DC power

18
Signal Bandwidth
  • A baseband signal is any signal which transmits
    data in the form of the amplitude of the signal
    voltage. The bandwidth of a baseband signal is
    measured from zero frequency upwards to fmax .
  • A modulated signal transmits data by modifying
    the amplitude, frequency, or phase of a carrier
    signal. The bandwidth of a modulated signal is
    measured from the minimum frequency fmin  (below
    the carrier frequency) upwards to fmax  (above
    the carrier frequency).
  • The full bandwidth of a signal is the frequency
    range that includes all spectrum lines of the
    signal.
  • The absolute bandwidth (ABW) of a signal is the
    width of the spectrum that contains 98 of the
    signals total power.
  • The effective bandwidth (EBW) (bandwidth) of a
    signal is the width of the spectrum that contains
    at least 50 of the signals total power. This
    is the part of the signal whose power is within 3
    dB of the complete signal.

19
(No Transcript)
20
Conclusion
  •   A. one-to-one correspondence exists between
    the representation of a given signal in the time
    domain and in the frequency domain.
  • B. The character of the power spectrum allows us
    to determine if a signal is aperiodic or periodic
    in the time domain. A periodic signal has a
    discrete frequency spectrum while an aperiodic
    signal has a continuous spectrum.
  • C. The amplitude spectrum and phase spectrum
    together allow us to reconstruct the signal in
    the time domain. If only the amplitude spectrum
    or power spectrum is available, it is possible to
    make some conclusions about features of the
    signal in the time domain.
  • ? D. The presence of a DC offset means that the
    signal has a constant component, and the entire
    signal is shifted along the voltage axis in the
    time domain.
  • ? I. If all harmonics divisible by a number n
    are missing for a rectangular periodic signal,
    the rectangular signal in the time domain has a
    duty cycle d equal to 1/n .
  • F. The power spectrum allows us to determine the
    full bandwidth and the effective bandwidth of the
    signal.
  • G. Bandwidth refers to the range of frequencies
    represented in an analog signal. The bandwidth
    of an analog signal determines the maximum
    sampling rate for a digital signal that is
    accurately transmitted via this analog signal.

21
Error Analysis
  • A. The absolute error of a measurement is the
    difference between the ideal value xtheory of a
    quantity (the measurement predicted by theory)
    and the experimentally obtained value xmeasured .

Cr Criteria of Accuracy The relative error is
the error of each measurement divided by the
theoretical value of that measurement.
For parts of the experiment where several
measurements are taken at once (a power spectrum
measurement on the spectrum analyzer), you should
compare the error of each measurement against the
maximum theoretical value in that set of
measurements (generally the theoretical amplitude
of the first harmonic).
