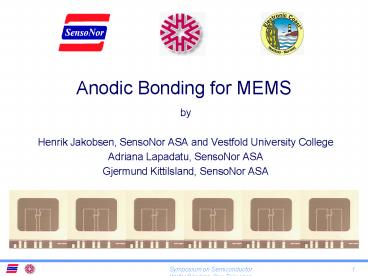

Anodic Bonding for MEMS

1
Anodic Bonding for MEMS

• by
• Henrik Jakobsen, SensoNor ASA and Vestfold
  University College
• Adriana Lapadatu, SensoNor ASA
• Gjermund Kittilsland, SensoNor ASA

2
Early work

• Patents and publications
• 1968 Anodic bonding Pomerantz, Mallory Co
  (US 3,397,278)
• 1968 Bonding electrically conductive metals to
  insulators Pomerantz et al., Mallory Co (US
  3,417,459)
• 1971 Bonding an Insulator to an Insulator
  Pomerantz et al., Mallory Co (CA 894986)
• 1972 Low-temperature Electrostatic
  Silicon-to-Silicon Seals using Sputtered
  Borosilicate Glass Brooks and Donovan, Research
  Triangle Institute and Hardesty, NASA
• 1977 Application of field-assisted bonding to
  the mass production of silicon type pressure
  transducer G. Wallis, P. R. Mallory Co (US
  4,121,334) (first silicon diaphragm on glass)
• 1979 Semiconductor pressure sensor having
  plural pressure sensitive diaphragms and method,
  Suzuki et al., Hitachi (US 4,322,980) (first
  etched silicon diaphragm sensor on glass)
• Previous review work
• E. Obermeier Anodic Wafer Bonding (1995)

3
The mechanism of the anodic bonding
4
Bonding current and the Sodium depleted layer
- Thermal activation energy for the sodium ions
0,97 /- 0,14 eV
Bonding at 1000 V
Bond temp 400 OC
5
The bonding pressure for bulk bonding
Bonding pressure 20000 atm with bonding on bare
silicon at 800V
Bonding at 1000 V and 400 degC
Bonding at 400 degC
6
Requirements for successful wafer bonding

• High surface quality (roughness, bow, warp)
• High surface cleanliness (particles, film
  contamination)
• Minimum temperature to mobilize ions
• Temperature uniformity
• Minimum voltage
• Voltage uniformity
• Bond front control to avoid trapping of gas
  (electrodes)

7
Anodic bonding glass

• Key requirements
• Good matching of TCE to silicon
• Mobile ions at bonding temperature (Li, Na, K
  ....) below 450 degC
• High quality polished surface
• Availability/low cost
• Main glasses (alkali-borosilicate glasses)
• Corning Pyrex 7740
• Schott Borofloat
• Hoya SD-2
• Other glasses and ceramics
• Corning 7070 (for bonding on thick oxide, nitride
  etc...)
• Hoya PS100 (experimental material for low
  temperature, high etch rate...)
• Ceramics (Example AREMCOLOX 502-1100)

8
Building of structures on bonding glass

• Holes and cavities
• Ultrasonic drilling
• Powder blasting
• Laser ablation
• Wet etch
• Electrochemical etching
• Dry etch

• Metal interconnections
• Surface interconnects and electrodes
• Via metallization (difficult)

Shallow cavities
Deep cavities
Via holes
9
Bond quality, failure modes and characterization

• Bond quality
• Mechanical strength
• 10 - 200 MPa (typ. 20 - 50)
• depend on material, area, test method etc
• glass and silicon usually breaks before bond
  interface
• Residual gas (pressure)
• 0,1 - 50 kPa
• O2 released from the process
• dependent on process, cavity geometry etc
• Hermetic seal (leakage)
• Limited by gas diffusion through the materials
  (glass)

• Failure modes
• Voids due to particles
• Voids due to trapped gas
• Non-bonded areas due to wafer bow and warp
• Alignment errors
• Characterization methods
• Monitoring process parameters (Temp, Pressure,
  Voltage, Current)
• Visual inspection
• Pull/shear test (destructive)
• Bow measurements
• Q-factor of resonators for test of residual gas
  pressure
• Accelerated testing of leakage by bombing in
  He/H2/air at elevated temp etc...

10
Typical defects seen by visual inspection
Larger void caused by particle (leaky)
Small void around thin residual oxide (no leak)
11
Bonding of wafers with flexible structures
Non-bonding overload protection

• Electrostatic collapse
• Bonding for structure

Non-bonding overload protection by use of shield
electrodes
12
Anodic bonding and sticking
Design for no touching during bonding if
possible!

• Type of effects Solution
• During anodic bonding
• Anodic bonding Silicon and glass must not touch
• Micro-welding and other Avoid materials that can
  react at inter-metallic reactions bonding
  temperature
• Compression bonding Avoid use of soft materials
• Contamination Cleaning procedures
• In use
• Electrostatic force Avoid insulators at touch
  points, (charges in/on insulators ) design
  of small touch areas
• Molecular bindings (H, OH -...) Surface
  treatment / small area
• Clamping Design

13
Electrical Effects from Bonding
The Na contamination problem by purpose

Bonding on Silicon over pn-junctions
Bonding on Silicon near surface pn-junctions
These effects must be taken into account for when
bonding to electrical active surfaces
14
Electrical feed-through methods

• Thin metallic crossings
• low resistivity
• difficult to assure hermetic seal
• oxide in the bonding area
• hazard of defective lines after
• bonding
• Diffused surface conductors
• hermeticity preserved
• bonding-related electrical effects
• high resistivity
• polarity limitations (pn-junction)

15
Electrical feed-through methods (cont.)

• Diffused conductors/thin film
• hermeticity preserved
• flexibility
• bonding-related electrical effects
• high resistivity
• polarity limitation (pn-junction)
• Diffused buried conductors
• hermeticity preserved
• robustness against charging/ions
• high resistivity
• polarity limitations (pn-junction)

16
Anodic bonding and process integration
Micro-packaging on the wafer level allow
low-cost 2-chip solutions
17
Standard process for piezoresistive devices
Before bonding
After bonding
Final device with pressure sensor and
accelerometer on the same chip
Final device after sawing of top glass
18
Key features in the design of the process
Anodic bonding against silicon
Buried resistors
High doping concentration in epitaxial layer
Buried conductors
Etch-stop against pn-junction
19
Typical surface roughness in the bonding areas
340 micron
Measurement area
Typical values RMS 2nm PP 10nm
4nm
- 4nm
900 micron
Result from optical measurement method (Veeco
WYKO)
20
Typical results from die share testing
Die
Typical breakage Top glass Bottom
glass Glass 22 80
Glass/Silicon 42 20 Silicon
40 0

• Top glass
• average 40E6 N/m2

• Bottom glass
• average 35E6 N/m2

Die size 1.85 x 1.85 mm - Top seal 0.11 mm2 -
Bottom seal 0.21 mm2

• Acceptance criteria 1
• gt 10E6 N/m2
• Acceptance criteria 2
• gt 20E6 N/m2
• (if breakage in seal)

min 2
min 1
21
Alternative designs for piezoresistive pressure
sensors
Relative type (bottom inlets)
Absolute type (bottom inlet)
Relative type (inlets from both sides)
Relative type (top inlets)
Absolute type (top inlet)
22
Summary

• Anodic bonding of bulk glass to silicon is a
  mature technology already used in a large variety
  of industrial products
• Anodic bonding for MEMS, including triple-stack
  bonding is available from industrial foundries as
  well as university type labs
• SensoNor is the first company to develop anodic
  bonding on electrically active surface

23
Some future directions
Some areas where more basic work should be done

• Basics of the bonding mechanisms
• Thin-film bonding
• Reduction and control of residual gas pressure in
  cavities (below 0,1 kPa)
• Characterization of sticking forces and methods
  for reduction of sticking
• Flexible methods for electrical interconnects for
  sealed cavities
• Robust designs to limit ionic contamination/charge
  effects when bonding on/near electrical active
  devices
