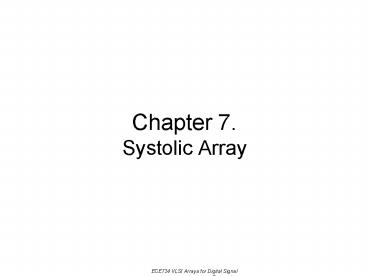

Chapter 7. Systolic Array
2
Systolic Array

• Systolic array is an array processor architecture
  that consists of
• An array of identical processing units (PUs) or
  nodes
• Inter-connected with localized data links
• that performs
• Pipelined computation between PUs with
• Identical computation at each node

• Motivations
• Low communication overhead
• Easy to design
• Suitable for VLSI implementation
• Applications
• Implementation of algorithms that can be
  formulated in nested loops
• Numerical linear algebra
• Signal and image processing

3
Systolic Design Methodology

• Algorithm mapping
• Individual PUs are assigned with indices in the
  index space
• Assignment
• Each node in the iteration DGs in the index space
  will be mapped onto a PUs index
• Scheduling
• Each node in the iteration DGs will be assigned
  with an integer schedule indicating the time step
  it is to be executed.

• Linear Mapping Methodology
• In general, the assignment and scheduling is a
  nonlinear operation.
• However, if the iteration DG corresponds to a RIA
  algorithm, the assignment and scheduling can be
  accomplished by linear projection of each node in
  the DG onto the index space of the PUs, and be
  assigned with a schedule.

4
Formulate Algorithm in RIA format

• Single Assignment Transformation
• Remove unnecessary false data dependency between
  iterations
• Accomplished by introducing a new variable or
  array of variables to hold intermediate values
  during computation.
• May impose unnecessary dependence constraint
  during mapping.

• Pipelined data duplication
• Replace data broadcasting that requires global
  data bus
• Without affecting the algorithm performance
• Accomplished by introducing an intermediate
  variable that propagated among index nodes in the
  DG
• May impose unnecessary dependence constraint
  during mapping

5
Example FIR Filter
y(4)
y(5)
y(6)

• FIR filter formulation
• Single assignment format with broadcasting data
• Do n1,2, . . .
• y1(n,-1)0
• Do k0,K
• y1(n,k)y1(n,k-1)
• h(k)x(n-k)
• enddo
• y(n)y1(n,K)
• Enddo

k
y(3)
h(4)
y(2)
h(3)
y(1)
h(2)
y(0)
h(1)
h(0)
n
x(0)
x(1)
x(2)
x(3)
x(4)
x(5)
x(6)
6
Example FIR Filter

• Regular Recurrent eq.
• y1(n,-1)0, n 0,1,2,
• h1(0,k)h(k), k0,,K
• n0,1,2,, and k0,,K
• y1(n,k)y1(n,k-1)
• h1(n,k)x1(n,k)
• h1(n,k)h1(n-1,k)
• x1(n,k)x1(n-1,k-1)
• y(n)y1(n,K), n0,1,2,
• Leads to SIDG

7
Linear Schedule and Assignment

• A schedule t(i) is a mapping from index i in the
  DG to a positive integer t (time index)
• A time index is a quantum of time that takes to
  execute the operations of an iteration.
• A linear schedule maps all indices i on the same
  hyper-plane to the same time index.
• It can be characterized by the normal vector of
  the equi-temporal hyper plane s.

• An assignment is a mapping from an index i in the
  DG to an index n in the systolic array processor
  index.
• The processor index space has lower dimension
  than that of the DG.
• A linear assignment assigns all indices along the
  same vector d in the DG to the same processor
  (index).

8
Algebraic Formulation of Linear Assignment and
Schedule

• Entries of the assignment vector d and scheduling
  vector s must be integers. Their dimensions are
  the same as the DG indices.
• Processor space the orthogonal subspace of d.
  Its entries are also integers.

• PE Assignment by index node mapping
• n PT i
• Scheduling by arc (dependence vectors) mapping
• ?(e) of delays on the edge of DFG
• e edges of the systolic array
• v dependence vector

9
Affine Transformation

• Processor space P span the subspace where the
  processor array index space lies.
• For any DG index i, it is assigned to the PE
  whose index is
• p(i) Pi po
• where po mini?DG Pi is an offset.
• If iteration i and j are both assigned to the
  same PE, then i j kd where k is an integer.

• The iteration i is scheduled to be executed at
• t(i) sTi to
• time step where
• to mini?DG sTi is an offset.
• If iteration i and j are both assigned to the
  same PE, the schedule duration is
• t(i) t(j) sT(i j) k(sTd).
• Thus, when k 1, sTd is the iteration interval
  between execution of two successive iterations on
  the same PE.

10
Finding Processor Space Matrix

• Problem
• Given projection vector d, how to find processor
  space P such that ?PPT ?ddT I? where ?, ?
  are scaling constants such that P and d have
  integer entries.
• Solution
• Find n ? n-1 matrix V, s.t.
• Convert entries of V into integers to yield the P
  matrix.

• Find matrix V
• Compute
• Factorize M matrix
• this can be accomplished using LU factorization,
  eigenvalue or singular value decomposition of M.
• Scale entries of the V matrix so that all entries
  are integers

11
FIR Filter Linear Mapping Example

• Dependence matrix
• Choose s 1 1T
• Choose d 1 0T. Then, P0 1T.
• PE Assignment

• Linear Schedule (arc mapping)
• Input/Output Mapping

12
FIR Linear Mapping
y(0) 2(1) y(2) ?
y(4)
y(5)
y(6)
k
D
2D
y(3)
h(4)
d
D
D
2D
y(2)
D
h(3)
D
2D
s
y(1)
h(2)
D
D
2D
y(0)
h(1)
D
D
2D
h(0)
D
n
x(0)
x(1)
x(2)
x(3)
x(4)
x(5)
x(6)
x(0) x(1) x(2) ?
13
FIR Linear Mapping
y(0) 2(1) y(2) ?
Weight stays, input pipelined, long cr. path for
output y
D
D
d
D
D
D
s
D
D
D
D
D
x(0) x(1) x(2) ?
14
FIR Linear Mapping
y(0) 2(1) y(2) ?
Weight stays, input pipelined, long cr. path for
output y
3D
D
2D
d
3D
D
2D
3D
D
s
2D
3D
D
2D
3D
D
2D
x(0) x(1) x(2) ?
15
Requirements for Valid Linear Assignment and
Schedule Vectors

• Causality constraint
• s scheduling vector
• v any dependence vector.
• If iteration i has data dependence on iteration
  j, then t(i) gt t(j).
• is permitted if v is a dependence
  vector due to localization of a broadcast
  variable

• Resource conflict avoidance
• s scheduling vector
• d assignment vector
• Note that sTd is the iteration interval between
  two successive iterations that are executed on
  the same PE. If sTd 0, a resource conflict will
  occur.

16
Example Sorting
i

• Input x(i), output m(i)
• m(i)? x(i), m(i)?m(j) for i lt j.
• RIA formulation (m1(i,i) -?)
• for i1N,
• x1(i,1)x(i)
• for j1i,
• m1(i1,j)max(x1(i,j),m1(i,j))
• x1(i,j1)min(x1(i,j),m1(i,j))
• if iN,
• m(j)m(N1,j)
• end
• end
• end

x11 x21 x31 x41
m11 m21 m31 m41
m51
x12 x22 x32 x42
m22 m32 m42 m52
x23 x33 x43
m33 m43 m53
x34 x44
m44 m54
j
x45
sort734.m
17
Sorting 3 different Mappings
i
x11 x21 x31 x41
m11 m21 m31 m41
m51
D
x12 x22 x32 x42
m22 m32 m42 m52
Insertion sort
D
x23 x33 x43
m33 m43 m53
D
x34 x44
m44 m54
D
j
D
x45
D
D
D
D
D
D
D
D
D
D
D
D
Bubble sort
D
Selection sort
18
Optimal Design Method

• Total computation time Tcomp
• p, q node indices in the DG
• Sampling period Ts
• Constrained optimization formulation
• Find d and s to
• minimize Tcomp or Ts
• Subject to sTv gt 0, sTd gt 0.

19
Multi-Projection

• Since dim(d) 1, so the dimension of processor
  space (the dimension of systolic array) n-1
  where n is the dimension of the DG.
• If the dimension of the systolic array is smaller
  than n-1, multi-projection can be applied.
• Each projection will introduce a new scale in
  time.
• 1st each delay D 1 iteration
• 2nd each delay ? M iterations

• Example

D
D
D
D
D
s
?
D?
d
D
D
D
s
d
20
Comparison of schedule

• After first projection
• Execution time 4D with D 4 t.u. where the
  execution time of one iteration (one node) is 1
  t. u.

• After second projection
• Execution time 3D4t
• D4 t.u., t 1 t. u.,
• D 4t
• Same as if s 1 5T with D 1 t. u.

3D3t
3D
3D
2D3t
2D
2D
D
D3t
D
0
0
t
2t
3t
21
Multi-projection

• New presentation
• The logical processor space after earlier linear
  mapping can be regarded as an iteration DFG
  (IDFG) where each node represents the execution
  of an iteration, and a delay D represent
  dependence on previous iteration.
• IDFG contains delays and cycles.
• An instance graph (IG) can be created from IDFG
  by removing all edges with delays.

• Node mapping same
• Arc mapping delays on each dependence edge
• ?D of delays in previous mapping
• (sTv)? additional delay in new time scale after
  second level multi-projection

22
Illustration of Multi-projection

• Remove arcs with delays to create instant graph

• Project instant graph along new projection
  direction and add appropriate delay on edges of
  the IG.
• Put back edges with delay with corrections due to
  the new delay unit.

DFG
?
IG
D
?
D?
