Energy Scavenging

1

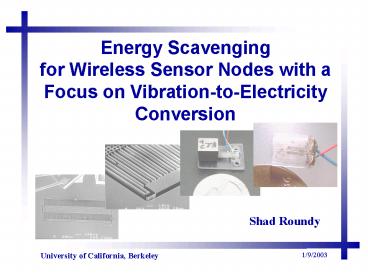

Energy Scavenging for Wireless Sensor Nodes with
a Focus on Vibration-to-Electricity Conversion
2
Motivation and Objective

• Scaling of IC technology is far outpacing that of
  power supplies.
• Example At an average power consumption of 100
  mW, you need more than 1 cm3 of lithium battery
  volume for 1 year of operation.
• Goal To investigate power scavenging
  technologies that can provide an average of 100
  mW/cm3 indefinitely.

3
Batteries, Solar, and Vibrations
4
Simple Model for Conversion
z transducer displacement y magnitude of input
Power in terms of magnitude and frequency of
input.
Power assuming w wn.
Power in terms of acceleration magnitude.
5
Three Ways to Convert Vibrations
Capacitive Change in capacitance causes either
voltage or charge increase.
Inductive Coil moves through magnetic field
causing current in wire.

• Piezoelectric
• Strain in piezoelectric
• material causes a charge
• separation (voltage across
• capacitor)

Amirtharajah et. al., 1998
6
Three Types of MEMS Converters
In-plane, gap closing type Capacitance changes
by changing gap between fingers.
In-plane, overlap type Capacitance changes by
changing overlap area of fingers.
Out-of-plane, gap closing type Capacitance
changes by changing gap two large plates.
7
MEMS Capacitive Converters
MEMS in-plane gap-closing test structures. Built
to test the minimum allowable gap between
fingers, and the viability of assembling JFETS or
diodes to the die.
8
MEMS Capacitive Converters
Another full size test device with tungsten proof
mass attached
9
Piezoelectric Conversion
33 Mode
F
Constitutive Equations
31 Mode
d strain s stress Y Youngs modulus d
piezoelectric coeff. D electrical
displacement e dielectric constant E electric
field
10
Piezoelectric Benders
System Equations
Where k equivalent spring stiffness of beam
m attached proof mass bm damping
coefficient a1 geometric constant a2
geometric constant d31 piezoelectric
coefficient tc thickness of one
piezo-ceramic layer VR voltage across load
11
Test Results and Model Verification
Optimized Prototype - overall size lt 1cm3 -
total length lt 1.5cm
12
Test Results and Model Verification
Optimized Prototype - overall size lt 1cm3 -
total length lt 3cm
13
Real Circuit for Piezo Converters
14
Test Results Capacitive Load Circuit
Power vs. time
Voltage vs. time
15
Piezo Generator with Power Circuit
Piezo Generator
Super Capacitor
Simulated Load
Power circuit
Vibrometer
16
Generators to be Embedded in Tires
4mm
Clamp
Proof Mass
Piezoelectric Bimorph
17
Test Results with a Resistive Load
18
Power Output vs. Load Resistance
19
Test Results Capacitive Load
Voltage Across 3.3 mF (top) and 0.8 mF (bottom)
Load Capacitor vs. Time
20
Solar Power Train Circuitry
Wires to load
2 cm
21
Solar Power Circuit Schematic
22
Solar Power Train Test Results
Charge up profile of battery from solar cell.
Solar cells place 12 inches under a 60 watt desk
lamp.
23
Conclusions

• Scavenging the power from commonly occurring
  vibrations for use by electronics is both
  feasible and attractive for certain applications.
• Piezoelectric converters appear to be the most
  attractive for meso-scale devices with a maximum
  demonstrated power density of approximately 200
  mW/cm3 vs. 80 mW/cm3 for capacitive MEMS devices.
• Both solar powered and vibration powered systems
  are being actively pursued and will be up and
  running shortly.
