Title: TCP Trunking: Design, Implementation and Performance


1

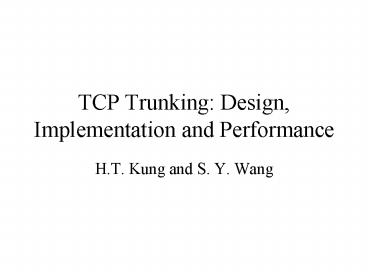

TCP Trunking Design, Implementation and
Performance
  • H.T. Kung and S. Y. Wang

2
Overview
  • A TCP trunk is an aggregate traffic stream
  • IP flows with same routing and QoS treatment
  • Any number of TCP and/or UDP flows, so called
    user flows
  • On top of a layer-2 circuit or MPLS switched path
    (Whats that?)
  • Trunks must only be implemented in the end host
  • Implements TCP congestion control by using a
    management TCP connection
  • Data transmission and congestion control are
    decoupled
  • User flows transmit at a rate determined by
    management connection

3
Properties of TCP trunks
  • Guaranteed and elastic bandwidth
  • Beside a guaranteed minimum bandwidth (GMB), a
    trunk can grab additional bandwidth, when it is
    available
  • Immediate and in-sequence forwarding
  • Lossless delivery
  • Possible because of decoupling of data and
    control
  • Needs div-serv like modifications of the routers
  • However, user packets may still be dropped at the
    trunk sender
  • Aggregation and isolation
  • Less state information in routers
  • UDP flows become TCP friendly
  • Fair share of bandwidth among different sites, if
    every site has one trunk

4
Implementation - Management TCP
  • Every TCP trunk is associated with one or more
    management TCP
  • A management TCP connection is a standard TCP
    connection, i.e. it uses the standard TCP
    congestion algorithm
  • Purpose controls the rate at which user packets
    are sent
  • Management packets consist only of the TCP/IP
    header, no payload
  • Every management packet is followed by at most
    VMSS (virtual maximum segment size) bytes of user
    data
  • Therefore the rate of user packets is controlled
    by the management TCPs congestion control
    algorithm

5
Implementation - the User Flows
  • A TCP trunk has a tunnel queue
  • User packets of all flows are put into the tunnel
    queue
  • Each time a management packet was sent, user
    packets worth at most VMSS bytes are transmitted
    without a TCP/IP header, but with the layer-2
    circuits header
  • The trunk does not retransmit data, this is up to
    higher layers

6
TCP Trunking and Guaranteed Minimum Bandwidth
  • Assume admission control and reservation
    guarantees a minimum bandwidth of X bytes /
    millisecond
  • When a timer expires, the trunk send packets
    under the control of a leaky bucket filter
  • Objective For any time interval Y milliseconds,
    send X Y bytes, if there are enough packets in
    the tunnel queue
  • If there are still packets in the tunnel queue,
    the trunk sends them under the control of the
    management TCP
  • The trunk will guarantee a minimum bandwidth, but
    will also grab available network bandwidth

7
Router Buffer Considerations
  • One FIFO queue, that user and management packets
    will share
  • To prevent loss of user packets
  • When the queue builds up, drop management packets
    early enough
  • Sufficient space to deal with control delay and
    new trunk arrivals
  • Dropping policy
  • Management packets will be dropped, when the
    queue exceeds the threshold HP_Th
  • HP_Th ? N, where N is the expected number of
    TCP flows and ? is the size of the TCPs
    congestion window to avoid frequent timeouts

8
Router Buffer Considerations Contd
  • Size of the buffer (three types of packets)
  • Management packets HP_BS HP_Th HP_SzHP_Sz
    size of management packets
  • User packets UP_BS_TCP HP_BS (VMSS / HP_Sz)
    N VMSS
  • User packets form the guaranteed bandwidth flows
    UP_BS_GMBGuaranteed flows occupy the fraction ?
    of the link bandwidth ? UP_BS_GMB / (HP_BS
    UP_BS UP_BS_GMB)? UP_BS_GMB (HP_BS
    UP_BS_TCP) ? / (1- ?)
  • Adding all up yields the required buffer
    sizerequired_BS (HP_BS HP_BS (VMSS/HP_Sz)
    N VMSS) 1 / (1 - ?)where HP_BS ? N
    HP_Sz
  • Required buffer size is a function of ?, ?, N,
    HP_Sz, and VMSS

9
Trunk Sender Buffer Considerations
  • A trunk buffers data whenever they arrive at a
    higher rate than the trunk can send them and it
    has to drop data, when the buffer is full
  • Problem The bandwidth of the trunk is not fixed
  • For the following discussion, assume that all
    user flows are TCP flows
  • Assume the trunk reduces its rate due to a
    management packet drop
  • User flows will not change their rates, since
    they have not yet experienced a loss
  • The queue fills up and eventually a users packet
    is dropped causing the users TCP congestion
    control to reduce their rates

10
Trunk Sender Buffer Considerations Contd
  • To achieve fairness, each user flow must reduce
    its rate by the same factor. This is achieved by
  • Buffer size RTTup TrunkBW, where RTTup is an
    upper bound on the user flows RTT and TrunkBW is
    the peak bandwidth of the trunk. This gives the
    user flows enough time to slow down
  • RED-like dropping scheme When a threshold is
    reached, dropping probability for a flow is
    proportional to its current buffer occupancy
  • Having dropped a packet from a flow, the trunk
    tries not to drop another packet from the same
    flow until the flow has recovered its reduced
    sending rate

11
Experiments TT1 - Basic Capabilities
  • Experimental setup
  • 2 trunks, each with 4 management TCPs, trunk
    sender buffer of 100 packets
  • Buffer size in the bottleneck router according to
    their equation
  • Link capacity 10 Mbps, link delay 10 ms
  • Greedy UDP user flows
  • Experiment a Trunks make full utilization of
    bandwidth and can share it proportional to their
    guaranteed rate
  • Trunk 1 GMB 400 KB/sec, VMSS 3000
    bytesTrunk 2 GMB 200 KB/sec, VMSS 1500
    bytes
  • Note The desired proportional sharing is
    achieved by proper setting of VMSS
  • Figure 4 shows that TCP trunk achieves this gaol

12
Experiments TT1 - Basic Capabilities Contd
  • Experiment b Trunks fully utilize bandwidth and
    can share it independent of their GMB
  • Trunk 1 GMB 200 KB/sec, VMSS 3000
    bytesTrunk 2 GMB 400 KB/sec, VMSS 1500
    bytes
  • Note The GMBs of the trunks are exchanged
    compared to experiment a
  • Figure 5 shows that the goal is achieved

13
Experiments TT1 - Basic Capabilities Contd
  • Experiment c Trunks guarantee lossless
    transmission if router configured properly
  • Compare calculated required_BS with the actual
    buffer occupancy in the bottleneck link
  • Trunk 1 GMB 200 KB/sec, VMSS 15000
    bytesTrunk 2 GMB 400 KB/sec, VMSS 1500
    bytes
  • ? 8, ? 0.5, N 8, VMSS 1500, and HP_Sz
    52 ? required_BS 222,348 bytes
  • The maximum measured buffer occupancy is 210,360
    bytes? the calculated required_BS is tight
  • Question If we have trunks with different VMSS,
    which one should we use?

14
Experiment TT2 - Protecting Interactive Webusers
  • 10 short-living web-server flows from one site
    share the bottleneck link (1200 KB/s) with 10
    greedy ftp flows from two sites
  • Their notion of fair share is that every site
    should get an equal amount of bandwidth, i.e. 600
    KB/s
  • With out trunks, the web flows get 122 KB/s and
    the mean delay is 1,170 ms due to their
    short-living nature
  • With trunks, i.e. the 10 web flows assigned to
    one trunk, 5 ftp flows to the second trunk and 5
    ftp flows to the third trunk, the web flows get
    238 KB/s and the mean delay is 613 ms
  • 100 improvement by using trunks

15
Experiment TT3 - TCP-flows against UDP-flows
  • Trunks can help protect TCP flows against UDP
    flows
  • Ring topology with five routers which are
    configured to be the bottleneck routers
  • Throughput and delay of the TCP flow are measured
  • Four experiments
  • Experiment Throughput Delay
  • (a) One small TCP flow 380 451
  • (b) One small TCP flow plus competing on-off
    53 2541 UDP flow
  • (c) TCP flow with trunk and UDP flow with
    trunk 270 508
  • (d) Same as (c) plus two long-living greedy TCP
    252 664 flows
