Title: T-76.115 Project Review


1

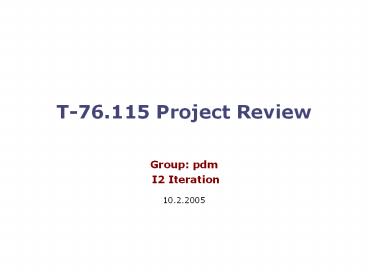

T-76.115 Project Review
  • Group pdm
  • I2 Iteration10.2.2005

2
Agenda
  • Project status (20 min)
  • achieving the goals of the iteration
  • project metrics
  • Effort
  • Quality
  • Risks and changes to the project
  • Work results (15 min)
  • presenting the iterations results
  • demo
  • Discussion and questions (10 min)
  • Additional slides not shown in the presentation
  • Introduction to the project (slides 3-5)
  • Time usage per worktype (13)
  • Used work practices (slide 23)

3
Introduction to the project
  • Background and business problems
  • Product development (PD) projects conducted in a
    company network
  • Management of the lead-times of product programs
    becoming even more challenging!
  • Establishing a network collaboration is
    laborious, slow and expensive
  • How to manage processes through the network?
  • E.g. How to manage engineering changes?
  • Integration of IT systems takes time and is very
    expensive
  • Takes typically moths, if done at all
  • Every integration is very laborious, reuse seldom
    possible
  • SMEs cannot be integrated to the network (no
    systems, costs)

Source SoberIt NetSetup
4
Introduction to the project
  • NetSetup vision
  • Product development network setup can be done in
    days in relation to
  • PDM system integration allowing quick,
    affordable integration including SMEs
  • Standard inter-company processes for Engineering
    Change (EC) and Product Data Management (PDM)

Source SoberIt NetSetup
5
Introduction to the project
  • The goal of this project
  • To provide IT tool for inter-company PDM
    integration
  • A basic tool (Ruletti) exists, but this projects
    goal is to make a more sophisticated tool that
    distributes the right documents automatically to
    the right product development partners

6
Status of the iterations goals
  • The goals defined in the implementation 1
    iteration plan
  • Goal 1 Implement all the must (defined in use
    cases) functions of Rulex
  • 8 functions completed
  • 13 functions partially completed
  • 6 functions not completed
  • Goal 2 Implement the selected use cases
  • Partially completed
  • GUI and the functionalities (methods) have been
    implemented separately, they still need to be
    integrated
  • Goal 3 Create a draft version of the user's
    manual
  • OK
  • Goal 4 use the personal software practices
    (SEPA) to facilitate the software development
  • Usability testing
  • OK, the GUI was successfully tested with an
    industry representative
  • Static methods
  • OK, code review session was successfully held
  • Design patterns
  • Explicit utilization not clear
  • Meeting practices

7
Status of the iterations deliverables
  • Updated project plan
  • OK
  • Updated requirements document
  • OK
  • Updated technical specification
  • OK
  • Updated test cases
  • OK
  • Test report and test log
  • OK
  • User's manual (draft)
  • OK
  • Progress report
  • OK
  • Updated SEPA diaries
  • OK, can be found at TikiWiki

8
Realization of the tasks (1/2)
9
Realization of the tasks (2/2)
10
Realized working hours by person
Realized hours in iteration I2
  • Räisänen and Toukoniitty had a lot of hours
    allocated to them but they could not reach their
    target
  • Näkki and Heimonen exceeded their effort
    estimates a little

11
Working hours by person
Plan in the beginning of this iteration
Latest plan
  • Five project members are performing according to
    the plan
  • When measuring the total effort spent, we are
    running behind of the projects schedule
  • Can AR catch up all the hours in the last
    iteration?

12
Cumulative effort compared to the plan
  • Cumulative effort compared to the planned effort
    is shown in the figure above
  • The updated plan is colored green
  • ? The gap in total effort couldnt be reached

13
Time usage per worktype so far in the project
  • The most time consuming worktype so far has been
    design
  • Project planning and meetings have take about one
    third of the total time spent
  • Only 11 of the time was spent programming

14
Quality metrics
Bug metrics
I1 I2 DE Total
Reported 9 50 7 3 69
Closed 3 50 0 2 55
Open 6 0 3(I1) 7 1 11
Module Critical Major Minor Trivial Origin Total
User Interface 0 0 1 0 Testing 1
Rule Engine 0 2 0 0 Testing 2
Rule Engine 0 1 2 Inspection 3
BTConnector 0 4 0 0 Testing 4
PDMConnector 0 0 0 0 Testing 0
Client/ Client Listener 0 0 0 0 Testing 0
10

15
Quality assessment
Functional area Coverage Quality Comments
User Interface 1 K Only paper prototype has been tested. No major complaints found in usability testing.
Rule Engine 2 J The logic of rule processing seems to be correct.
BTConnector 1 K More testing will be needed as new functionality is added.
PDMConnector 2 J Implemented functionality works.
Client/ Client Listener 2 K No errors found. Ready for GUI integration.
  • Code inspection of Rule Engine took 4 hours

Legend Coverage 0 nothing 1 we looked at
it 2 we checked all functions 3 its
tested Quality J quality is good K not
sure L quality is bad
16
Software size in Lines of Code (LOC)
Modules PP I1 I2 FD
PDMConnector 0 932 (COM 323) 1326 (COM 486)
EventManager 0 102 (45) 370 (114)
LogConnector 0 176 (88) 514 (206)
BTConnector 0 36 (20) 611 (255)
RuleEngine 0 13 (8) 1221 (484)
RulexClient 0 0 576 (118)
Constants Util 0 117 (61) 262 (112)
RulexObjects RulexEvents 0 269 (86) 590 (299)
Total (NCLOC COM) 0 1645 6032
Comments (COM) 0 631 2330
17
Changes to the project
  • We decided to implement the rule-engine by
    ourselves and not use an existing engine
  • Good decision because implementing rule-engine by
    ourselves did not took too much time
  • Logic of rule-engine has to be well tested
  • Changes to the GUIs logic
  • Role of manual sending changed to the basic
    drag-and-drop feature
  • Some focusing was made on the requirements
  • What PIP messages the system will support
  • We did not focus so much on the use-case driven
    process
  • Project members focused on implementing selected
    modules, functionalities and interfaces, rather
    than selected use-cases
  • Implementing one use-case requires in practice
    implementing parts of several modules. However,
    everybody cannot be experts on every modules
  • The following use-cases be easily implemented
    after all the modules have been made

18
Risks (1/2)
  • Realized risks and reactions
  • As considering research project, the
    requirements arent clear enough
  • Email communication and meetings with the
    customer
  • Design sessions with the team
  • The code is not ready, when testing starts
  • Code review in first phase
  • Functional testing when also the UI is available
  • New risk identifications and reactions
  • UI testing too late to change the UI layout
  • The change requests were still possible to
    implement
  • UI design required more resources than planned
  • Use case driven implementation doesnt work well
  • Defining the responsibilities according to
    modules
  • Common programming sessions

19
Risks (2/2)
  • Status of risk control
  • Most of the 30 controlling actions are put into
    practice
  • Tools worked well
  • No overlapping work
  • All members work actively with the project
  • Customer is participating actively
  • UI was tested with paper prototype
  • More attention could have been paid for
  • Keeping the coding deadlines
  • Pair programming

20
Results of the iteration
  • The most important substance of implementation 1
    iteration
  • implemented use cases (slide 7)
  • updated specification document (document
    delivered)
  • updated test cases (document delivered)
  • updated user interface
  • draft on the user manual (document delivered)
  • Demo

21
Status of the use-cases
  • UC-02 Create a new rule
  • Partially completed
  • GUI for rule creation wizard implemented and
    rule-engine implemented, they still need to be
    connected
  • UC-03 Edit existing rule
  • Partially completed
  • Rule-engine methods OK, UI not implemented
  • UC-04 Delete rule
  • Partially completed
  • Rule-engine methods OK, UI not implemented
  • UC-16 Instruct RosettaNet adapter to send
    documents and/or acknowledgements
  • Partially completed
  • UC-17 Receive data from RosettaNet adapter
  • Ok, but interface to the RosettaNet is not tested
  • UC-18 Receive acknowledgements from RosettaNet
    adapter
  • Partially completed, connection to the log
    database not implemented
  • UC-15 Receive event from the PDM system
  • Partially completed
  • UC-01 Login
  • OK

22
Demo
  • Now it is time for a breath-taking demonstration!
  • Login to the system
  • Manual drag-and-drop sending
  • Create a rule using wizard
  • List rules
  • Document is updated ? Rulex notifies this and
    sends the document
  • Log

23
Used work practices
  • Mandatory practices
  • Use-cases
  • Making effort estimates for use-cases is tricky
  • Use-case driven process did not work too well
    with us, in practice we had to focus on
    implementing system modules rather than use-cases
  • Time reporting
  • Use-case could have been divided into smaller
    tasks, such as designing, implementing
    functionality, and implementing GUI
  • Version control
  • CVS has worked well for the source code
  • Risk management
  • Risk may and will occur, as it was seen
  • How to control risks outside our influence?
  • SEPAs
  • Meeting practices
  • Have been in use during the whole project
  • Design patterns
  • Have been utilized though no explicit design
    patterns yet in use
  • Static methods
  • Good results from finding bugs and defects
  • Usability testing

24
