PowerPointPrsentation

1

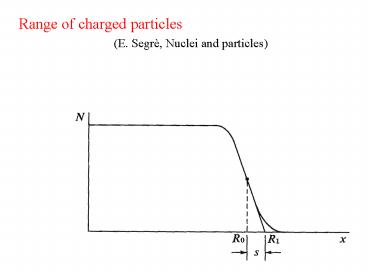

Range of charged particles
(E. Segrè, Nuclei and particles)
2
Alpha-particles in air (discovery of the
proton) (E. Segrè, Die großen Physiker...)
3
(No Transcript)
4
Bragg curves (E. Segrè, Nuclei
and particles)
5
Range of charged particles (aus C. Grupen,
Teilchendetektoren)
Muons in rock
Electrons in various materials
6
Energy loss of charged particles due to ionisation
Bethe Bloch formula
7
Energy loss of various charged particles in air
(C. Grupen, Teilchendetektoren)
8
Energy loss of minimum ionising particles
9
Contributions to the energy loss of muons in iron
(C. Grupen, Teilchendetektoren)
10
Multiple scattering of electrons (W.R. Leo,
Techniques...)
Beam broadening
Backscattering
11
Books on particle detection
G. Knoll Radiation detection (Addison
Wesley) W.R. Leo Techniques for nuclear and
particle physics experiments, a how-to
approach (Springer) C. Grupen Teilchendetektoren
(B.I. Wissenschaftsverlag)
12
Cherenkov - Effect
13
Cherenkov-radiators
14
RICH1Ring Imaging Cherenkov

• 80 m3 (3 m C4F10)
• 116 VUV mirrors (3.3 m focal length)
• 5.3 m2 VUV detectors
• MWPC CsI photon-sensitive cathodes
• 8x8 mm2 pads
• 84k channels of analog
• read-out

15
RICH-1
an event from on-line display
Photon detectors (PD) MWPCs with CsI
photocathodes (5.3 m2), 84,000 analog
read-out ch.s
VUV mirror wall, 21 m2, 116 mirrors
16
Hadron reconstruction without and with RICH
Decay N ? K K-
17
4. Particle interaction with condensed matter,
particle detection

• 4.1 Charged particles
• 4.1.1 Basic terms
• 4.1.2 Bethe-Bloch formula
• 4.1.3 Cherenkov effect
• 4.2 Photons
• 4.3 Neutrons
• 4.4 Some practical devices

18
Photons in lead (C. Grupen, Teilchendetektoren)
19
Neutrons
20
Ionisation chamber (Grupen, Teilchendetektoren)
1 electron ion pair per w ? 30eV
21
Yield of ions in a gas detector (Leo,
Techniques...)
22
Multiwire chamber (Charpak) ? position
sensitivity (Grupen, Teilchendetektoren)
23
Gas Electron Multiplier foils

• (Sauli 1995)

50 mm
(two dimensional)
2 dimensional read-out
24
Organic Scintillator (Leo, Techniques...)
lt 10 ps
ns
Very rapid fluorescence signal (a few ns) ?
timing Production of light requires 100 eV per
photon (NaI 25 eV)
25
Scintillator light guide photomultiplier (Leo,
Techniques...)
26
Measurement of time-of-flight (Grupen,
Teilchendetektoren)
e.g. also as a veto detector
27
Photomultiplier tube (Grupen, Teilchendetektoren)
Quantum efficiency of the photocathode 10 30
Amplification up to 107
28
Multichannel plate (Application light
amplifiers) (Leo, Techniques...)
Channel width 10 100 ?m Amplification 103
104 per plate
29
Energy resolution NaI-Scintillator Germanium
(Leo, Techniques...)
NaI 8 (25 eV per photon) Ge
0.15 (3 eV per photon)
30
Bubble chamber (Glaser 1952)
- liquid at 5 20 atmospheres - bubbles form
along the path of ionisation at relaxation take
photo - magnetic field for deviation of charged
particles
31
Hadronic Cascade (Grupen, Teilchendetektoren)
32
(No Transcript)
